DynaTrap DT1130SR Acre LED Mosquito-Flying Insect Trap User Manual

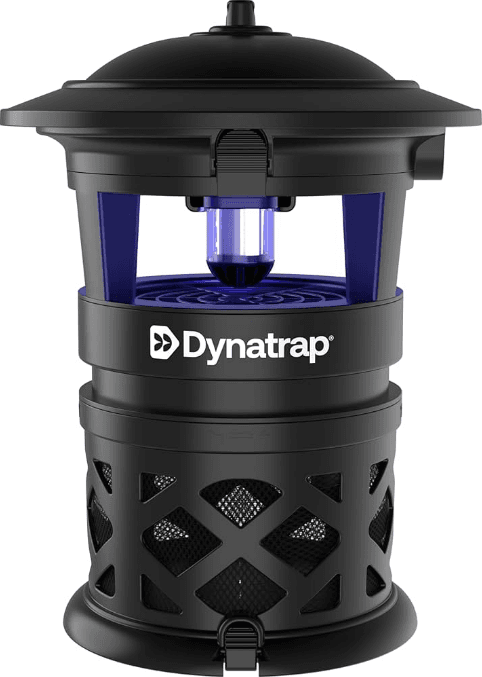

DynaTrap DT1130SR Acre LED Mosquito-Flying Insect Trap

SAFETY INSTRUCTIONS

WARNING: When using electric appliances, basic precautions should always be followed, including the following:

1. Please read all instructions before using the Dynatrap® Insect Trap and keep for future reference.
2. To disconnect, switch power to the ‘OFF’ position, then remove the plug from the outlet.
3. To reduce the risk of injury from moving parts or electric shock, always turn the unit off and disconnect the plug when not in use and before servicing or cleaning.
4. Always unplug before replacing the lamp. Replace with same type rated UV-LIGHT LED 1.8-Watt bulbs, Dynatrap® model 11020.
5. Do not position the unit near heat, gas, oil, or other flammable materials.
6. Place out of reach from children.
7. To reduce the risk of electrical shock, do not put the appliance in water or other liquids.
8. Never operate this product if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or if it has been dropped into water or other liquid.
9. Connect only to a circuit that is protected by a ground-fault circuit-interrupter (GFCI).
10. Do not insert fingers or any foreign objects into the unit while it is connected to an electrical outlet.
11. Collected insects within the unit may contribute to fire, so clean insects from the unit frequently.
12. Do not clean this product with a water spray. Do not place it where it can fall into water, or near flammable materials.
13. Do not touch the fan while in motion.
14. Do not abuse the cord- never carry or hang the unit by a cord or yank it to disconnect from the receptacle.

INSTALLATION & OPERATING INSTRUCTIONS

1. Unpack the unit. Save carton for off-season storage (if needed).
2. Hang the trap approximately 3-6 feet above the floor/ground level for optimal catch rate and easy access for dealing.
3. For best catch results, leave the unit on at all times, except when cleaning or servicing.
4. Catch rate activity will be higher at night. For the best catch results, it is recommended to keep the unit away from competing light sources.
5. It is recommended to place the unit at least 20 to 40 feet away from where people will be sitting.
6. This unit is all-weather resistant -designed for outdoor use, including rainy conditions. Intended for household and commercial, indoor and outdoor use.
7. To reduce the risk of electric shock, this appliance has a polarized plug (one blade is wider than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet. Do not change the plug in any way.
8. SERVICING OF DOUBLE-INSULATED APPLIANCES – In a double-insulated appliance, two systems of insulation are provided instead of grounding. No grounding means is provided on a double-insulated appliance, nor should a means for grounding be added to the appliance. Servicing of a double-insulated appliance requires extreme care and knowledge of the system and should be done only by qualified service personnel. Replacement parts for a double-insulated appliance must be identical to those parts in the appliance. The symbol must be identical to those parts in the appliance. A double-insulated appliance is marked with the words “DOUBLE INSULATION”, “DOUBLE-INSULATED” or the symbol:

USER MAINTENANCE INSTRUCTIONS – CLEANING

Clean the trap at least once a week to prolong the life of the unit, ensure fire prevention, and provide for more efficient operation.

1. Be sure to clean the unit once per week.
2. Unplug before cleaning.
3. For weekly cleaning, twist the cage clockwise, and remove the damper by grasping the crossbar near the edge of the damper. Pull up firmly. Remove any buildup from the inside of the retaining cage and fan with a brush (included). Replace the damper, snap firmly into place.
4. For major cleaning, remove the screws securing the fan housing to the light housing. After removing the screws, gently pull the fan housing away from the light housing. Using a soft brush, remove dirt and debris from the light housing. Once the cleaning process has been completed, align the screw holes in the fan housing with the screw holes in the lighting unit and tighten the screws to the base of the lighting unit.
5. When replacing the retaining cage, DO NOT press/push against the screen windows.

REPLACING BULB

Replace With Dynatrap UV-LIGHT LED Bulb #11020. The UV-LIGHT LED light bulb life expectancy is approximately 20,000 hours (or about 2.25 years).

1. UNPLUG UNIT, and allow bulb to cool before replacing.
2. Push lid latch on the top of the trap and lift lid.
3. Cover the bulb with a cloth to protect your finger and hand. Grasp the bulb (with your hand and fingers protected by the cloth) and gently pull the bulb from the socket.
4. Remove any debris from the lamp socket with a brush before inserting the new bulb.
5. Close and securely latch lid.

HOW THE DYNATRAP® INSECT TRAP WORKS

Flying insects are attracted to the unit by UV light. The fan then pulls the insects into the screened base, trapping them until they dehydrate and die. Press the release button on the basket to discard the insects into the trash.

TROUBLESHOOTING

LIMITED WARRANTY

DYNAMIC® guarantees to the original purchaser that this product is free from defective materials and workmanship. This warranty is limited to the remedy of any defective part for a period of one year. Retain your original receipt os proof of purchase. This warranty does not apply to the light bulb, nor to, in our judgment, misuse or abuse. If this unit has been altered, no warranty is in force. This warranty does not apply if this unit is purchased outside the United States, excluding Canada and Mexico. In no case shall DYNAMIC be liable for any accidental, punitive, consequential, or any damages. other damages of any kind for breach of this or any other warranty, expressed or implied, whatsoever. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation or exclusion may not apply to
you. This warranty gives you specific legal rights, and you may also have other rights that vary from state to state.

FOR HOUSEHOLD AND COMMERCIAL, INDOOR AND OUTDOOR USE

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

CAUTION: Changes or modifications not approved by the party responsible for compliance could void uthe ser’s authority to operate the equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant fo part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and radio frequency energy and, if not installed and used per the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference fo radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
