EasySMX X15 PC Gaming Controller User Manual

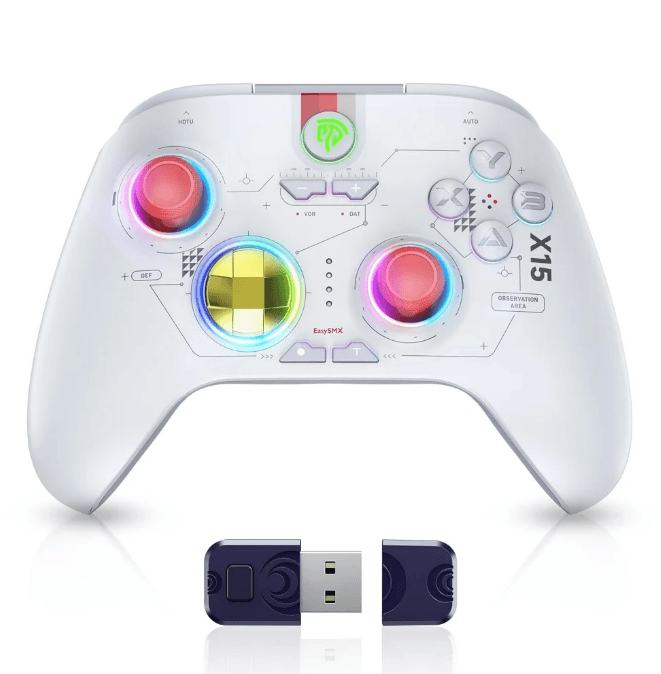

EasySMX X15 PC Gaming Controller

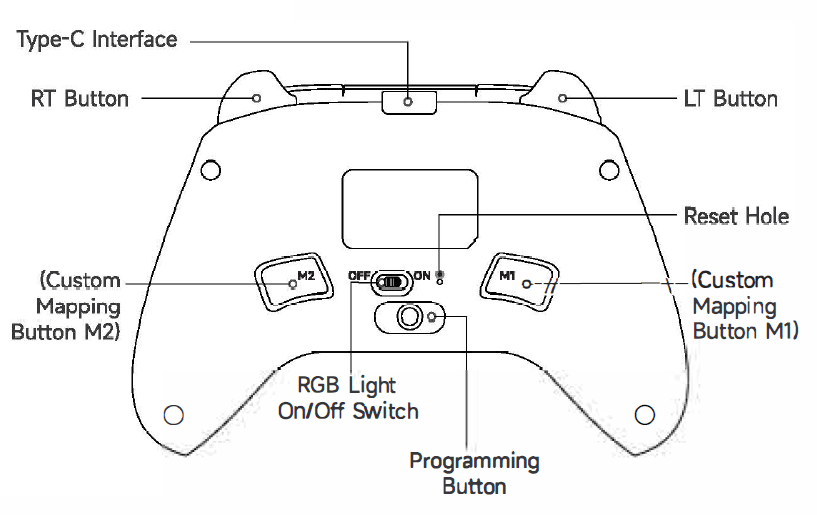

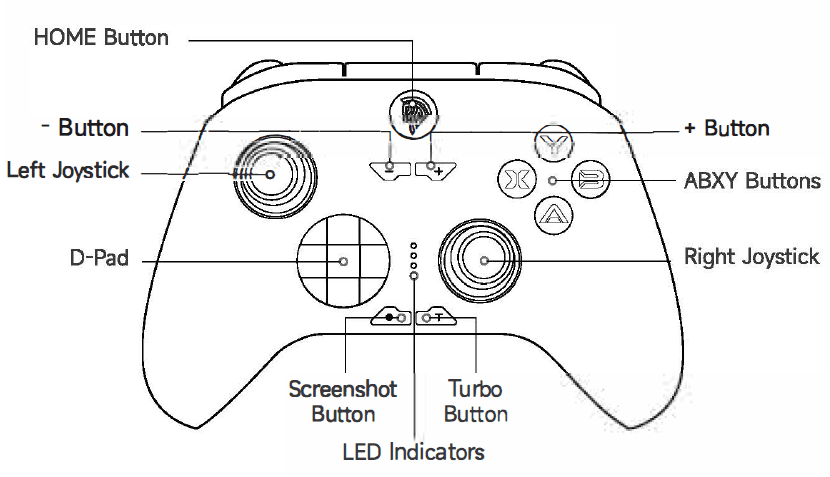

Schematic Diagram

Controller Power On/Off

• Power On: Short-press the HOME button to power on the controller.
• Power Off: Long-press the HOME button for 5 seconds to power off the controller.

2.4G Wireless Connection to PC

1. Insert the receiver into the USB port of the PC.
2. With the controller powered off, click the HOME button. The controller’s LED indicators will flash, indicating that it has entered pairing mode.
3. The LED indicators (LED2+LE03+LED4) will remain on, indicating that the connection is successful.
   [Note] If the controller fails to pair with the receiver, you can perform a forced pairing.
   1. Insert the receiver into a USB port on your computer, press the button on the receiver once briefly (it will flash quickly),
   2. Then, power on the controller by pressing and holding the Home button for 3 seconds.
      The controller’s LED indicators will flash quickly, and when they become solid, the controller will vibrate briefly, indicating a successful pairing.
      [Note] When connecting to a pc through the 2.4G USB receiver, you can switch mode between XInput/switch/dinput modes by long-pressing the ·-· + “+ ” keys for 6 seconds.

Wired Connection to PC

Wired Connect the controller to the computer’s USB port using a data cable. The LED indicators (LED1+LED4) will remain on, indicating that the connection is successful.

Bluetooth Connection to PC

1. Find the Bluetooth in the computer settings menu — “Add Bluetooth or Other Devices” page.
2. With the controller powered off, long-press the “X” and “HOME” buttons for 3 seconds until the LED indicator (LED1 +LED4) flashes, then release to enter pairing mode.
3. In the computer’s Bluetooth settings, search for “Xbox Wireless Controller for pairing and connection. The LED indicators (LED1 +LED4) will remain on, indicating that the connection is successful.

Connecting a PC in Switch Mode

With the controller powered off, press down the right joystick and hold it, and connect to the PC via a USB data cable.

Connecting SWITCH

1. On the SWITCH main interface, click “Controller” ➔ “Change Grip/Order”.
2. With the controller powered off, long-press the HOME button for 3 seconds. The LED indicators will flash quickly, entering pairing mode. After 3-5 seconds, the LED indicator will remain on, indicating successful connection.

Connecting an Android Device

1. With the controller powered off, long-press the “A” + “HOME” buttons for 3 seconds until the LED indicators LE2+LED3 flash, then release to pair the controller.
2. Open the Bluetooth settings on the Android device and search for “EasySMX X15” for pairing. The LED indicators (LED2+LED3) will remain on, indicating a successful connection.

Connecting IOS Device

1. With the controller powered off, long-press the “X” and “HOME” buttons for 3 seconds until the LED indicator (LED1+LED4) flashes, then release to pair the controller.
2. Open the Bluetooth settings on the iOS device and search for “Xbox Wireless Controller‘ for pairing. The LED indicators (LED1 +LED4) will remain on, indicating success.

ABXY Key Swap Setting

Simultaneously press “B” + “-” + “+ ” 3 keys. The function of the ABXY key can be switched between PC button layout and Switch button layout.

Macro Programming Setting

Click the Programming Button, the controller enters programming mode when the LED 2 and LED 3 light up; then press the ML button once and then press the desired programmed button, such as the A or AB button, then press ML again to save the settings successfully.

Lighting Setting

• RGB Light On/Off
  • Toggle the RGB Lights Switch to turn on/off the RGB lights.
• Light Mode Switching
  • Press “-” “+ “D pad up• button to adjust lighting to “Colortur mode
  • Press “-” “+ “D pad Down” button to adjust lighting to “Steady” mode.
• Color Adjustment
  • Press “-” + “D pad Left” to adjust lighting color in a Positive direction.
  • Press “-” “+ “D pad Right” to adjust the lighting color in a Negative direction.

Clear Macro Programming Setting

Long-press the Programming SET Button for 5 seconds to clear all macro programming settings.

TURBO Setting

Manual Auto-fire

Press T + A for the first time: Hold down the A button, and A will achieve continuous trigger.

Automatic Auto-fire

Press T + A for the second time: click the A button, and A will achieve continuous trigger.

Cancel Auto-fire

Press T + A for the third time: The continuous trigger function will be cleared.

Note: Press and hold the Turbo button for 5 seconds to clear the Turbo function for all buttons.

Turbo Speed Adjustment

Turbo + “+”button increases the auto-fire speed; Turbo + “-“button reduces the auto-fire speed.

Motor Vibration Setting

Hold down the “T’ key and simultaneously move the left 3D joystick up/down to adjust vibration.

Charging Indicator

Charging while powered off

All LED indicators flash slowly, and when fully charged, all indicators turn off.

Charging in the working state

The current mode light flashes slowly, and when fully charged, the current mode light remains on.

Product Specifications

• Model Number: X15
• Battery Capacity: 1000mAh
• Charging Current: 400mA
• Operating Current: 60mA
• Operating Temperature: 5-45°C

Safety Information

Before using and operating the device, please read and follow the precautions below to ensure optimal device performance and to avoid dangers or illegal situations.

1. Use the device within a temperature range of 0°C to 35°C and store the device and its accessories within -10°C to 40°C. Extreme temperatures may cause device malfunction.
2. The device and its accessories may contain small parts. Keep them out of reach of children to prevent accidental damage or choking hazards.
3. Avoid exposing the device and its accessories to rain or moisture to prevent fire or electric shock hazards.
4. Keep the device and its batteries away from fire, high temperatures, and direct sunlight.
5. Do not throw batteries into fire, disassemble, drop, crush, or modify them, and avoid inserting foreign objects. Do not immerse batteries in water or other liquids, and avoid external impacts and pressure on batteries to prevent leakage, overheating, fire, or explosion.
6. Do not replace batteries by yourself to prevent damage that may lead to overheating, fire, or personal injury.
7. Do not disassemble or modify the device (including replacing built-in batteries) and accessories without authorization, as this will void the warranty.
8. Dispose of the device, batteries, and other accessories properly according to local regulations. Improper battery disposal may lead to an explosion.
