RoHS Earbuds Pairing WSG-T3 Wireless Earbuds
Operating Manual

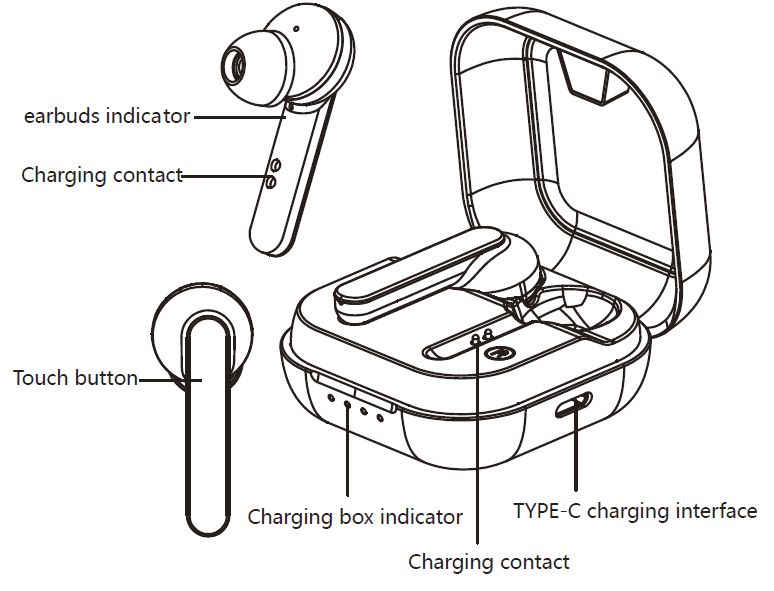

Product Overview
Packing list:
- A. TWS Bluetooth earbuds 1 pair (1 charging case)
- B. earbud caps (large, medium, small) 1 set each
- C. Type-C charging cable 1 piece
- D. Operation instructions 1 copy
Basic Features
|
Touch button | On | User may turn on the earbuds after opening the charging case * When there is a pairing record, the earbuds will be re-connected to the device to which it is connected last time after being picked up from the charging case and turned on. If the reconnection fails, it will enter the Bluetooth pairing mode |
| Off | In the “On” state, user may turn off the earbuds after putting it into the charging case and closing the cover | |
| Play/Pause | The user can play/pause music after turning on the music player and clicking the touch button on the left or right ear | |
| Previous | In the process of playing music, the user may switch to the previous track after double-clicking the “touch button” on the left ear | |
| Next | In the process of playing music, user may switch to the next track after double-clicking the “touch button” on the right ear | |
| Answer | In the connected mode, the user may answer the call after clicking “touch button” (either “touch button” on the left or right ear) | |
| Hang up | During call, the user may hang up after clicking “touch button” (either “touch button” on the left or right ear) | |
| Reject | When there is an incoming call, double-click the “Touch key” (on either left earbud or right earbud) to reject the call |
| Wake-on -voice | In standby or music mode, the user may start voice assistant (either “touch button” on the left or right ear) by pressing and holding “touch button” for 2-3 seconds and releasing after hearing the “beep” sound. * Require mobile phone support. |
Bluetooth Pairing and Connection

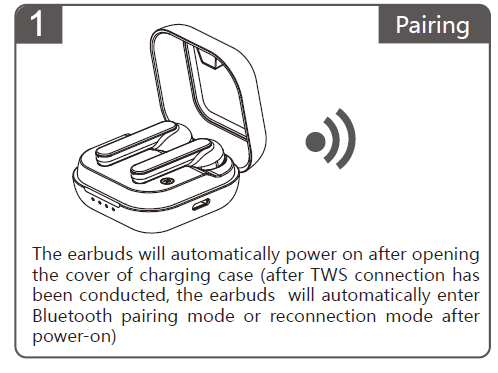

- A. During the first connection, the earbuds will automatically power on and pair after the T3 charging case is opened, and the main ear will automatically enter the Bluetooth pairing mode in case TWS pairing is completed successfully after 5 seconds.
- B. Turn on the mobile phone and Bluetooth, search for Bluetooth devices, search for “Willful T3” and click “Willful T3” for pairing and connection; after successful connection, the mobile phone will display that “Willful T3” has been connected. At this time, a user may listen to the music or call in the mobile phone through the Bluetooth earbuds.
- C. User may control the functions of answering, hanging up, previous track and next track through the touch button of Bluetooth earbuds.
Indicator
Bluetooth indicator of earbuds
| Status | Tone |
| On | White indicator is on for 3 seconds |
| Off | No LED indicator |
| dual-pairing mode? | White indicator is flashing quickly |
|
Bluetooth pairing state | Main earbud: white indicator flashes once every 3 seconds |
| Auxiliary earbud: white indicator flashes once every 10 seconds | |
| Clear pairing record | White indicator is on for 2 seconds |
|
Connected and standby state | Main record: white indicator flashes once every 10 seconds |
| Auxiliary record: white indicator flashes once every 10 seconds | |
| Charging | No indicator on earbuds (the indicator of charging case is on according to the dump energy) |
| Low battery alarm | White indicator flashes once every 2 seconds |
dump the energy indicator of the charging case
| Status | Indicator |
| When the residual power is 0% – 25% | The first white indicator is on |
| When the residual power is 25% – 50% | The first and second white indicators are on |
| When the residual power is 50% – 75% | The first, second, and third white indicators are on |
| When the residual power is 75% – 100% | The four white indicators are on |
Charging indicator of the charging case
| Status | Indicator |
| Charging with the power of 0% – 25% | The first while indicator is slowly flashing |
| Charging with the power of 25% – 50% | The first white is on and the second white indicator is slowly flashing |
| Charging with the power of 50% – 75% | The first white indicator is on, the second white indicator is on and the third white |
| Charging with the power of 75% – 99% | indicator is slowly flashing The first white indicator is on, the second |
| Fully charged | and the third white indicator is on and the fourth white indicator is slowly flashing The four white indicators are on |
TTS English Prompt Tone
| Prompt tone | Power on | Power off | Pairing | connected | Disconnected | Battery_Low |
Charging
- In case of T3 low-power alarm, please immediately put the earbuds into the charging case to charge. The charging time is 2 hours. When the earbuds is being charged, the indicator of the charging case will display the current power of the charging case. When the earbuds is fully charged, the indicator of the charging case will go out.
- Charging connection
- Please connect the Type-C joint of the charging cable to the Type-C charging interface of the charging case and the USB joint to the USB charger (car charger, travel charger, computer USB, etc.).
Product Specifications
| Bluetooth specifications | Bluetooth 5.0 |
| Frequency range | 2.402-2.480GHz |
| Supporting protocol | HFP, HSP, AVRCP, A2DP |
| Chip Solution | AB1536U |
| Decoding method | SBC AAC |
| Range of application | Up to 10 meters |
| Battery capacity | Earbuds: 3.7V 40mAh / Charging case: 3.7V 420mAh |
| Net weight | 46.6g (earbuds: 4.3g * 2; charging case: 38g) |
| Dimensions | Earbuds: 17.1 * 23.8 * 43.1mm Charging case: 53.5 * 53.5 * 28mm |
Notes and Q & A
A. How to connect? What should I do if re-connection fails? What should I do if only one earbud is working normally?
- After T3 is successfully connected to your mobile phone, it will automatically connect to your mobile phone every time you turn it on. If re-connection failed or only one earbud is working normally, you need to put the earbuds in the charging case, close its cover and keep for 5 seconds, and then open the charging case for connection.
B. How to clear the pairing record?
- After the earbuds is turned on, you may press the touch key for three times to clear the pairing history. After the pairing history is successfully cleared, the earbuds indicator will be on for 2S and then enter the left and right ear pairing state again. (This function can only be used when the earbuds work abnormally,
with only a single earbud being connected. You need to disconnect the device when clearing the pairing. ）
C. What devices can I use to charge?
- All car chargers, travel chargers, and computer USBs with a DC voltage of 5V and current of 1A can be used to charge.
For more relevant manuals/Blogs visit ManualsLibraryy
RoHS Earbuds Pairing WSG-T3 Wireless Earbuds-FAQs
How do I put RoHS earbuds in pairing mode?
1. Open the charging case with the earbuds inside.
2. The earbuds will automatically enter pairing mode when you open the case.
How do I manually put my earbuds in pairing mode?
1. Turn off the earbuds.
2. Press and hold the power button for about 10 seconds until pairing mode is activated.
3. Open your device’s Bluetooth settings and select the earbuds from the list.
Why won’t my earbuds pair?
1. Turn off and on Bluetooth on your device.
2. Forget/remove the earbuds from previously paired devices and try again.
3. Restart your device and reset the earbuds (press and hold the button inside the charging case for 5 seconds).
How do I keep my earbuds in pairing mode?
1. Press and hold the power button on the earbuds.
2. Press the pairing button on the charging case (if available).
3. Ensure Bluetooth is enabled on your device and your earbuds remain discoverable.
What is pairing mode?
Pairing mode allows Bluetooth devices to register and connect wirelessly. Both devices need to be in pairing mode to establish a connection.
Why isn’t my Bluetooth finding devices?
1. Make sure your device is in pairing mode and within Bluetooth range.
2. Go to Settings > Bluetooth & Devices and ensure Bluetooth is turned on.
3. If the device isn’t appearing, remove it from your paired devices list and try adding it again.
How do I turn on earbuds without a charging case?
If your earbuds turn off in standby mode, you can reactivate them by pressing or touching the earbud’s control area without placing them back in the case.
How do I factory reset my earbuds?
1. Double-tap the button on the right earbud.
2. On the third tap, press and hold for more than 5 seconds until the earbuds turn off.
3. Make sure both earbuds are connected before performing the reset.
