Edifier NeoBuds Pro 2 True Wireless Earbuds User Manual

Edifier NeoBuds Pro 2 True Wireless Earbuds

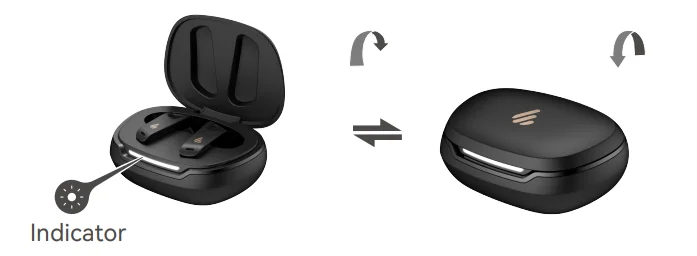

Power ON/OFF

1. Power ON when the case is opened.
2. Power OFF when placed in the case and the case is closed.

Note:

If there is no Bluetooth connection for 2 hours after being powered on, the earbuds will power off automatically.

Pairing

Pairing for the first time

1. Earbuds in the case and keep the case open. LEDs will be lit one by one from left to right in a circular pattern.
2. Select “EDIFIER NeoBuds Pro 2” in Bluetooth device settings to connect. LEDs will blink twice and then turn off when successful.

Pairing for a new device

1. Earbuds in the case and keep the case open.
2. Press and hold the button on the case for about 3 seconds. LEDs will be lit one by one from left to right in a circular pattern.
3. Select “EDIFIER NeoBuds Pro 2” in Bluetooth device settings to connect. LEDs will blink twice and then turn off when successful.

Fast Pair(Phone with Android 6.0+)

Open the charging case and keep the case next to the phone(make sure the phone is unlocked and Bluetooth® is on), and tap the pairing notification when the pop-up window appears to connect effortlessly.

Note:

For subsequent use, the earbuds will automatically connect to the device used last time.

Reset

1. Earbuds in the case and keep the case open.
2. Press the button on the case 3 times to re-enter the left & right connections and clear pairing records. LEDs will be lit one by one from the sideto the centrer in a circular pattern and then will blink twice when successful
3. Select “EDIFIER NeoBuds Pro 2” in Bluetooth device settings to connect. LEDs will be lit one by one from left to right in a circular pattern, then will blink twice and turn off when successful

Auto-pause music

Remove one or both earbuds while listening to music, and he music will automatically pause; to resume the music, insert the earbud(s) back in the ear(s). This function can be disabled or configured in “wearing detection” settings via the difier Connect App.

Charging

Earbuds

Place earbuds in the charging case and keep the case closed.

Charging case

1. Please connect the case to the power source with the included Type-C charging cable for charging.
2. LEDs are steady lit when charging and off when fully charged.

Note:

Please do not charge the earbuds when there is sweat or other liquids inside the charging port, which may damage the earbuds.

Input:

• 5V 200mA(Earbuds)
• 5V 1A(Charging case)

Controls

Note:

1. Default sound control: high noise cancellation / ambient sound.
2. Default sound modes: music mode/game mode / spatial audio.
3. Images are for illustrative purposes only and may differ from the actual product.
4. Download the Ethe difier Connect App for more customizable control settings.

For more information, please visit our website:

Model: EDF200113
Edifier International Limited
P.O. Box 6264
General Post Office
Hong Kong

www.edifier.com
2023 Edifier International Limited. All rights reserved.
Printed in China

NOTICE

For the need of technical improvement and system upgrade, information contained herein may be subject to change from time to time without prior notice.

Products of EDIFIER will be customised for different applications. Pictures and illustrations shown in this manual may be slightly different from the actual product. If any difference is found, the actual product prevails.
