Edifier WH700NB wireless over-ear headphones User Manual

Edifier WH700NB wireless over-ear headphones

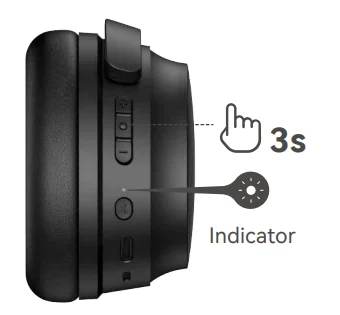

Power ON/OFF

1. Power ON: press and hold the “” key for about 3s when powered OFF until the green LED blinks.
2. Power OFF: press and hold the “” key for about 3s when powered ON until the red LED blinks.

Note:

1. If there is no Bluetooth connection when the headphones are powered on but not in noise cancellation mode, the headphones will power off automatically in 5 minutes.
2. If there is no Bluetooth connection when the headphones are powered on and in noise cancellation mode, the headphones will power off automatically in 4 hours.

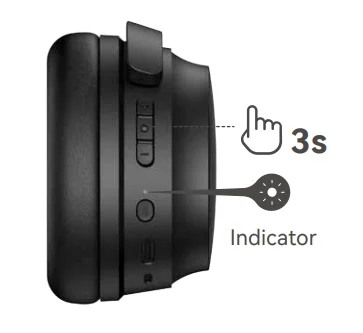

Pairing

Pairing for the first time

1. Press and hold the “” key for about 3s when powered off. Red and green LEDs will blink alternately.
2. Select “EDIFIER WH700NB” in Bluetooth device settings to connect.  The green LEDD will blink twice in 5 seconds when successful.

Pairing for a new device

1. Press and hold the “” key for about 3s when powered on to skip the latest connected device and pair with the new Bluetooth device. Red and green LEDs will blink alternately.
2. Select “EDIFIER WH700NB” in Bluetooth device settings to connect. The green LED will blink twice in 5 seconds when successful.

Note:

For subsequent use, the headphones will automatically connect to the device used last time.

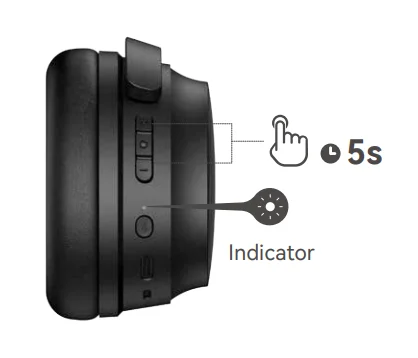

Reset

Press and hold the “” and “” keys simultaneously for about 5s when powered on. Wait for the green LED to blink six times to clear the Bluetooth pairing records and re-enter Bluetooth pairing mode. The red and green LEDs will then blink alternately.

Dual-device connection

1. Pair Bluetooth device A with the headphones. Upon the pairing is successful, keep the headphones powered on, then press and hold the “” key for about 3s to re-enter the Bluetooth pairing mode. Red and green LEDs will blink alternately; meanwhile, device A is disconnected from the headphones.
2. Select “EDIFIER WH700NB” in Bluetooth device settings and connect successfully.
3. Select “EDIFIER WH700NB” in Bluetooth device settings to connect manually.

Note:

1. When a call comes, the headphones will automatically switch to the calling device. After the call ends, the headphones can switch back to the original deA vdeviceice assistant can be enabled on the latest active smartphone if two smartphones are paired with the headphones simultaneously.
2. Switching from device to device: pause music on the current device, and start playing audio on the second device you would like to switch to.
3. Each time when powered on, the headphones will automatically reconnect with the two most recently connected devices if available within the effective Bluetooth range.

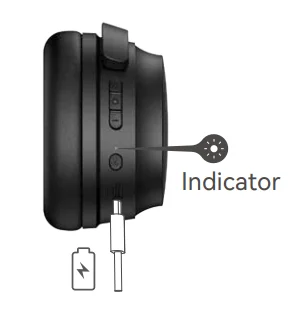

Charging

1. Please connect the headphones to a power source with the included Type-C charging cable for charging.
2. The red LED is steady lit when charging and off when fully charged.

Note:

Please do not charge the headphones when there is sweat or other liquids inside the charging port, which may damage the headphones.

Input: 5V 1A

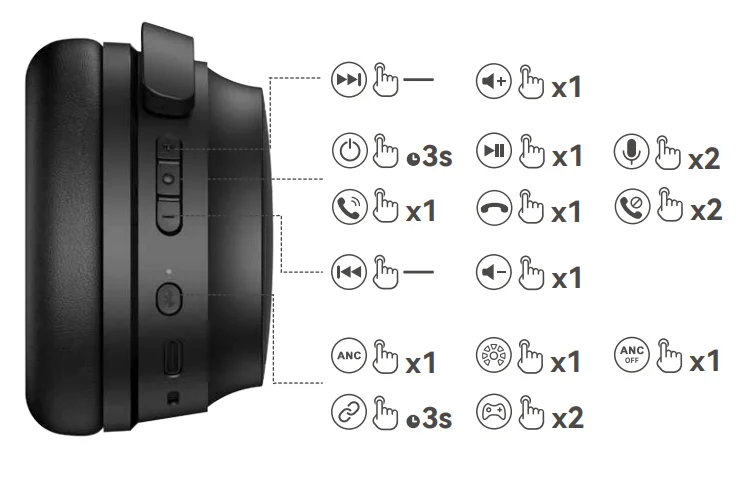

Controls

Note:

1.  : Press and hold.
2. Default sound control: noise cancellation & ambient sound & noise cancellation off.
3. Images are for illustrative purposes only and may differ from the actual product.
4. Download the Edifier Connect App for more customizable control settings.

For more information, please visit our website:

Model: EDF200126
Edifier International Limited
P.O. Box 6264
General Post Office
Hong Kong

www.edifier.com
2023 Edifier International Limited. All rights reserved.
Printed in China

NOTICE

For the need of technical improvement and system upgrade, information contained herein may be subject to change from time to time without prior notice.
Products of EDIFIER will be customised for different applications. Pictures and illustrations shown in this manual may be slightly different from the actual product.
If any difference is found, the actual product prevails.
