Electrolux EXP12EN1WI Portable Air Conditioner User Manual

Electrolux EXP12EN1WI Portable Air Conditioner

SAFETY INFORMATION

CARE AND CLEANING

Warning! Risk of injury or damage to the appliance.

• Contact Service for maintenance or repair of this appliance.
• Deactivate the appliance before cleaning.
• Before maintenance, deactivate the appliance and disconnect the main plug from the main socket.
• When the air filter is to be removed, do not touch the metal parts of this appliance.
• Clean the filter once every two weeks. Always insert the filters securely.
• Do not use water spray and steam to clean the appliance.
• Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects

PRODUCT DESCRIPTION

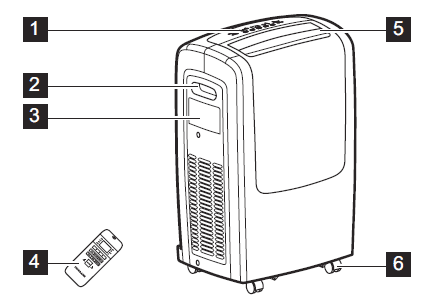

UNIT DESCRIPTION

1. CONTROL PANEL
2. CARRYING HANDLE (BOTH SIDES)
3. REMOTE CONTROL STORAGE DOOR
4. REMOTE CONTROL
5. ROOM AIR DISCHARGE
6. CASTOR

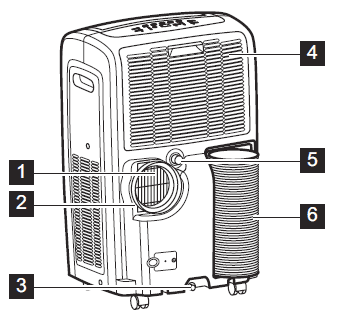

1. EXHAUST AIR OUTLET
2. EXHAUST ADAPTOR A
3. BOTTOM TRAY DRAIN OUTLET
4. AIR INTAKE
5. DEHUMIDIFYING DRAIN OUTLET
6. EXHAUST HOSE (STORAGE WHEN NOT IN USE)

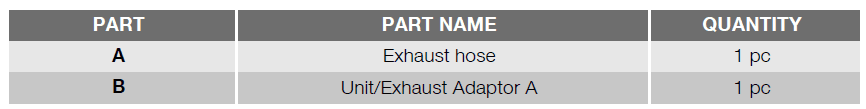

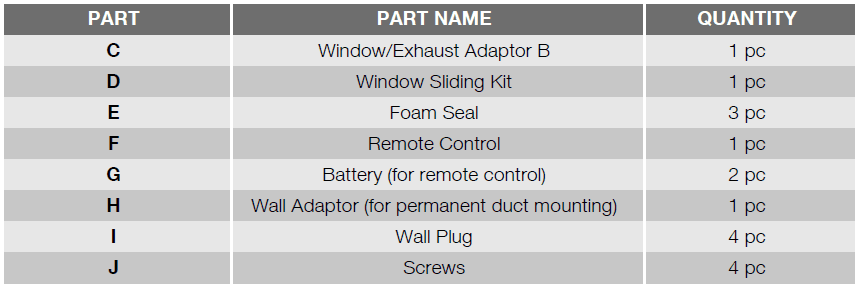

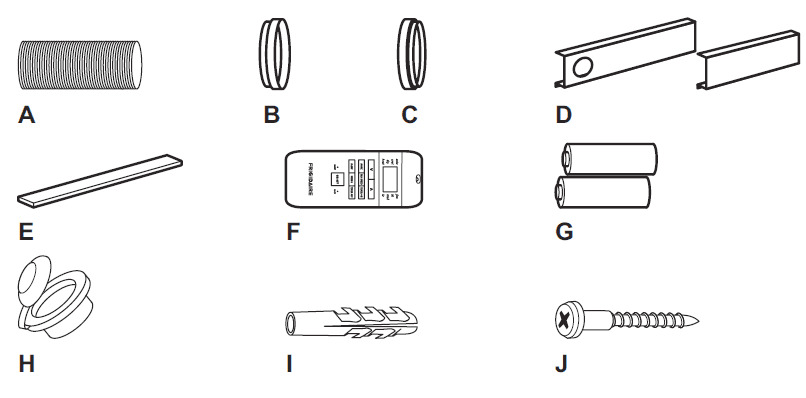

ACCESSORIES

• Check all the accessories are included in the package and please refer to the “Installation” chapter for their usage

INSTALLATION

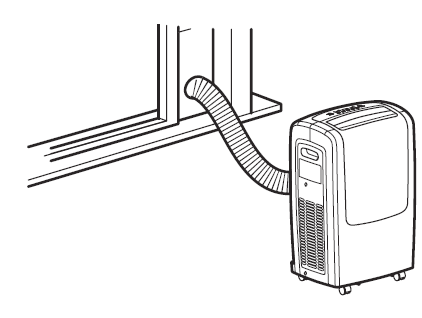

EXHAUSTING HOT AIR WINDOW DISCHARGE

In the COOLING mode (COOL) the appliance must be placed close to a window so that the warm exhaust air can be ducted outside. First, place the unit on a flat floor and make sure there’s a minimum of 30,5 cm clearance around the unit, and is within the vicinity of a single circuit outlet power source.

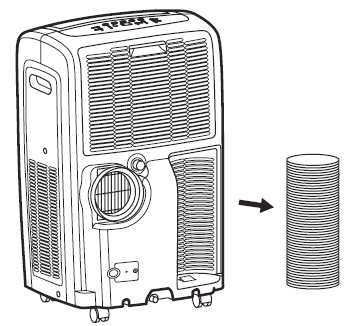

1. Take the hose out from the back of the unit

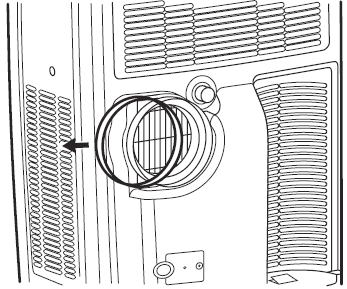

2. Remove adaptor A from units by sliding sideways.

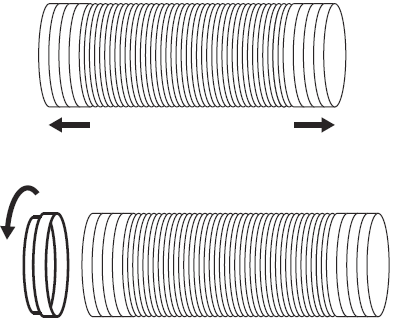

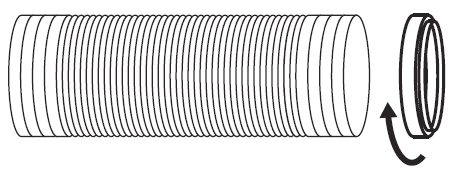

3. Extend either side of the hose and screw the hose to adaptor A.
4. Extend the other side of the hose and screw it to adaptor B.

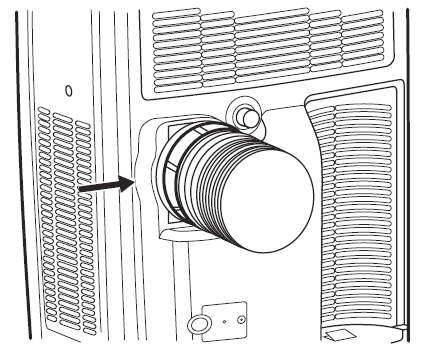

5. Slide the assembly onto the unit.
6. Affix the adaptor B into the window slider kit and seal.
   • Window slider kit:
   • Minimum: 67,5 cm (26,6 inches)
   • Maximum: 123 cm (48,5 inches)

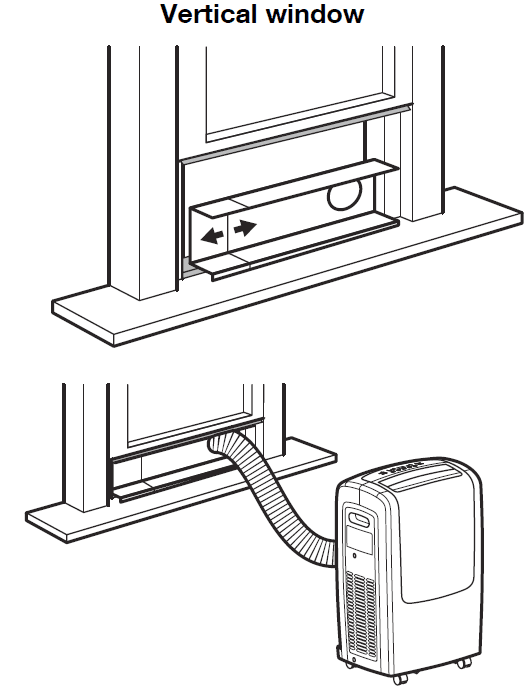

INSTALLATION IN A DOUBLE-HUNG SASH WINDOW

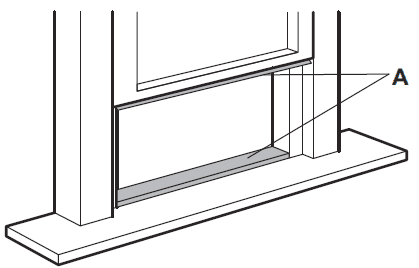

1. Cut the foam seals – adhesive type (A) to the proper lengths and attach them to the window and stool.

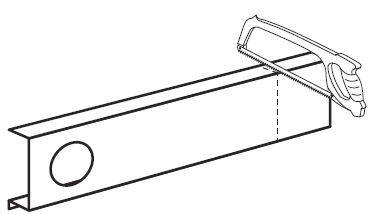

2. Attach the window slider kit to the window stool. Adjust the length of the window slider kit according to the width of the window. Cut the adjustable window slider kit if the width of the window is less than 67,5 cm.

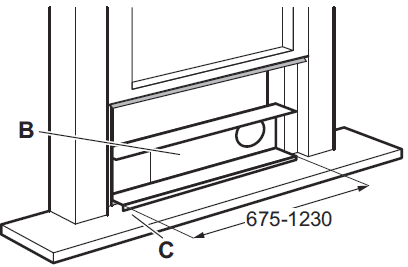

3. Open the window sash and place the window slider kit (B) on the window stool (C).

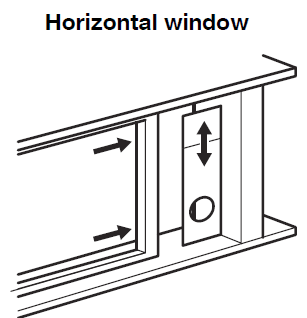

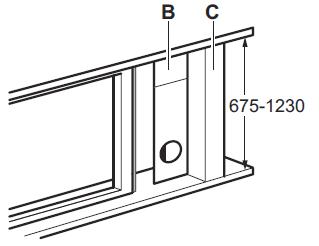

INSTALLATION IN A SLIDING SASH WINDOW

1. Cut the foam seals-adhesive type (A) to the proper lengths and attach them to the window and stool.
2. Attach the window slider kit to the window stool. Adjust the length of the window slider kit according to the height of the window. Cut the adjustable window
   slider kit if the height of the window is less than 67,5 cm.
3. Open the window sash and place the window slider kit (B) on the window stool (C).
4. Close the sliding sash securely against the window slider kit.
5. Cut the foam seals to an appropriate length and seal the open gap between the sliding sash and outer window sash, as shown

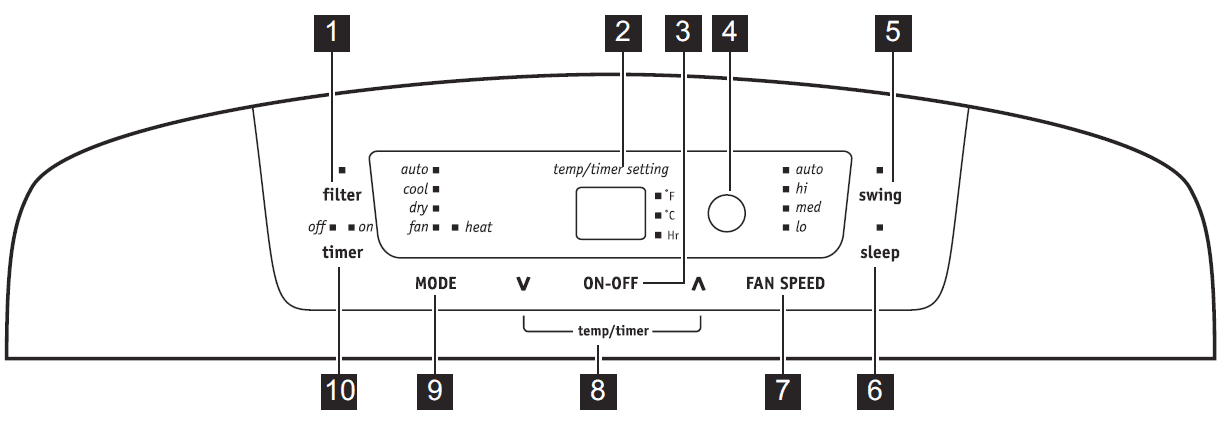

CONTROL PANEL

1. CHECK FILTER RESET BUTTON
2. DISPLAYS TEMPERATURE/TIME
3. TURNS UNIT ON OR OFF
4. REMOTE SIGNAL RECEIVER
5. SWING BUTTON (SWING)
6. ACTIVATES TIMER (TIMER)
7. SET MODE (MODE)
8. ADJUSTS TEMPERATURE OR TIME
9. SETS FAN SPEED (FAN SPEED)
10. SLEEP MODE (SLEEP

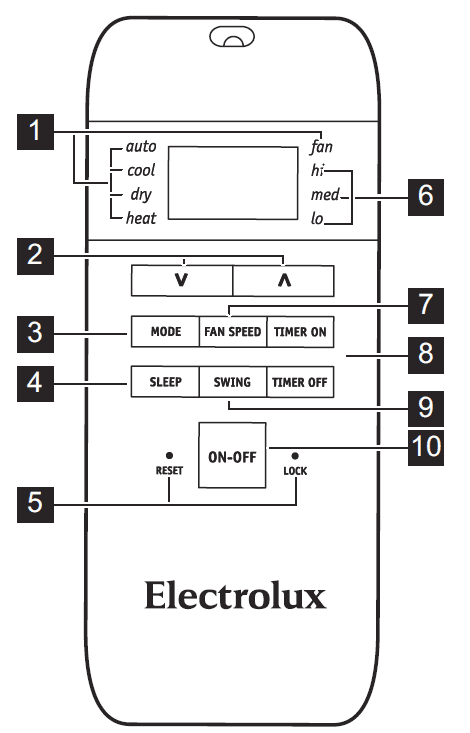

REMOTE CONTROL

1. MODE INDICATION
2. TEMPERATURE/TIMER CONTROL BUTTONS
3. MODE SELECTOR (MODE)
4. SLEEP BUTTON (SLEEP)
5. RESET+LOCK PIN BUTTONS (RESET/ LOCK)
6. FAN SPEED SELECTION
7. FAN SPEED SELECTOR (FAN SPEED)
8. TIMER BUTTONS (TIMER ON/TIMER OFF)
9. SWING BUTTON (SWING)
10. ON/OFF BUTTON

OPERATING INSTRUCTIONS

Important! The following instructions represent the Control Panel. The same instructions can be used for the Remote Control.

COOLING MODE (COOL)

In this mode, the exhaust adaptor hose MUST be used.

1. Press the Mode button (MODE) until the Cooling (COOL) indicator lights.
2. Press the Temperature buttons for the desired setting.
3. Press the Fan button (FAN SPEED) for desired fan speed.

HEATING MODE (HEAT) (ON SOME MODELS)

In this mode, you do not need to use the exhaust adaptor hose.

1. Press the Mode button (MODE) until the Heating (HEAT) indicator lights.
2. Press the Temperature buttons for the desired heat setting.

DRY MODE (DRY)

In this mode, you do not need to use the exhaust adaptor hose, BUT the water collected must be discharged. See the “Drainage” section.

1. Press the Mode button (MODE) until the Dry (DRY) indicator lights.
2. The fan will run at low speed and the display will show the room temperature.
3. Keep doors and windows closed for best effect.

AUTO MODE (AUTO)

• Always have the exhaust hose attached in this mode.
• When you set the air conditioner in Auto mode (AUTO), it will automatically select cooling, heating (inapplicable for cooling-only models) or fan-only operation, depending on what temperature you have selected and the room temperature.
• The air conditioner will control room temperature automatically around the temperature point set by you. Under Auto mode (AUTO) you can not select the fan speed.

FAN MODE (FAN)

In this mode, there is no need to use the exhaust hose or drainage hose. However, if you require stale or smoky air to be removed from the room, hook up the duct
accessories as described in the “Exhaustinghot Air” section.

1. Press the Mode button (MODE) until the Fan (FAN) indicator lights
2. Press the Fan (FAN SPEED) button to choose the desired fan speed.
3. The fan will run at the selected speed and the display will show the room temperature

SLEEP OPERATION (SLEEP)

• In this mode, the selected temperature will increase by 1ﾟC 30 minutes after the mode is selected. The temperature will then increase by another 1ﾟC after an additional 30 minutes. This new temperature will be maintained for 7 hours before it returns to the originally selected temperature. This ends the Sleep mode (SLEEP) and the unit will continue to operate as originally programmed.
• The Sleep mode (SLEEP) program can be canceled at any time during operation by again pressing the Sleep button (SLEEP).

DRAINAGE

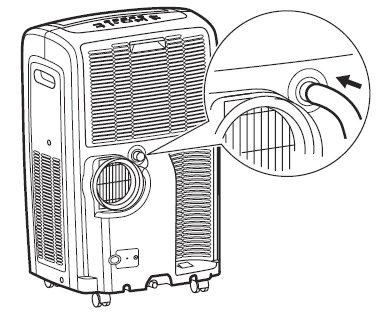

• During the dehumidifying mode, you will need a garden hose (sold separately) to drain the condensate from the unit. Remove the rubber stopper from the hose
  connector, then screw on a garden hose to the connector as shown.

The hose may then:

1. Discharge into a drain that is lower than the unit.
2. Be connected to a condensate pump (sold separately).

CARE AND CLEANING

• AIR FILTER CLEANING

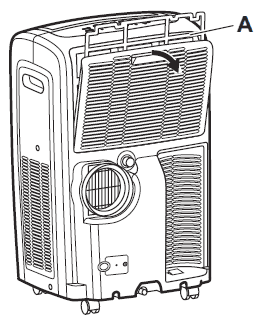

• The unit has three filters, they are filters A, B, and C. Grasp the upper panel tab and take off filter A, which is placed behind the grill of the back panel.

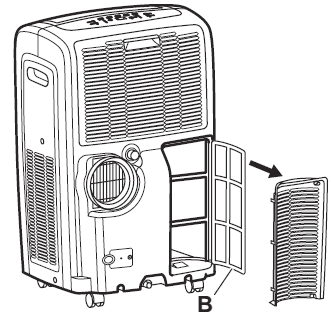

• Remove the lower filters B and C by loosening the screws. Take down the air inlet grill, then remove the air filter as shown

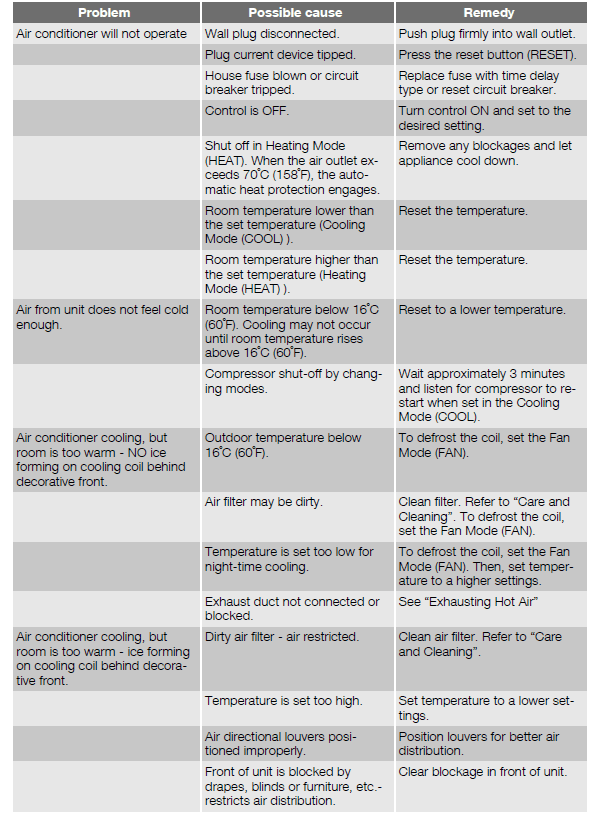

WHAT TO DO IF
