Element ELEFW605 T-Con Lcd Tv
IMPORTANT SAFETY INSTRUCTIONS
- Read these instructions – All the safety and operating instructions should be read before this product is operated.
- Keep these instructions – The safety and operating instructions should be retained for future reference.
- Heed all warnings – All warnings on the appliance and in the operating instructions should be adhered to.
- Follow all instructions – All operating and use instructions should be followed.
- Do not use this apparatus near water
- The appliance should not be used near water or moisture – for example, in a wet basement or near a swimming pool, and the like.
- Clean only with a dry cloth.
- Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
- Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
- Do not defeat the safety purpose of the polarized or grounding plug. A polarized plug has two blades one wider than the other. A grounding plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for the replacement of the obsolete outlet.
- Protect the power cord from being walked on or pinched particularly at the plugs, convenience receptacles, and at the point where they exit from the apparatus.
- Only use attachments/accessories specified by the manufacturer.
- Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart or rack is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over.
- Unplug the apparatus during lightning storms or when unused for long periods of time.
- Refer all servicing to qualified personnel. Servicing is required when the apparatus has been damaged in any way, such as the power supply cord or plug is damaged, liquid has been spilled, or objects have fallen into the apparatus or the apparatus has been exposed to rain or moisture does not operate normally, or has been dropped.
- Please keep the unit in a well-ventilated environment.
ADDITIONAL SAFETY INFORMATION
To ensure the reliable and safe operation of this equipment, please read carefully all the instructions in this user guide, especially the safety information below.
Electrical Safety
- The TV set should only be connected to a main power supply with a voltage that matches the label at the rear of the product.
- To prevent overload, do not share the same power supply socket with too many other electronic components.
- Do not place any connecting wires where they may be stepped on or tripped over.
- Do not place heavy items on them, which may damage the leads.
- Hold the main plug, not the wires, when removing from a socket.
- During a thunderstorm, or when not using the television for extended period of time, turn off the power switch on the back of the television.
- Do not allow water or moisture to enter the TV or power adapter. Do NOT use in wet, moist areas, such as bathrooms, steamy kitchens or near swimming pools.
- Pull the plug out immediately, and seek professional help if the main plug or cable is damaged, liquid is spilled onto the set, if accidentally exposed to water or moisture, if anything accidentally penetrates the ventilation slots or if the set does not work normally.
- Do not remove the safety covers. There are no user-serviceable parts inside. Trying to service the unit yourself is dangerous and may invalidate the product’s warranty. Qualified personnel must only service this apparatus.
- To avoid battery leakage, remove exhausted batteries from the remote control, or when not using for long period.
- Do not break open or throw exhausted batteries on a fire.
PREPARATIONS
What is Included?
PREPARATIONS

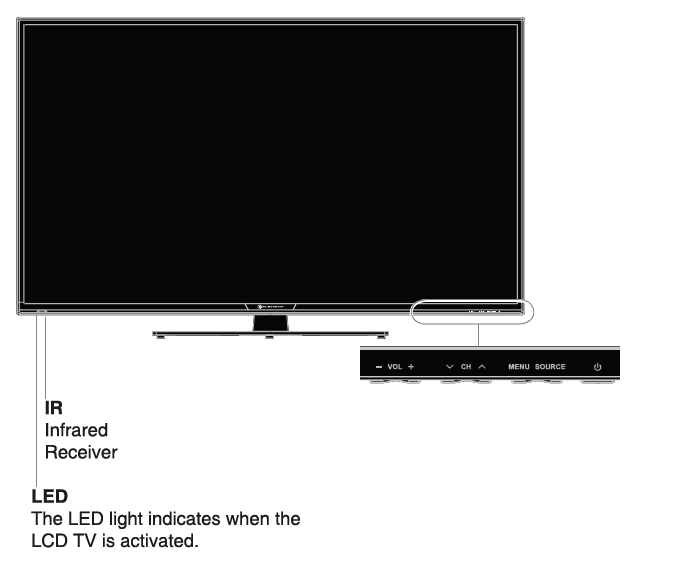

Front View
Switch the TV between On / Standby mode.- SOURCE
Press to select among different input signal sources. - MENU
Display the OSD (on-screen display) menu. - CH ∧/∨
Press to select a channel. - VOL +/-
Press to adjust the volume.
Rear View
- Power Cord
Connect to AC power outlet. - Headphone Socket
Connect to the Headphones. - HDMI Inputs
Connect to a High-Definition (HD) signal input device. - VGA Input
Connect to a computer or other devices with a VGA interface. - PC AUDIO Input
Connect to a computer audio output. - RF (75Ω) Input
Connect to the antenna (75Ω VHF/UHF) socket with the RF coaxial cable. - COMPONENT Input
Connect to AV devices with component(Y/ Pb/Pr) video and audio input sockets. - OPTICAL
Connect a digital sound system to this jack. - USB Port
Connect to a USB storage device to play photo files. (USB mode).VCR or DVD player).
Wall Mounting
The TV is provided with mounting holes for a VESA-approved wall mounting bracket (Not Supplied). Remove the screws holding the base to the base bracket and lift the base away (do not remove the base mounting brackets). Mount the VESA bracket using 4*M6*20 isometric threaded screws (Not Supplied). Do not use screws longer than 20mm, damage will occur to the internal parts.

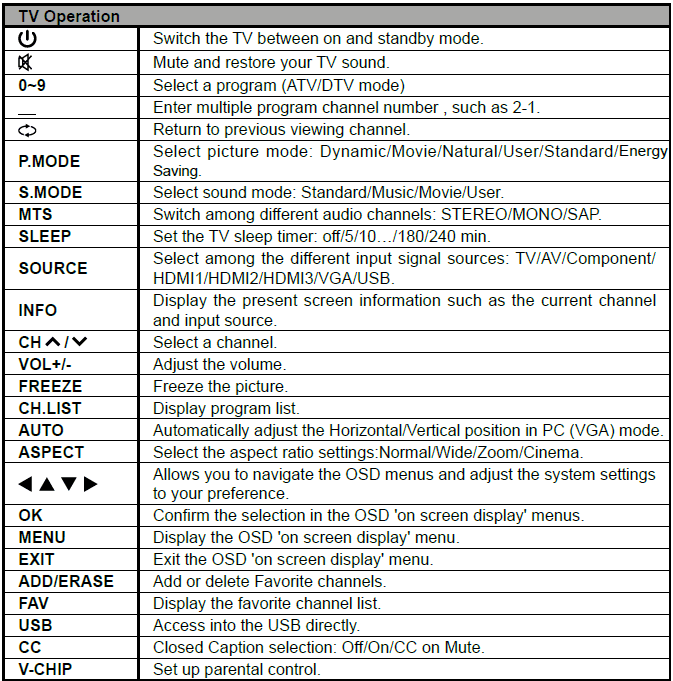

Remote Control
CONNECTING EXTERNAL DEVICES
OPERATING YOUR TV
Turning On/Off Your TV
- Connect the power cord to the power socket after you have completed all the physical connections. At this stage, the TV will enter Standby Mode and the red LED indicator will illuminate.
- In Standby Mode, press thebutton on the main unit or on the remote control to turn the TV on. The red LED indicator will turn blue.

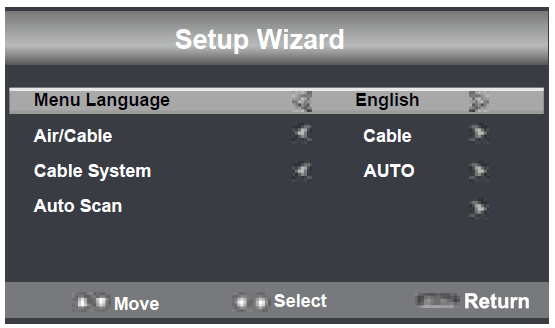

Setup Wizard
- If you are turning on your LED TV for the first time, you will see the following menu below.
- Please select Home Mode or Retail Mode to continue.

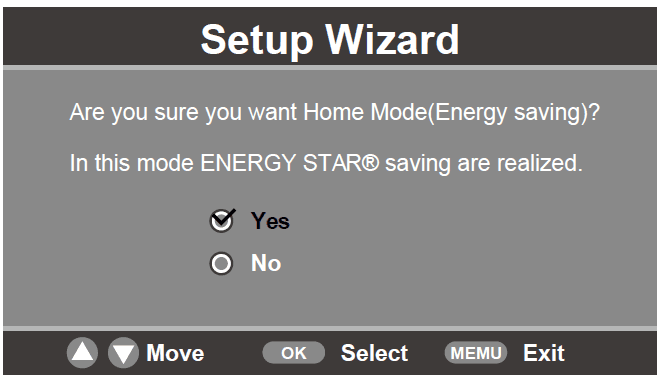

Home Mode (Energy Saving) is the default as-shipped television configuration and settings. And Home Mode (Energy Saving) is the setting in which the product qualifies for ENERGY STAR®. Any changes to the default as-shipped television configuration and settings would change the energy consumption. Enabling certain optional features and functionalities may increase energy consumption beyond the limits required for ENERGY STAR® qualification, as applicable.
Retail Mode: Select Retail Mode if you would like your picture to be brighter. At times this mode may use more energy to operate the Volume/Sound mode and the Picture Mode. In this setting, the power consumption may exceed the limited requirement of the ENERGY STAR® qualification.
ENERGY STAR®is a joint program of the U.S. Environmental Protection Agency and the U.S. Department of Energy helping us all save money and protect the environment through energy-efficient products and practices.
The On-MODE Power under Home Mode should be less than 98.7 W. The SLEEP-MODE Power should be less than 1 W.
- Press Yes to confirm.
Note: If you want to change the modes between Home Mode(Energy Saving) and Picture Mode, you can change the setting in the Setup Menu under Picture Mode. - Press the
buttons to select your desired mode and press the OK button to confirm.
Menu Language
Select your desired language to be displayed on the menu. The default on-screen menu language is set as English.
Air/Cable Select the antenna between Air and Cable. Cable System Select Cable system: Auto, STD, IRC, HRC. Auto Scan Search and store the available channels automatically.
Note: If you want to change the modes between Home Mode(Energy Saving) and Picture Mode, you can change the setting in the Setup Menu under Picture Mode.
buttons to select your desired mode and press the OK button to confirm.

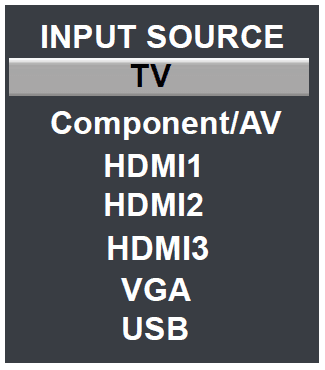

Selecting the Input Source
- Press the SOURCE button on the main unit or on the remote control to display the Input Source list.
- Press the
buttons to select your desired input source among: TV/Component&AV/HDMI1/HDMI2/HDMI3/VGA/USB and then press OK button to confirm.
Channel Selection
- Press the CH∧/CH∨ buttons on the main unit or on the remote control repeatedly to select the channel.
- Press the 0-9 buttons on the remote control to select the channel directly.
- Press “4”, and then press OK button to select channel 4.
- Press “4” and “5”, and then press OK button to select channel 45.
- Press “1”, “2” and “3”, and then press OK button to select channel 123.
Volume Adjustment
- Press the VOL+/- buttons on the main unit or on the remote control to adjust the volume.
- If you wish to switch the sound off, press the MUTE button again or the VOL+ button to resume the sound.
CUSTOMIZING TV SETTINGS

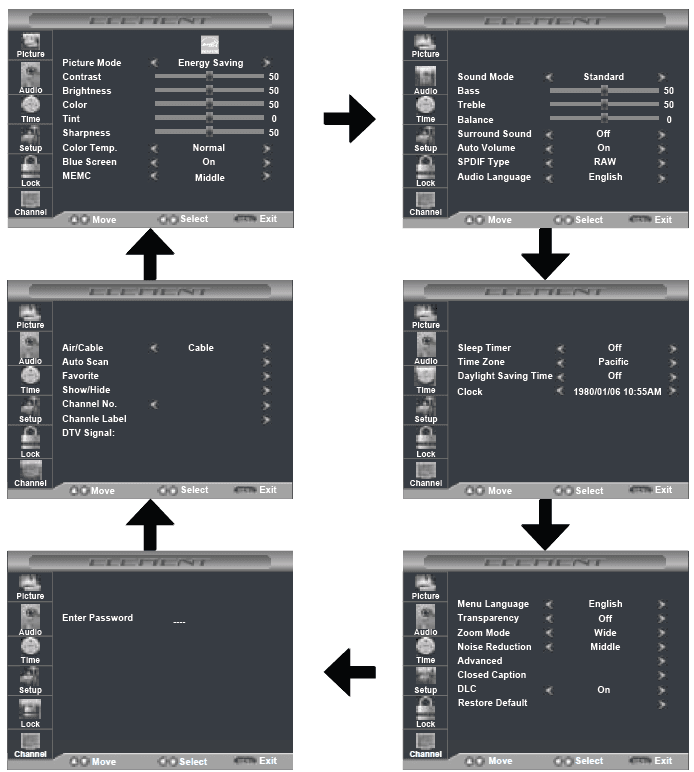

Navigating the On-screen Display
- Press the MENU button to display the main menu.
- Press thebuttons to navigate and select the available menus.

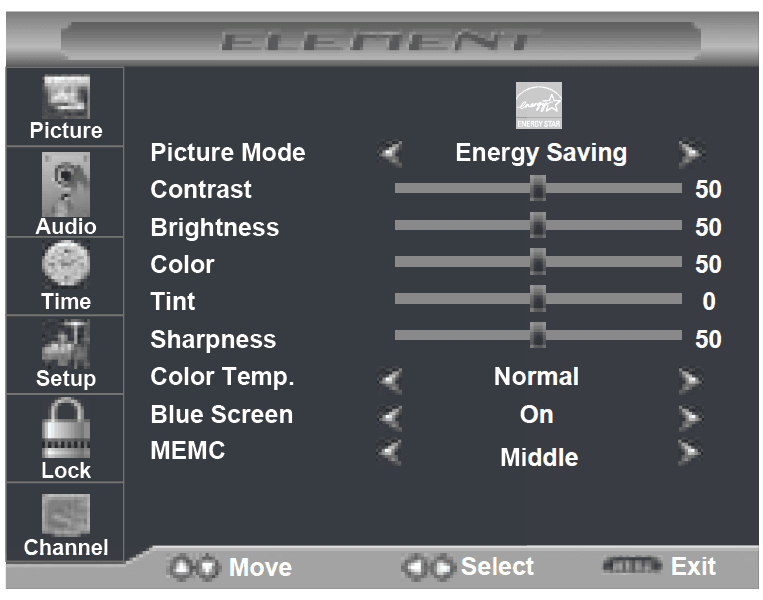

Picture Settings

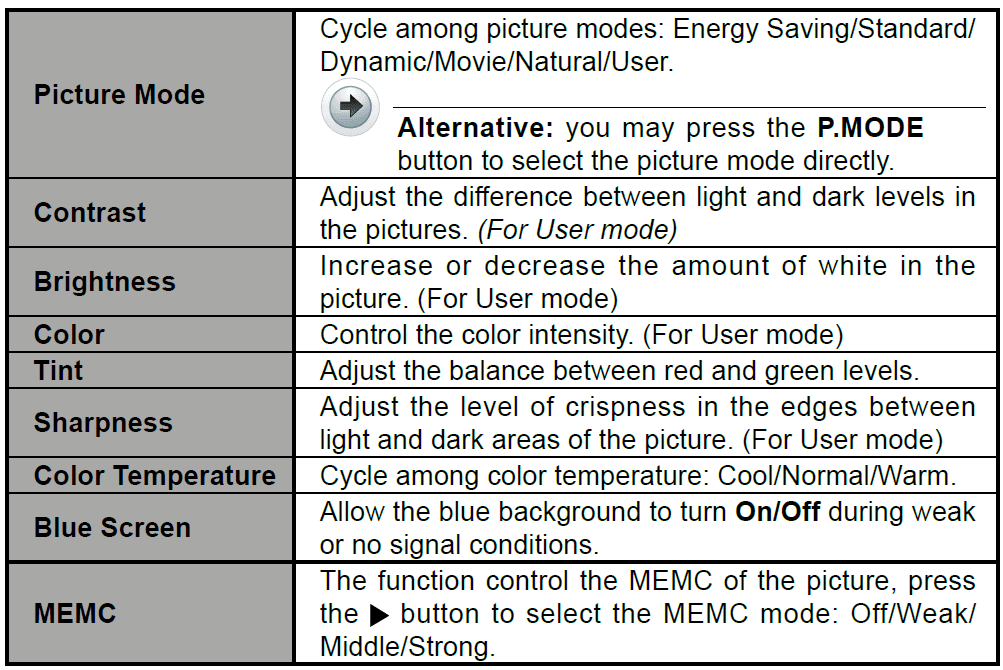

- Press the MENU button on the main unit or on the remote control then pressthe buttons to select the PICTURE menu and then press
the button or the OK button to enter. - Press thebuttons to select the following picture options and then pressthe buttons to adjust each option’s setting.
the button or the OK button to enter.

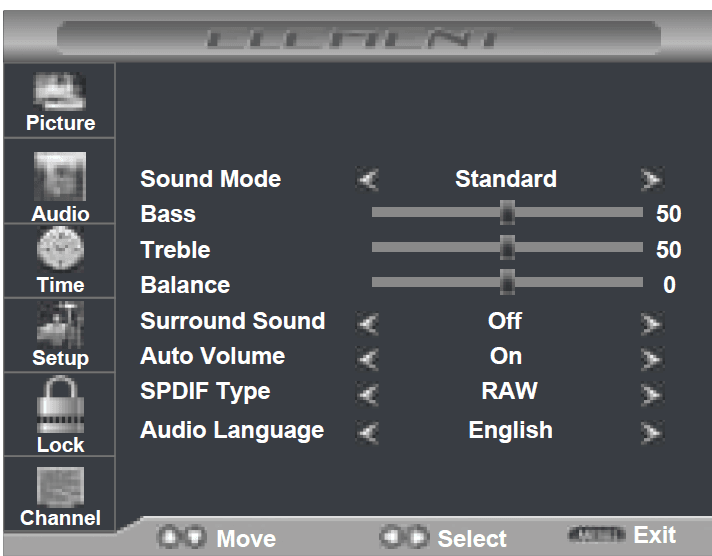

Audio Settings

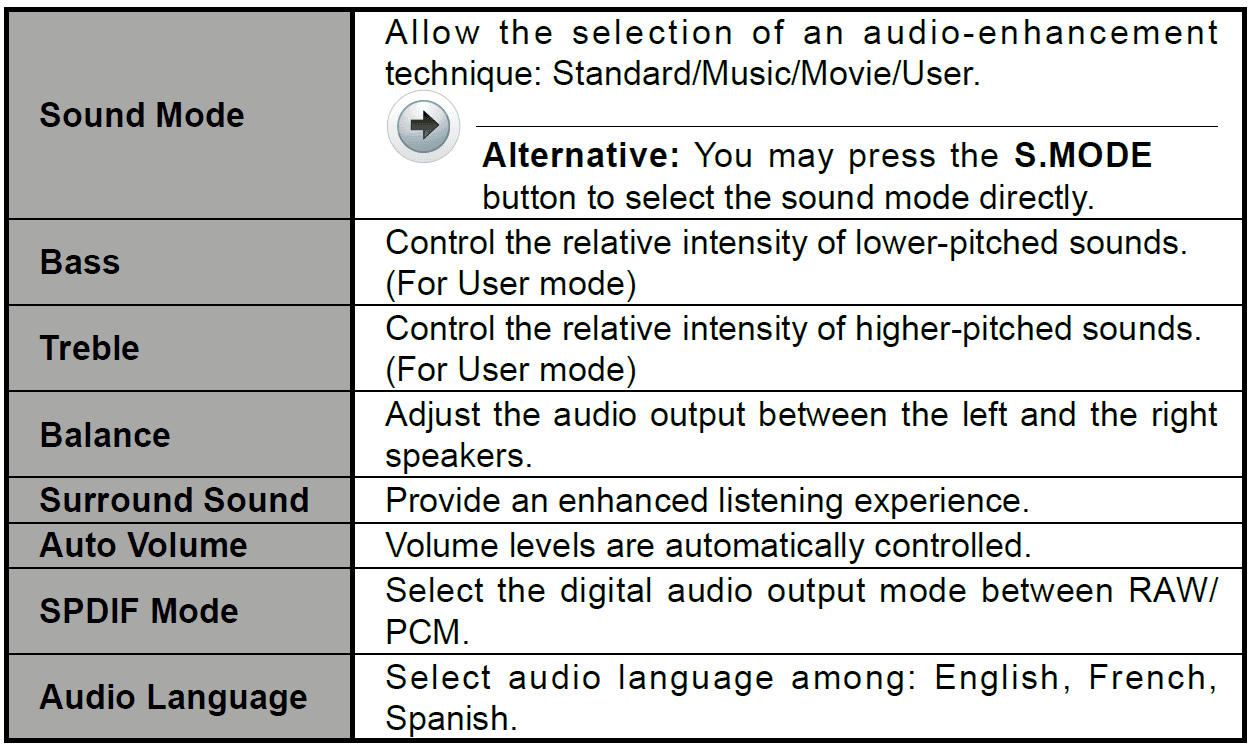

- Press the MENU button on the main unit or on the remote control then pressthe buttons to select the AUDIO menu and then pressthe button or the OK button to enter.
- Press thebuttons to select the following audio options and then pressthe buttons to adjust each option’s setting.

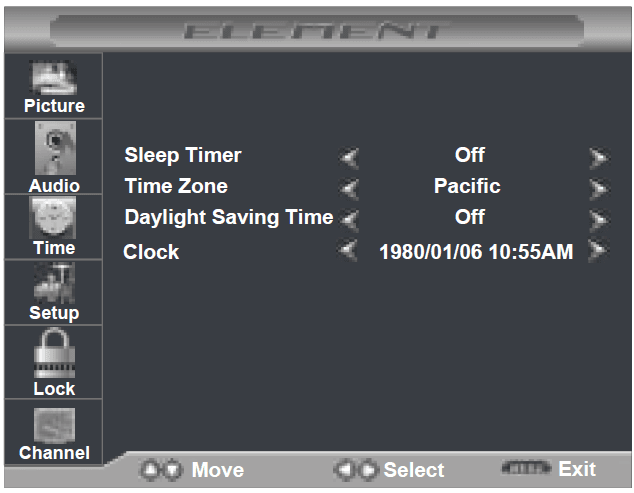

Time Settings
- Press the MENU button on the main unit or on the remote control then pressthe buttons to select the TIME menu and then pressthe button or the OK button to enter.
- Press thebuttons to select the following time options and then pressthe buttons to adjust each option’s setting.
Parental Control
Press the MENU button on the main unit or on the remote control and then press the
buttons to select LOCK menu. Use the 0-9 buttons to input 4-digit password to enter the LOCK menu. If used, this option feature can “block” undesirable programming from appearing on the TV. Parental Control offers the user a wide variety of options and settings that restrict or “block” the programming that can appear on the TV. Parental Control allows the user the capability of defining which program rating they consider acceptable to the younger more sensitive viewer. It can be preset and turned either on or off by the user
who specifies the secret 4-number code, the password. The number of hours blocked are specified. General audiences and children blocks should be both programmed into the TV’s memory. Viewer ratings are specified for both TV and the motion picture Industry; both rating systems should be used, for complete coverage. The ratings are based on the ages of children.
Overview
To ensure complete coverage for all TV programs, (movies and regular TV shows) choose a rating for MPAA, from the selections below,as well as ratings from the TV Parental Guidelines Rating Systems below, using the Age Block option for General Audiences, and for children. In addition to those, you may wish to add additional restrictions from the content block menu, and submenus examples below.
Things to Consider Before Setting up Parental Control
Determine which rating you consider acceptable to the viewer. (For example, if you choose TV-PG, more restrictive ratings will be automatically blocked; the viewer will not be able to see: TV-PG, TV-14, or TV-MA-rated programming.) Do you want to block the auxiliary video source entirely? (Blocks the signal sent by the equipment, such as VCR, connected to the TV Audio/Video Input Jacks) Or leave it unblocked, then choose allowable ratings. Block program “Content” based on individual parameters such as Strong Dialog, Bad Language, Sex Scenes, Violence Scenes, or Fantasy. Violent Scenes; in Content Blk option. Select a secret password, in the Set Password option, using the numbers keys on the remote control. Do not forget the password, it is the only way you can access the Parental Control menu and change rating selections, or turn Parental Control off. Do you want the Parental Control to be active at all times? If not, you can turn it on or off with the Lock On/Off option.
- You can set different Parental Control viewing restrictions for general audiences and for children, both can be active at the same time.
- Simply specifying one content block such as Sex Scenes, will not automatically restrict the programming that appears from the video sources.
- Even If you choose to leave the AUX Inputs unblocked, the ratings you specify will automatically restrict the programming that appears from the video sources.
- You can not disable Parental Control by disconnecting the TV from power. Block hours will be automatically reset to the original block time setting specified if power is disconnected.
Motion Picture Association of America (MPAA) Rating System
| Grade | Meaning | |
| G | General Audiences | Content not offensive to most viewers. |
| PG | Parental Guidance Suggested | Content is such that parents may not want their children to view the program. |
| PG-13 | Parents Strongly Cautioned | Program is inappropriate for preteens, with a greater degree of offensive material suggested than a PG rated program. |
| R | Restricted | Not for children under 17, strong element of sex and/or violence. |
| NC-17 | No children under age 17 | Not for children under 17 under any circumstances. Strong sexual content. |
| X | Hard Core Films | Same as NC-17 rating. |
| N/A | No Rating | MPAA Not Rated |
TV Parental Guideline Rating System
| Grade | Meaning | |
| TV-Y | All Children | Content not offensive to most viewers. |
| TV-Y7 | Directed to Older Children | Considered suitable for children over 7, may contain fantasy violence scenes. |
| TV-G | General Audience | Considered suitable for all audiences; children may watch unattended. |
| TV-PG | Parental Guidance Suggested | Suggested unsuitable for younger children, may contain suggestive language, bad language, sex and violent scenes. |
| TV-14 | Parents Strongly Cautioned | unsuitable for children under 14, may contain strong language, bad language, sex, and violent scenes. |
| TV-MA | Mature Audience Only | Adults may only contain strong language, bad language, sex, and violent scenes. |
Canadian Rating:
- Canadian English is used throughout all English-speaking Canada (C, C8+,G, PG,14+, 18+).
- Canadian French is used in Quebec (G,8 ans+, 13 ans+,16 ans+, 18 ans+).
Viewing Pictures

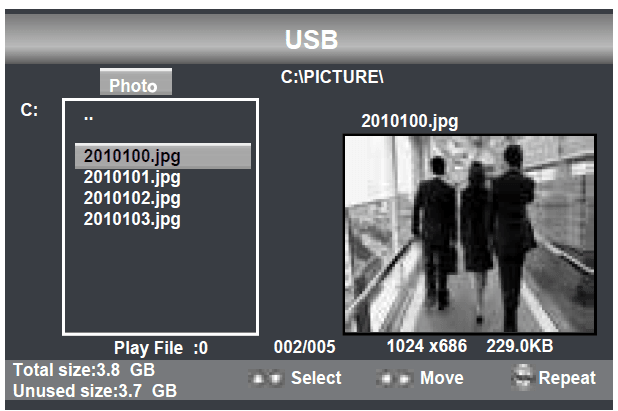

- Press the SOURCE button on the main unit or on the remote control then press
the buttons to select the USB mode and then press OK button. - Press the
buttons to select PHOTO and then press the OK button.
buttons to select PHOTO and then press the OK button.
Operation Tips
TROUBLESHOOTING
If your TV does not operate normally or cannot be turned on, please check the following troubleshooting questions. Remember also to check any other connected electronic device, such as a DVD or Blu-ray player to pinpoint the problem. If the TV still fails to operate normally, please contact technical support (Refer to Warranty page).
| SYMPTOM | POSSIBLE CAUSE | REMEDY |
| Dead. No LED lit | No power to the TV. | • Check all connections to the TV’s AC socket. |
| Dead. No LED-lit red | Set in standby mode. | • Press either the Power button or the Standby button on the remote control. |
| Blue screen | No signal. | • Press the SOURCE button to select the correct source. |
| Incorrect source selected. | ||
| Noisy, snowy, ghosting picture (TV) | Poor antenna signal. | • If using an indoor antenna, try adjusting the antenna position. Check antenna connections. |
| No sound | Sound “Mute”. | • Turn the sound “Mute” off. |
| Volume is set too low. | • Check volume settings. | |
| External leads not connected “if used”. | • Check that all external leads are connected properly. |
Before contacting the service technician, perform the following simple checks. If any problem still persists, unplug the LED TV and call for assistance.
| PROBLEM | POSSIBLE SOLUTIONS |
|
No sound and picture | • Check that the main plug has been connected to a wall outlet. • Check that you have pressed the POWER on the front of the TV set. • Check the picture contrast and the brightness setting. |
| Red LED indicator lights | • Set in standby mode. Press either the Power button or the Standby button on the remote control. |
|
Normal picture but no sound | • Check the volume. • Sound muted? Press the MUTE button. • Try another channel, the problem may be with the broadcast. • Are the audio cables installed properly? |
| The remote control does not work | • Check to see if there are any objects between the TV and remote control causing obstruction. • Are batteries installed with correct polarity (+/-)? • Correct remote operating mode set: TV, VCR, etc? • Install new batteries. |
| Power suddenly turns off | • Is the sleep timer set? • Check the power connection, power may be interrupted. • No broadcast on the station tuned. |
| Picture appears slowly after switching on | • This is normal, the image is muted during the product start up process. Please contact a service provider if the picture has not appeared after 5 minutes. |
|
Poor color or picture | • Adjust the color in Menu option. • Keep a sufficient distance between the product and the VCR. • Try another channel, the problem may be with the broadcast. • Are the VIDEO cables installed properly? • Activate any function to restore the brightness of the picture. |
| Horizontal/vertical bars or picture shaking | • Check for local interference, such as an electrical appliance or power tool. |
| Blue screen | • Press the SOURCE button to select correct source. |
| Poor reception on some channels | • Station or cable experiencing problems. Tune to another station. • Station signal is weak, reorient antenna for better reception. • Check for sources of possible interference. |
| Lines or streaks in pictures | • Check the antenna (change the direction of the antenna). |
| No output from one of the speakers | • Adjust the balance in the Menu option. |
Note: When there is a problem in VGA mode ( only when VGA mode is applied).
| PROBLEM | POSSIBLE SOLUTIONS |
|
The signal is out of range | • Adjust resolution, horizontal or vertical frequency. • Check whether the signal cable is connected or loose. • Check the input source. |
| Vertical bar or strip on the background, horizontal noise, and incorrect position | • Set the auto-configure or adjust clock, phase, or H/V position. |
| Screen color is unstable or is a single-color | • Check the signal cable. • Reinstall the PC video card. |
Maintenance
Early malfunction can be prevented. Careful and regular cleaning can extend the amount of time you will have with your new TV. Be sure to turn the power off and unplug the power cord before you begin any cleaning.
Clean the screen
A great tip to dust off your screen: wet a soft cloth in a mixture of lukewarm water and a little fabric softener or dish washing detergent. Wring the cloth until it’s almost dry, and then use to wipe the screen.
Make sure the excess water is off the screen, then let air dry before you turn on the TV.
Cleaning the cabinet
To remove dirt or dust, wipe the cabinet with a soft, dry, line-free cloth. Please be sure not to use a wet cloth.
SPECIFICATIONS
| Panel Size | 60 inches diagonally |
| Display Type | LED |
| Panel Technology | TFT |
| Panel 60 Hz Vs. 120 Hz | 120 Hz |
| Display Resolution | 1080P |
| HDMI & Component Support | Up to 1080P |
| Panel Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Dynamic Contrast Ratio-Panel | 4500:1 |
| Brightness (Centre Typ.) Cd/M² | 200~250 |
| Response Time (G To G) | 4 ms |
| Lamp Life (Typ. Hours) | 30,000 hours |
| Horizontal Viewing Angle (At CR>20) | 176 |
| Vertical Viewing Angle (At CR>20) | 176 |
| TV System | ATSC/NTSC |
| Channel Range | VHF/UHF |
Design and specifications are subject to change without prior notice.
For more manuals by Element Electronics, visit ManualsLibraryy
Element ELEFW605 T-Con Lcd Tv-FAQs
What is the function of the T-Con board?
The T-Con board controls the logic signals for driving the TFT LCD by managing gate and source signals. It’s also known as the “Controller Board” or “Control Board.”
How do I set up my Element TV?
Plug the TV into a wall outlet and press the power button on the remote. Follow the on-screen setup instructions and connect to your Wi-Fi network by entering your network name and password.
Can I control my Element TV with my phone?
Yes, with Chromecast built into the TV, you can use your phone as a remote. Tap the Cast button in compatible apps to stream content from your phone, tablet, or laptop to your TV.
Can the T-Con board be repaired?
While repairs are technically possible, they require a deep understanding of the board’s principles and excellent soldering skills.
Why is my Element TV screen darker than normal?
Check the Light Sensor. It adjusts the screen brightness based on ambient light. If it’s malfunctioning, the screen may appear darker even in well-lit rooms.
How do I change settings on my Element TV?
Press the MENU button on your remote to display the main menu. Use the Arrow buttons to highlight “TV Settings” and press OK. Navigate through options using the Arrow buttons to make adjustments.
What is the purpose of TCON in an LCD TV?
The TCON module generates timing signals for raw TFT panels that lack an embedded timing controller, ensuring proper synchronization for display.
What does TCON stand for, and what is its format?
TCON stands for Timer Control. It is an 8-bit register with upper 4 bits controlling timers/counters and the lower 4 bits managing interrupts.
Why does my Element TV screen appear darker?
If the Light Sensor isn’t functioning properly, the TV may not adjust brightness correctly for the lighting in your room. You can disable or calibrate the Light Sensor in the TV settings.
