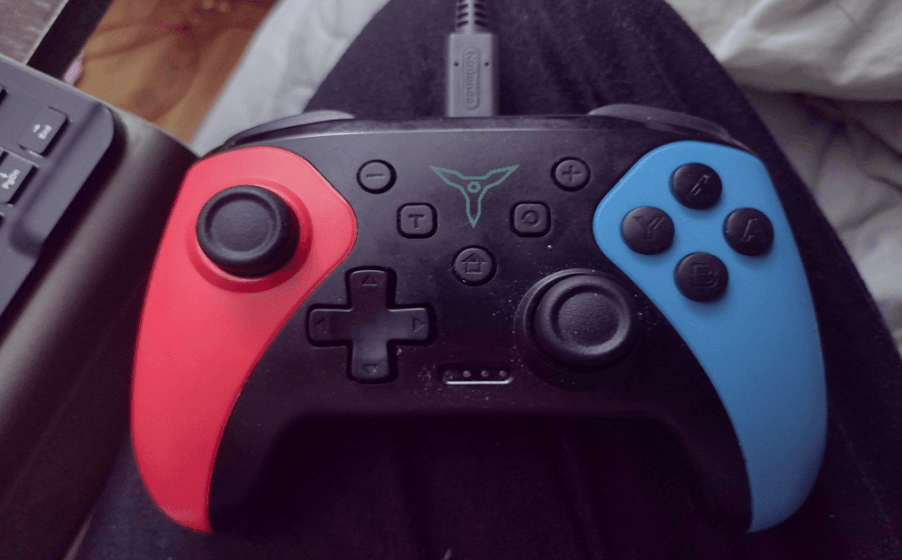

ELISWEEN X107 Wireless Switch Controller for Nintendo
Product descriptions
- This is a Bluetooth game controller for Nintendo Switch. It connects to the console via Bluetooth communication, but also works via wired connection.
Product features
- (1)Contains all the buttons and corresponding functions of the original Pro controller. Adds Turbo speed control function and motor vibration strength control function.
- (2)Provide 4 green LED status indicators.
- (3)20 function buttons input. Docking button is convenient for first pairing and power-off.
- (4)Built-in dual vibrators and high precision analogue sticks.
- (5) 4 mapping buttons M1, M2, M3, M4 on the back, with 4 groups of states for the option.
- (6)Built-in 6-axis gyroscope for fast and accurate target locking
Functions description
- (1) Connection way to the game console:
- Wired connection: By USB cable.
- Wireless connection: By Bluetooth communication.
- (2) Wireless Bluetooth connection: For 1st pairing, press and hold the Docking button for 3 seconds until 4 LEDs flash. Enter the pairing screen of the console, start pairing, the controller works after pairing succeeds and the corresponding LED keeps illuminating. If pairing fails, the controller will automatically enter sleep mode after 60 seconds.
(3) Guided Bluetooth connection by cable: Connect the controller to the console by USB cable, press any button of the controller to wake up the controller, unplug the cable, the controller automatically connects with the console. - (4) Docking button operation： Press and hold docking button for 3 seconds, 4 LEDs flash, the controller is in pairing state. In power-on state, press the docking button to turn off the controller.
- (5) Connect the controller to PC by USB cable, the display name of the device is Xbox 360 Controller
The PC needs to be installed with the Xbox 360 driver, to achieve Xbox 360 functions. - (6) The controller does not support upgrade on console. To upgrade the controller, please contact us for the updater, and upgrade the controller on a PC. (If firmware of the console updates and it impacts our controller, please contact us to get the updater and upgrade the controller.)
- (7) The controller supports Turbo function. Press and hold any button you want to program it as the turbo feature, such as A/B/X/Y, press the Turbo button to activate the turbo feature for the button you hold. Repeat above step to cancel the turbo feature. Press and hold Turbo button, operate UP or DOWN on RIGHT analogue stick to adjust the speed of Turbo (UP: to make it faster. DOWN: to make it slower).
- (8) Press any button (except L3/R3/TURBO/M1/M2/M3/M4) to wake up the game controller, it enters reconnect state，4 LEDs flash. If previous pairing is not cleared away, it will automatically reconnect to the console.
- (9) Controller buttons include UP/DOWN/LEFT/RIGHT/A/B/X/Y/L/R/ZL/ZR/L3/R3/-/+/TURBO/HOME/CAPTURE/DOCKING 20 functional buttons, 4 mapping buttons M1/M2/M3/M4 and 2 analogue sticks. (10) The controller with built-in motors， you can manually turn on or turn off the vibration function in the Setting option on the console. It also supports vibration intensity adjustment. In connection state, press and hold the Turbo button, operate UP or DOWN on the LEFT analogue stick to strengthen or weaken the vibration intensity. After operation, there is a 3-second vibration prompt and there are 4 gears for option: 100%-70%-30%-0 %.
Charging:
- LED indicators flash during charging by the adapter and turn to off after full charging. If the controller is charging in the connection state, the corresponding channel LED indicator slowly flashes and keeps illuminating after full charging
Referenced current:
- Sleep current: 2uA
- Pairing current: 20mA
- Working current without vibration: 20mA
Electrical specifications:
- Power supply: Built-in polymeric Li ion battery
- Working time: 8 10 hours
- Battery capacity: 500 mAh, Charging time 2.5 hours
- Charging voltage: DC5V Charging current 200mA
Instructions for pairing:
- 1) Switch on the console, click the house icon on the screen to enter the main menu, as shown in the below picture:
- 2) Click the controllers icon on the main menu, as below picture:
- 3) Select change grip/order as below picture
- 4). Click change grip/order to enter the pairing interface. Press and hold Docking butt on for 3 seconds to establish pairing, 4 LED indicators flash, release your hand, wait for 5 30 seconds until pairing succeeds and the controller icon shows up on the screen, the corresponding channel LED indicator keeps on.
Gyroscope sensor calibration:
- In sleep state, press and hold L3, then press button R, LED indicators flash from left to right in cycle, the controller enters calibration mode. Place the controller on a horizontal table, press button +, 4 LED indicators illuminate and are off in 3 seconds, now calibration finishes and the controller comes back to sleep state.
Gyroscope sensor calibration:
- After the controller successfully connects with the console, return to the main menu, click System Settings to enter the Settings menu. Scroll down the Settings menu, select Controllers and Sensors option, scroll up the menu list and click Calibrate Motion Controls, select Calibrate Controllers on the pop-up menu to enter the controller calibration screen. Place the controller on a horizontal table and follow the screen instructions, press and hold the button – or + on the controller to end the calibration. Calibration screen as below picture:
- 3D analogue sticks calibration:
- After the controller successfully connects with the console, return to the main menu, click System Settings to enter the Settings menu. Scroll down the Settings menu, select Controllers and Sensors option, scroll up the menu list and click Calibrate Control Sticks ”, press down the stick that you want to calibrate, enter the calibration screen, press button X on the controller, prompt menu appears, press button A on the controller to confirm calibration, enter the Sticks calibration screen, please follow the screen instructions to operate the stick UP, DOWN, LEFT, RIGHT, CIRCLE in turn. Calibration screen as below picture:
Note:
- This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
- This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
- (1) This device may not cause harmful interference, and
- (2) This device must accept any interference received, including interference that may cause undesired operation.
