Structure and Performance

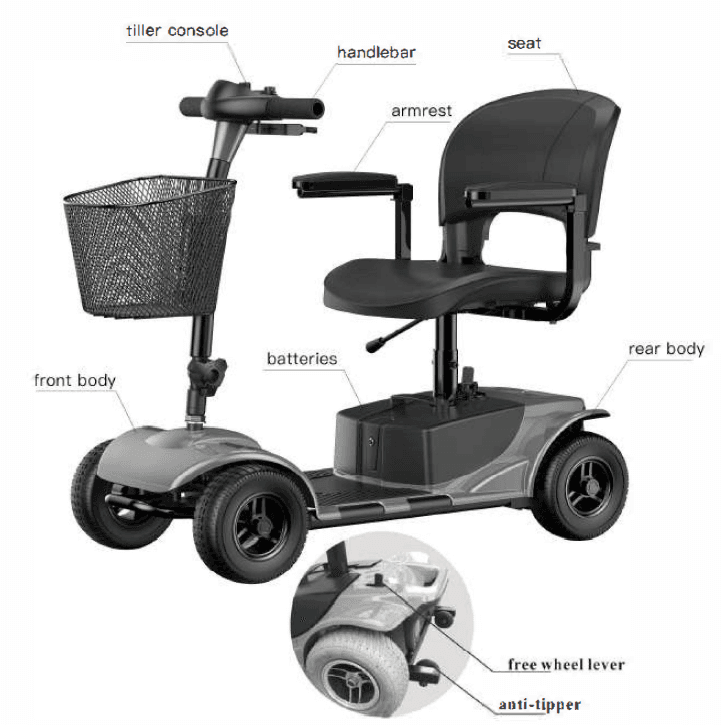

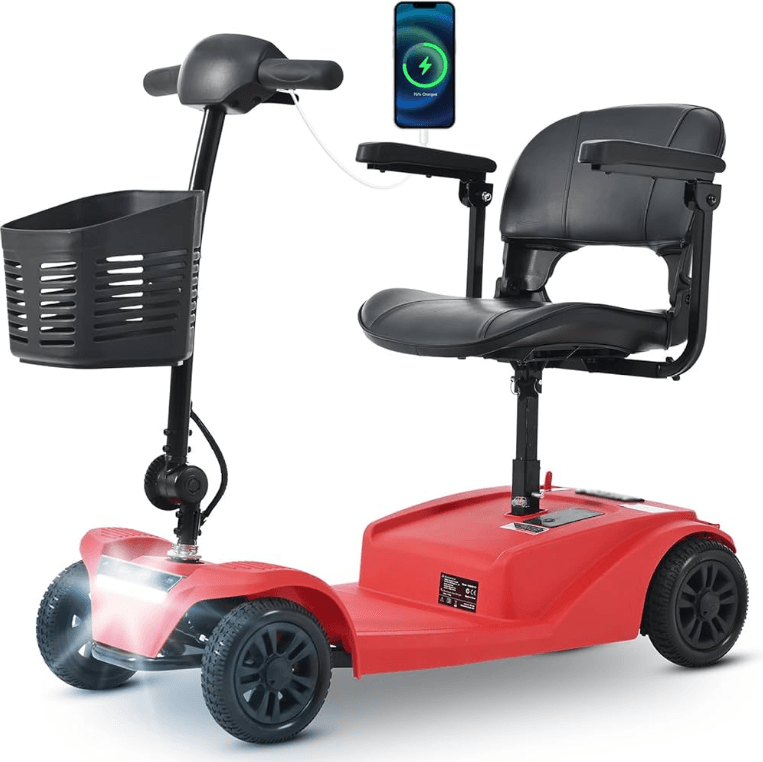

This scooter mainly consists of four parts: front body, rear body, seat
unit, and batteries (See fig. 1 ). The  Front body consists of the controller, handlebar, and footrest. The rear body consists of the drive motor, brake, and electric controller unit. The seat unit consists of a backrest, an armrest, and a cushion.

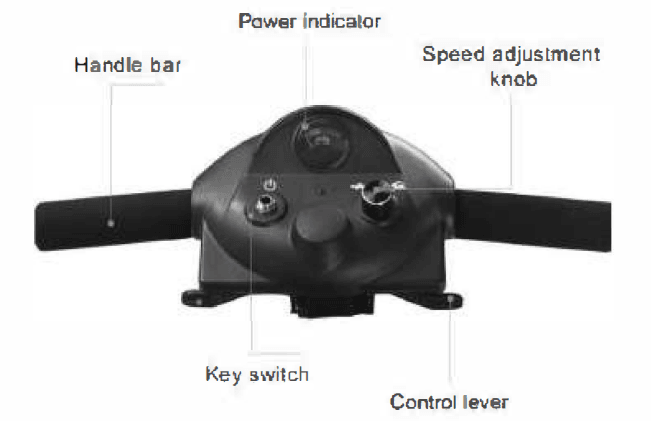

1. TILLER CONTROL ( see figure 2)
   • a. Key switch
   • b. Speed adjustment knob
   • c. Power indicator
   • d. Control lever
   • e. Handle bar

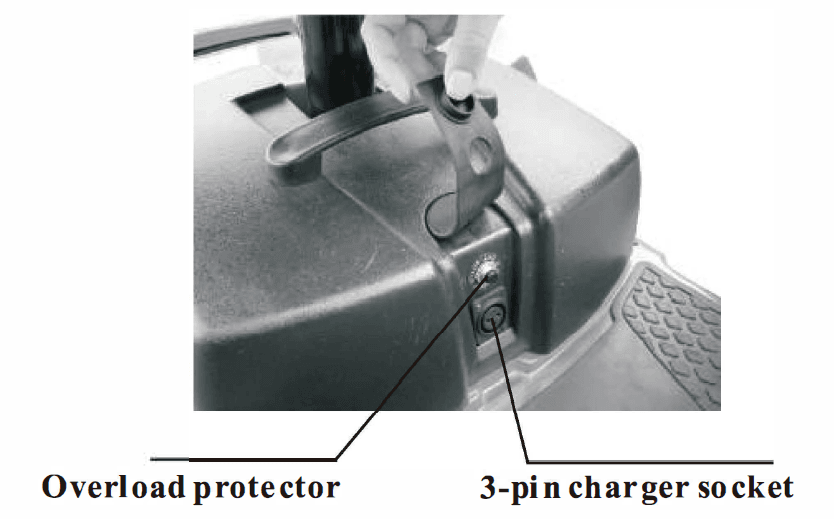

2. CHARGING AND ELECTRIC CONTROL SYSTEM
   • a. 3-pin charger socket
   • b. Overload protector
3. SEAT UNIT
   • a. Seatback
   • b. Backrest
   • c. Armrests
   • d. Seat lock lever

ASSEMBLY

For convenience of transportation and reduction of possible damage,
the batteries and the seat unit are separately packaged. So you need to assemble them onto the main frame of your scooter.
OPENING THE PACKING BOX
Open the packing box of your new scooter, and take off all protective
liner, and then take off the scooter that has been folded from the box.

ADJUSTING ANGLE OF TILLER

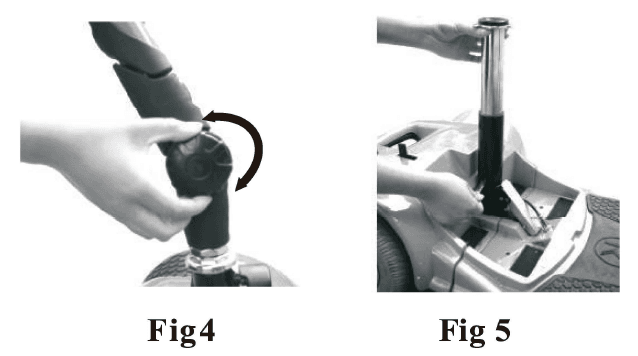

• Lose the lock-nut (see fig.4)
• Lift the tiller until a proper angle for yourself
• Tighten the lock-nuts to fix the tiller.

ASSEMBLE THE SEAT SUPPORT
Insert the seat support into the seat tube located on the rear body (see Fig. 5)

• Align the bolt hole
• Insert the bolt into the hole

BATTERY ASSEMBLY

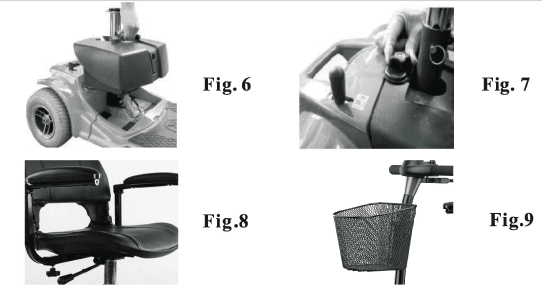

Put the batteries into the battery tray ( fig. 6) . Note that the electrode terminals on the batteries should be aligned with those on
The rear body. Then, a battery plate on the rear body is turned by 90°to suppress the battery box, and then firmly tighten a knob on the
platen ( fig. 7)

NOTICE

1. Check and clean the electrodes and remove any foreign bodies
   on them that may cause poor electrical contact.
2. Incorrect placement of the batteries may render the scooter
   unusable.

SEAT ASSEMBLY

1. Put the seat onto the seat post (fig. 8)
2. Unlock the seat lock level, adjust the seat toward the front, and the lock level will automatically lock the seat.
3. Assemble the left/right armrests respectively into the square tubes below the seat. ( see fig. 15) .
4. Adjust the seat width between the armrests suitable setting for you, tighten the knob.

BASKET ASSEMBLE

1. Remove the two screws in the tiller ( fig. 9)
2. Assemble the basket holder onto the tiller.
3. Assemble the basket into the holder.

SEAT ROTATION

• Pull up the seat lock lever to release the seat.

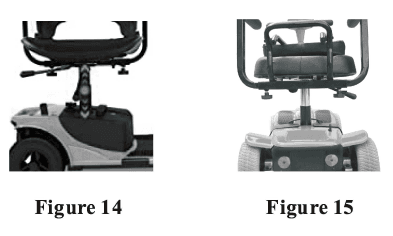

• Rotate the seat to your desired direction (see Fig. 14)
• Release the seat lock lever, and then it will lock the seat automatically.

ARMREST WIDTH

• Find the fixing screws on the armrest adjusting frame ( see Fig. 15)
• Release the screws.
• Move the armrests outward or inward according to your favorite width.
• Refasten the screws.

TILLER ANGEL ADJUSTMENT

• Loosen the lock knob on the lower end of the tiller ( see Fig. 4)
• Adjust the tiller back and forth according to your favorite angle.
• Fasten the knob.

OPERATION

1. CHARGING BATTERIES
   The battery charger is important for the batteries. This off-board charger can charge your scooter’s batteries safely, quickly, and easily. WARNING! Your scooter’s batteries must be charged with the off-board battery charger supplied by our corporation. Do not use any automotive-type battery charger.
   Charging Batteries with the Off-board Charger

• You can charge your scooter in its entirety.
• Position your scooter near a standard wall outlet.
• Lift the cover on the battery box.
• Ensure the scooter is off power.
• Plug the output connector of the off-board charger into the 3-pin charger
• socket of the scooter. Plug the input connector of the off-board charger into the wall outlet.
• The red light on the charger turns on when it is charging.
• When charging is nearly finished, the green light turns on. You should continue to charge the batteries for one or two hours.
  It is recommended that your batteries be charged for 10 to 12 hours. When the battery is fully charged, unplug the input connector of the charger from the wall outlet and then its output connector from the 3-pin charger socket of the scooter.
• The batteries can also be charged off the scooter.

New Battery Usage: To break in new batteries for maximum efficiency, please follow the notes below:

1. Fully charge any new battery before its initial use. This brings the battery up to about 90% of its peak performance level.
2. Operate your scooter throughout the house and yard. Move slowly at first, and do not stay too far until you can skillfully drive your scooter and know how to control the driving distance from the battery condition indicator.
3. Give the batteries another full charge of 10 to 12 hours and operate your scooter again. The batteries will now perform at over 90% of their potential.

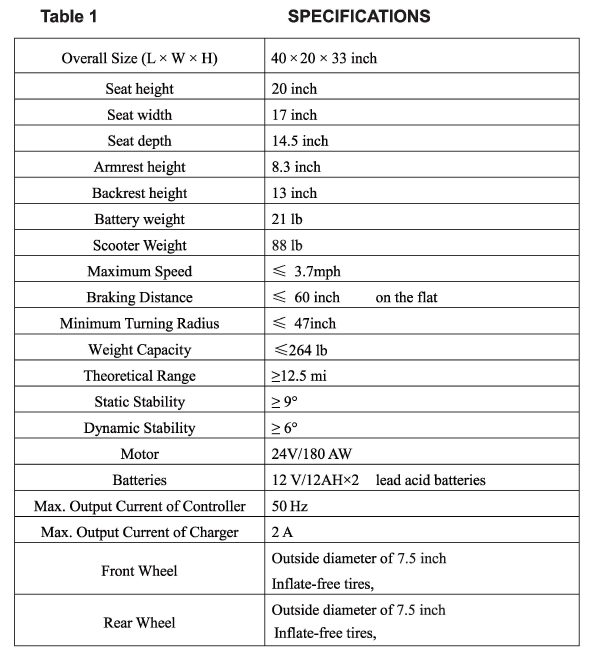

4. After four or five charging cycles, the batteries will top off at 100% charge and last for an extended period. If the batteries of your scooter need to be replaced, please purchase the deep-cycle batteries. Refer to the following specifications :

TILLER CONSOLE
The tiller console houses all of the controls required for driving your
scooter, including the key switch, the speed adjustment knob, throttle control lever, and battery condition indicator. With all of the controls on the console, you can control various motions of your scooter.

Key Switch (see fig. 2)

• Plug the key into the key switch.
• The light on the battery indicator illuminates.
• The light is off when the key is unplugged.

MAINTENANCE

GENERAL GUIDELINES

• Avoid knocking or bumping the tiller console and consoles.
• Avoid prolonged exposure of your scooter to extreme conditions, such as overheating, cold, or moisture.
• Keep the tiller console clean.
• Check all connectors to ensure that they are tight and secured
  properly.
• Check all electrical connectors, including the charger’s connectors. Make sure they are all tight and are not corroded. Batteries must sit flat in the battery tray with the battery terminals facing backward and forward each other and with the 3-pin charger socket backward.
• When you finish everyday usage, please pull out the key to reduce unnecessary consumption of power.
• This product has a power-saving facility; when you stop using it for up to 20 minutes, the power will shut off automatically. When you need to drive again, please re-plug the key.
• The body shroud has been sprayed with a clear sealant coating, and you can apply a light coat of car wax to help it retain its high-gloss appearance.
• All wheel bearings are pre-lubricated and sealed. They require no subsequent lubrication. To keep your scooter in better condition, it should be checked before using. It is suggested that your scooter should be checked once per week and every half a year, as the following Table 2.

SAFETY

1. PRE-RIDE SAFETY CHECK
   • Check all electrical connections. Make sure they are tight and not corroded.
   • Check all connections to the battery box. Make sure they are secured properly.
   • Check the brakes. Make sure they are sensitive and reliable.
   • Check the battery charge. See VI Operation.
2. WEIGHT LIMITATIONS: Your scooter is rated for a 220 lbs weight capacity and is limited to a 264 lbs maximum weight limit.
3. INCLINE INFORMATION: The maximum safe slope of an incline is  9°for your scooter. If a slope is less than this angle, it is safe for your scooter when climbing or descending
4. OUTDOOR DRIVING SURFACES: Your scooter is designed to provide optimum stability under normal driving conditions-dry, level surfaces composed of concrete, blacktop, asphalt, or hard dirt. But you should avoid driving on the following roads:
   • Surface that you feel unsure about, or soft pavement.
   • Tall grass that can become tangled in the running gear.
   • Loosely packed gravel and sand beach.
5. MANUAL FREEWHEEL MODE: Your scooter is equipped with a manual freewheel lever that allows the scooter to be manually pushed by your attendant. For more information, see V “Operation”.
6. ELECTROMAGNETIC INTERFERENCE: Electrical devices may be affected by Electromagnetic Interference (EMI) or Radio Frequency Interference (RFI) that is produced by
   radio waves from radio stations, TV stations, and other radio
   transmitters. Like any electrical device, your scooter may be
   affected by EMI/RFI. Especially when your scooter is driven in
   the interference range of these radio transmitters. In
   this case, your scooter may be out of order due to their
   interference.
7. TRANSFER ONTO OR OFF SCOOTER: To avoid injury, the following safety precautions are useful for you while you attempt to transfer on or off your scooter.
   • Remove the key from the key switch, see V. OPERATION.
   • Ensure your scooter is not in manual freewheel mode.
   • Flip up or move away the armrests.
   • Reduce the distance between you and your scooter or the object you are transferring onto.
   • Turn the front wheels forward to improve your scooter’s stability during transfer.
8. Inclement Weather Precautions
