Eoxsmile HO-CR1009 Emergency Radio with NOAA Weather Alert

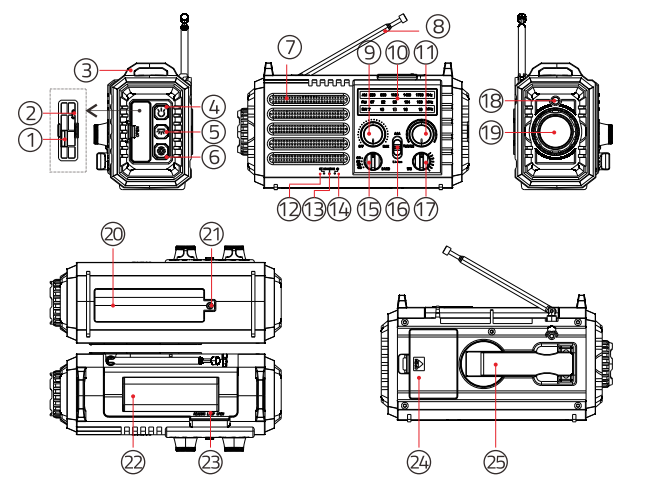

LOCATION OF CONTROLS

1. USB Output Charging Port
2. Micro USB Input charging Port for Built-in Battery
3. Carry Strap Holder
4. Flashlight Button
5. Reading Lamp Button
6. SOS Control Button
7. Speaker
8. Telescopic Antenna
9. Power ON/OFF & Volume Knob
10. Frequency Display
11. Tuning Knob
12. Battery Indicator
13. Charging Indicator
14. Power On Indicator
15. Band Selector
16. Power Selector
17. Weather Band Selector
18. SOS Flashlight
19. Flashlight
20. 5000mAh Rechargeable Battery (included)
21. Battery Compartment Cover
22. Solar Panel
23. Reading Lamp
24. AAA Battery Compartment Cover
25. Crank Handle

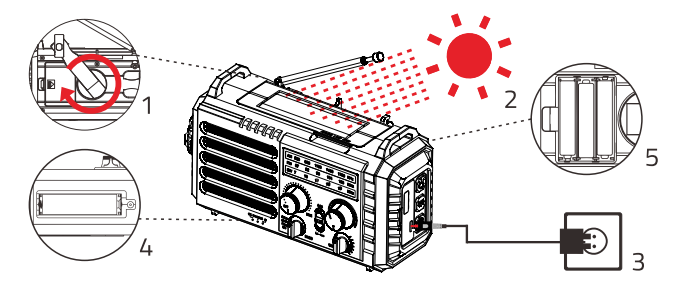

POWER SUPPLY MODE

There are 5 power supplies to power the radio:

Hand Crank Power

1. Unfold the crank handle from the backside and rotate it in either direction.
2. Rotate the crank handle. It will generate 300-350mA of electricity to charge the built-in 5000mAh rechargeable battery.

Note: Rotate the crank handle at a speed of 2 laps per second. It will generate 300-350mA of electricity.

Solar Power

1. Expose the solar panel to sunlight; don’t charge indoors.
2. It will generate 30-50mA the electricity to charge the built-in 5000mAh rechargeable battery.

Note: Solar panel will generate 30-50mA electricity when exposed to sunlight. It is difficult to fully charge the 5000mAh battery with a solar panel, which is mostly used for maintaining the rechargeable battery.

Micro USB Adapter Charging Input

1. Connect the USB Cable (included) to a regular AC power adapter (not included).
2. Plug the USB cable into the Micro USB port of the radio.
3. Plug the AC adapter into a 110-220V standard outlet. It is highly recommended to use a 5V/2A AC power adapter.

Li-ion Rechargeable Battery

AAA Batteries

1. Open the battery compartment on the back of the unit and insert 3pcs of AAA batteries, making sure the polarity is correct.
2. Set the Power Selector to AAA.

Note: In the AAA battery’s power mode, the SOS alert sound is lower than Li-ion battery because the current of the AAA battery is weaker than the current of the Li-ion battery. AAA batteries are not included.

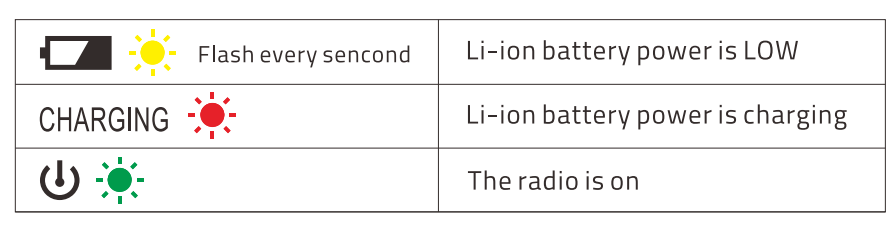

POWER INDICATORS

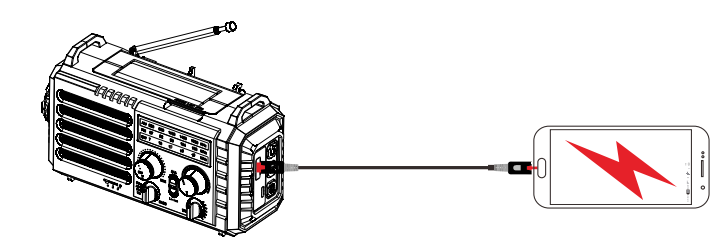

CHARGING PHONE OR PORTABLE DIGITAL

Connect your phone charging cable to the USB output port on the back of the radio.

If the CR1009 has no power, you can rotate the crank handle for 8-15 minutes (the time depends on your speed of rotation). Then your phone will get enough power to start up.

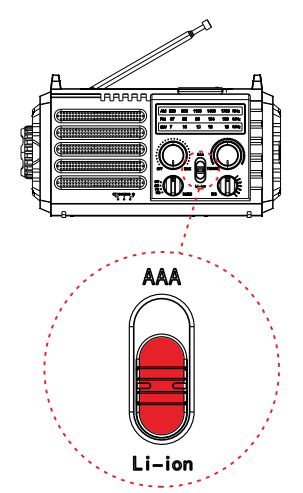

POWER SWITCH

1. If you have installed an AAA battery and intend to use it, please switch the POWER button to the “AAA” side. Please use a little force when sliding the “POWER” button to make sure it gets to the MOST TOP to avoid the AAA power supply not being connected.
2. If you plan to use a Li-ion battery, please switch the “POWER” button to the “LI-ION” side. Please use a little force when sliding the “POWER” button to make sure it gets to the VERY BOTTOM to avoid the Li-ion power supply not being connected.

S0S ALERT

1. In an emergency, you can turn on the flashing red SOS light and Alert sound. 1. Click the SOS Button to turn on the SOS alert.
2. Click the SOS Button again, and the 50S alert will be turned off

READING LAMP

1. Rotate the lamp up by 90 degrees for better reading with a table lamp.
2. Click the Reading Lamp Button to turn on the lamp.
3. Click the Reading Lamp Button again, and the lamp will turn off.

FLASHLIGHT

1. Click the Flashlight Button to turn on the flashlight.
2. Click the Flashlight Button again, and the flashlight will turn off.

RADIO OPERATION

Turn on the radio

Rotate the volume control knob away from the OFF position, and the radio will turn on automatically.

Band Selector

Rotate the band selector switch to choose the band you want to listen to. You can choose from AM/FM, Shortwave, and Weather Band.

• Weather Band: Receives all 7 weather bands from NOAA, the U.S. National Weather Service, which broadcasts in all 50 states, Puerto Rico, and the U.S. Virgin Islands.
• AM Band: Receives all local AM stations from 520KHz to 1710 kHz.
• FM Band: Receives all local FM stations from 87.00 MHz to 108 MHz.
• SW Band: Receives all Shortwave bands from 7MHz – 19MHz.

Note: The SW band allows you to listen to overseas broadcasts from stations like the BBC, Radio Moscow, Radio France, Radio Beijing, Voice of America, and more.

Volume Control

Turn the volume control knob to adjust the sound volume of the radio.

Tuning

Select the band you want to listen to, then turn the tuning knob slowly until you receive the desired station.

Note:

1. When listening to FM/SW1/SW2 and Weather Band, please extend the telescopic antenna to receive the best signal. When listening to the AM stations, it is better to use them near a window or open space in order to receive better signals.
2. Please note regarding the NOAA Weather Band: You need to identify which band receives your local weather band report. When you change locations, either to another city or state, you may need to choose a different band to get the local report in that location.

Weather Band

Set the band selector to WB, and choose one of the 7 bands to find your local weather station.

Note: NOAA Weather band is a service broadcast by the U.S. Government and available in all 50 states, Puerto Rico, and the U.S. Virgin Islands.

NOAA Alert

1. Turn on the radio by rotating the volume control knob away from the OFF position.
2. Set the band selector to WB to turn the weather band to your local weather station.
3. When the National Weather Service issues a severe weather alert, the machine will emit an SOS alarm sound for 9 seconds, meanwhile the red light flashes, and then the radio will continue to play the weather information.

SPECIFICATIONS

• FM: 87 – 108 MHz
• NOAA Weather: 162.400MHz / 162.425MHz / 162.450MHz / 162.475MHz / 162.50MHz / 162.525MHz /
• 162.55MHz
• AM (MW): 520-1710 KHz
• SW: 7-19.00 MHz
• Solar Panel Power: 30-50mA
• Crank Power: 300-350mA
• Rechargeable Battery: 5000mAh 21700 Li-ion battery
• AC Power Input Interface: Micro USB
