EUHOMY ‎DW-01 Mini Portable Countertop Dishwasher User Manual

EUHOMY ‎DW-01 Mini Portable Countertop Dishwasher

Product Introduction

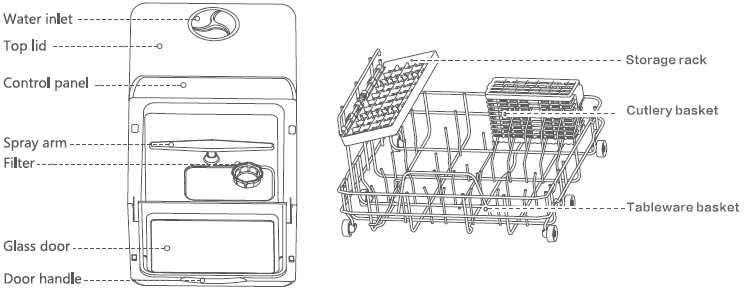

Machine

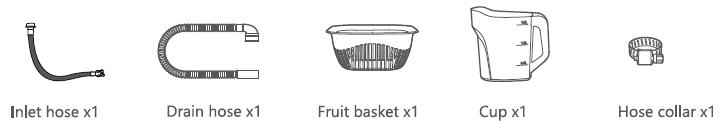

Parts list

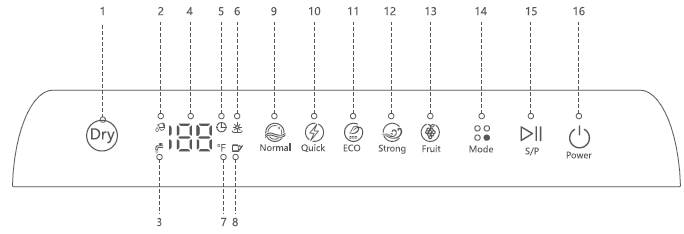

Control Panel

1. Dry
2. Tank model
3. Tap model
4. Display screen
5. Time display
6. Dry indicator
7. Temperature
8. Door open
9. Normal
10. Quick
11. ECO
12. Strong
13. Fruit
14. Program option
15. Start/Pause
16. Power on/off

Installation

lnlet hose installation

1. Connect machine: Insert inlet hose elbow into the water inlet behind machine and tighten the screw.
2. Connect tap: A, B, C three options for tap connection, but B and C options need make a hole on or behind cabinet in order the hose can go through cabinet.

NOTE: We offer 59-inch standard 3/4″ GHT-11 hose connectors.

Drain hose installation

1. Connect machine: Insert the drain hose elbow to the water outlet behind the machine and tighten the collar.
2. Connect the sewer: A, B, and C are three options for sewer connection, B and C options require making a hole on or under the cabinet in order for the hose can go through the cabinet.

Note: A hose that attaches to a sink spray can burst if it is installed on the same water line as the dishwasher. If your sink has one, it is recommended that the hose be disconnected and the hole plugged.

Tableware Loading

1. Please get rid of large food residue on tableware, avoiding blocking the water hose.
2. Please make reference to the right pictures for the tableware display.

Note:

In order to fully clean tableware, please tilt the tableware internally or put the stained side down.

1. 78 mm Cup
2. 78 mm Cup
3. 195 mm Melamine dessert plate
4. 230 mm soup plate
5. 190 mm Dessert plate
6. 130 mm Dessert bowl
7. 70 mm Mug
8. 140 mm Saucer
9. 213 mm Melamine bowl
10. Cutlery

1. Serving fork
2. Soup spoon
3. Fork
4. Knife
5. Tea spoon
6. Dessert spoon

Operation

• Power on: Plug in, touch the power button to turn on the machine. Note: During the washing program running, touch “(‘.) ” for 3 seconds to force the machine to turn off.
• Add detergent: Open the door, add moderate detergent powder, or 1 pc detergent block into the machine, close the door. Note: No detergent when fruit washing; The dosage: 8-1 Og for each washing circle.
• Program selection: Touch the mode button, each of the program indicators will light one by one, select the program you want.
• Run the program: Touch the S/P button, run the selected program, and the machine will check the water supply automatically.

Note:

1. Check the tap or tank model automatically after running the program. If the indicators become red, you need to open the tap or fill the tank with water.
2. After 5 times checking, there is still no water supply, the machine will enter standby; Touch “S/P button” to force to machine to pause and add tableware during washing;
3. Touch the “power button” for 3 seconds to quit the program, the machine will drain, and then turn off.
4. Touch the “dry button” to add 73 hours’ circular wind to keep the air fresh inside the machine.

• Wash: The machine has two water supply models, the tap model and the tank model.

Maintain & Clean

Clean Filter

1. Disassemble: Rotate anticlockwise to disassemble the first set, which has 3 parts: filter mesh, main filter, and fine filter.
2. Clean: Use water to flush and brush each of the filter parts.
3. Assembly: After cleaning, rotate clockwise to close the filter set.

Clean spray arms

1. Disassemble: Open the door, take out the basket, then pull out the up and down spray arm.
2. Clean: Use water to flush and brush each the spray arm, use tools with a sharp point, like the needle, to clean holes if needed.
3. Assembly: After cleaning, please press each arm into the position, and make sure the arms can move smoothly.

NOTE: If there is limescale in the tank, it is recommended that you clean it with vinegar or citric acid.

Fault & problem

Fault codes

Problem (1)

Problem (2)

Problem (3)

Safety and warning

Warning

1. Power socket must be grounded, avoiding possible electric leakage or shock.
2. Don’t share one socket with another appliance to avoid a fire.
3. Any new parts or power lines will be changed by the service man after damage.
4. Dispose of the machine in an environmentally friendly manner under local regulations.
5. Do not place the machine in an environment under 32°F, like outside a door in cold weather.
6. Please use the salt and detergent that is special for the dishwasher.
7. Don’t place and use the machine on a platform that is not stable, wet, smooth, or inflammable avoiding to avoid any damage.
8. Don’t place or use the machine within 150mm far from a gas stove or heater.
9. Don’t place any heavy objects on the door when the door opens to avoid the machine turning over.
10. Don’t splash water into the machine to electric shock or fire.
11. Don’t drink the water in the machine.
12. Don’t let children operate the machine independently to avoid any danger.

Precaution

1. Don’t open the door when washing, to avoid hot water from flying out, causing any harm.
2. Don’t touch or block the side air outlet.
3. Don’t tilt or move the machine when washing.
4. Don’t face a person, avoiding any hurts when opening the door;
5. Please stop washing, power off, and close the tap when any fault occurs.
6. Please check and clean the machine from time to time in order to achieve the best washing effect.
7. Please fix the drain hose to the stained water outflow.
8. Don’t forcibly pull the power cord, drain hose, or press the cutlery tray, avoiding any damage;
9. Don’t use a wet hand to operate the machine to avoid an electric shock.
10. Children should be far away from chemical materials such as salt, detergent, and avoid any harm.

IMPORTANT SAFETY INSTRUCTIONS

• Use only detergents or wetting agents recommended for use in a dishwasher, and keep them out of the reach of children.
• When loading items to be washed:

1. Locate sharp items so that they are not likely to damage the door seal; and
2. Load sharp knives with the handles up to reduce the risk of cut-type injuries.

• Do not wash plastic items unless they are marked “dishwasher safe” or the equivalent. For plastic items not so marked, check the manufacturer’s recommendations.
• Do not touch the heating element during or immediately after use.
• Do not operate your dishwasher unless all enclosure panels are properly in place.
• Do not tamper with controls.
• Do not abuse, sit on, or stand on the door or dish rack of the dishwasher.
• To reduce the risk of injury, do not allow children to play in or on a dishwasher.
• Under certain conditions, hydrogen gas might be produced in a hot-water system that has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot-water system has not been used for such a period, before using the dishwasher, turn on all hot-water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is flammable, do not smoke or use an open flame during this time.
• Remove the door to the washing compartment when removing an old dishwasher from service or discarding it.

GROUNDING INSTRUCTIONS

This appliance must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. This appliance is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local codes and ordinances.

WARNING: Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly grounded. Do not modify the plug provided with the appliance; if it does not fit the outlet, have a proper outlet installed by a qualified electrician.
