EverStart ETEK 10709 Voltage AC-DC Multimeter User Manual

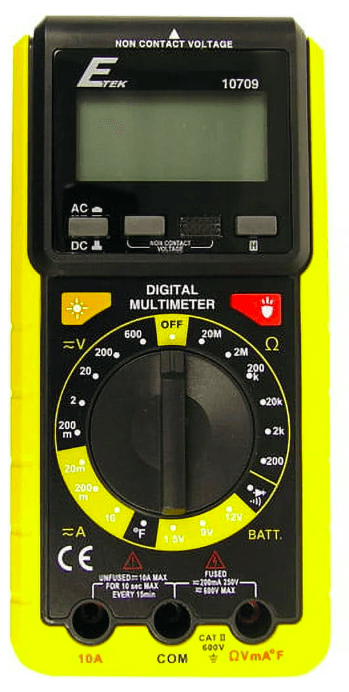

EverStart ETEK 10709 Voltage AC-DC Multimeter

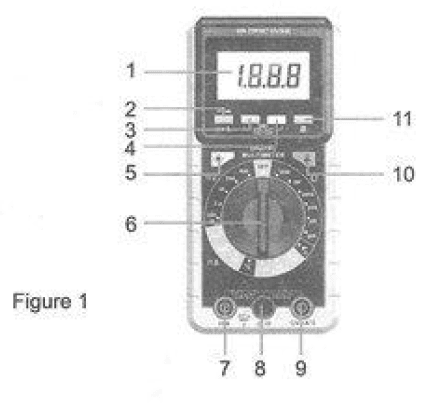

DESCRIPTION

1. DISPLAY
   • 3 1/2-digit LCD, with a max.reading of 1999
2. “AC/DC” exchange button
   • It can be used to switch between DC and AC functions.
3. AC voltage detection button
4. AC voltage detection indicator
5. Backlight button
   • To turn on the backlight, press the button. The backlight will turn off automatically approximately 10 seconds later.
6. Function / Range Switch
   • Used to select the desired function range and to turn the meter on/off. To preserve battery life, set this switch to the “OFF” position when the meter is not in use.
7. “10A” Jack
   • Plug-in connector for the red test lead for current (200mA – 10A) measutements
8. “COM” Jack
   Plug-in connector for black (negative) test lead.
9. “QVmA”F” Jack
   • Plug-in connector for the red (positive) test lead for all measurements < 200mA.
10. Work Light button
    • Press and hold down this button to turn on the light. Release the button to turn off the light.
11. “H” button (Data Hold)
    • After pressing the button, the meter enters Hold mode and the present reading is held on the display. To exit the Hold mode. press the button again.

GENERAL SPECIFICATION

• Display: 3 1/2-digi: LCD, with a max. reading of 1999
• Sampling rate: 2-3 times/sec
• over range indication: only figure “I” shown on the ICO.
• Battery: – 2 X 1.5V, AAA or equivalent
• Polarity indication: “-” displayed automatically
• Low battery indication: “+/-” shown on the display
• Operating temperature: 0°C to 40°C, <75%6RH
• Storage temperature: -10°C to 50°C, <85%6RH

SPECIFICATIONS

• Accuracy is specified for a period of one year after calibration and at 18°C to 28°C, with relative humidity <75 %., accuracy specifications take the form of:+- (% of Reading) +[number of Least Significant Digits))

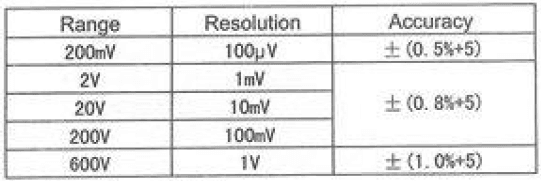

DC Voltage

• Input impedance: 10MQ
• Max. Input voltage:
• 200mV range: DC 250V
• All other ranges: DC 600V

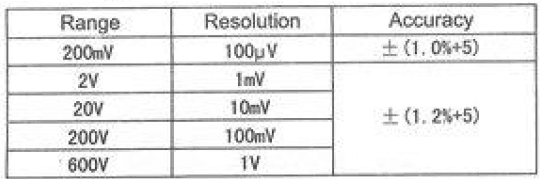

AC Voltage

• Frequency Range: 40H2 – 400H2
• Max, input voltage:
• 200mV range: AC 250V RMS
• All other ranges: AC 600V RMS
• Response: Average, calibrated in RMS of sine wave

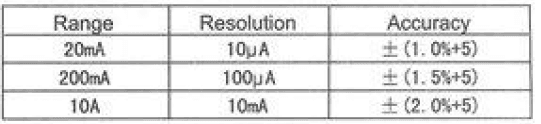

DC Current

• Overload Protection: F 500mA L 250V fused, 10A range unfused.
• Max. Input Current: 10A
• (For measurements >5A; measurement duration< 10 cecs, and interval >15 minutes.

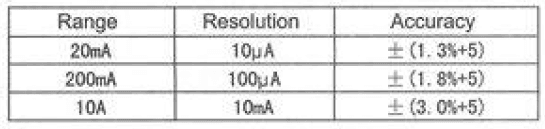

AC Current

• Overload Protection: F 500mA L 250V fused, 10A range unfused.
• Max. Input Current: 10A|
• (For measurements >5A: measurement duration<10 secs, and interval >15 minutes.)

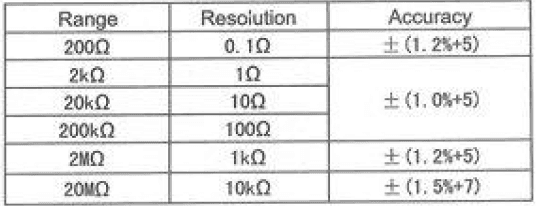

Resistance

• Max. open circuit voltage: approximately 2.8V

Temperature

Note: Use k type thermocouple

1. Assracy specification assumes the average temperature is stable to 1.8 %. For ambient temperature changes 2 13°5, caste accuracy applies 1 hour after the temperature change
2. The above accuracy does not include variance caused by the thermocouple provided.
3. The thermocouple provided mith the meter should only be used for opa-critical temperature reference nessurements, for accurate measurements, please use a professional thermocouple.

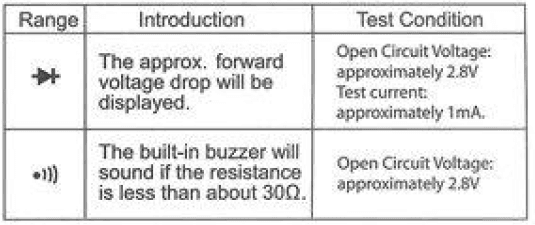

Diode and Continuity

OPERATION INTRODUCTION

Measuring Voltage

1. Connect the black test lead to the “COM” jack, and the red test lead to the “QVmA”F” jack.
2. Set the range switch to the desired Ve range. It the magnitude of the voltage is not known beforehand, set the range switch to the highest range position, and
   then reduce it range by range until a satisfactory resolution is obtained.
3. Select the “AC/DC” exchange button to select DC or AC function exchange button.
4. Connect the test leads across the load to be measured.
5. Read LCD display. For DC voltage measurement, the polarity of red lead connection will be indicated as well.
   • Note:
   • To avoid damage to the meter, don’t measure a voltage which exceeds 600V DC (for DC voltage measurement) or 600V AC ( for AC voltage measurement).

Measuring Current

1. Connect the black test lead to the “COM” jack. Connect the red test lead to the “(VmA”F” jack if the curent to between 200mA and 10A, connect the a the *10A” jack instead.
2. Set the range switch to desired Are range. If the magnitude of the current is not known beforehand, set the range switch to the highest range position and then
   reduce it range by range until satisfactory resolution is obtained.
3. Press the “AC/DC” exchange button to select DC or AC function.
4. Turn off power to the circuit whose current you want to measured. Discharge all high-voltage capacitors of the circuit.
5. Break the current path to be tested. Connect the red test lead to the more positive side of the break and the black test lead to the more negative side of the break.
6. Turn on power to the circuit.
7. Read the LCO display. For DC current measurement, the polarity of red lead connection will be indicated as well.

Measuring Resistance

1. Connect the black test lead to the “COM” jack and the
2. Set the range switch to desired range.
3. Connect test leads across the load to be measured.
4. Read the reading on the display.
   • Note:
   • 1. For resistance above 1000k, the meter may take a few seconds to stabilize reading. This is normal for high resistance measuring.
   • 2. When the input is not connected, ie. at open circuit, the figure “1* will be displayed as an over range indication.
   • 3. When measuring in-circuit resistance, be sure the circuit under test has all power removed and all capacitors are fully discharged.

Continuity Test

1. Connect the black lest lead to the “COM” jack and the red test lead to the *OVmA’F* jack ( Note: The polanty of the red lead is positive ***).
2. Set the function switch to »1)) position.
3. Connect the tast leads to the circuit to be measured.
4. If the resistance is lower than approximately 300, the built-in buzzer will sound.

Diode

1. Connect the black test lead to the “COM” jack and the red test lead to the “VmA’F* jack ( Note: The polarity of the red lead is positive *+*).
2. Set the range switch to #+ position.
3. Connect red test lead to the anode of the diode to be tested, and black test lead to the enthode.
4. The display will show the approximate forward voltage of the diode. If the connection is reversed, only figure “1” will be shown on the display.

Measuring Battery

1. Set the range switch to the desired “BATT” range.
2. Connect the red test lead to the “(VmA*F* jack, and the black test lead to the “COM” jack.
3. Connect the test leads to the two terminals of the battery to be measured.
4. Read the voltage value of the battery on the display.

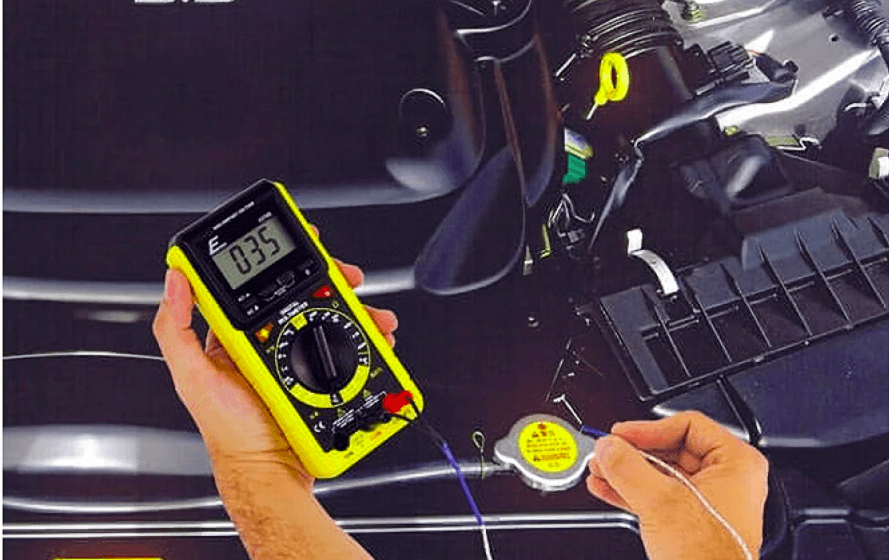

Measuring Temperature

Note: The enclosed Thermerouple is rated to 785*%, when measuring temperatures above 765°F the user must use a thermocouple rated to the higher temperature range. thermocouple to the “COM” jack, the positive (*) plug to the “QVmA’F* jack

1. Set the range switch to the “F” range
2. Connect the negative (-) plug of the K type thermocouple to the “COM” jack,the positive (+) plug to the “QVmA’F” jack
3. Carefully touch the thermocouple to the object to be measured.
4. Wait a while, read the reading on the display.

Detection AC Voltage

Warning

• To avoid electric shock do not touch any conductors with your hand or bare skin.
• Because of the meter’s detection limit, a line (ar conductor) under test may be live even when the built-in buzzer does not sound and the AC voltage detection indicator does not light.
• Before use verify meter’s operation with a known AC voltage
• Do not use the meter in the environment of intense electromagnetic fields.

1. Press and hold down the AC voltage detection button, move the top of the meter to the standard AC outlet to be tested. If the meter detects AC voltage, the built-in buzzer will sound and the AC voltage detection indicator will light.
2. Detect a line Connect a test lead to a terminal jack, connect the probe of this test lead to a line to be tested, press and hold down the AC voltage detection button. If the meter detects AC voltage, the biotin buzzer will sound and the AC voltage detection indicator will light.

BATTERY REPLACEMENT

• When the symbol “+/-“appears on the display, it means that the batteries should be replaced. To replace the batteries, remove the screw on the battery cover, remove the battery cover and replace the old batteries with new batteries of the same type. Reattach the battery cover and reinstall the screw

FUSE REPLACEMENT

• The fuse rarely needs replacement and is usually blown as a result of an operator’s error. This meter uses a fuse: F 500mAL 250V, Fast action To replace the fuse, remove the battery cover and the back cover, replace the damaged fuse with a new fuse of the same ratings, reattach the back cover and reinstall the screws.

MAINTENANCE/CLEANING

• Periodically wipe the case with a damp cloth and mild detergent. Do not use abrasives or solvents

ACCESSORIES

• Owners manual: 1 piece
• Test leads: 1 pair
• K-type thermocouple: 1 piece
• Carrying Case: 1 piece
