Evolution Digital Evo Fuse 4k Stick
The Evolution Digital Evo Fuse 4K Stick is a compact yet powerful Android TV-based streaming media stick designed to transform any HDMI-equipped display into a smart entertainment hub. Built around the efficient Amlogic S905Y4 chipset with an ARM Mali-G31 MP2 GPU, it delivers smooth playback of Ultra HD content up to 4K @ 60 Hz with support for modern video codecs, including AV1, H.265/HEVC, VP9, ensuring compatibility with current and next-generation streaming formats. Equipped with 2 GB of LPDDR4 RAM and 32 GB of onboard storage, the Evo Fuse 4K Stick provides responsive performance for streaming apps, games, and multimedia content while running Android TV™, giving access to Google Play, YouTube, Netflix, and more.
The device offers robust dual-band Wi-Fi (802.11 b/g/n/ac) and Bluetooth 5.0 BLE, making it easy to connect wirelessly to the internet and peripherals, while the HDMI 2.1 output with HDCP 2.2 ensures high-quality video delivery to modern displays. Supporting a wide range of video formats and file types (including HDR10/10+), and audio decoding with Dolby pass-through and DTS, the Evo Fuse 4K Stick delivers immersive audiovisual performance in a truly plug-and-play form factor — ideal for upgrading TVs without built-in smart features.
Simplified 4K Streaming
Upgrade your home entertainment with the EVO FUSE 4K Stick with enhanced Android TV™ capabilities and power-efficient design. Experience seamless streaming on a graphic-rich platform that simplifies whole-home video distribution with robust dual-band Wi-Fi 5. The EVO FUSE 4K combines bandwidth efficiency and a sleek design for an unmatched viewing experience.
Hardware
- Chipset: Amlogic S905Y4
- GPU: ARM Mali-G31 MP2
- RAM: 2GB LPDDR4
- FLASH Memory: 32GB eMMC
Network Features
- Wi-Fi: 802.11 b/g/n/ac dual-band 2.4/5G (RealTek)
- Bluetooth: BLE 5.0
Video
Video Decoding:
- AV1 [email protected] up to 4Kx2K@60fps
- VP9 Profile-2 up to 4Kx2K@60fps
- H.265 HEVC [email protected] up to 4Kx2K@60fps
- AVS2-P2 Profile up to 4Kx2K@60fps
- H.264 AVC [email protected] up to 4Kx2K@30fps
- MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496)
- WMV/VC-1 SP/MP/AP up to 1080P@60fps
- AVS-P16 (AVS+)/AVS-P2 JiZhun Profile up to 1080P@60fps
- MPEG-2 MP/HL up to 1080P@60fps (ISO-13818)
- MPEG-1 MP/HL up to 1080P@60fps (ISO-11172)
- RealVideo 8/9/10 up to 1080P@60fps
- Video File Format: Supports .mkv, .wmv, .mpg, .mpeg, .dat, .avi, .mov, .iso, .mp4, .rm, .jpg
- Video Format: HDR10/10+
- Video Output: HDMI 2.1, HDCP 2.2
- Aspect Ratio: Auto, Full screen
- Video Resolution: 480i/p, 576i/p, 720p, 1080i/p, and 4Kx2K
Audio
- Audio Decoding: MPEG1/MPEG2 Audio Layer 2, MP3, AAC, DTS pass-through, WMA, RM, FLAC, Ogg, Dolby , Digital/Digital Plus, MS12, Dolby AC4
- Audio Mode: Mono/Stereo/Left/Right
Accessories
- User Manual: English
- DC Adapter: 1x 5.0V/1.0A DC adaptor
- HDMI: HDMI extension cable
- Remote: Support for all TiVo-approved remote controls from UEI Electronics and Remote Solutions
Physical Specifications

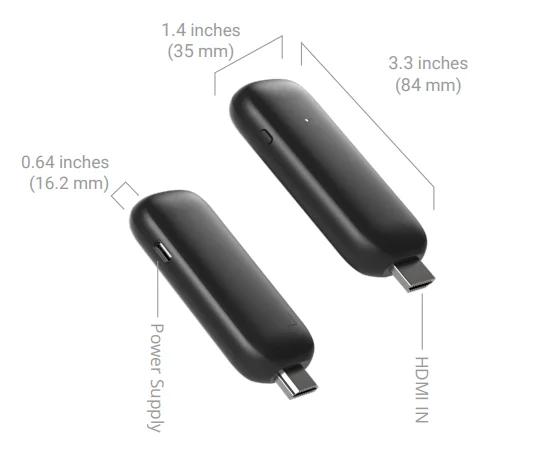

- Size: 3.3 x 1.4 x 0.4 inches (84 x 35 x 16.2 mm)
- Power Indicating LED: Blue (On); no light (Off)
- Power Consumption: Maximum 5 W
- Interface: HDMI 2.1
Licenses
- HDMI, PlayReady, HDCP 2.2, MPEG-4, H.265/HEVC, H.264/AVC, AAC, DTS pass-through, Dolby Digital, Dolby Digital Plus, MS12, Dolby AC4
For More Manuals By Evolution Digital, Visit ManualsLibraryy.
Evolution Digital Evo Fuse 4k Stick-FAQs
What is the Evolution Digital Evo Fuse 4K Stick?
The Evolution Digital Evo Fuse 4K Stick is a compact streaming device that plugs into your TV’s HDMI port to deliver 4K Ultra HD video, apps, and online content. Designed for modern home entertainment, it turns regular TVs into smart streaming platforms and supports high-resolution video, interactive apps, and internet access through your home Wi-Fi network.
How is the Evo Fuse 4K Stick different from a regular TV box?
Unlike larger set-top boxes, the Evo Fuse 4K Stick is ultra-compact and connects directly to the HDMI port, saving space and simplifying setup. It focuses on delivering streaming, apps, and video content without additional cabling. While both stick and box offer similar features, the stick’s design emphasizes portability and ease of use.
Does the Evo Fuse 4K Stick need internet to work?
Yes, to stream online content—such as apps, movies, or live TV—you need an active internet connection. The Evo Fuse 4K Stick connects to your home Wi-Fi or wired internet via a compatible adapter. Some local media playback features might work offline, but most modern experiences rely on broadband access.
What video quality does the Evo Fuse 4K Stick support?
As the name suggests, the Evo Fuse 4K Stick supports 4K Ultra HD resolution, giving four times the detail of standard 1080p. This means sharper images, greater clarity, and better colors on compatible 4K TVs. For the best experience, ensure your TV and HDMI cable are 4K-ready and your internet speed supports high-resolution streaming.
Can you use the Evo Fuse 4K Stick with any TV?
You can use the Evo Fuse 4K Stick with any TV that has an HDMI input. For 4K streaming, a 4K-capable TV is recommended. Some older TVs with only 1080p support will still work, but video quality will be limited to the TV’s maximum resolution.
How do I set up the Evo Fuse 4K Stick?
Setting up is simple: connect the Evo Fuse 4K Stick to an HDMI port on your TV, plug in its USB power adapter, switch to the correct HDMI input, and follow the on-screen instructions to connect to Wi-Fi. Once online, you can sign into apps, stream content, and customize settings.
What apps and services can I use on the Evo Fuse 4K Stick?
The Evo Fuse 4K Stick supports a wide range of streaming apps such as Netflix, YouTube, Prime Video, and other popular services available on its platform. Available apps vary by region and software version but typically include most major streaming platforms.

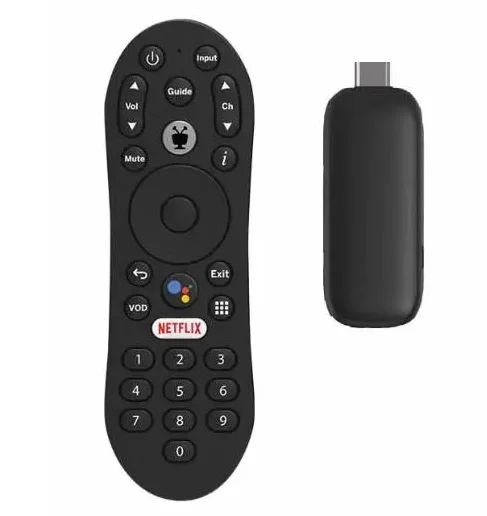

Does the Evo Fuse 4K Stick come with a remote control?
Yes, the Evo Fuse 4K Stick usually comes with a remote control for navigation, volume, and app selection. The included remote makes it easy to browse menus, search for content, and control playback from your couch without connecting a separate keyboard or smartphone.
Do I need a subscription to use the Evo Fuse 4K Stick?
No subscription is needed to use the device itself, but many streaming apps and content services require separate subscriptions. For example, Netflix or Disney+ require their own plans, while free apps like YouTube offer content without a paid subscription.
Is the Evo Fuse 4K Stick compatible with voice assistants?
Many versions of the Evo Fuse 4K Stick support voice search or voice assistant features through the remote or connected services. This lets you search for content, launch apps, and control playback using voice commands. Compatibility depends on the specific software version and supported platforms.
