TP-Link Dual-Band AX3000 Wi-Fi 6 Router Archer AX55

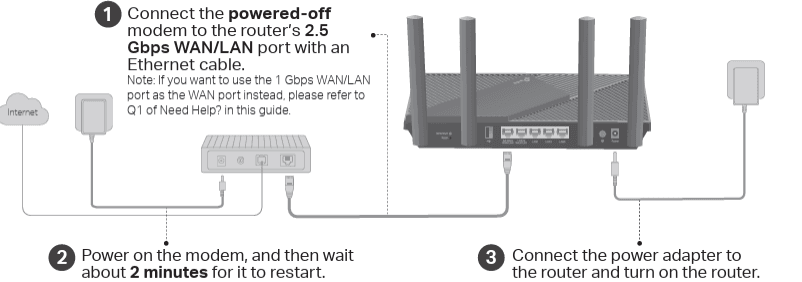

Connect the Hardware
- Unplug the power to turn off your modem, if any, and remove the backup battery if it has one.
- Refer to Q5 of Need Help? to place the router for optimal Wi-Fi performance.
If your internet comes from an Ethernet outlet instead of a DSL / Cable / Satellite modem, connect the router’s 2.5 Gbps WAN/LAN port to it, then follow steps 3 and 4 to complete the hardware connection.
- Verify that the hardware connection is correct by checking the following LEDs.
Note: If the 2.4GHz LED and 5GHz LED are off, press and hold the WPS/Wi-Fi button on the back for more than 2 seconds. Both the LEDs should turn solid on.
Set Up the Network
Method ONE: Via TP-Link Tether App.
- Download the Tether app.
- Open the Tether app and log in with your TP-Link ID.
- Tap the button in the Tether app and select Wireless Router > Standard Routers. Follow the steps to complete the setup and connect to the internet.
Method TWO: Via a Web Browser.

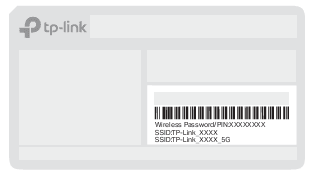

- . Connect your device to the router wirelessly or with an Ethernet cable. The default wireless network names (SSIDs) and passwords are printed on the label at the bottom of the router.

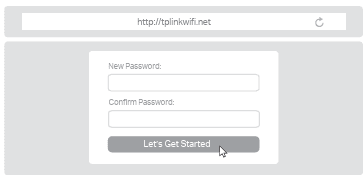

- Launch a web browser, and enter http://tplinkwifi.net or http://192.168.0.1 in the address bar. Create a password to log in.
Note: If the login window does not appear, please refer to Q1 of Need Help? in this guide.
- Follow the step-by-step instructions to set up the internet connection and register for the TP-Link Cloud service.

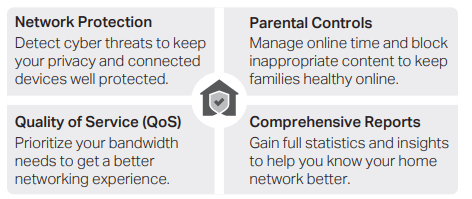

TP-Link HomeShield
TP-Link HomeShield premium security services keep your home network safe with cutting-edge features for the network. Download the Tether app to enjoy HomeShield features.
For more details, visit https://www.tp-link.com/homeshield.
USB Applications
With the USB port, it’s easy to share files and media with multiple devices. Visit https://www.tp-link.com/app/usb to learn more about the USB applications.
- Local Storage Sharing: Share files from the USB drive with devices on your home network.
- Media Server: Play media from the USB drive on your computer and smart devices Remote
- Access: Access the USB drive when you are away from home.
Button Explanation
- WPS/Wi-Fi Button
WPS: Press the button for 1 second, and immediately press the WPS button on your client to start the WPS process.
Wi–Fi: Press and hold the button for more than 2 seconds, then release the button to turn on or off the wireless function of your router - Reset Button: Press and hold the button for about 6 seconds until the Power LED blinks to reset the router to its factory default settings.
For technical support, replacement services, user guides, and other information, please visit https://www.tp-link.com/support.
Need Help?
Q1. What should I do if I want to use 1 Gbps WAN/LAN port for internet service?
Connect to the 1 Gbps WAN/LAN port with an Ethernet cable. During the quick network setup, select the 1 Gbps WAN/LAN port as the Internet port. Or after the network setup, you can go to Tools > Internet Connection > Internet Port (Tether app) or Internet >Internet Port (web management page) to change it.
Q2. What should I do if I can’t access the web management page?
- Reboot your router and try again.
- If the computer is set to a static IP, change its settings to obtain an IP address automatically.
- Verify that http://tplinkwifi.net is correctly entered in the web 0000browser. Alternatively, enter http://192.168.0.1 or http://192.168.1.1 in the web browser.
- Use another web browser and try again.
- Disable and enable the network adapter in use
For more manuals by TP-Link , visit ManualsLibraryy
TP-Link Dual-Band AX3000 Wi-Fi 6 Router Archer AX55-FAQs
How many devices can the Archer AX55 connect to?
The Archer AX55 supports up to 256 devices thanks to advanced Wi-Fi 6 features like OFDMA and MU-MIMO, which help manage multiple connections efficiently.
Is the TP-Link AX3000 a modem too?
No, the AX3000 is a Wi-Fi router, not a modem. You’ll need to pair it with a separate modem (like a DOCSIS 3.1 modem) for internet access.
What’s the maximum number of devices a router can handle?
It depends on the model. Most modern routers handle 20 to 50 devices, but the AX55, using Wi-Fi 6 tech, supports significantly more—ideal for smart homes.
What is Access Point (AP) mode on this router?
Access Point mode lets the router extend your existing Wi-Fi network, offering wider coverage and seamless connectivity under a single network name and password.
Does the Archer AX55 support VPN connections?
Yes, it supports VPN client and server functions, making it secure and versatile for remote access and privacy needs.
What is a Mesh Wi-Fi system, and is the AX55 compatible?
A Mesh system uses multiple routers to cover a large area. The Archer AX55 is EasyMesh compatible, so it can work with other mesh devices for extended coverage.
Can my router slow down my internet speed?
While routers don’t control your internet speed, an outdated or overloaded router can reduce performance. The AX55 is designed to handle high speeds and many devices smoothly.
How much power does the Archer AX3000 use?
It uses 18 watts of power, operating at 12V and 1.5 amps.
Which TP-Link router is the best?
For top-tier performance, the TP-Link Archer BE550 stands out, offering Wi-Fi 7 with tri-band support, including the ultra-fast 6GHz band for newer devices.
