Fanttik X10 APEX Portable Tire Inflator User Manual

Fanttik X10 APEX Portable Tire Inflator

1. SAFETY INSTRUCTIONS

• This product is not a toy and should not be used by children. Users should be above 16 years old.
• Keep a safe distance between children and the inflator while inflating. There is a built-in lithium battery inside the product. Don’t place the product in fire or dump the battery.
• Overheating, damage, or water may increase the risk of fire or explosion. It’s best to keep the product away from heat sources, and not leave it for prolonged periods in a hot car. If the inflator becomes very hot, there is a chance it could explode.
• Please store the product in a temperature range of -10°C~45°C. Extremely hot or cold environments may damage the battery and shorten the lifetime of the inflator.
• Long-term storage of the product may decrease the effectiveness of the battery. Charge the inflator at least once every three months to maintain its performance.
• The product has a built-in DC motor, which may generate sparks during operation. Do not use it in an environment with dust or gas that is liable to explode.
• If there is an unusual noise or the temperature becomes very high during inflation, please turn off the inflator immediately.
• Before setting the inflation pressure value, make sure the pressure unit is correctly selected. Mixing up psi and bar could lead to dangerous over-inflation.
• Unit conversion: 1BAR = 14.5PSI, 1BAR = 100KPA
• Do not leave the inflator unattended while it is in operation.
• Please use the product in a dry and clean environment. The intrusion of sand and dust may cause damage to the product. Don’t wash the product with water.
• Please use a 5V/3A, 9V/3A USB charger adapter and the included charging cable to charge this product.
• Malfunction caused by actions not in accordance with the above requirements is not covered by the warranty.
• After running for a long time, the temperature of the junction between the air tube and the main body can become very high. To avoid burns, avoid touching it.
• Caution: To reduce the risk of electric shock, do not expose to rain. Store indoors. “Never put batteries in your mouth. If swallowed, contact your physician or local poison control center.”

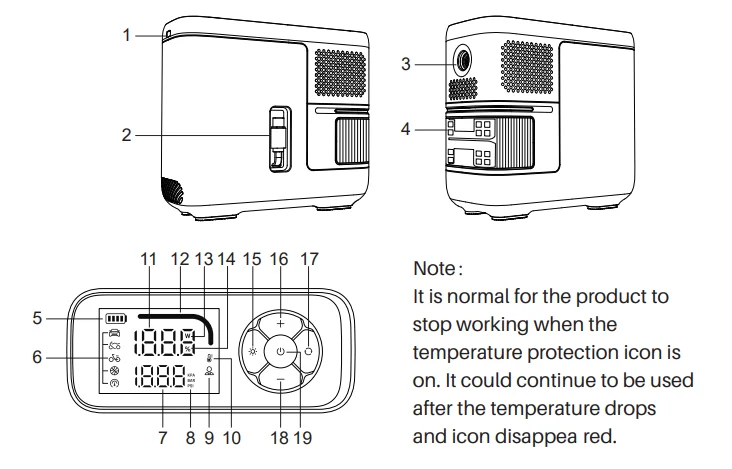

2. PRODUCT OVERVIEW

1. USB-C port (input/output)
2. USB-C charging cable (input/output)
3. Air outlet
4. Work light
5. Battery indicator
6. Preset mode
7. Target pressure value
8. Pressure unit
9. Manual mode
10. High temperature indicator
11. Real-time pressure value
12. Pumping progress bar
13. Output wattage
14. Charging percentage
15. Light button
16. “+” button
17. Mode/Unit button
18. “-” button
19. Power/Start/Stop button

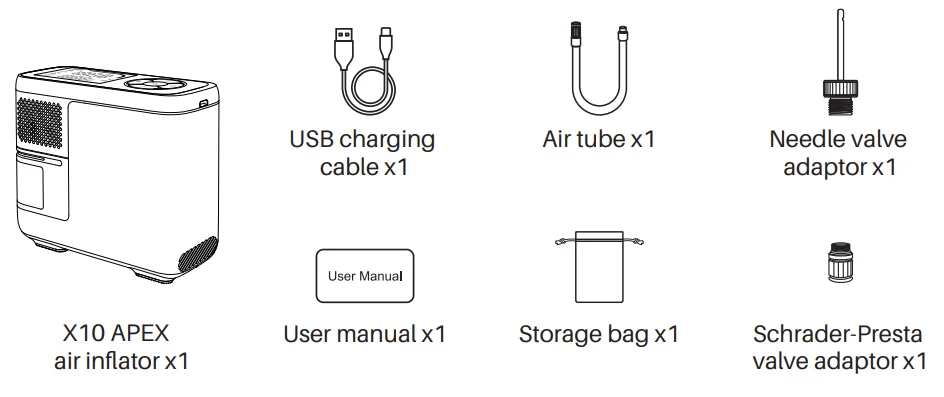

3. PACKAGE CONTENTS

Carefully check the package contents. If anything is missing or damaged, please contact customer support.

4. BATTERY LEVEL INDICATOR & CHARGING

 Battery Level Indicator

• The battery level is shown by four bars, with each bar representing 25%.
• 1 bar = under 25%
• 2 bars = between 25% and 50%
• 3 bars = between 50% and 75%
• 4 bars = between 75% and 100%
• Note: The battery indicator will flash when the battery level is below 20%.

 Charging

• Fully charge the inflator before using it for the first time. To charge, connect it to a 5V/3A, 9V/3A USB charger with the charging cable.
• While charging:
• 1 bar flashing = under 25%
• 1 bar solid, 2nd bar flashing = between 25% and 50%
• 2 bars solid, 3rd bar flashing = between 50% and 75%
• 3 bars solid, 4th bar flashing = 75% and 100%
• All 4 bars solid = fully charged

Note:

• The inflator cannot be used while it is charging.
• The USB charger is sold separately.
• Charging is disabled when the high-temperature icon is displayed.

Battery Information

To ensure optimal battery cell performance and enhance your overall experience, we recommend.

5. TURNING THE INFLATOR ON/OFF

• ON: Long-press for 1.5 seconds to turn on.
• OFF: When the inflator is turned on, long-press for 1.5 seconds to turn off.

The inflator will automatically turn off in the cases below:

1. After 3 minutes of inactivity.
2. When the charging cable is disconnected during charging.
3. Inflate for over 5 minutes when the target pressure value is below 5PSI.
4. Inflate for over 3 minutes when the target pressure value is above or equates 120PSI.

6. CONNECTING THE AIR TUBE AND NOZZLE

Connecting the Air Tube

Connect one end of the air tube (with screw thread) to the inflator before inflating.

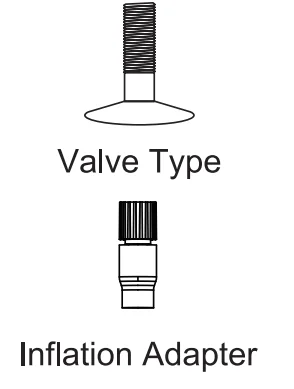

Schrader Valve Adapter

Tires on cars, motorcycles, e-bikes, and most mountain bikes use a Schrader valve.

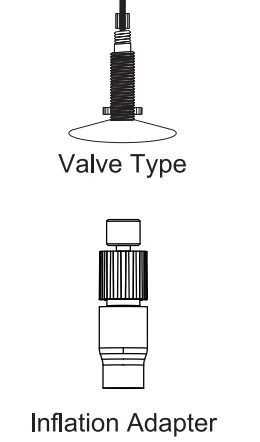

Presta Valve Adapter

Road bicycles and certain mountain bikes use a Presta valve, which requires the included Presta valve adapter to be used.

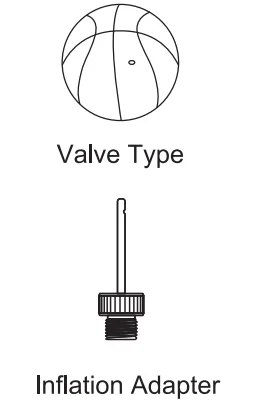

Needle Valve Adapter

To inflate balls like basketballs and footballs, the included needle valve adapter will need to be used.

7. DETECTING THE CURRENT PRESSURE

When the inflator is turned on, connect the air tube to the device to be inflated, and then the LED screen will display the current pressure value.

8. DETERMINING THE RIGHT PRESSURE VALUE

To avoid injuries from bursting items due to over-inflation, make sure you are aware of the maximum inflation pressure before you start.

 Tires

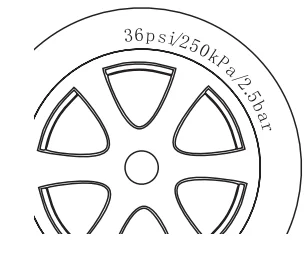

The recommended air pressure of tires for cars, bicycles, and motorcycles is indicated on the tire’s sidewall. The recommended tire pressure for cars is also indicated on the inside of the driver’s side door. For details concerning load carrying capacity and recommended air pressures, refer to your vehicle’s instructions or manual.

Balls

The recommended air pressure for footballs, basketballs, volleyballs, and other balls is indicated near the ball’s air valve.

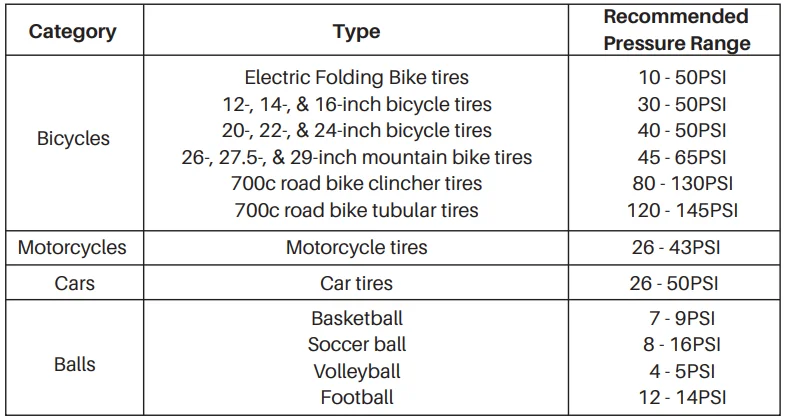

Air Pressure Reference Table

Note: Pressure range values are for reference only. Always refer to the instructions or manual of the item being inflated for actual inflation pressure specifications.

9. PRESET PRESSURE VALUE

• Switch Modes: Click the Mode button to switch between the five inflation modes below. The number on the top of the screen indicates the real-time pressure of the inflated device, and the number on the bottom indicates the preset pressure.
• Manual mode: When in the manual mode, no mode icon is selected on the screen. The preset pressure value is adjustable, and the value and unit will be saved.
• Adjustable Range: 3-150PSI/0.2-10.3BAR
• Car Mode: Default 35PSI
• Adjustable Range: 28-75PSI
• Motorcycle Mode: Default 34PSI
• Adjustable Range: 16-43PSI
• Bicycle Mode: Default 45PSI
• Adjustable Range: 30-145PSI
• Ball Mode: Default 8PSI
• Adjustable Range: 3-16PSI

Note:

• When you have finished inflating an item, the manual mode will remember the target pressure value as its default pressure value.
• For the best inflating experience, we suggest you inflate items like balls via the ball mode.

Adjusting the Preset Pressure

After selecting a mode, press + or – to increase or decrease the target pressure value. Press and hold the + or – button to quickly adjust the pressure value.

10. SWITCH PRESSURE UNIT

Long-press the Mode button to cycle through PSI/BAR/KPA.

11. LIGHT

Press the light button to turn the light on/off. The light makes it easy to see in the dark when you have any tasks, such as connecting the air compressor to a valve. Press the light button to cycle through Spotlight, SOS, and OFF when the light is on.

Note: After 30 minutes, the light will automatically turn off.

12. INFLATING

 Start Inflating

Press the Power button to start inflating. When inflating, the air compressor may be as loud as or lower than 80dB within 1 meter. Please take appropriate precautions to protect your hearing. The air compressor and air tube can get very hot after running for a while. Avoid prolonged skin contact with the tube to prevent injuries.

 Stop Inflating

Once the target pressure value has been reached, the inflator will automatically stop inflating. The inflator can also be manually stopped at any time by pressing the power button while inflating.

Caution

Items such as balloons, beach balls, and swim rings cannot be automatically inflated because they have an air pressure requirement below the air compressor’s minimum pressure range. Only inflate these items manually with caution.

13. DISCONNECTING THE AIR TUBE

The air hose may get very hot after inflating. To prevent injuries, exercise caution when disconnecting it from a valve. Some air may leak out of the valve when disconnecting the air compressor. To avoid pressure loss, quickly disconnect the air hose from the valve.

14. POWER BANK FUNCTION

This inflator can be used as a 27W power bank when it is not being charged or inflating other devices.
The battery needs to have a reasonable level of charge in order to work as a power bank.

Note:

The inflator should be turned on when being used as a power bank. When being used as a power bank, the inflator will enter “Energy Saving” mode if inactive for 3 minutes, and the screen will only display the battery level icon and output wattage. In energy-saving mode, when disconnecting the charged device from the inflator, it will automatically turn off.

15. SPECIFICATIONS

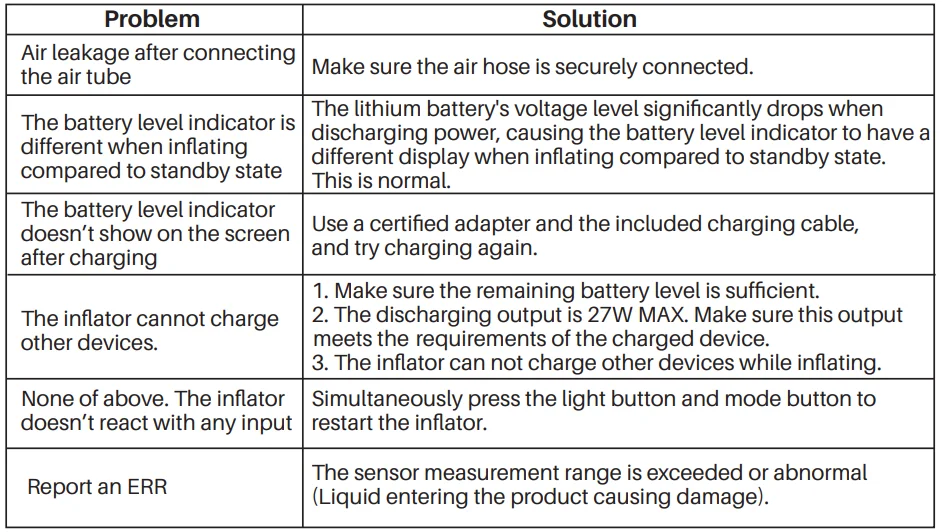

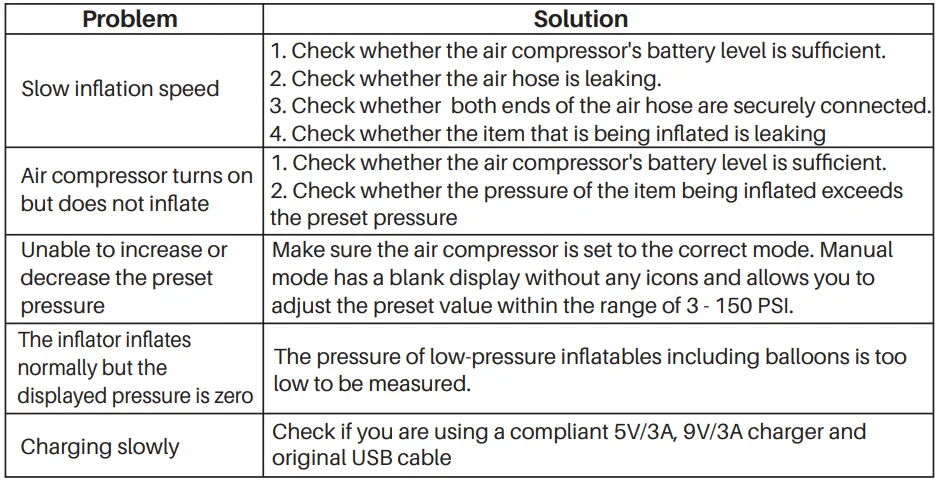

16. TROUBLESHOOTING

Visit www.fanttik.com for more information.
