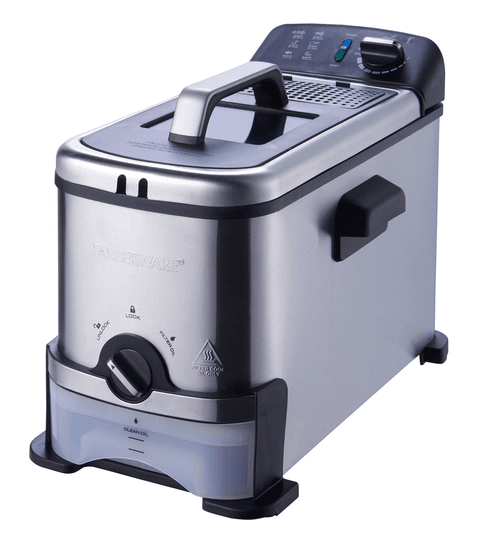

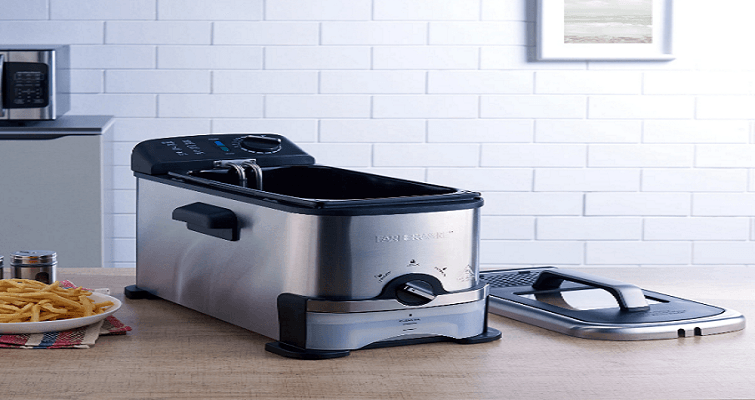

Farberware FBW FT-43721 Deep Fryer

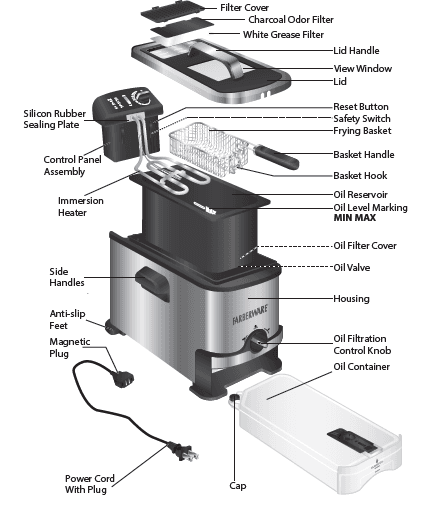

PARTS
BEFORE FIRST USE
- Remove all packaging materials and/or other transportation means.
- Check package content to verify it is complete and undamaged. Do not operate the appliance if the content is incomplete or appears damaged. Return it immediately to Walmart.
Danger of suffocation!
- Packaging materials are not toys. Always keep plastic bags, foils and foam parts away from babies and children. Packaging material could block airways and prevent breathing.
ASSEMBLY
- Place the appliance on a clean, flat and heat resistant surface.

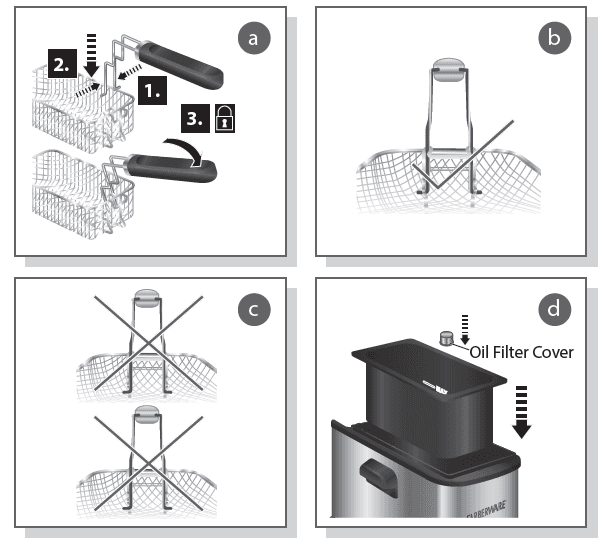

- Before using your appliance make sure: the Basket Handle is locked in place in the Frying Basket. To lock the Basket Handle in place, press the bars together and slide them between the slots. Inserting the ends of the bars into the bracket on the Frying Basket and push the Basket Handle backwards (ill. a and b ). Do not assemble any other way (ill. c ).
- the Oil Reservoir is secured in the correct position with the Oil Filter Cover and Oil Valve on the same side than the Oil Filtration Control Knob (ill. d ). Ensure the oil Filter Cover is in place inside the Oil Reservoir.

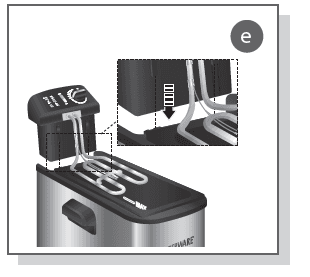

- the Control Panel Assembly is placed on the connecting plate on the back of the Housing. Ensure the grooves of the connecting plate are in the guides of the Control Panel Assembly (ill. e ).
USING THE APPLIANCE
- Incorrect assembly may lead to an unstable setup and might cause injuries.

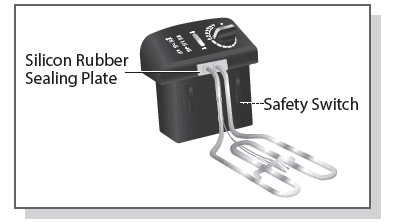

- The Silicon Rubber Sealing Plate prevents hot steam escaping from under the lid. Do not attempt to remove.
This appliance can be used for frying food such as French fries, chicken or fish pieces ( Recommended frying times and temperatures).
- Place the appliance on a clean, flat and heat-resistant surface. When using the appliance on wooden surfaces, use a heat resistant mat to protect the wood from damages. Ensure a minimum distance around the appliance of at least 4 inches to other objects, cupboards and walls.
- Ensure the Oil Container is assembled, empty and in place inside the appliance, the Oil Filtration Control Knob is on the LOCK ( ) position and the oil Filter Cover is in place inside the Oil Reservoir. Then, pour suitable cooking oil into the Oil Reservoir (ill. f ).
Danger of burns!
- Never refill the Oil Reservoir during use or while hot. Always allow the appliance to cool down completely. Do not mix new oil with old oil.
WARNING
- DO NOT OVER OR UNDER FILL (ill. f ). The minimum oil capacity is 1.9L (MIN), the maximum oil capacity is 3L (MAX). Ensure the oil level always remains between the MIN and MAX marking.
- Spread a little oil on the inside of the View Window to prevent condensation.
- Place the Lid onto the Housing.

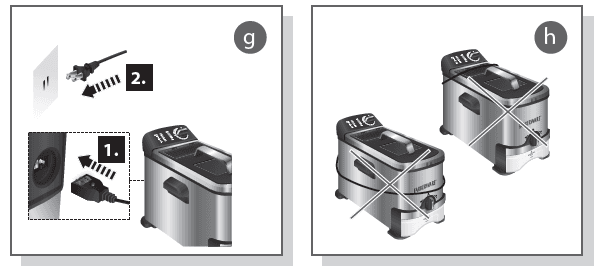

- Ensure the Temperature Control Knob is on the 0 position before attaching the Magnetic Plug to the socket on the back side of the Control Panel Assembly (ill. g ).

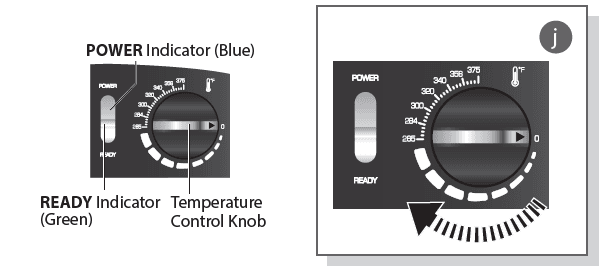

- Turn the Temperature Control Knob to the required temperature ( Recommended frying times and temperatures) (ill. j ). POWER Indicator (Blue) will turn on to indicate the appliance is heating. Once the set temperature has been reached, the READY Indicator (Green) will turn on.
Approximate time durations until set temperature is reached:
| Temperature setting (°F / °C) | Time (minutes) |
| 265 / 130 | about 7 |
| 300 / 150 | about 8 |
| 340 / 170 | about 10 |
| 375 / 190 | about 13 |
- After the oil has been preheated, remove the Lid.
- Place the Frying Basket on a clean, flat and heat resistant surface.
- Fill the Frying Basket with food (ill. k ). Do not overfill the Frying Basket (ill. l ).

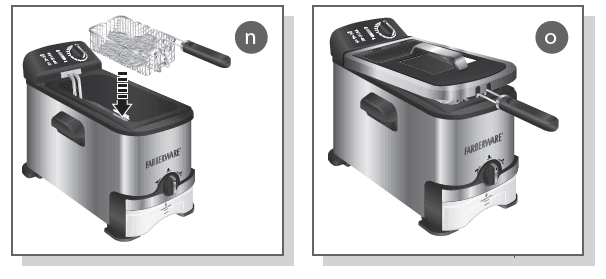

- Carefully lower the Frying Basket into the Oil Reservoir (ill. n ).
- Cover the Oil Reservoir with the Lid (ill. o ). Ensure the recessed parts of the Lid fit properly over the Basket Handle and Silicon Sealing Plate.
- After the frying time has elapsed, remove the Lid.
- Use the Basket Handle to lift out the Frying Basket and hang it onto the Basket Hook onto the rim of the Oil Reservoir (ill. p ).
- Let the food drain in the Frying Basket for a few seconds to remove excess oil and retain crispness.
- Use the Basket Handle to carefully lift the Frying Basket and pour the food onto a heat resistant dish that has been covered with a paper towel to collect remaining oil.
- Place the Frying Basket on a clean, flat and heat resistant surface.
- After the cooking process is finished, turn the Temperature Control Knob to the 0 position and remove the Power Cord With Plug from the wall outlet. Then, remove the Magnetic Plug from the socket on the back side of the Control Panel Assembly (ill. q ).
RECOMMENDED FRYING TIMES AND TEMPERATURES
| Food | Temperature setting (°F/°C) | Time (minutes) |
| Frozen French fries | 375 / 190 | 8 – 12 |
| French fries | 375 / 190 | 8 – 10 |
| Meat strips | 375 / 190 | 10 – 14 |
| Chicken wings | 375 / 190 | 10 – 14 |
| Fish (battered) | 340 / 170 | 3 – 5 |
| Seafood | 340 / 170 | 3 – 5 |
CHOOSING THE RIGHT COOKING OIL
| As a general rule, choose cooking oils with a high smoke point and avoid flavored oils. |
| Suitable: Pure corn oil, blended vegetable oil, soybean oil, sunflower oil, grape seed oil , peanut oil |
| Not suitable: Olive oil, walnut oil, lard |
COOKING WITH OIL
Cooking oil can enhance the food’s flavor – or spoil its taste. As with any other food component, freshness and correct handling of the oil is the key to successful deep frying results. The quality of the oil decreases with use at high temperatures. Food particles, water and other liquids will further lower its quality, therefore:
- Do not mix different cooking oils.
- Only use fresh and clean cooking oils:
- Regularly remove burnt food particles while frying. Always use utensils that are safe to immerse into hot oils without damaging the utensil or the appliance, and always wear oven mitts when removing any burnt food particles.
- After use and before storage, filter oil with the integrated filtration system ( Oil Filtration)
- Do not reuse oil that has been used to fry fish or other strongly flavored food.
OIL FILTRATION
- Ensure the Oil Container is assembled, empty and in place inside the appliance.
- Once the oil has cooled down to room temperature, turn the Oil Filtration Control Knob to the FILTER OIL ( ) position (ill. r ). The oil will start dripping inside the Oil Container. The Oil Filter Cover will keep food residues from being transferred to the Oil Container.
- When all oil has been filtered:
- Turn the Oil Filtration Control Knob to the LOCK ( ) position if the container will remain inside the appliance.
- Turn the Oil Filtration Control Knob to UNLOCK ( ) position if the container is to be removed from the appliance.
Emptying the Oil Container
Filtered oil can be stored in a suitable container ( Storing oil) or re-used for frying a new batch of food ( Cooking with oil).
- Unscrew the Cap on top of the Oil Container (ill. s ).
- Slowly pour the Oil Container content into a suitable container or the Oil Reservoir, if required.
- Screw the Cap back on top of the Oil Container.
- Insert the Oil Container back into the appliance and turn the Oil Filtration Control Knob to the LOCK ( ) position to secure the Oil Container in place (ill. t ).
TROUBLESHOOTING
| Problem | Cause | Solution |
| The appliance is not working | Magnetic Plug not properly fitted | Connect the Magnetic Plug to the electrical outlet before connecting the plug to the wall outlet |
| Control Panel Assembly not installed correctly | Install the Control Panel Assembly correctly | |
| Appliance not plugged in | Insert the plug into the wall outlet | |
| Wall outlet not energized | Check fuses and circuit breaker | |
| Malfunctioning appliance | Unplug the appliance from the wall outlet and contact qualified personnel to check and repair the appliance | |
| Overheated oil or appliance | Unplug the appliance from the wall outlet and allow the appliance / oil to cool down. Then press the Reset Button. | |
| Oil is spilling over the rim | Overfilled Oil Reservoir | Unplug the appliance from the wall outlet and allow the appliance / oil to cool down. Then, remove excess of oil |
| Overfilled basket | Lift out the basket by its handle and hang it onto the Basket Hook into the notch. Remove excess of food with suitable utensils | |
| The appliance is working but the POWER indicator does not light up | Damaged POWER indicator | Unplug the appliance from the wall outlet and contact qualified personnel to check and repair the appliance |
| After the filtration dial is turned to the correct position, the Fryer is not filtering the oil, or filtration is very slow, or filtration stops while a lot of oil remains in the reservoir | The Oil Reservoir is not properly seated in the housing | Once oil is cool enough, press firmly on the front of the oil pan, to adjust the position of the reservoir and open the valve |
| Problem | Cause | Solution |
| The POWER indicator lights up but the appliance does not heat up | Preheat time too short Malfunctioning appliance | Allow the appliance to preheat for a longer time Unplug the appliance from the wall outlet and contact qualified personnel to check and repair the appliance |
| The appliance heats up but the Temperature Control Knob is on the 0 position | Malfunctioning Temperature Control Knob | Unplug the appliance from the wall outlet and contact qualified personnel to check and repair the appliance |
| The basket cannot be removed from the Oil Reservoir | Basket Handle not attached properly | Remove fried food using suitable utensils and allow the appliance / oil to cool down completely before removing the basket |
| The appliance produces an odor and emits smoke | Oil has been overused or oil is not suitable
Malfunctioning appliance | Unplug the appliance from the wall outlet and allow the appliance / oil to cool down. Then, remove oil and replace with fresh, new suitable oil Unplug the appliance from the wall outlet and contact qualified personnel to check and repair the appliance |
| Cooking oil is foaming | Overfilled basket
Excess moisture in the food
Remaining ice particles not removed from frozen foods | Lift out the basket by its handle and hang it onto the Basket Hook into the notch. Remove excess of food with suitable utensils Raise the basket for a few seconds and lower again. Repeat until the basket can be lowered without excess foaming Raise the basket for a few seconds and lower again. Repeat until the basket can be lowered without excess foaming |
| Problem | Cause | Solution |
| Oil is leaking from the appliance | Oil filtration control knob in the FILTER OIL position without Oil Container in place | Unplug the appliance from the wall outlet and clean the appliance. Insert the Oil Container and turn the Oil Filtration Control Knob on the LOCK position before using the appliance again |
| Overfilled Oil Container | Unplug the appliance from the wall outlet. Ensure the Oil Filtration Control Knob is on the UNLOCK position and remove the Oil Container from the appliance. Empty and clean before using the appliance again | |
| Damaged Oil Container | Unplug the appliance from the wall outlet. Ensure the Oil Filtration Control Knob is on the LOCK position and contact qualified personnel to check and repair the appliance | |
| Damaged oil filter assembly | Unplug the appliance from the wall outlet and contact qualified personnel to check and repair the appliance |
TECHNICAL DATA
- Rated voltage: 120V ~ 60Hz
- Rated current: 14.2A
- Rated power input: 1700W
- Capacity: MIN 1.9L (2Qt) MAX 3L (3.2Qt)
