Farberware FT-43479 Digital Fryer User Manual

Farberware FT-43479 Digital Fryer

IMPORTANT SAFEGUARDS

• Use extreme caution when removing the basket, the basket holder or disposing of hot grease.
• Do not clean with metal scouring pads. Pieces can break off the pad and touch electrical parts involving a risk of electric shock.
• Extreme caution should be exercised when using containers constructed of other than metal or glass.
• Do not store any materials, other than manufacturers recommended accessories, in this appliance when not in use.
• Do not place any of the following materials in the appliance: paper, cardboard, plastic.
• Do not cover the basket or any part of the appliance with metal foil. This will cause overheating of the appliance.
• Let the appliance cool completely before putting away or storing.

Polarized plug

• This appliance has a polarized plug (one blade is wider than the other). As a safety feature, this plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to defeat this safety feature.
• Do not let children handle or put the electrical cord into their mouths.

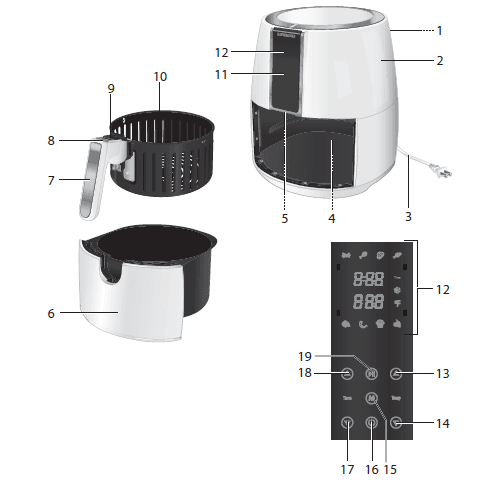

PARTS

1. Air vents
2. Housing
3. Power cord with plug
4. Heating element
5. Safety switch
6. Basket holder
7. Basket handle
8. Release button
9. Release button cover
10. Basket
11. Control panel
12. Digital LED display
13. Increase temperature button
14. Decrease temperature button
15. Select program button
16. On/off button
17. Decrease time button
18. Increase time button
19. Start/Pause button

KNOW YOUR DIGITAL OIL-LESS FRYER

Prepare your favorite foods and snacks in a quick, healthy, and easy way with your new Digital Oil-Less Fryer. This Oil-less Fryer combines heat with high-speed air circulation to cook your ingredients from all sides, simultaneously! It also allows you to prepare a variety of tasty dishes without the addition of excess oils or fats to most ingredients.

This Oil-less Fryer features

• Digital control of the cooking time and temperature.
• A digital control panel with 8 preset menu options.
• A temperature control range up to 400°F (200°C)
• A timer range from 1 to 60 minutes, which is equipped with an auto shut-off feature. Once the timer reaches “0”, the unit will turn itself off.
• Capacity of 2 lbs. Other great advantages provided by your Oil-less Fryer include:
• Fast cooking, with little to no preheating required.
• Quick and easy clean-up: the non-stick coated parts are conveniently sized to fit in the dishwasher.
• Hassle-free frying—no spatters, no mess, and no oil smell!
• Versatility—with its frying, baking, grilling, and roasting capacities, this unit serves as a great cooking tool for a busy kitchen.
• No assembly required—very easy and safe to use!

ILLUSTRATIONS

OPERATION

Before first use

• Remove all packaging materials, labels and/or other transportation means.
• Check package content to verify it is complete and undamaged. Do not operate the appliance if the content is incomplete or appears damaged. Return it immediately to Walmart.

Danger of suffocation!

• Packaging materials are not toys. Always keep plastic bags, foils and foam parts away from babies and children. Packaging material could block airways and prevent breathing.

OPERATION

• It is recommended to operate it for at least 20 minutes on its highest setting ( Using the appliance), until no odor or smoke is present. During use, ensure ample ventilation.
• Let the appliance cool completely.
• Clean the appliance ( Cleaning and Maintenance).

Cooking programs

The appliance is equipped with several pre-set cooking programs. The cooking times and temperatures can be adjusted to suit your own taste, food quantities and food manufacturer’s instructions.

Using the appliance

This appliance can be used to prepare fries and potatoes, meat and poultry, snacks and for baking ( Recommended cooking times and temperatures). This appliance uses a combination of hot air, high speed air circulation and a top heating element to cook food from all sides. It is an alternative way to cook food and snacks in a quick, healthy and easy way.

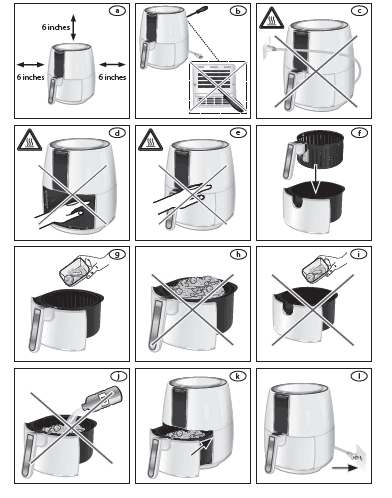

• Place the appliance on a clean, flat and heat-resistant surface. Ensure a minimum distance around the appliance of at least 6 inches to other objects, cupboards and walls (ill. a).

WARNING

• Only use accessories recommended by the manufacturer. Do not place any other materials in the appliance.
• Do not cover or insert any objects into the air vents (1) (ill. b ).
• Never let the power cord (3) come in contact with the housing (2) of the appliance during use (ill. c ).

Danger of burns!

• Always pay special attention when inserting or removing accessories and food from the appliance. Never place your bare hand inside the appliance (ill. d ), or on the housing (2) (ill. e ) when the appliance is plugged in and  switched on. It is recommended to always use oven mitts.
• Escaping steam can burn.
• Insert the basket (10) into the basket holder (6) (ill. f ).
• Place the food to be cooked in the basket (10) (ill. g ).

WARNING

• Do not overfill the basket (10) (ill. h ). Do not exceed the MAX marking on the basket (10) when placing food inside.
• Do not use the basket holder (6) without the basket (10). Do not place food directly in the basket holder (6) (ill. i ).
• Do not add oil directly into the basket (10) or basket holder (6) (ill. j ).
• Place the basket holder (6) in the appliance housing (ill. k ).

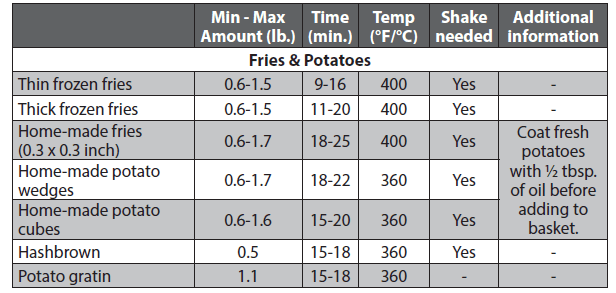

Recommended cooking times and temperatures

HINTS AND TIPS

• This appliance can be used to cook many foods that can also be prepared in a traditional oven.
• Smaller quantities of food normally require a slightly shorter cooking time than larger quantities of food.
• To reduce cooking time, defrost food prior to cooking. It is recommended that some foods should not be thawed/defrosted prior to cooking, such as frozen fish, and frozen French fries.
• It is recommended to use a meat thermometer to check the cooking progress.
• In the event of food flare-ups, do not remove the basket holder (6); press the on/off button (16) and unplug the appliance.
• Do not release the basket (10) from the basket holder (6) unless it is placed on a clean, flat and heat resistant surface.
• When the food you are cooking requires shaking, it is recommended to set the time to half the required time or use a separate timer set for half of the suggested cooking time. This way a bell will ring and remind you to shake the basket (10).
• The optimal amount for cooking crispy fries is up to 1.5lbs of sliced potatoes.
• Use pre-made dough to cook filled snacks quickly and easily. Pre-made dough also requires a shorter cooking time than home-made dough.
• Use the appliance to reheat food. Place food into the appliance, and then set the temperature to 150°F and the time up to 10 minutes.
• It is recommended to only use nylon, heat-proof plastic or wooden cooking utensils. Metal utensils may damage the non-stick surface. Always remove utensils from the appliance. Do not leave them in the appliance during use.

CLEANING AND MAINTENANCE

Proper maintenance will ensure many years of service from your appliance. Clean the appliance after every use. The appliance contains no user serviceable parts and requires little maintenance. Leave any servicing or repairs to qualified personnel.

Storage

• Before storage, always make sure the appliance is completely cool, clean and dry.
• It is recommended to store the appliance in a dry place.
• Store the appliance on a stable shelf or in a cupboard. To avoid accidents, ensure that both the appliance and its power cord are beyond reach of children or pets.

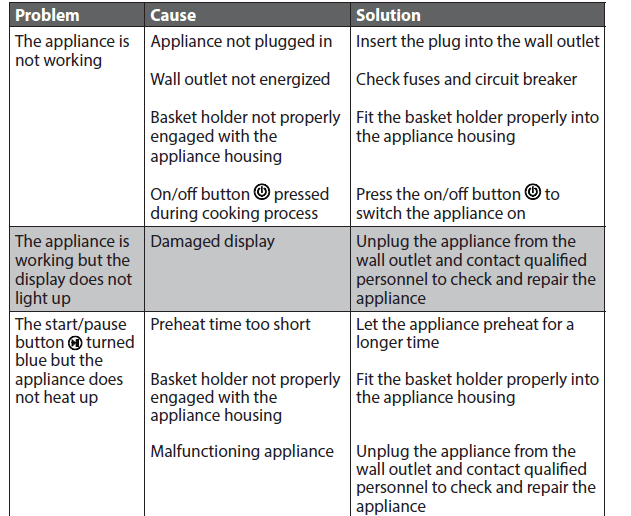

TROUBLESHOOTING
