FiOS by Frontier Router and MoCA Adapter Quick Setup
QUICK SETUP GUIDE
STEP 1 Check your Config
- Your new FiOS® by Frontier® Data service could be configured using Ethernet or MoCA from the Optical Network Terminal (ONT) to your FiOS Router. Check your packaging contents.

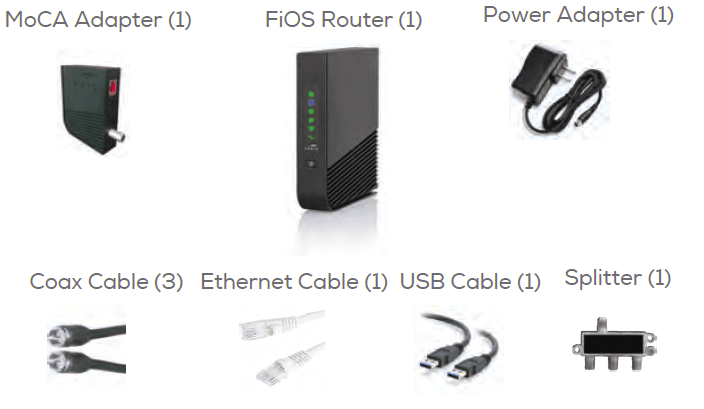

- If you have a MoCA Adapter, make sure you have the following:

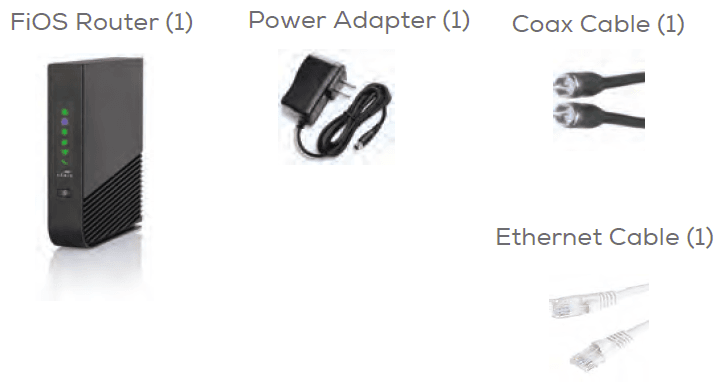

- If you don’t have the MoCA adapter, check your packaging contents and make sure you have the following:
NEXT: Proceed to Step 2
STEP 2 CONNECT YOUR ROUTER

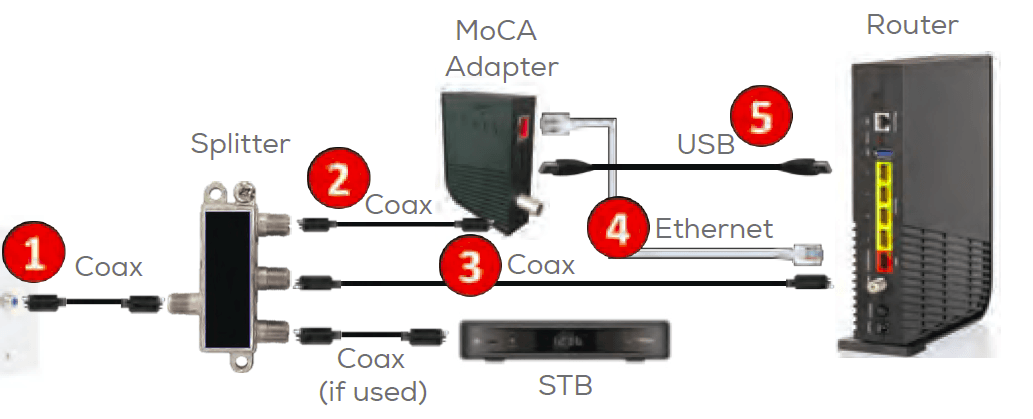

New Customers configured with a MoCA Adapter:
A. Connect the MoCA Adapter and the Router
Connect a Coax cable from the wall jack to the side of the Splitter (Coax In) with a single port.- Connect the second Coax cable to one of the remaining ports on the Splitter (Coax Out) and then to the port on the back of the MoCA adapter labeled “ONT Broadband”.
- Connect the third Coax cable to a remaining port on the Splitter and then to the port on the back of the Router labeled “Cable Line”.
Connect the Ethernet Cable to the RED port on the MoCA adapter labeled “RG Broadband” and then to the RED port on the Router Labeled “ONT Broadband”- Connect the USB cable to the port on the MoCA adapter labeled “Power” and then to the port on the Router labeled “USB”.
Connect a Coax cable from the wall jack to the side of the Splitter (Coax In) with a single port.
Connect the Ethernet Cable to the RED port on the MoCA adapter labeled “RG Broadband” and then to the RED port on the Router Labeled “ONT Broadband”

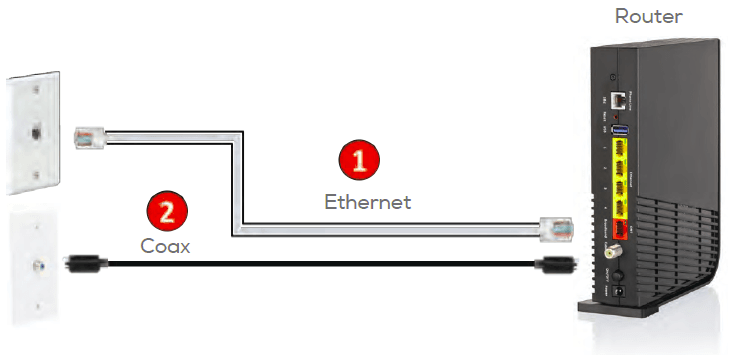

New Customers configured without a MoCA Adapter:
A. Connect the Router
Connect one end of the WHITE Ethernet cable to the Ethernet port on your wall (or the Optical Network Terminal (ONT) if the Router is located next to the ONT). Next, connect the other end of your cable to the RED Ethernet port labeled “ONT” on your router.
Connect a Coax cable from the wall jack, then to the port on the back of the Router labeled “Cable Line” if subscribed to TV service.
Connect one end of the WHITE Ethernet cable to the Ethernet port on your wall (or the Optical Network Terminal (ONT) if the Router is located next to the ONT). Next, connect the other end of your cable to the RED Ethernet port labeled “ONT” on your router.
Connect a Coax cable from the wall jack, then to the port on the back of the Router labeled “Cable Line” if subscribed to TV service.
B. Connect Power to the Router
- Plug the power adapter into the port labeled “Power” on the router and then plug the power adapter into a power outlet. Press the power button on the back of the router to turn it on.
C. Check for Internet Connectivity
- The Internet light on the front of the FiOS Router will become solid BLUE once you have Internet connectivity. If after several minutes the light is not solid BLUE, check the troubleshooting steps on the back of this guide
STEP 3 CONNECT DEVICES TO THE ROUTER
- Wired:
- Connect one end of an Ethernet cable to any YELLOW Ethernet port on the Router and then connect the other end to the Ethernet port on your device.
- Wireless:

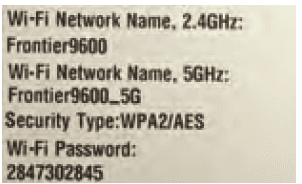

- You will find the Wireless network names and password details on the sticker on the BOTTOM of your router. Go to your device’s Wi-Fi settings and select a Wi-Fi network name that matches your router from the list of available wireless networks. Enter the Wi-Fi password to securely connect your device to your Router
- Sample image, use credentials on the router
CONGRATULATIONS YOU HAVE SUCCESSFULLY INSTALLED AND CONFIGURED YOUR ROUTER.
- To learn more, go to frontier.com/helpcenter
STEP 4 (optional) PERSONALIZE ROUTER
- Open a web browser and type in “http://192.168.254.254“. This will launch the main status page for the Router that also allows you to personalize your settings, such as your Wi-Fi name or password.
- Note:

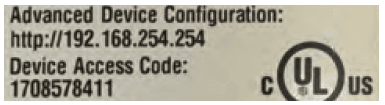

- You will be asked to enter the Device Access Code (located on the bottom of the Router) if you make changes to these settings. Please also note any changes you’ve made to the router in the event you need support.
- Sample image, use credentials on the router

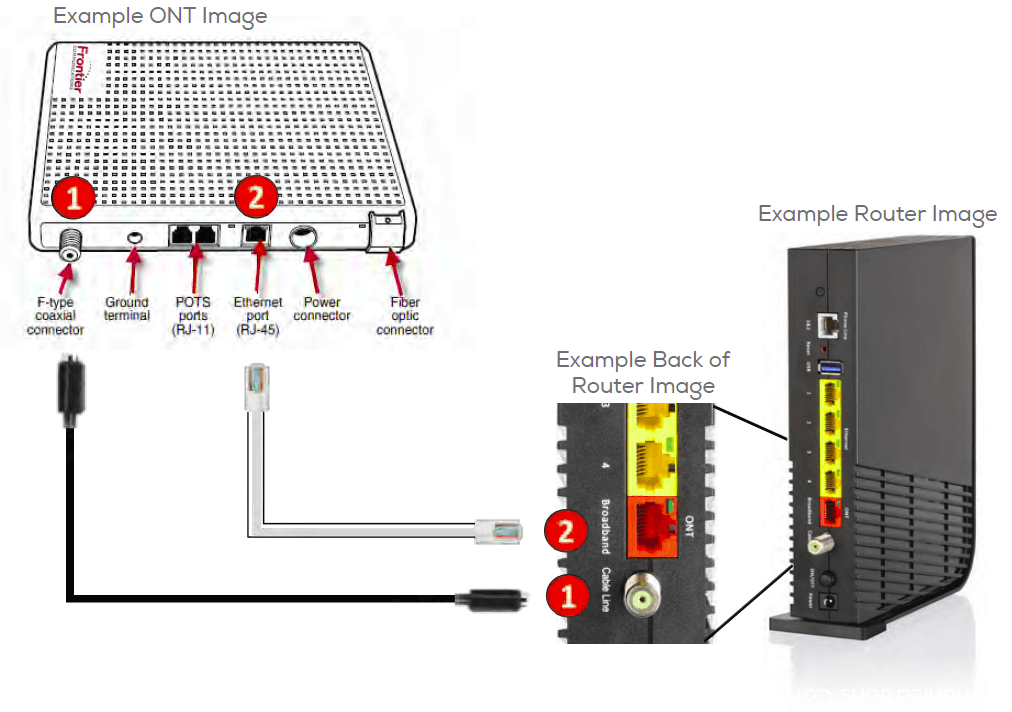

Home Wiring Connections
- Frontier® uses an Optical Network Terminal (ONT) and a Router to connect your home to the Internet and enable Data, Voice, and TV Services. If the steps above do not result in an Internet connection, check the cables on the ONT.
- Ethernet-connected homes will require BOTH Ethernet and Coax connections from the ONT to the Router for TV service.
- Confirm the Coax connector on the ONT is securely connected to the home wiring used by the router (or directly to the Router). Many ONTs require this connection for both Data and TV services.
- Confirm the Ethernet connector on the ONT is securely connected to the home wiring used by the router (or directly to the Router). Many ONT’s require this
connection for Data services.
To determine if the ONT is provisioned for Ethernet or MoCA, look for the light on the ONT:
- DATA light ON: Ethernet is provisioned
- MoCA or HPNA light ON: Coax is provisioned
TROUBLESHOOTING
- SOLUTION: Make sure all coaxial (Coax) connections from the Optical Network Unit (ONT) to home wiring and to the Router and Set Top Box are connected.
- SOLUTION: Make sure the Coax cables are securely fastened to the Wall, Splitter, MoCA adapter and Router.
- PROBLEM: INTERNET LIGHT DOES NOT BECOME SOLID BLUE
- SOLUTION: Make sure the white Ethernet cable is connected to the RED Ethernet port on the Router labeled “ONT Broadband” (not to the yellow Ethernet ports)
- SOLUTION: Make sure the Coax cables are securely fastened to the Wall, Splitter, MoCA adapter and Router
- PROBLEM: UNABLE TO CONNECT TO THE WI-FI NETWORK.
- SOLUTION: Make sure you are selecting the Wi-Fi network printed on the sticker on the bottom of the Router
For more manuals by Frontier visit ManualsLibraryy
FiOS by Frontier Router and MoCA Adapter Quick Setup-FAQs
How do I set up my Verizon FiOS MoCA adapter?
Connect a coaxial cable from your wall outlet to the “Data” port on the MoCA Ethernet Adapter. If needed, use the included RF splitter to add another coaxial connection. Then, connect an Ethernet cable from the adapter’s “2.5G LAN” port to your router’s Ethernet port.
How do I access Frontier router settings?
Open a web browser and go to http://192.168.0.1. Log in using admin as both the username and password. From the main screen, click the Wireless tab and select Basic Settings from the left menu.

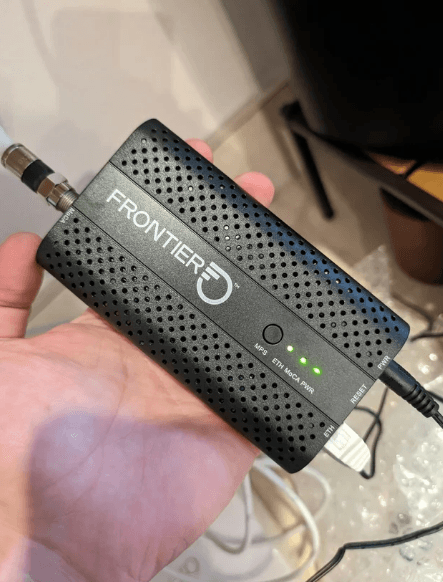

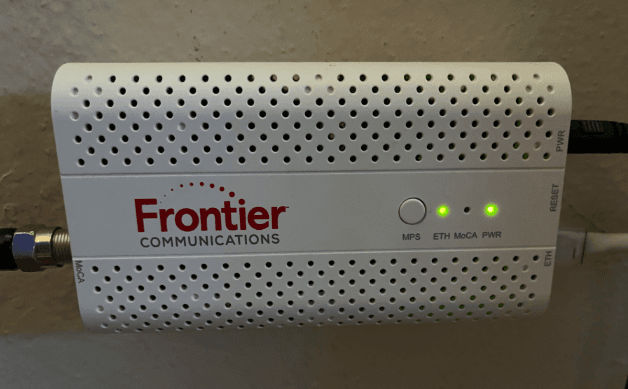

What does the MPS button on the Frontier MoCA adapter do?
The MPS (MoCA Protected Setup) button transfers the network security password stored in your existing MoCA adapters to any new ones added to your network.
How do I change the input on my FiOS TV?
Press the STB button on your FiOS remote or set-top box to automatically switch your TV input to your FiOS set-top box. Note: This requires an HDMI-CEC enabled TV and an HDMI connection.
How do I reset my Frontier router to factory settings?
Find the Reset button on the back of the router. Using a pen or paperclip, press and hold the button for 10 seconds. Release it, and the reset process will begin within a few moments.
How fast is the MoCA adapter?
MoCA adapters can deliver network speeds of up to 1 Gbps, providing a reliable and high-speed wired connection over coaxial cables.
How much power does a MoCA adapter use?
MoCA 1.x adapters consume 2W of power, while MoCA 2.0 adapters use 4W in Active mode, 1W in Idle mode, and 0.3W in Standby/Sleep mode.
Can I use my coaxial cable for internet?
Yes, with MoCA adapters, you can transmit internet data through your home’s coaxial wiring. One adapter connects to your router/modem, while another connects to a device like a media player near a coaxial port.
Do I need a MoCA adapter for FiOS Internet?
You typically need at least one FiOS Network Adapter connected to your home’s coaxial network for high-speed Ethernet connectivity. Your router will determine the MoCA protocol used.
