Flydigi Dune Fox Game Controller Manual

Flydigi Dune Fox Game Controller

Connect to PC via Bluetooth/Wired

1. Please ensure that your computer has Bluetooth functionality and that Bluetooth is turned on.
2. Select the option on the Add Bluetooth Device page.
3. Press the button, and the controller’s white indicator light will flash rapidly.
4. On the computer interface, select “Xbox Wireless Controller.”
5. The controller will vibrate briefly, and the white indicator light will stay on, indicating a successful connection.
6. For the next use, when the controller is powered off, press the button briefly. The controller will wake up and automatically connect.

(To connect to other Bluetooth devices: Hold the controller for 3 seconds; the indicator light will flash rapidly to re-enter pairing mode. If you are unable to connect, please delete the device from the Bluetooth settings on the original computer.)

Connect to an Android device.

1. Turn on the Bluetooth on your phone and go to the Bluetooth device page.
2. In the powered-off state of the controller, briefly press the button; the controller will wake up, and the white light will flash rapidly to enter pairing mode.
3. Select “Xbox Wireless Controller” from the available devices.
4. The controller will vibrate briefly, and the white indicator light will stay on, indicating a successful connection.

(To connect to other BT devices: Press and hold the controller’s O+ for 3 seconds; the indicator light will flash rapidly to re-enter pairing mode. If you are unable to connect, please select the controller from the Bluetooth settings on your phone to unpair it.)

Function

1. Turn on the Bluetooth on your phone and go to the Bluetooth device page.
2. In the powered-off state of the controller, briefly press the  button; the controller will wake up, and the white light will flash rapidly to enter pairing mode.
3. Select “Xbox Wireless Controller” from the available devices.
4. The controller will vibrate briefly, and the white indicator light will stay on, indicating a successful connection.

(To connect to other BT devices: Press and hold the controller’s button for 3 seconds; the indicator light will flash rapidly to re-enter pairing mode. If you are unable to connect, please select the controller from the Bluetooth settings on your original phone and ignore this device.)

Connect to Switch

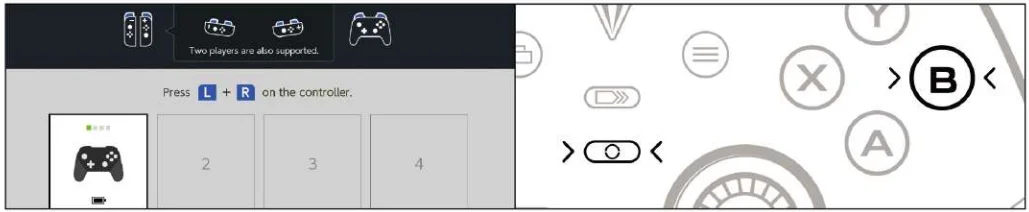

1. Click the controller icon on the Switch homepage to enter [Change grip/order].
2. Long-press the controller’s buttons for three seconds; the controller’s blue light will flash rapidly, entering Switch pairing mode.
3. Follow the prompts on the Switch to operate the controller. A brief vibration and a constant blue indicator light mean the connection is successful.
4. For the next use, when the controller is powered off, briefly press the button; the controller will wake up and automatically connect.

In Switch mode, the button and button-value mapping relationship is as follows:

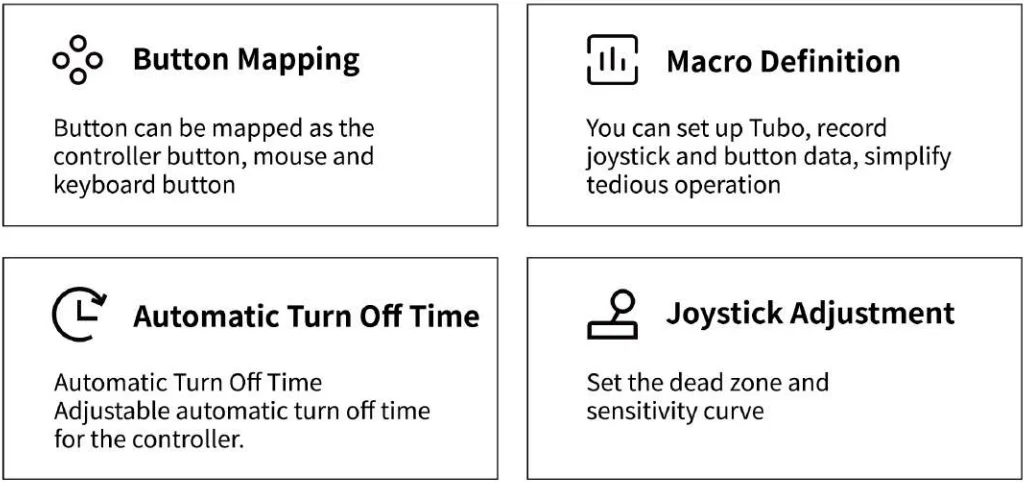

Flydigi Space Station For More Customize Setting

Visit our official website www.flydigi.com to download “Flydigi Space Station”. You can customize buttons, macros, somatosensory, joystick, and other functions.

Set Rapid Fire/Macro On The Fly

Dune Fox supports quick setup for combination keys for rapid fire and macro functions. Please scan the QR code on the homepage to view the specific setup method.

Basic Operations

• Power On: Short press
• Power Off: Long-press the button for 5 seconds (or the controller will automatically turn off after 15 minutes of inactivity)
• Low Battery: Indicator light flashes red
• Charging while powered off: Indicator light stays red
• Fully charged while powered off: Indicator light stays green

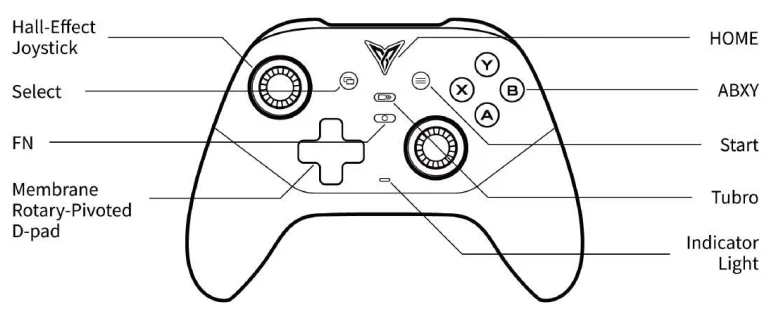

Appearance

FAQ

Q: The controller can’t connect?

A: Please ensure the controller’s indicator light color corresponds to the correct mode. Press and hold the buttons for 3 seconds; the indicator light will flash rapidly, and the controller will enter pairing mode.

• For pairing with the dongle: Insert the receiver into the computer’s USB port and use a pin to press the small hole on the receiver to complete the pairing.
• For BT pairing: After forgetting/deleting the device in the BT settings, press and hold the buttons for 3 seconds; the indicator light will flash rapidly, and the controller will re-pair with the device.

Q: How do I upgrade the controller’s firmware?

A: Install the Flydigi Space Station on your computer or the Flydigi Game Center on your mobile device, and follow the software prompts to upgrade the firmware.

Q: What should I do if the joystick/triggers/motion sensing are abnormal?

A: Install the Flydigi Space Station on your computer, go to the testing page, and follow the guide to calibrate the controller.

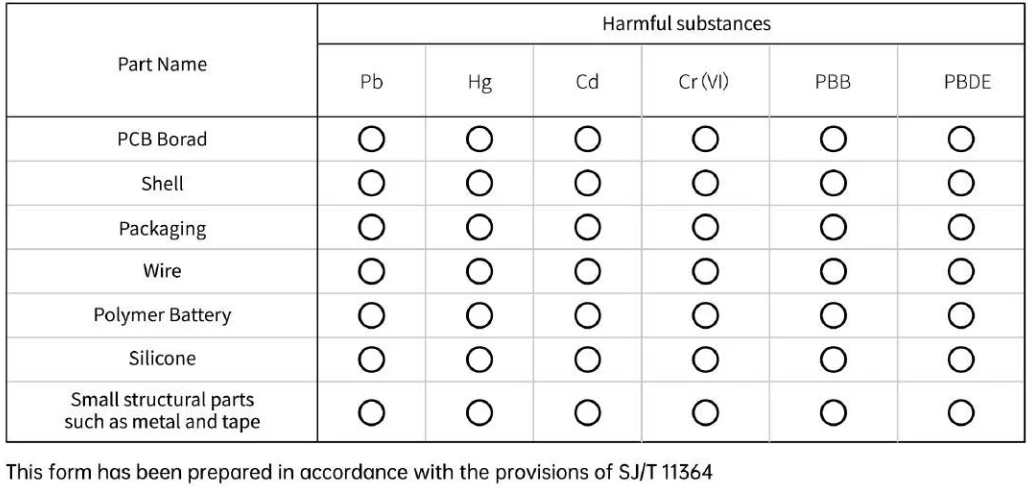

The name and content of harmful substances in the product

• Indicates that the content of the hazardous substance in all homogeneous materials of this part is within the limit specified in GB/T 26572-2011.
• Indicates that the content of the hazardous substance in at least one homogeneous material of the component exceeds the provisions of GB/T 26572-2011.

FCC Statement

1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
   1. This device may not cause harmful interference.
   2. This device must accept any interference received, including interference that may cause undesired operation.
2. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

The device has been evaluated to meet general RF exposure requirements. The device can be used in portable exposure conditions without restriction.
