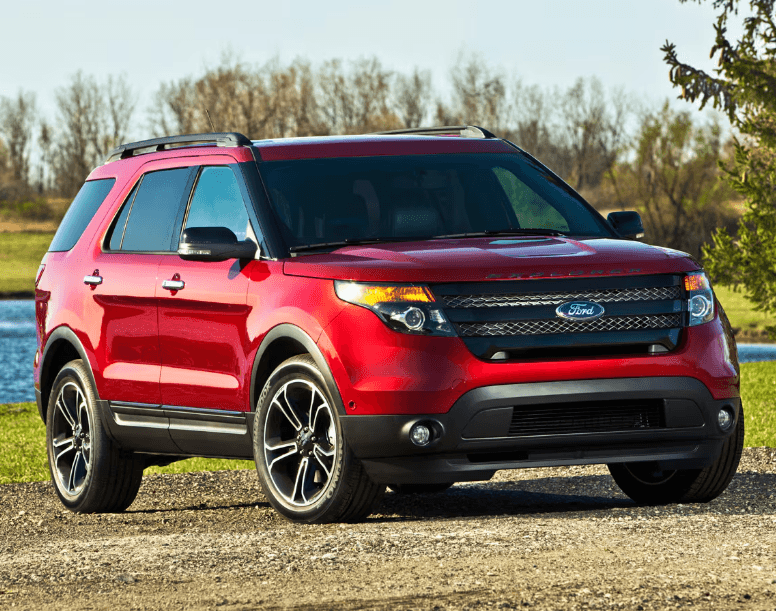

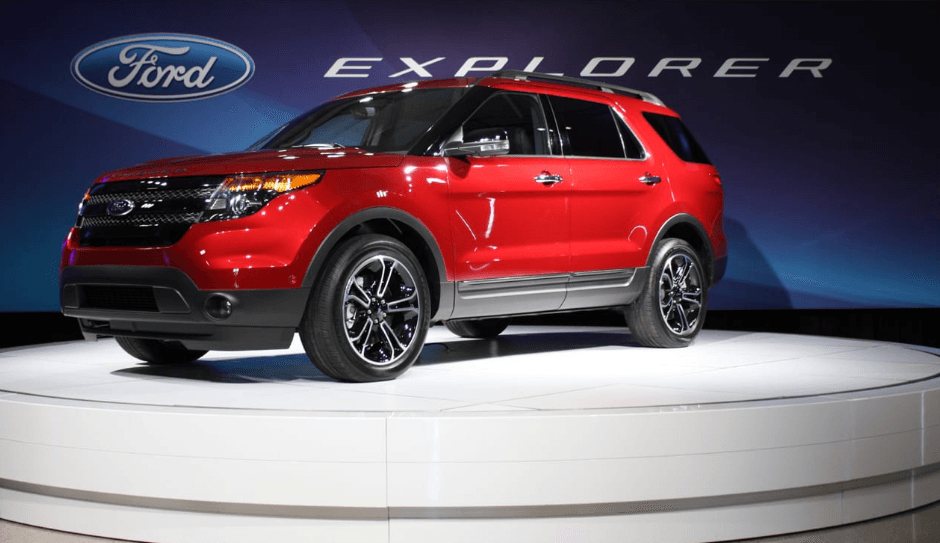

Ford 2013 Explorer Car
Introduction
SPECIAL NOTICES
New Vehicle Limited Warranty
For a detailed description of what is covered and what is not covered by your vehicle’s New Vehicle Limited Warranty, refer to the Warranty Manual that is provided to you along with your Owner’s Manual.
Special Instructions
For your added safety, your vehicle is fitted with sophisticated electronic controls.
WARNING: Please read the Supplementary Restraints System chapter. Failure to follow the specific warnings and instructions could result in personal injury.
WARNING: Front seat-mounted rear-facing child or infant seats should NEVER be placed in front of an active passenger airbag.
Notice to owners of pickup trucks and utility-type vehicles
WARNING: Utility vehicles have a significantly higher rollover rate than other types of vehicles.
Before you drive your vehicle, please read this Owner’s Manual carefully. Your vehicle is not a passenger car. As with other vehicles of this type, failure to operate your vehicle correctly may result in loss of vehicle control, vehicle rollover, personal injury, or death.
Using your vehicle with a snowplow
Do not use this vehicle for snowplowing. Your vehicle is not equipped with a snowplowing package.
Using your vehicle as an ambulance
Do not use this vehicle as an ambulance. Your vehicle is not equipped with the Ford Ambulance Preparation Package.
Child Safety
GENERAL INFORMATION
See the following sections for directions on how to properly use safety restraints for children.
WARNING: Always make sure your child is secured properly in a device that is appropriate for their height, age, and weight. Child safety restraints must be purchased separately from the vehicle. Failure to follow these instructions and guidelines may result in an increased risk of serious injury or death to your child.
WARNING: All children are shaped differently. The recommendations for safety restraints are based on probable child height, age, and weight thresholds from NHTSA and other safety organizations, or are the minimum requirements of law. Ford recommends checking with a NHTSA Certified Child Passenger Safety Technician (CPST) and consulting your pediatrician to make sure your child seat is appropriate for your child, and is compatible with and properly installed in the vehicle. To locate a child seat fitting station and CPST, contact the NHTSA toll-free at 1-888-327-4236 or on the internet at http://www.nhtsa.dot.gov. In Canada, check with your local St. John Ambulance office for referral to a CPST or for further information, contact your provincial ministry of transportation, your local St. John Ambulance office at http://www.sfa.ca, or Transport Canada at 1–800–333–0371 (http://www.tc.gc.ca). Failure to properly restrain children in safety seats made especially for their height, age, and weight may result in an increased risk of serious injury or death to your child.
Supplementary Restraint System
The airbags are a supplemental restraint system and are designed to work with the safety belts to help protect the driver and right front passenger from certain upper body injuries. Airbags DO NOT inflate slowly; there is a risk of injury from a deploying airbag.
Note: You will hear a loud bang and see a cloud of harmless powdery residue if an airbag deploys. This is normal.
The airbags inflate and deflate rapidly upon activation. After airbag deployment, it is normal to notice a smoke-like, powdery residue or smell the burnt propellant. This may consist of cornstarch, talcum powder (to lubricate the bag), or sodium compounds (e.g., baking soda) that result from the combustion process that inflates the airbag. Small amounts of sodium hydroxide may be present, which may irritate the skin and eyes, but none of the residue is toxic. While the system is designed to help reduce serious injuries, contact with a deploying airbag may also cause abrasions or swelling. Temporary hearing loss is also a possibility as a result of the noise associated with a deploying airbag. Because airbags must inflate rapidly and with considerable force, there is the risk of death or serious injuries such as fractures, facial and eye injuries, or internal injuries, particularly to occupants who are not properly restrained or are otherwise out of position at the time of airbag deployment. Thus, it is extremely important that occupants be properly restrained as far away from the airbag module as possible while maintaining vehicle control.
Routine maintenance of the airbags is not required.
SOS POST-CRASH ALERT SYSTEM™
The system flashes the turn signal lamps and sounds the horn (intermittently) in the event of a serious impact that deploys an airbag equipped on your vehicle, such as front, side, side curtain, or Safety Canopy.
The horn and lamps will turn off when:
- The hazard control button is pressed
- The panic button is pressed on the remote entry transmitter, or
- The vehicle runs out of power.
Knee airbag system (passenger’s side only)
The knee airbag is located under the instrument panel. The system works along with the passenger’s front airbag to help reduce injury to the legs. When the passenger’s airbag activates in a collision, the knee airbag deploys from under the instrument panel.
As with front and side airbags, it is important to be properly seated and restrained to reduce the risk of death or serious injury.
CRASH SENSORS AND AIRBAG INDICATOR
WARNING: Modifying or adding equipment to the front end of the vehicle (including frame, bumper, front end body structure, and tow hooks) may affect the performance of the airbag system, increasing the risk of injury. Do not modify the front end of the vehicle.
The vehicle has a collection of crash and occupant sensors that provide information to the Restraints Control Module (RCM), which deploys (activates) the front safety belt pretensioners, rear inflatable safety belts, driver airbag, passenger airbag, passenger knee airbag, seat-mounted side airbags, and the Safety Canopy. Based on the type of accident (frontal impact, side impact, or rollover), the restraints control module will deploy the appropriate safety devices.
The restraints control module also monitors the readiness of the above safety devices, plus the crash and occupant sensors. The readiness of the safety system is indicated by a warning indicator light in the instrument cluster or by a backup tone if the warning light is not working.
Routine maintenance of the airbag is not required.
A difficulty with the system is indicated by one or more of the following:
- The readiness light will either flash or stay lit.
- The readiness light will not illuminate immediately after the ignition is turned on.
- A series of five beeps will be heard. The tone pattern will repeat periodically until the problem and/or light are repaired.
If any of these things happen, even intermittently, have the supplemental restraint system serviced at an authorized dealer immediately. Unless serviced, the system may not function properly in the event of a collision.
The safety belt pretensioners, rear inflatable safety belts, and the airbag supplemental restraint systems are designed to activate when the vehicle sustains longitudinal or lateral deceleration sufficient to cause the restraints control module to deploy a safety device or when a certain likelihood of a rollover event is detected by the rollover sensor.
The fact that the safety belt pretensioners or airbags did not activate for both front seat occupants in a collision does not mean that something is wrong with the system. Rather, it means the restraint control module determined that the accident conditions (crash severity, belt usage, etc.) were not appropriate to activate these safety devices.
- Front airbags are designed to activate only in frontal and near-frontal collisions (not rollovers, side impacts, or rear impacts) unless the collision causes sufficient longitudinal deceleration.
- The safety belt pretensioners and rear inflatable safety belts are designed to activate in frontal, near-frontal, and side collisions, and in rollovers.
- Side airbags are designed to inflate in side-impact collisions, not rollovers, rear impacts, frontal or near-frontal collisions, unless the collision causes sufficient lateral deceleration.
- The Safety Canopy is designed to inflate in certain side impact collisions or rollover events, not in rear impact, frontal or near-frontal collisions, unless the collision causes sufficient lateral deceleration or rollover likelihood.
Keys and Remote Control
PRINCIPLE OF OPERATION
The remote control allows you to:
- Remotely lock or unlock the vehicle doors
- Unlock the doors without actively using a key or remote control (intelligent access only)
- Remotely open the power liftgate (if equipped)
- Remotely start or stop the engine (if equipped)
- Arm and disarm the anti-theft system
- Activate the panic alarm.
Intelligent Access (If Equipped)
Your vehicle will allow you to unlock and enter your vehicle without actively using a key or remote control. You can use this feature at the front doors or at the liftgate/trunk. You can activate the intelligent access feature as long as you have one of your intelligent access keys within range of the front doors or the liftgate/trunk.
Integrated Keyhead Transmitter
- Twist a thin coin in the slot near the key ring to remove the battery cover (1).
- Carefully peel up the rubber gasket (2) from the transmitter if it does not come off with the battery cover.
- Remove the old battery (3).
- Insert the new battery. Refer to the instructions inside the integrated keyhead transmitter for the correct orientation of the battery. Press the battery down to ensure that the battery is fully seated in the battery housing cavity.
- Reinstall the rubber gasket.
- Snap the battery cover back onto the key.
Memory Feature (If Equipped)
The feature allows you to recall the driver seat, power mirrors, steering column (if equipped) and power adjustable foot pedals (if equipped) memory positions.
Press the unlock button on the remote control or activate intelligent access (if equipped) to recall memory. The mirrors will move to the programmed position, and the seat will move to the easy entry position. The seat will move to the final position when the ignition is switched off (if the easy entry feature is enabled).
Security
SECURILOCK PASSIVE ANTI-THEFT SYSTEM
Note: The system is not compatible with non-Ford aftermarket remote start systems. Use of these systems may result in vehicle starting problems and a loss of security protection.
Note: Metallic objects, electronic devices, or a second coded key on the same key chain may cause vehicle starting issues if they are too close to the key when starting the engine. Prevent these objects from touching the coded key while starting the engine. Switch the ignition off, move all objects on the key chain away from the coded key, and restart the engine if a problem occurs.
Note: Do not leave a duplicate coded key in the vehicle. Always take your keys and lock all doors when leaving the vehicle.
The system is an engine immobilization system. It is designed to help prevent the engine from being started unless a coded key programmed to your vehicle is used. Using the wrong key may prevent the engine from starting. A message may appear in the information display.
If you are unable to start the engine with a correctly coded key, a malfunction has occurred, and a message may appear in the information display.
Automatic Arming
The vehicle is armed immediately after switching the ignition off.
Automatic Disarming
Switching the ignition on with a coded key disarms the vehicle.
Replacement Keys
Note: Your vehicle comes equipped with two integrated keyhead transmitters or two intelligent access keys.
The integrated keyhead transmitter functions as a programmed ignition key that operates all the locks and starts the vehicle, as well as a remote control.
The intelligent access key functions as a programmed key that operates the driver door lock, activates the intelligent access with a push button start system, and well as a remote control.
If your programmed transmitters or standard SecuriLock coded keys (integrated keyhead transmitters only) are lost or stolen and you don’t have an extra coded key, you will need to have your vehicle towed to an authorized dealer. The key codes need to be erased from your vehicle, and new coded keys will need to be programmed.
Store an extra programmed key away from the vehicle in a safe place to help prevent any inconveniences. See your authorized dealer to purchase additional spare or replacement keys.
Programming a Spare Integrated Keyhead Transmitter
Note: A maximum of eight coded keys can be programmed to your vehicle. Only four of these eight can be integrated keyhead transmitters.
You can program your own integrated keyhead transmitters or standard SecuriLock coded keys to your vehicle. This procedure will program both the engine immobilizer key code and the remote entry portion of the remote control to your vehicle.
Only use integrated keyhead transmitters or standard SecuriLock keys.
You must have two previously programmed coded keys and the new unprogrammed key readily accessible. See your authorized dealer to have the spare key programmed if two previously programmed coded keys are not available.
Read and understand the entire procedure before you begin.
- Insert the first previously programmed coded key into the ignition.
- Turn the ignition from off to on. Keep the ignition on for at least three seconds, but no more than 10 seconds.
- Turn the ignition off and remove the first coded key from the ignition.
- After three seconds but within 10 seconds of turning the ignition off, insert the second previously coded key into the ignition.
- Turn the ignition from off to on. Keep the ignition on for at least three seconds, but no more than 10 seconds.
- Turn the ignition off and remove the second previously programmed coded key from the ignition.
- After three seconds but within 20 seconds of turning the ignition off and removing the previously programmed coded key, insert the new unprogrammed key into the ignition.
- Turn the ignition from off to on. Keep the ignition on for at least six seconds.
- Remove the newly programmed coded key from the ignition.
The key will start the vehicle’s engine and will operate the remote entry system (if the new key is an integrated keyhead transmitter) if it has been successfully programmed.
Wait 20 seconds and repeat Steps 1 through 8 if the key was not successfully programmed. Take your vehicle to your authorized dealer to have the new key programmed if you are still unsuccessful.
Wait 20 seconds and then repeat this procedure from Step 1 to program an additional key.
Scheduled Maintenance
GENERAL MAINTENANCE INFORMATION
Why Maintain Your Vehicle?
Carefully following the maintenance schedule helps protect against major repair expenses resulting from neglect or inadequate maintenance and may also help to increase the value of your vehicle when you sell or trade it. Keep all receipts for completed maintenance with the vehicle.
Regular maintenance intervals for your vehicle have been established based upon rigorous testing. It is important that you have your vehicle serviced at the proper times. These intervals serve two purposes: one is to maintain the reliability of your vehicle, and the second is to keep your cost of owning the vehicle down.
It is your responsibility to see that all scheduled maintenance is performed and that the materials used meet the specifications identified in the Capacities and Specifications chapter. Failure to perform scheduled maintenance invalidates warranty coverage on parts affected by the lack of maintenance.
Why Maintain Your Vehicle at Your Dealership?
Factory-Trained Technicians
Service technicians participate in extensive factory-sponsored certification training to help them become experts on the operation of your vehicle. Ask your dealership about the training and certification their technicians have received. Your vehicle is very sophisticated and built with multiple complex performance systems. Every manufacturer develops these systems using different specifications and performance features. That’s why it’s important to rely upon your dealership to properly diagnose and repair your vehicle.
Genuine Ford and Motorcraft Replacement Parts
Dealerships stock Ford, Motorcraft, and Ford-authorized branded remanufactured replacement parts. These parts meet or exceed Ford Motor Company’s specifications. Parts installed at your dealership carry a nationwide, 12-month/12000-mile (20000 kilometer) parts and labor limited warranty. If you do not use Ford-authorized parts, they may not meet Ford specifications, and, depending on the part, it could affect emissions compliance.
