Frigidaire Gallery 12,000 BTU Window Room Air Conditioner User Manual

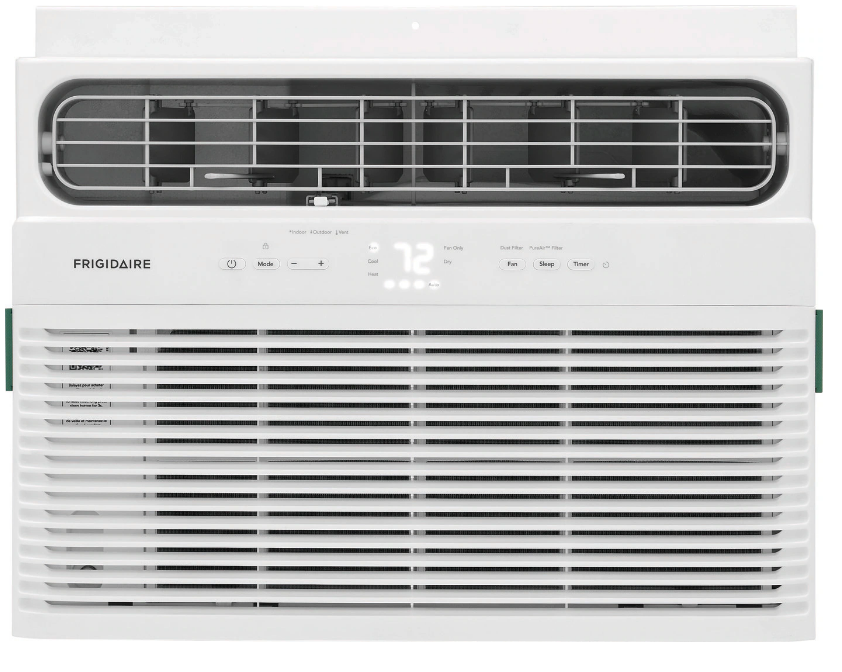

Frigidaire Gallery 12,000 BTU Window Room Air Conditioner

IMPORTANT SAFETY INSTRUCTIONS

WARNING

For Your Safety

Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. Read product labels for flammability and other warnings.

WARNING

Prevent Accidents

To reduce the risk of fire, electrical shock, or injury to persons when using your air conditioner, follow basic precautions, including the following:

• Be sure the electrical service is adequate for the model you have chosen. This information can be found on the serial plate, which is located on the side of the cabinet and behind the grille.
• If the air conditioner is to be installed in a window, you will probably want to clean both sides of the glass first. If the window is a triple-track type with a screen panel included, obliterate the screen before installation.
• Be sure the air conditioner has been securely and correctly installed according to the separate installation instructions provided with this manual. Save this manual and the installation instructions for possible future use in removing or reinstalling this unit.
• When handling the air conditioner, be careful to avoid cuts from sharp metal fins on the front and rear coils.

WARNING

Electrical Information

The complete electrical rating of your new room air conditioner is stated on the serial plate. Refer to the rating when checking the electrical requirements.

• Be sure the air conditioner is properly grounded. To minimize shock and fire hazards, proper grounding is important.
• The power cord is equipped with a three-prong grounding plug for protection against shock hazards.
• Your air conditioner must be used in a properly grounded wall receptacle. If the wall receptacle you intend to use is not adequately grounded or protected by a time delay fuse or circuit breaker, have a qualified electrician install the proper receptacle.
• Do not run the air conditioner without an outside protective cover in place. This could result in mechanical damage within the air conditioner.
• Do not use an extension cord or an adapter plug.

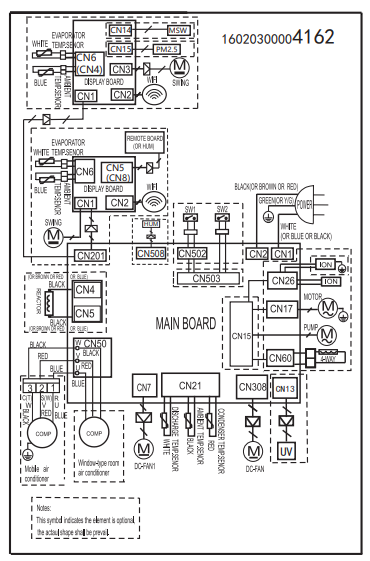

Wiring Diagram

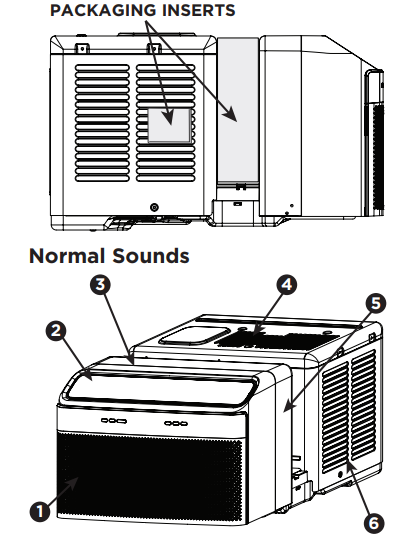

PACKAGING & NORMAL SOUNDS

Packaging

Remove all packaging from inside the carton, along with any inserts placed into the side louvers.

1. Gurgle/Hiss
   “Gurgling or hissing” noise may be heard due to refrigerant passing through the evaporator during normal operation.
2. Sound of Rushing Air
   At the front of the unit, you may hear the sound of rushing air being moved by the fan.
3. High-pitched Chatter
   Today’s high-efficiency compressors may have a high-pitched chatter during the cooling cycle.
4. Noise when the unit starts
   Within the first thirty seconds of turning on the unit, a “da-da” sound may be heard due to the start of the compressor (inverter models only). This is normal.
5. Vibration
   If excessive vibration occurs, please check to see that the unit is correctly installed.
6. Pinging or Swishing
   Droplets of water hitting the condenser during normal operation may cause “pinging or swishing” sounds.
   Note: Do not drill into or physically modify any part of the unit to eliminate the above-stated ‘Normal Sounds’, because it will void the warranty.

FCC STATEMENT

FCC Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. Suppose this equipment does cause harmful interference to radio or television reception, which can be determined by tuning the device off and on. In that case, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the device and receiver.
• Connect the equipment to an outlet other than the one used for the receiver.
• Consult the dealer or an experienced radio/TV technician for assistance.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

FCC CAUTION: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

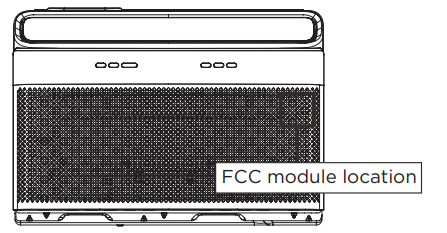

Host Device Labeling

This device includes the following modules. Contains FCC ID: 2AIBX-NIULL

RF exposure statement

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum of 20 cm between the radiator and your body. This transmitter must not be collocated or operating in conjunction with any other antenna or transmitter unless authorized to do so by the FCC.

INDUSTRY CANADA (IC) STATEMENT

This Class B digital apparatus complies with Canadian ICES-003.

This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

RF Exposure

The antenna (or antennas) must be installed to maintain at all times a minimum distance of at least 20 cm between the radiation source (antenna) and any individual. This device may not be installed or used in conjunction with any other antenna or transmitter.

Host Device Labeling

This device includes the following modules.
Contains IC: 21700-NIULL

AIR CONDITIONER FEATURES

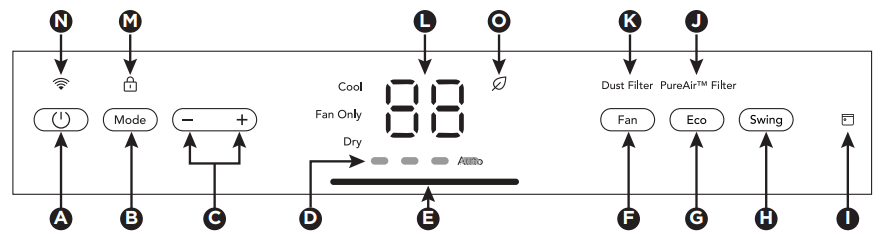

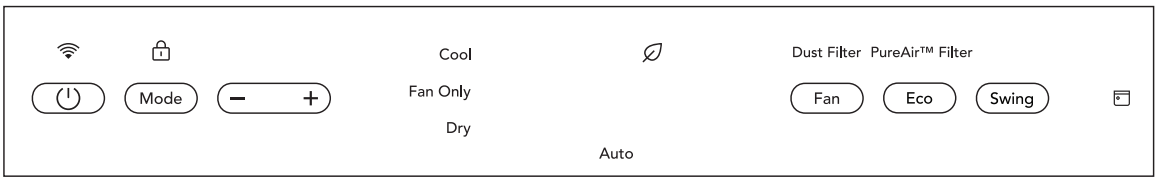

ELECTRONIC CONTROL

Before you begin, thoroughly familiarize yourself with the control panel, remote control, and all its functions (as shown below). The unit can be controlled through the control panel, with the remote control, or with our App*.

• A Turns Unit On Or Off
• B Sets Mode
• C Adjusts Temperature
• D Fan speed display
• E Air quality light
• F Fan speed button
• G Eco button
• H Swing louver button
• I Schedule Indicator
• J PureAirTM Filter icon
• K Change Dust Filter icon
• L Temperature display
• M Child lock icon
• N WIFI Indicator*
• O Eco Indicator

Note: Some features can only be controlled through the control panel.

*Refer to the Quick Start Guide for detailed instructions on setting up your air conditioner for connected operation from your smartphone or tablet.

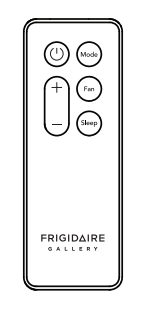

REMOTE CONTROL

The unit is equipped with a Wi-Fi module, which enables remote control, monitoring, and setting your schedules from anywhere with your mobile phone.

Download our app and follow the step-by-step onboarding instructions to bring the product online.

Battery Size: AAA

Warning: Do not mix old and new batteries. Do not mix alkaline, standard (carbon-zinc), or rechargeable (nickel-cadmium) batteries. Do not ingest. Keep out of the reach of children.

OPERATING INSTRUCTIONS

 NOTE

The following instructions are for the control panel. The same instructions can be used for the remote control.

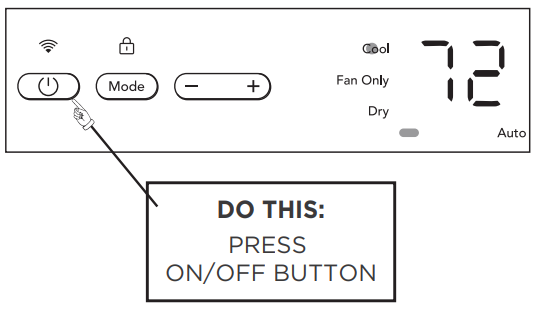

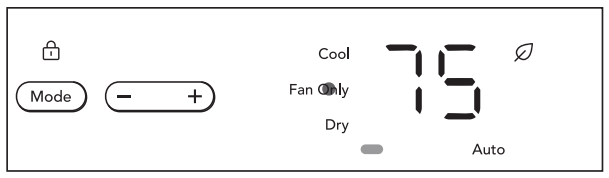

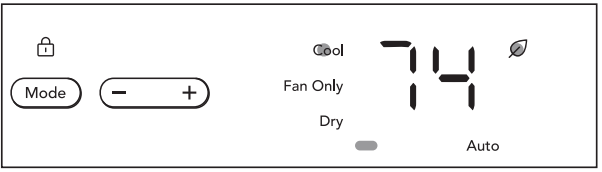

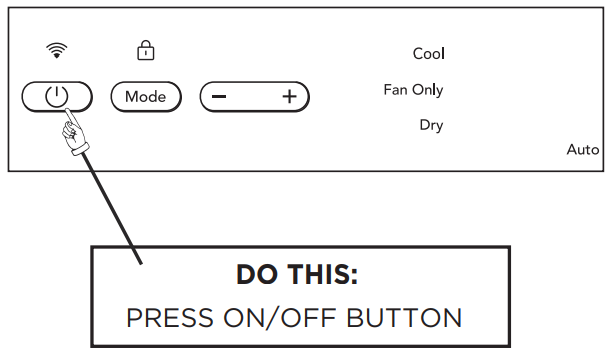

TO TURN THE UNIT ON

YOU WILL SEE

NOTE: The unit will run in Cool mode with Eco feature and Auto fan speed setting when used for the first time. With the Eco feature, when the room temperature is below the set temperature, the fan will continue to run for 3 minutes after the compressor shuts off. The fan then cycles on for 2 minutes at 10-minute intervals until the room temperature is above the set temperature, at which time the compressor turns back on. The Eco feature can be activated or deactivated by pressing the Eco button, and cannot be activated in ‘fan only’ mode.

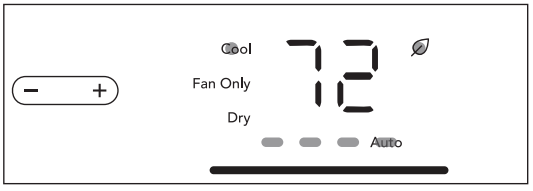

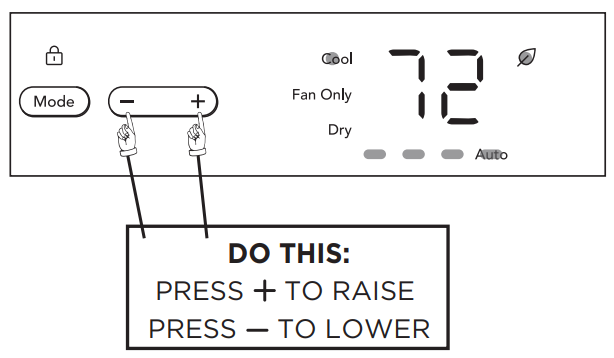

TO CHANGE TEMPERATURE SETTING

YOU WILL SEE

The display will show the set temperature during normal operation. Press either the up ( + ) or down ( – ) buttons to adjust the temperature to the desired setting. If the up ( + ) or down ( – ) button is pressed continuously, the unit will beep twice when the temperature setting reaches the upper/lower limits of 90°F or 60°F.

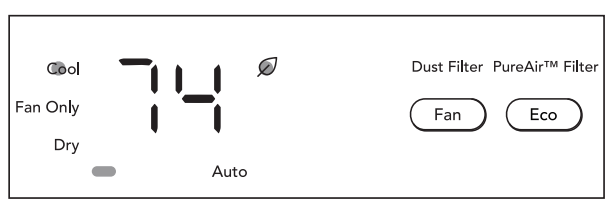

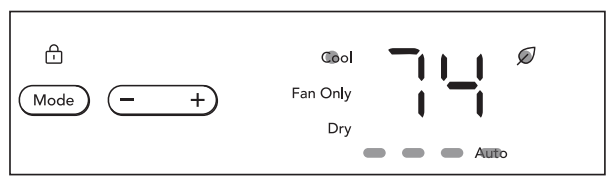

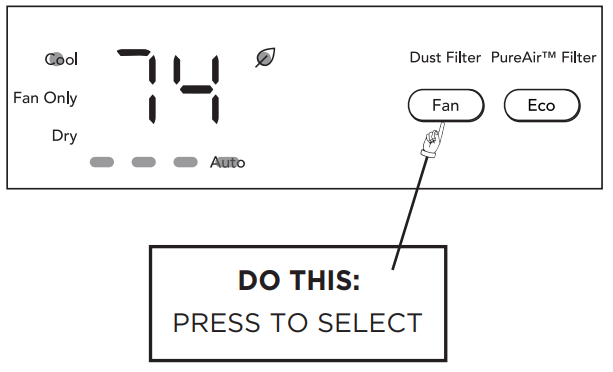

TO ADJUST FAN SPEEDS

YOU WILL SEE

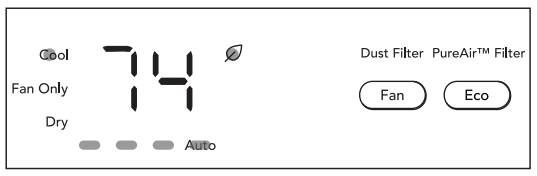

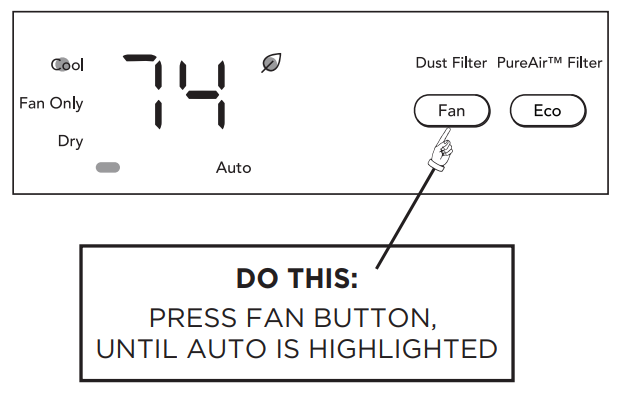

TO SET TO AUTO FAN

YOU WILL SEE

Initially, the fan starts on High Speed and adjusts to a slower speed dictated by room temperature. For example, if the room temperature rises quickly, such as when a door is opened, the fan will automatically switch to the highest speed. The fan speed will re-adjust to a slower speed as the room cools. Press the fan button to adjust the fan speed manually.

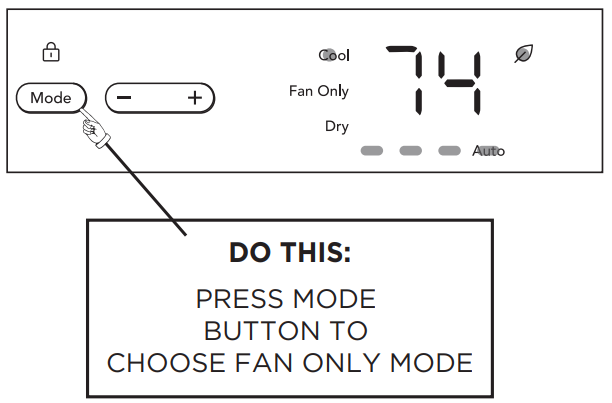

TO OPERATE IN FAN-ONLY MODE

YOU WILL SEE

Use this function when cooling is not desired, such as for room air circulation or to exhaust stale air. You can choose any fan speed you prefer. (Except “Auto Fan”). When operating in this mode, the display will show the actual room temperature, and the set temperature cannot be changed.

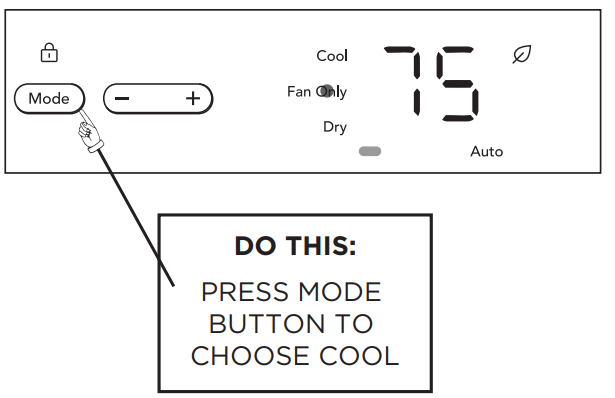

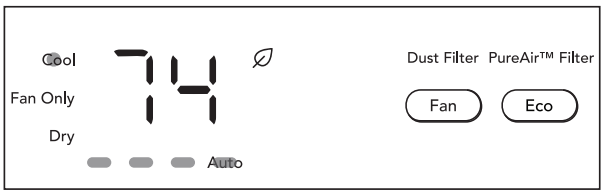

COOL FEATURE

YOU WILL SEE

Each time Cool mode is selected, the ECO feature will be activated by default. Press the ECO button to deactivate. When the ECO feature is deactivated, the fan remains on all the time with the compressor cycling on and off when the desired room temperature is reached.

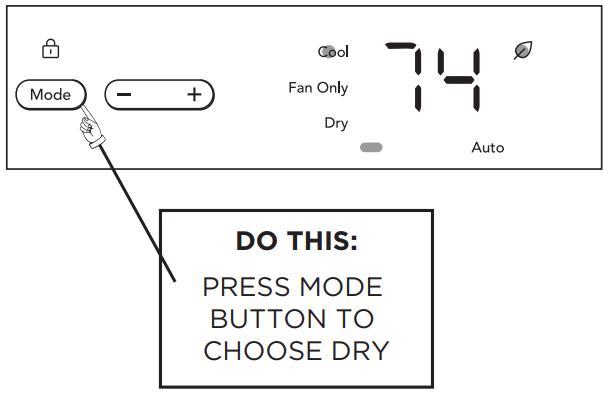

DRY FEATURE

YOU WILL SEE

In this mode, the air conditioner will work like a dehumidifier, but will still cool the room. The temperature can be adjusted between 60 °F (16 °C) and 90 °F (32 °C), and the fan speed will be held at Auto speed. Each time Dry mode is selected Eco feature will be activated as the default. Press the Eco button to deactivate.

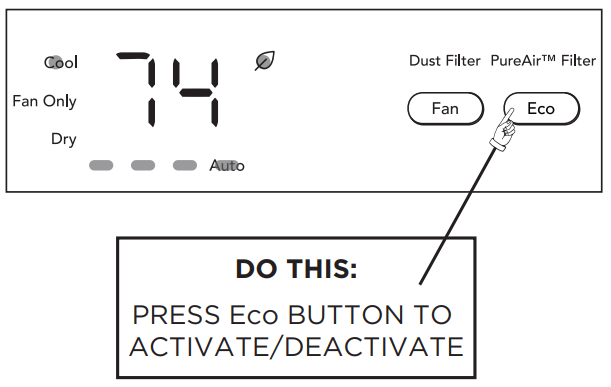

Eco (ENERGY SAVER) FEATURE

YOU WILL SEE

Each time Cool or Dry mode is selected Eco feature will be activated as the default. We recommend leaving the Eco feature on to help save energy and money. To switch out of Eco mode, press the Eco button during Cool or Dry mode.

In Eco mode, the fan will continue to run for 3 minutes after the compressor shuts off. The fan then cycles on for 120 seconds at 10-minute intervals until the room temperature is above the set temperature, at which time the compressor turns back on.

 NOTE:
If the unit is shut off during Cool or Dry mode, the unit will start with the same mode, target temperature, and fan speed as prior to standby. If the mode is Cool or Dry, ECO will be activated automatically when the appliance turns on. If the unit is running in cool or dry mode without the Eco feature and a power failure occurs, once the power is restored, the Eco feature will remain off.

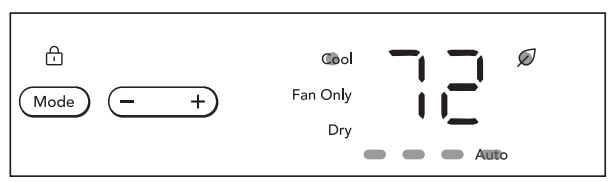

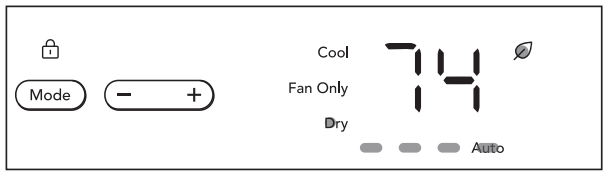

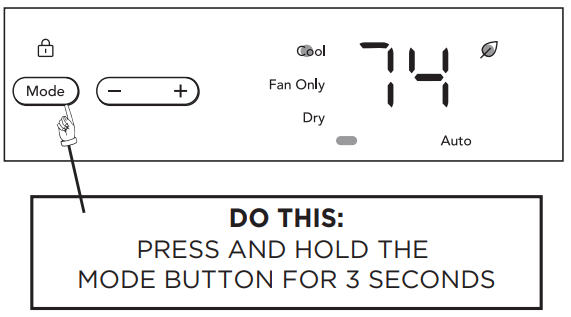

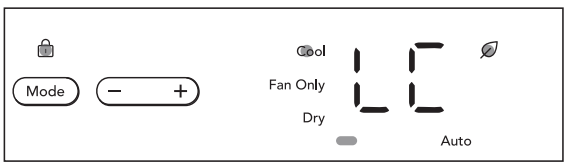

TO ACTIVATE THE CHILD LOCK FEATURE

YOU WILL SEE

Pressing and holding the Mode button for 3 seconds will activate or deactivate the Lock function. The display will show LC for 5 seconds. The control panel will be locked, and settings cannot be changed.

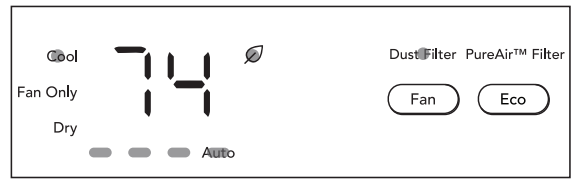

CHECK DUST FILTER FEATURE

This feature is a reminder to clean the Dust Filter (See Care and Cleaning). The Dust Filter light will illuminate after 250 hours of operation. To reset after cleaning the filter, hold the “Fan” button for 5 seconds.

YOU WILL SEE

PUREAIRTM FILTER (sold separately):

This unit can be used with PureAirTM Filters, which can be purchased by scanning the QR code behind the air inlet grille, by visiting Frigidaire.com, or by calling Frigidaire Customer Service Center 1-800-944-9044(US) / 1-800-265-8352 (Canada).

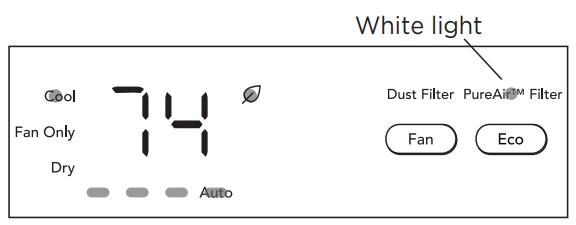

PUREAIRTM FILTER INDICATOR

Note: The PureAirTM Filter indicator will glow whit if a PureAirTM filter is installed.

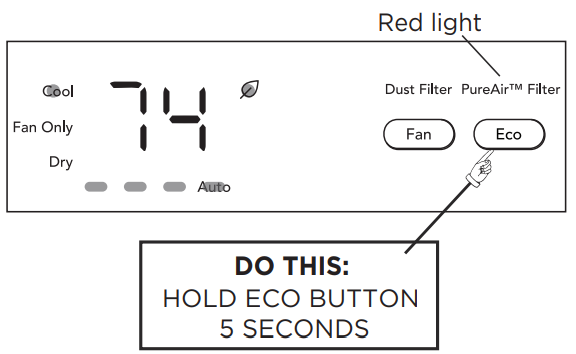

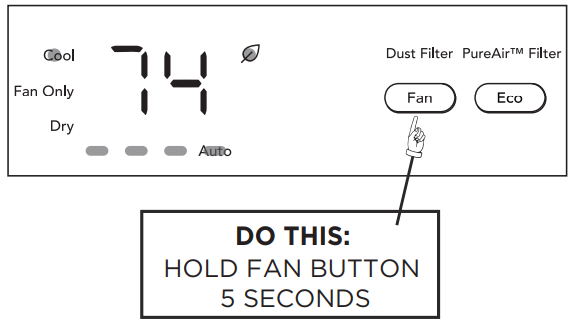

RESET PUREAIRTM FILTER LIGHT

After 1440 hours of operation, the PureAirTM Filter indicator will turn red. To reset, replace with a new PureAirTM Filter, then hold the “Eco” button for 5 seconds.

SLEEP FEATURE

Sleep mode can only be activated by the Remote control or the app.

The display will show SL for 3 seconds. Then, the display, indicator lights, and the air quality light will turn off. In this mode, the unit will automatically select the Auto fan speed, and the selected temperature will increase by 2 °F 30 minutes after sleep mode is selected. The temperature will then increase by another 2 °F after an additional 30 minutes. This new temperature will be maintained for 7 hours before it returns to the originally selected temperature. This ends the “Sleep” mode, and the unit will continue to operate as originally programmed. The “Sleep” mode program can be cancelled at any time during operation by pressing the “Sleep” button, “Fan” or “Mode” button.

DIMMING DISPLAY

After 60 seconds of inactivity, the display and indicator lights will turn off. And the Air quality light will reduce its brightness. Press any button on the control panel or remote control, and the display will illuminate. Please note that if the unit is in Eco mode and the set temperature has been reached, the unit may appear off. However, the unit is on and will continue to sample the air temperature every 10 minutes. To confirm, press any button on the control panel or remote control.

TO OPERATE SWING FEATURE

Press the Swing button to activate the swing louver and distribute air evenly throughout the room.

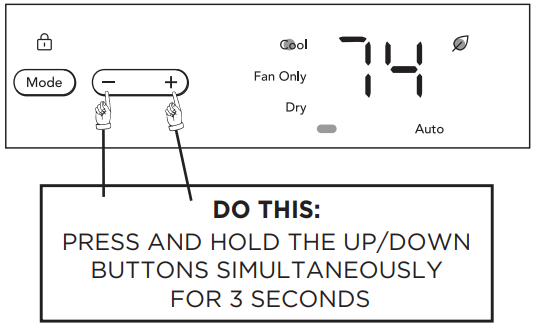

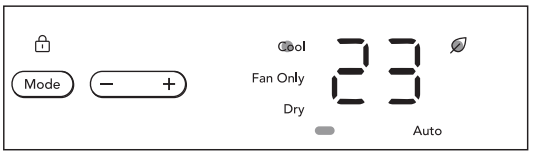

TO CHANGE THE TEMPERATURE SCALE (°F OR °C)

YOU WILL SEE

Your AC is capable of displaying temperature in degrees Fahrenheit or degrees Celsius.

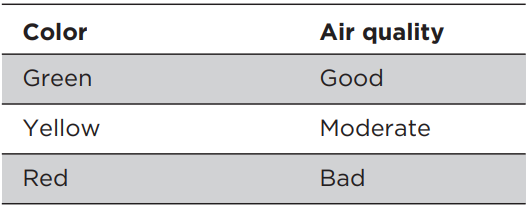

AIR QUALITY LIGHT

When used for the first time, the Air quality light will emit a white light for 1 minute, then switch to Green, Yellow, or Red according to the actual air quality in your room.

Note: The Air quality light will turn off in sleep mode.

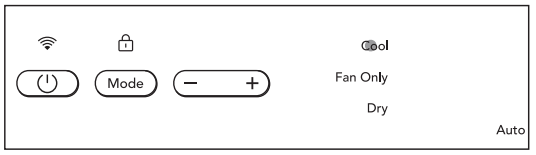

TO TURN THE UNIT OFF

YOU WILL SEE

When the unit is turned off, the display will gradually fade away after 3 seconds. The unit will always return to “Eco” mode and “Auto” fan speed setting when it is turned on again.

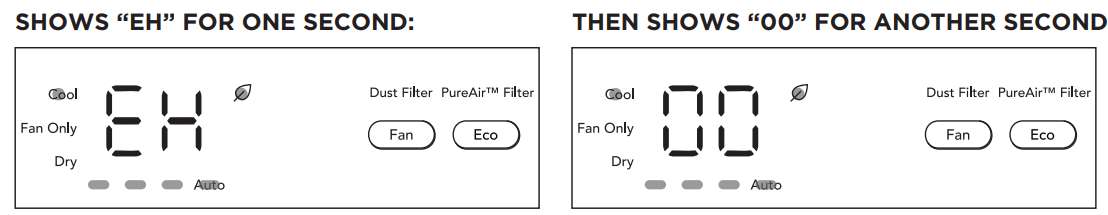

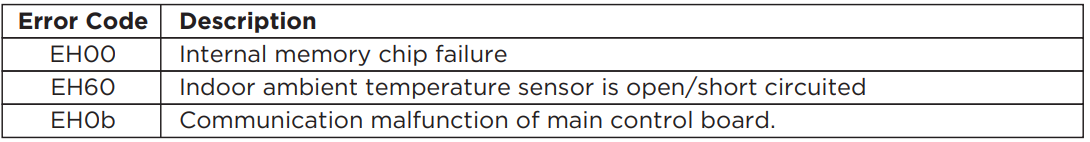

FAULT CODES

When below error codes show on the display, please contact your Authorized Frigidaire Service Center.

Note: The error code will be separated into 2 parts. The display will alternate every one-second intervals. For example, if the fault code “EH00” occurs, the panel will first display “EH” for 1 second, then display “00” for another second. The error code will continue to loop until the issue is resolved.

Note: There are more than 3 error codes. If an error code appears on the display, turn o the unit and restart it. If the error code persists, please contact your Authorized Frigidaire Service Center.

ADDITIONAL THINGS YOU SHOULD KNOW

Now that you have mastered the operating procedure, here are more features in your control that you should become familiar with.

NOTE

The “Cool” circuit has an automatic 3-minute time-delayed start if the unit is turned o and off quickly. This prevents overheating of the compressor and possible circuit breaker tripping. The fan will continue to run during this time.

• There is a 2-second delay for the compressor to shut down when selecting FAN ONLY. This is to cover the possibility of having to roll through to select another mode.
• The control will maintain the set temperature within 2 degrees Fahrenheit, between 60°F and 90°F.
• After a power outage, the unit will memorize the last setting and return the unit to the same setting once power is restored.
• The unit should be operated in an indoor temperature range of 60°F – 90°F (16°C – 32°C), and an outdoor temperature range of 64°F – 109°F (18°C – 43°C). Performance may be reduced outside of these operating temperatures.

CARE AND CLEANING

Clean your air conditioner occasionally to keep it looking new. Be sure to unplug the unit before cleaning to prevent shock or fire hazards.

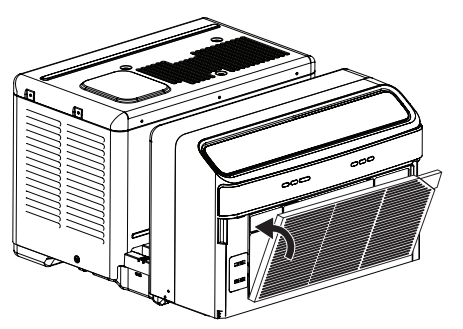

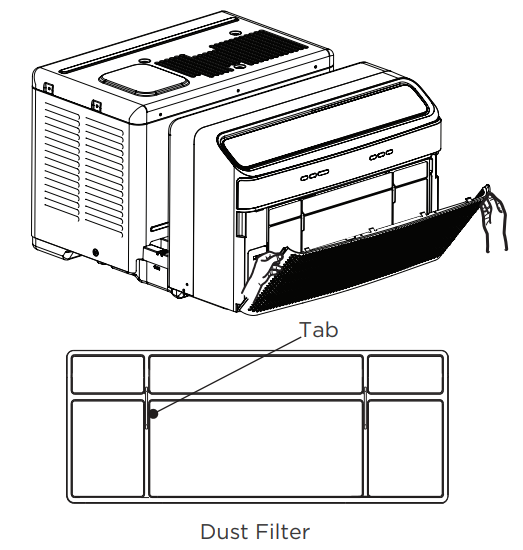

Dust Filter Cleaning

The Dust filter should be checked at least once a month to see if cleaning is necessary. Trapped particles in the Dust filter can build up and cause an accumulation of frost on the cooling coils.

• Open the front panel.
• Grasp the Dust Filter in the center, and pull up and out.
• Wash the Dust Filter using liquid dishwashing detergent and warm water. Rinse the Dust Filter thoroughly. Gently shake excess water from the Dust Filter. Be sure the Dust Filter is thoroughly dry before replacing.
• Instead of washing, you may vacuum the Dust Filter clean.
  NOTE: When replacing the Dust Filter after cleaning, make sure the protruding tabs on the filter are facing outward, as shown below.

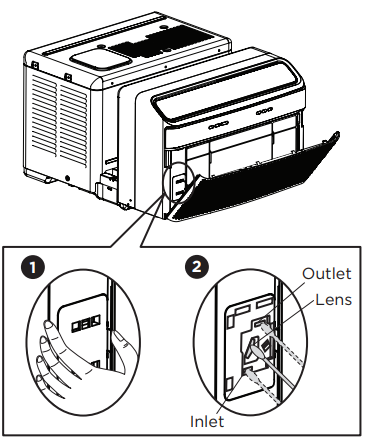

Cleaning of the Air Quality Sensor

We suggest cleaning your Air Quality Sensor every 2 months. This suggestion is based on continuous usage of your unit.

To clean the air quality sensor:

• Open the front panel.
• Open the Air Quality Sensor cover.
• Clean the lens, inlet, and outlet with a damp cotton swab. Use a dry cotton swab to remove any excess water from the sensor.
• Reinstall the cover and front panel after cleaning.

PUREAIRTM FILTER (sold separately)

This unit has available space for use with a PureAirTM filter (sold separately). Different types of PureAirTM Filters can be purchased by scanning the QR code behind the air inlet grille, by visiting Frigidaire.com, or by calling Frigidaire Customer Service Center 1-800-944-9044(US) / 1-800-265-8352 (Canada).

To install the PureAirTM Filter:

1. Remove the Dust filter as instructed in the Dust filter cleaning section.
2. Insert the PureAirTM filter in the reserved space behind the Dust Filter as shown below.
3. Reinstall the Dust Filter and air inlet grille.

Note: If the PureAirTM filter is installed properly, the PureAirTM Filter indicator will glow white. Otherwise, reinstall the filter.

The PureAirTM filter should be replaced regularly to achieve optimal results. To remove the filter, grab the fabric tabs on either side of the PureAir filter and pull out.

Cabinet Cleaning

• Be sure to unplug the air conditioner to prevent a shock or fire hazard. The cabinet and front may be dusted with an oil-free cloth or washed with a cloth dampened in a solution of warm water and mild liquid dishwashing detergent. Rinse thoroughly and wipe dry.
• Never use harsh cleaners, wax, or polish on the cabinet front.
• Be sure to wring excess water from the cloth before wiping around the controls. Excess water in or around the controls may cause damage to the air conditioner.

Winter Storage

If you plan to store your air conditioner during the cooler months, remove it carefully from the window according to the installation instructions, cover it with plastic, or return it to its original carton.

Energy Saving Ideas

• Do not block air flow inside with blinds, curtains, or furniture, or outside with shrubs, enclosures, or other buildings.
• The capacity of the room air conditioner must fit the room size for efficient and satisfactory operation.
• Install the room air conditioner on the shady side of your home. A window that faces north is best because it is shaded most of the day.
• Close the fireplace damper, floor, and wall registers so cool air does not escape up the chimney and into the ductwork.
• Keep blinds and drapes in other windows closed during the sunniest part of the day.
• Clean the air filter as recommended in the section “Care and Cleaning”.
• Proper insulation and weather stripping in your home will help keep warm air out and cool air in.
• External house shading with trees, plants, or awnings will help reduce the air conditioner’s workload.
• Operate heat-producing appliances such as ranges, washers, dryers, and dishwashers during the coolest part of the day.

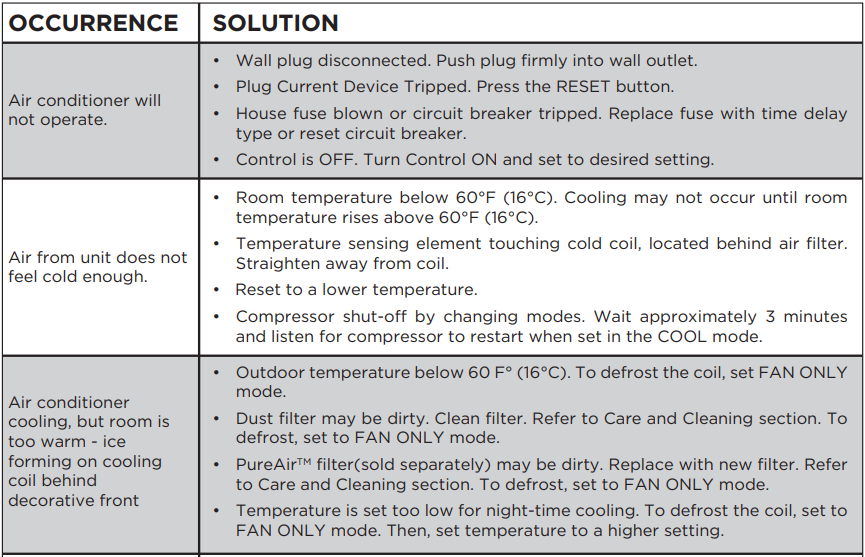

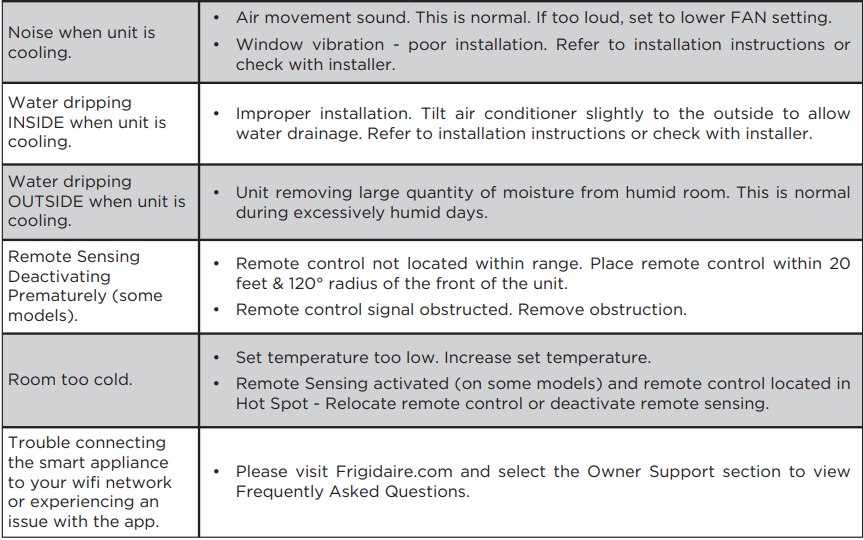

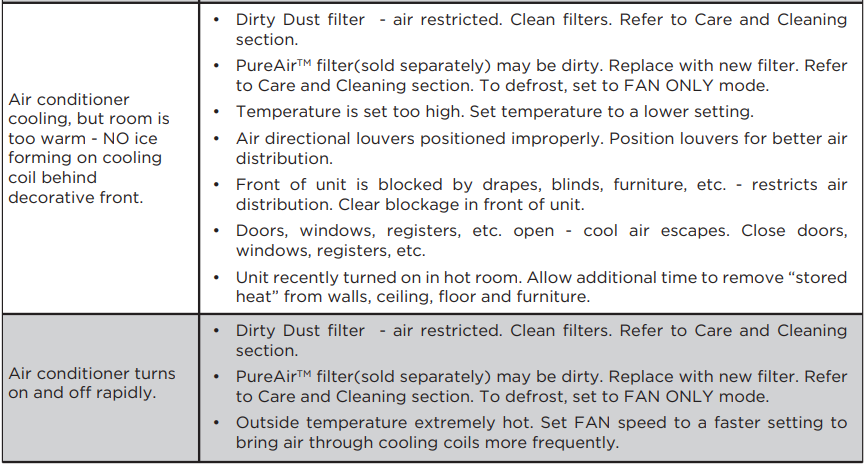

BEFORE YOU CALL

Before calling for service, review this list. It may save you time and expense. This list includes common occurrences that are not the result of defective workmanship or materials in this appliance.

If These Solutions Fail, Call 1-800-944-9044(US)/1-800-265-8352(Canada) For Frigidaire Service.

MAJOR APPLIANCE LIMITED WARRANTY

Your appliance is covered by a limited one-year warranty for functional repairs only. For one year from your original date of purchase, Electrolux will pay all costs for repairing or replacing any parts of this appliance that prove to be defective in materials or workmanship when such appliance is installed, used, and maintained in accordance with the provided instructions. After one year from your original date of purchase, the consumer will be responsible for diagnostic, labor, and parts costs, as well as any removal, transportation, and reinstallation expenses that are incurred during service on components.

Exclusions

This warranty does not cover the following:

1. Products with original serial numbers that have been removed, altered, red, or cannot be readily determined, products that have been transferred from their original owner to another party, or removed outside the USA or Canada.
2. Rust on the interior or exterior of the unit.
3. Products purchased “as-is” are not covered by this warranty.
4. Food loss due to any refrigerator or freezer failures.
5. Products used in a commercial setting.
6. Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances not in ordinary household use, or used other than in accordance with the provided instructions.
7. Service calls to correct the installation of your appliance or to instruct you on how to use your appliance.
8. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves, etc., which are not a part of the appliance when it is shipped from the factory.
9. Service calls to repair or replace appliance light bulbs, air filters, water filters, other consumables, or knobs, handles, or other cosmetic parts.
10. Surcharges, including but not limited to any after-hour, weekend, or holiday service calls, tolls, ferry trip charges, or mileage expense for service calls to remote areas, including the state of Alaska.
11. Damages to the finish of the appliance or home incurred during installation, including but not limited to floors, cabinets, walls, etc.
12. Damages caused by: services performed by unauthorized service companies; use of parts other than genuine Electrolux parts or parts obtained from persons other than authorized service companies; or external causes such as abuse, misuse, inadequate power supply, accidents, fires, or acts of God.

DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES

CUSTOMER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR OR REPLACEMENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE YEAR. ELECTROLUX SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES, SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES, RESULTING FROM ANY BREACH OF THIS WRITTEN LIMITED WARRANTY OR ANY IMPLIED WARRANTY. SOME STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES, SO THESE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THIS WRITTEN WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE.

If You Need Service

Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period should service be required. If service is performed, it is in your best interest to obtain and keep all receipts. Service under this warranty must be obtained by contacting Electrolux at the addresses or phone numbers below.

This limited warranty only applies in the USA and Canada. In the USA, your appliance is warranted by Electrolux Major Appliances North America, a division of Electrolux Home Products, Inc. In Canada, your appliance is warranted by Electrolux Canada Corp. Electrolux authorizes no person to change or add to any obligations under this warranty. Obligations for service and parts under this warranty must be performed by Electrolux or an authorized service company. Product features or specifications as described or illustrated are subject to change without notice.
