Frigidaire GMOS196CAF Over-the-Range Microwave Oven Manual

Frigidaire GMOS196CAF Over-the-Range Microwave Oven

IMPORTANT SAFETY INSTRUCTIONS

Read all instructions before using this appliance. This manual contains important safety symbols and instructions. Please pay attention to these symbols and follow all instructions given. Do not attempt to install or operate your appliance until you have read the safety precautions in this manual. Safety items throughout this manual are labeled with a WARNING or CAUTION statement based on the risk type.

Warnings and important instructions appearing in this guide are not meant to cover all possible conditions and situations that may occur. Common sense, caution, and care must be exercised with installing, maintaining, or operating your appliance.

PRECAUTIONS MICROWAVE ENERGY

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. Do not place any object between the oven’s front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.

Do not operate the oven if it is damaged. It is particularly important that the oven door closes properly and that there is no damage to the:

1. DOOR (bent)
2. HINGES AND LATCHES (broken or loosened)
3. DOOR SEALS AND SEALING SURFACES.

The oven should not be adjusted or repaired by anyone except properly qualified service personnel.

RADIO INTERFERENCE

• Operation of the microwave oven may cause interference to your radio, TV, or similar equipment.
• When there is interference, it may be reduced or eliminated by taking the following measures:
  •  Clean the door and sealing surface of the oven.
  • Reorient the receiving antenna of radio or television.
  • Relocate the microwave oven with respect to the receiver.
  • Move the microwave oven away from the receiver.
  • Plug the microwave oven into a different outlet so that the microwave oven and receiver are on different branch circuits.

UTENSILS

• Tightly-closed utensils could explode. Closed containers should be opened and plastic pouches should be pierced before cooking.
• See the instructions on “Materials you can use in microwave oven or to be avoided in microwave
  oven.” There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

Utensil Test:

• Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
• Cook on maximum power for 1 minute.
• Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
• Do not exceed 1 minute cooking time.

When using electrical appliances basic safety precautions should be followed, including the following:

• Read all instructions before using the appliance.
• Read and follow the specific: “PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY” found on page 4.
• This appliance must be grounded. Connect only to a properly grounded outlet. See “GROUNDING INSTRUCTIONS” found on page 6.
• Install or locate this appliance only in accordance with the provided installation instructions.
• Some products such as whole eggs and sealed containers – for example, closed glass jars – are able to explode and should not be heated in this oven.
• Use this appliance only for its intended use as described in the manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook or dry food. It is not designed for industrial or laboratory use.
• HOT CONTENTS CAN CAUSE SEVERE BURNS. DO NOT ALLOW CHILDREN TO USE THE MICROWAVE. Use caution when removing hot items.
• Do not operate this appliance if it has a damaged cord or plug if it is not working properly, or if it
  has been damaged or dropped.
• This appliance should be serviced only by qualified service personnel. Contact the nearest authorized service facility for examination, repair, or adjustment.
• Do not cover or block any openings on the appliance.
• Do not store this appliance outdoors. Do not use this product near water – for example, near a kitchen sink, in a wet basement, near a swimming pool, or similar location.
• Do not immerse the cord or plug in water.
• Keep the cord away from the heated surface.
• Do not let the cord hang over the edge of a table or counter. When cleaning surfaces of doors and
  oven that comes together on closing the door, use only mild, nonabrasive soaps, or detergent applied with a sponge or soft cloth.
• To reduce the risk of fire in the oven cavity:
  • Do not overcook food. Carefully attend to appliances when paper, plastic, or other combustible materials are placed inside the oven to facilitate cooking.
  • Remove wire twist-ties from paper or plastic bag before when placing bag in oven.
  • If the material inside of the oven ignites, keep the oven door closed, turn the oven off, disconnect the power cord, or shut off power at the fuse or circuit breaker panel.
  • Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils, or food in the cavity when not in use.
• Liquids, such as water, coffee, or tea are able to be overheated beyond the boiling point without
  appearing to be boiling. Visible bubbling or boiling when the container is removed from the microwave oven is not always present. THIS COULD RESULT IN VERY HOT LIQUID SUDDENLY BOILING OVER WHEN THE CONTAINER IS DISTURBED OR A UTENSIL IS INSERTED INTO THE LIQUID. To reduce the risk of injury to persons:
• Do not overheat the liquid.
• Stir the liquid both before and halfway through heating it.
• Do not use straight-sided containers with narrow necks.
• After heating, allow the container to stand in the microwave oven for a short time before removing the container.
• Use extreme care when inserting a spoon or other utensil into the container.
• Oversized food or oversized metal utensils should not be inserted in a microwave/toaster oven as they may create a fire or risk of electric shock. Do not clean with metal scouring pads. Pieces can burn off the pad and touch electrical parts causing a risk of electric shock.
• Do not use paper products when the appliance is operated in the toaster, air fry or convection mode.
• Do not store any materials, other than the manufacturer’s recommended accessories, in this oven when not in use.
• Do not cover racks or any other part of the oven with metal foil. This will cause over-heating of the
  oven.
• Clean Ventilation Hoods Frequently -Grease should not be allowed to accumulate on the hood or filter.
• When flaming foods under the hood, turn the fan on.
• Use care when cleaning the ventilation filter. Corrosive cleaning agents, such as lye-based oven
  cleaners, may damage the filter.
• Suitable for use above both gas and electric cooking equipment.

GROUNDING INSTRUCTIONS

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance has a cord with a grounding wire and a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

Consult a qualified electrician or serviceman if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded. If it is necessary to
use an extension cord, use only a 3-wire extension cord that has a 3-blade grounded plug, and a 3-slot receptacle that will accept the plug on the appliance. The marked rating of the extension cord shall be equal to or greater than the electrical rating of the appliance.

• A short power supply cord is provided to reduce the risks resulting from becoming entangled in or
  tripping over a longer cord.
• Longer cord sets or extension cords are available and may be used if care is exercised in their use.
• If a long cord or extension cord is used:
  • The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance.
  • The extension cord must be a grounding-type 3-wire cord.
  • The longer cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over unintentionally.

Materials you can use in a microwave oven

Materials to be avoided in a microwave oven

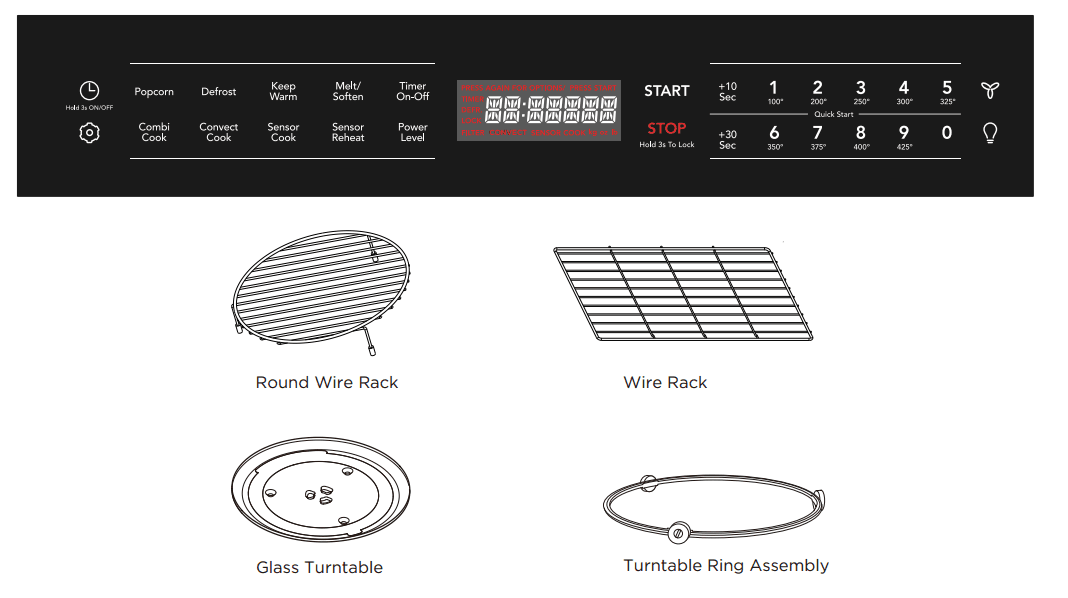

NAMES OF OVEN PARTS AND ACCESSORIES

• Before operating your new appliance make sure you read and understand this Use and Care Guide completely.
• The clock can be disabled when the microwave is first plugged in and the STOP key is selected. To re-enable the clock follow clock instructions.

OPERATION

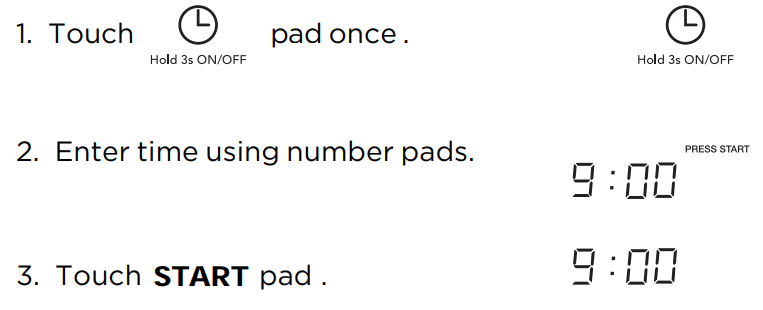

Setting the clock

Example: setting clock display for 9:00:

Setting the clock ON/OFF

Example: to turn off the clock display:

Example: To turn on the clock display:

1. Hold the clock button for 3s and the clock will show in the display and when ON is shown in the display the clock will remain on.
2. Tap the clock button to see the current time if the display is off.

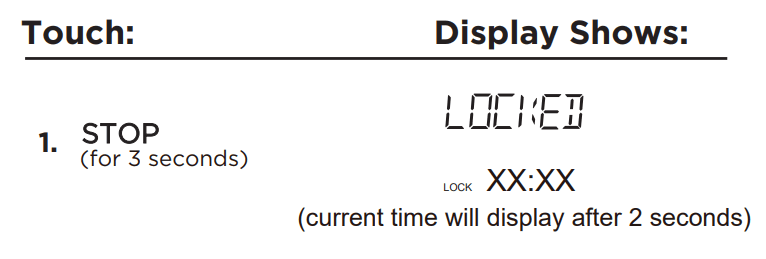

CHILD LOCK

• Suppose you want to lock or unlock the controls.

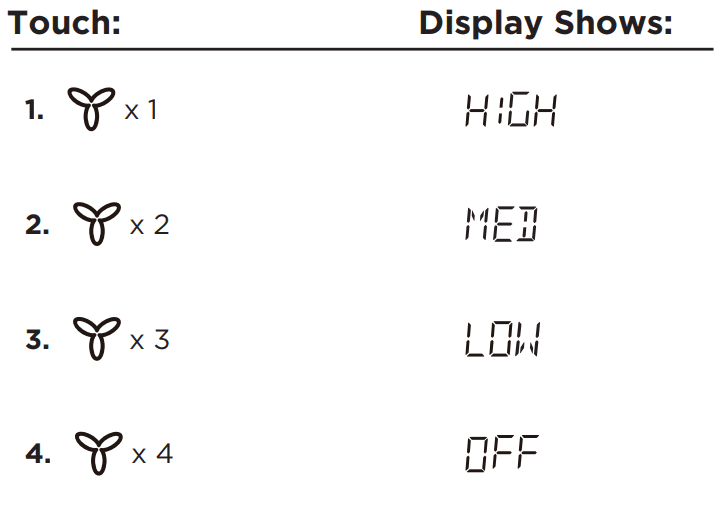

VENT FAN

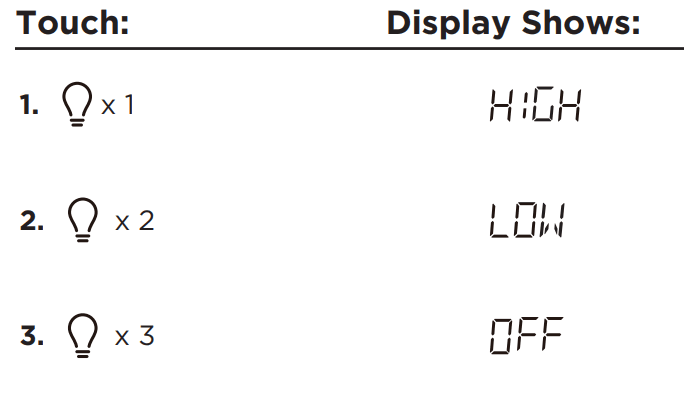

SURFACE LIGHT

Convection Cooking

For Best Results…
Always use the round wire rack when convection cooking. Reduce package/recipe temperature 25°F for baked goods. The round wire rack is required for good air circulation and even browning.

Using convection with preheating

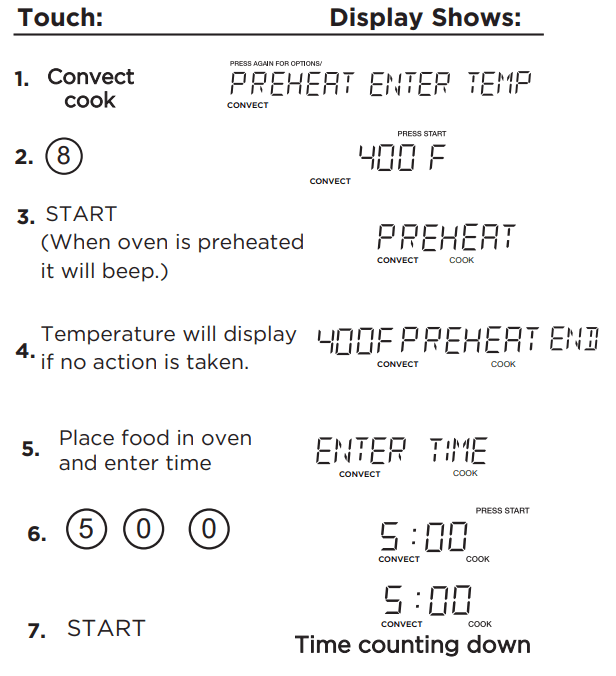

• Suppose you want to convection cook at 400°F for 5 minutes with preheating.

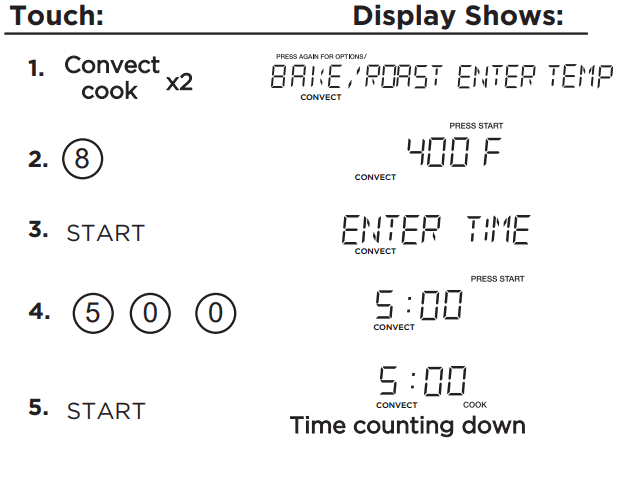

Using convection without preheating

• Suppose you want to convection cook at 400°F for 5 minutes without preheating.

Broil-High

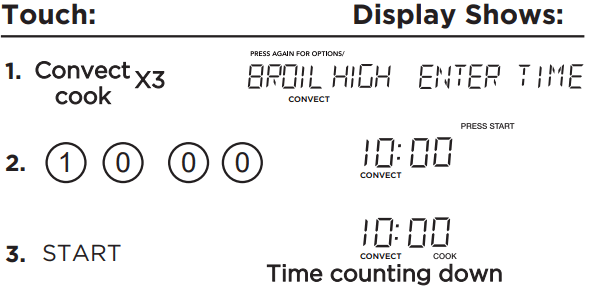

• Suppose you want Broil-High for 10 minutes.

Broil-Low

• Suppose you want to Boil-low for 5 minutes.

KEEP WARM

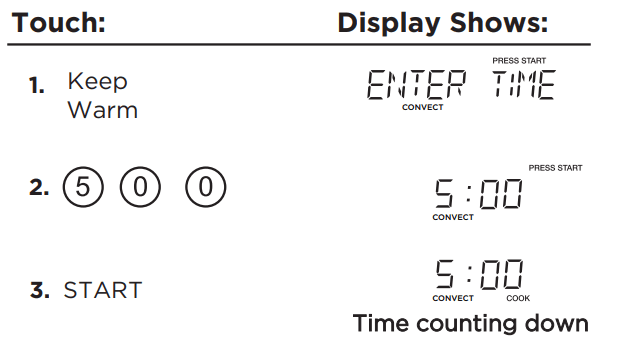

• Suppose you want to Keep Warm for 5 minutes.

NOTE
When cooking is finished the oven will beep and the display will show REMOVE FOOD FAN COOLING. After the food is removed from the oven the display will continue to show FAN COOLING.

COMBI COOK

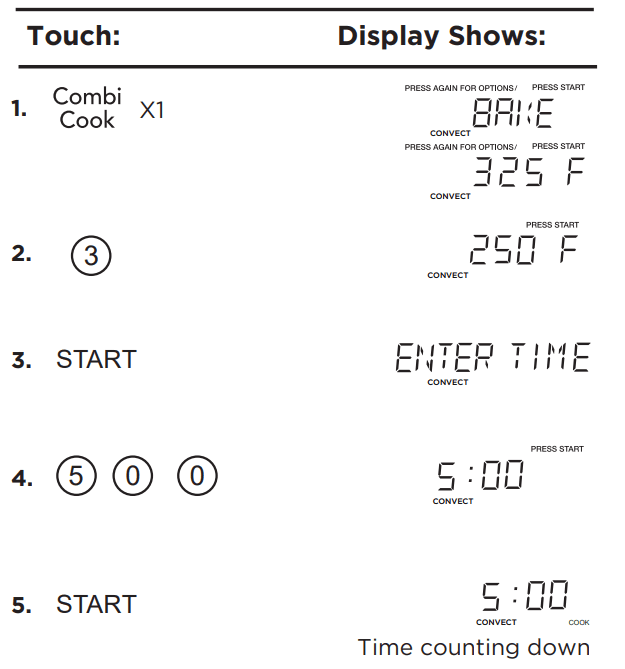

• Suppose you want to Bake for 5 minutes at 250°F.

Power chart of bake

Power chart of roast

Using the +10 sec /+ 30 sec key

This feature will let you quickly start or add 10 or 30 seconds.

Touch the +10 sec /+30 sec pad to:+10 Sec /+30 Sec

1. Start cooking for 10 seconds/30 seconds at 100% power level.
2. Extend cooking time in multiples of 10 seconds/30 seconds each time this pad is touched during microwave cooking.

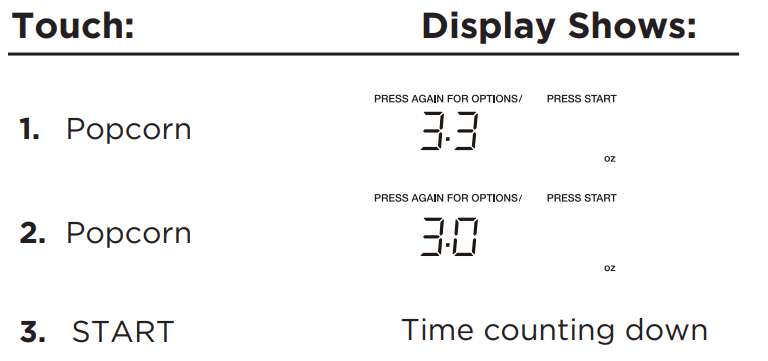

POPCORN

• Suppose you want to cook 3.0 oz. popcorn.

MELT/SOFTEN

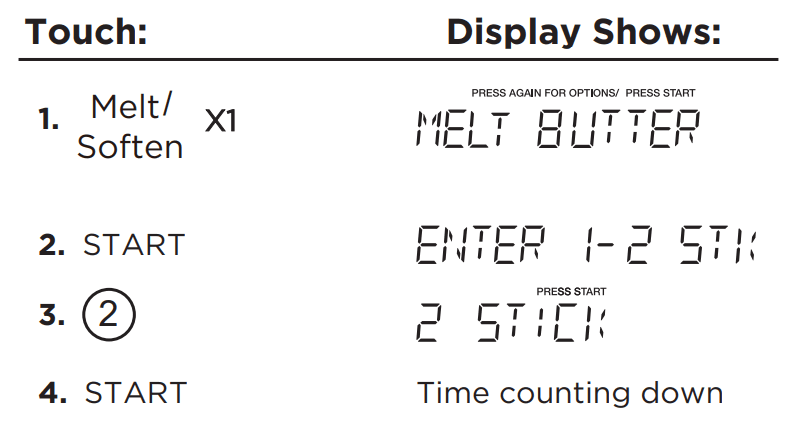

• Suppose you want to melt 2 sticks of Butter.

DEFROST

• Suppose you want to defrost 1.2 lbs of meat.

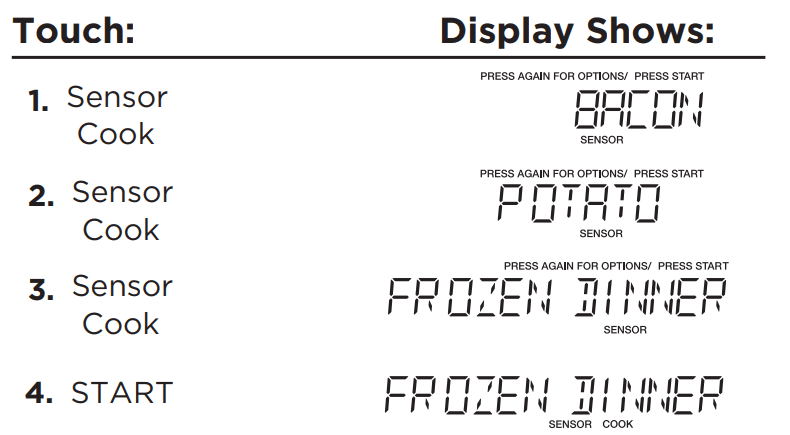

SENSOR COOK

• Suppose you want to cook a frozen dinner.

The touch sensor cooks once, Bacon displays, then Touch starts to enter the slice setting, 1-3 SLE will display, touch 1, 2, or 3 slices.

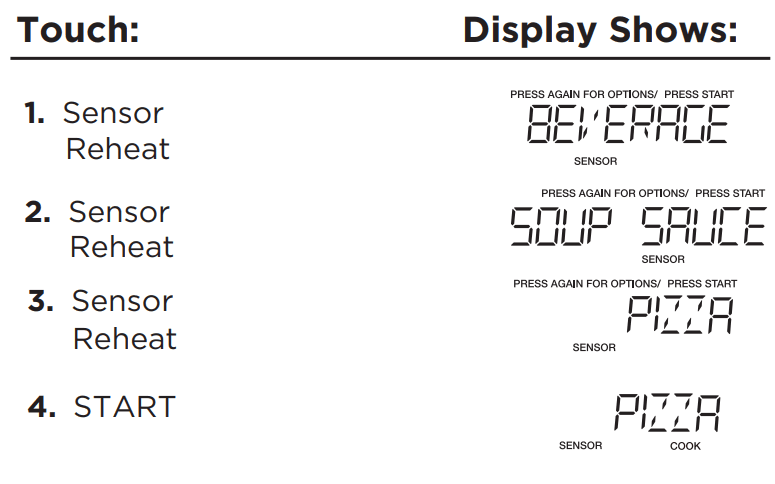

SENSOR REHEAT

• Suppose you want to reheat Pizza.

MULTI-STAGE COOKING

For best results, some recipes call for different power levels during a cook cycle. You can program your microwave for two power level stages during the cooking cycle.

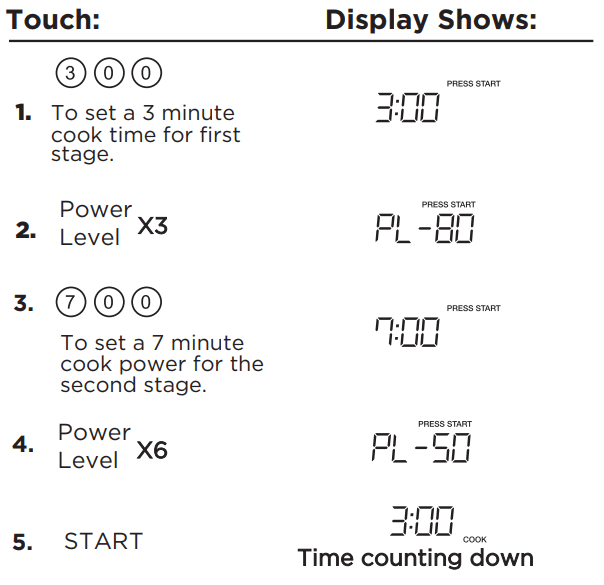

• Suppose you want to set a 2-stage cook cycle. The first stage is a 3-minute cook time at 80% cook power then a 7-minute cook time at 50% cook power.

MAINTENANCE

Troubleshooting

Check your problem by using the chart below and try the solutions for each problem. If the microwave oven still does not work properly, contact the nearest authorized service center.

CLEANING AND CARE

EXTERIOR

The outside surface is precoated steel and plastic. Clean the outside with mild soap and water; rinse and dry with a soft cloth. Do not use any type of household or abrasive cleaner.

DOOR

Wipe the window on both sides with a soft cloth to remove any spills or spatters. Metal parts will be easier to maintain if wiped frequently with a soft cloth. Avoid the use of spray and other harsh cleaners as they may stain, streak or dull the door surface.

WAVEGUIDE COVER

The waveguide cover is located on the right side in the microwave oven cavity. It is made from mica so requires special care. Keep the waveguide cover clean to ensure good microwave oven performance.
Carefully wipe with a damp cloth any food spatters from the surface of the cover immediately after they occur. Built-up splashes may overheat and cause smoke or possibly catch fire. DO NOT REMOVE THE WAVEGUIDE COVER.

ODOR REMOVAL

Occasionally, a cooking odor may remain in the microwave oven. To remove, combine 1 cup water,
grated peel, and juice of 1 lemon in a 2-cup glass measuring cup. Boil for several minutes using 100% power. Allow to set in microwave oven until cool. Wipe the interior with a soft cloth.

TURNTABLE/TURNTABLE SUPPORT

The turntable and turntable support can be removed for easy cleaning. Wash them in mild, sudsy water; for stubborn stains use a mild cleanser and non-abrasive scouring sponge. They are also dishwasher-proof. Use the upper wire rack of the dishwasher. The turntable motor shaft is not sealed, so excess water or spills should be wiped up immediately.

SPECIFICATIONS

• ACLineVoltage: Single phase 120V, 60Hz, AC only
• AC Power Required: 1500W 13.5amps
• Output Power*: 900 W
• Frequency: 2450 MHz (Class B/Group2)**
• Outside Dimensions: 75.9 “(W) x 44.6 “(D) x 40.8″(H)
• Cavity Dimensions: 54.0″(W) x 25.2″(D) x 37.36 “(H)
• Microwave oven Capacity***: 1.9 Cu.Ft.
• Cooking Uniformity: Turntable
• Weight: Approx. (net) 79.1 Ibs, (gross) 84.2 Ibs
• Work/Night Light: 2″1.2W LED
• Oven Light: 1″1.2W LED
