Frigidaire R134a Top-Mount Refrigerator

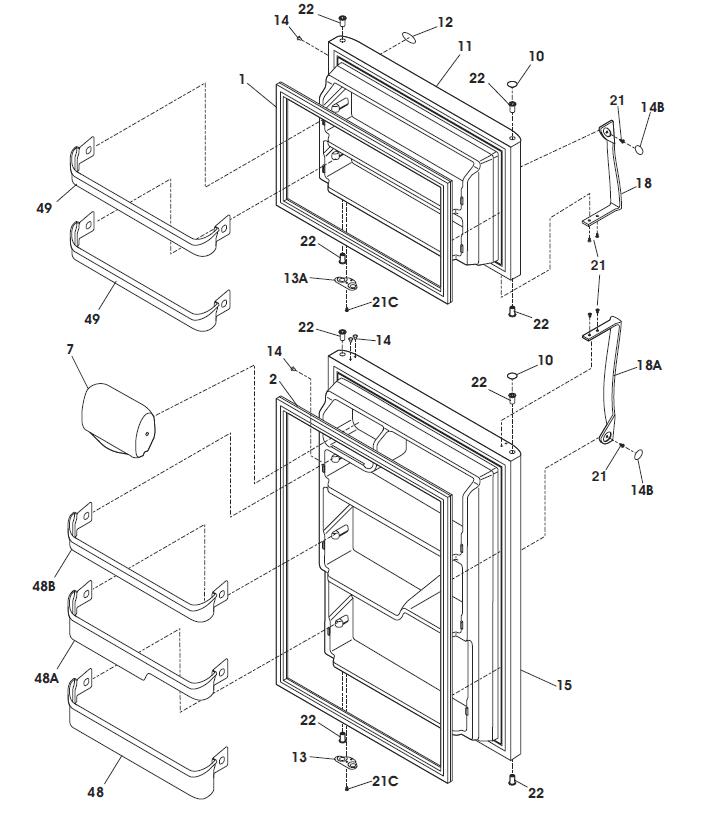

DOOR
- Model Index: A FRT18FR7E (FRT18FR7EB2)
- B FRT18FR7E (FRT18FR7EQ0)
- C FRT18FR7E (FRT18FR7EQ2)
- D FRT18FR7E (FRT18FR7EW0)
- E FRT18FR7E (FRT18FR7EW2) POS. NO PART NO. DESCRIPTION
- 1 # 240542109 A – – – – Gasket-frzr door, black, magnetic
- 1 # 240542103 – B C D E Gasket-frzr door, white, magnetic
- 2 # 240542112 A – – – – Gasket-refr door, black, magnetic
- 2 # 240542106 – B C D E Gasket-refr door, white, magnetic
- 7 240337703 A B C D E Door-dairy, w/o graphics, clear
- 10 240381303 A – – – – Plug-button, black, hinge brg hole
- 10 240381302 – B C – – Plug-button, bisque, hinge brg hole, (2)
- 10 240381301 – – – D E Plug-button, white, hinge brg hole, (2)
- 11 240409919 A – – – – Door, frzr, black
- 11 240409902 – B C – – Panel-frzr door, bisque, complete assy
- 11 240409901 – – – D E Panel-frzr door, white, complete assy
12 240416304 A – – – – Nameplate, black
12 240416303 – B C – – Label-nameplate, bisque
12 240416301 – – – D E Label-nameplate, white
13 240312405 A – – – – Door Stop, black, refr
13 240312407 – B C – – Door Stop, bisque, ref
13 240312403 – – – D E Door Stop, white, ref
13A 240312406 A – – – – Door Stop, black, frzr
13A 240312408 – B C – – Door Stop, bisque, frzr
13A 240312404 – – – D E Door Stop, white, frzr
14 240494003 A – – – – Plug-button, black
14 240494002 – B C – – Plug-button, bisque
14 240494001 – – – D E Plug-button, white
14B 240383603 A – – – – Plug-button, black, door handle
14B 240383602 – B C – – Plug-button, bisque, door handle
14B 240383601 – – – D E Plug-button, white, door handle
15 240410125 A – – – – Door, refr, black
15 240410002 – B C – – Panel-refr door, bisque, complete assy
15 240410001 – – – D E Panel-refr door, white, complete assy
18 240339203 A – – – – Handle-door, black
18 240339204 – B C – – Handle-door, bisque
18 240339201 – – – D E Handle-door, white
18A 240339208 A – – – – Handle-door, black
18A 240339209 – B C – – Handle-door, bisque
18A 240339206 – – – D E Handle-door, white
21 240383401 A B C D E Screw, truss hd quad, #10-16 x .500
21C 218252200 A B C D E Screw, #8 truss hd, 10-32CA x 0.500
22 240527102 A – – – – Bearing-hinge, black
22 240527101 – B C D E Bearing-hinge, natural color
48 240338101 A B C D E Bin-door, pseudo, bottom
48A 240337901 A B C D E Bin-door, refr
48B 240338001 A B C D E Bin-door, pseudo, gallon, refr
49 240495804 A B C D E Bin-door, pseudo, frzr

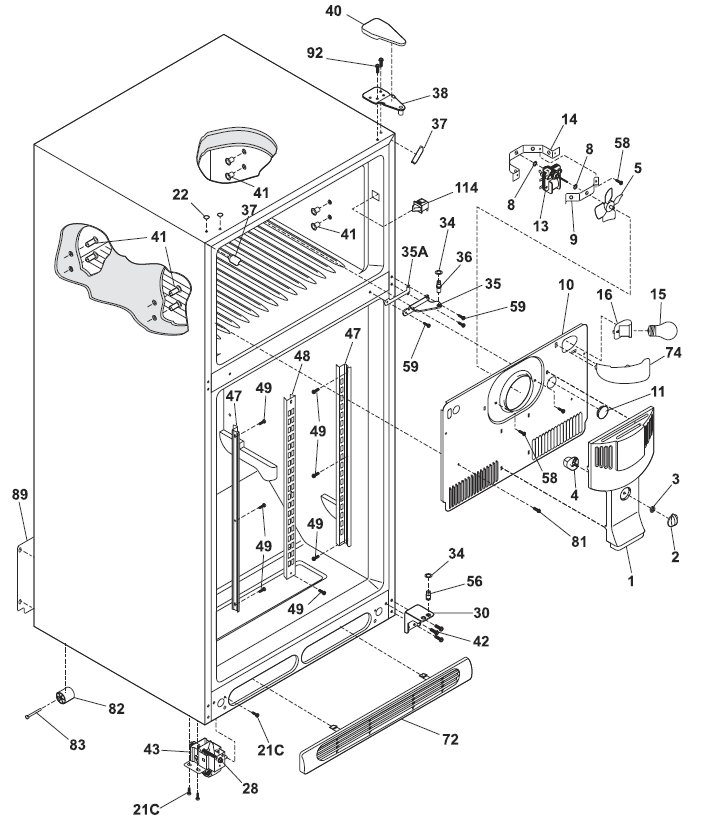

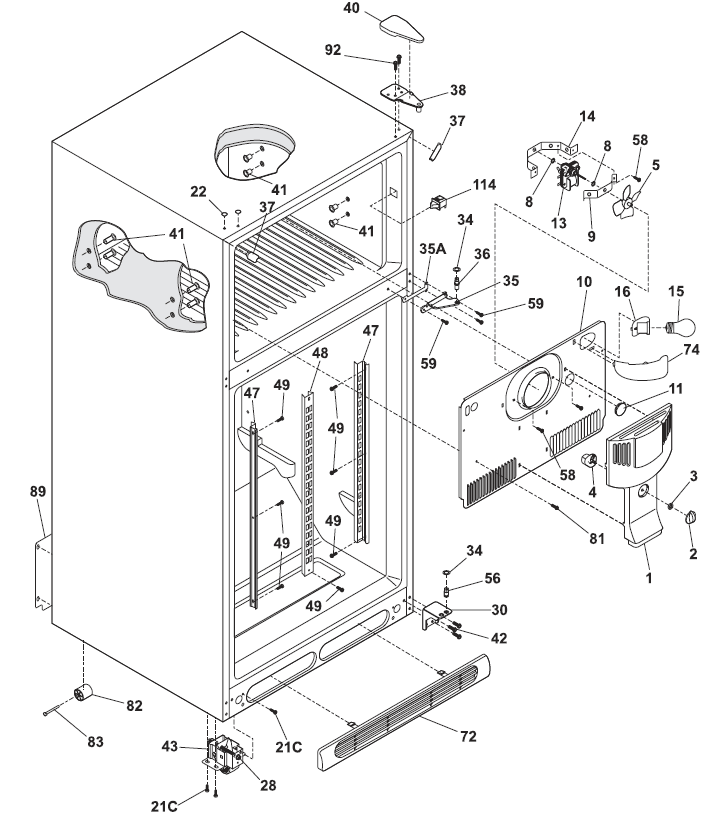

CABINET
Model Index: A FRT18FR7E (FRT18FR7EB2)
B FRT18FR7E (FRT18FR7EQ0)
C FRT18FR7E (FRT18FR7EQ2)
D FRT18FR7E (FRT18FR7EW0)
E FRT18FR7E (FRT18FR7EW2)
POS. NO PART NO. DESCRIPTION
1 240355401 A B C D E Cover-fan
2 240367001 A B C D E Knob-damper control
3 5303001028 A B C D E Nut, push-on
4 241523701 A B C D E Damper-fan cover
5 # 5308000010 A B C D E Fan Blade, red, evaporator fan
8 5300157666 A B C D E Bushing-motor mtg, (2)
9 5303292396 A B C D E Bracket-motor mtg, front
10 240462009 A B C D E Cover-evap coil
10* 240568601 A B C D E Seal-coil cover
10* 241537701 A B C D E Wiring Harness, freezer section, with light
11 5303208309 A B C D E Plug-hole, factory test
13 240369702 A B C D E Motor-evap fan
13* 218931001 A B C D E Clamp-motor wiring, nylon, w/adhesive tape
14 5303292397 A B C D E Bracket-motor mtg, rear
15 241560701 A B C D E Light Bulb
16 # 241513901 A B C D E Socket-light
21C 218252200 A B C D E Screw, #8 truss hd, 10-32CA x 0.500
22 215774918 A – – – – Plug-button, black, upr hinge holes
22 215774919 – B C – – Plug-button, bisque, upr hinge holes
22 215774901 – – – D E Plug-button, white, upr hinge holes
28 240335501 A B C D E Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special
30 240314003 A – – – – Bracket-lower hinge, black
30 240314004 – B C – – Bracket-lower hinge, bisque
30 240314002 – – – D E Bracket-lower hinge, white
34 240311303 A B C D E Washer, hinge, nylon, (2)
35 240313803 A – – – – Bracket-ctr hinge, black
35 240313804 – B C – – Bracket-ctr hinge, bisque
35 240313802 – – – D E Bracket-ctr hinge, white
35A 240336802 A B C D E Spacer-hinge, center
36 240516401 A B C D E Pin-center hinge
37 241611303 A – – – – Trim-cabinet corner, black, (2)
37 241611304 – B C – – Trim-cabinet corner, bisque, (2)
37 241611301 – – – D E Trim-cabinet corner, white, (2)
38 241622603 A – – – – Hinge-up-plastic-blk, plastic, black
38 240313701 – B – D – Bracket-upper hinge
38 241622604 – – C – – Hinge-up-plastic-bis, plastic, bisque
38 241622601 – – – – E Hinge-up-plastc-wht, plastic, white
40 240354403 – B – – – Cover-upper hinge, bisque
40 240354401 – – – D – Cover-upper hinge, white
41 5303001609 A B C D E Grommet, shelf mtg, 0.69″, RH
41* 5308009759 A B C D E Grommet, shelf mtg, 1.25″, LH, (4)
42 240578901 A B C D E Screw-hinge mtg, hex head, 1/4-20 x 5/8
43 240335003 A B C D E Roller Assy, front, (2)
47 218233300 A B C D E Channel-shelf mtg, side, (2)
48 5303292395 A B C D E Channel-shelf mtg, center
49 218362500 A B C D E Screw, hex washer head, 8-18AB x 1.250, spacer, (2)
Model Index: A FRT18FR7E (FRT18FR7EB2)
B FRT18FR7E (FRT18FR7EQ0)
C FRT18FR7E (FRT18FR7EQ2)
D FRT18FR7E (FRT18FR7EW0)
E FRT18FR7E (FRT18FR7EW2)
POS. NO PART NO. DESCRIPTION
56 240516501 A B C D E Pin-lower hinge
58 5303001343 A B C D E Screw, hex washer head, 8-15A x 0.500
59 240442703 A – – – – Screw-#10-32 X 3/4, black
59 240442704 – B C – – Screw-#10-32 X 3/4, bisque
59 240442702 – – – D E Screw-#10-32 X 3/4, white
72 240368207 A – – – – Grille/Kickplate, black
72 240368206 – B C – – Grille/Kickplate, bisque
72 240368205 – – – D E Grille/Kickplate, white
74 240354301 A B C D E Shield-light, frzr
81 5308016566 A B C D E Screw, hex washer head, 8-15A x 0.625, low profile
82 5304418225 A B C D E Roller, compressor base, rear, (2)
83 5303316859 A B C D E Rivet, flat head, 1/4 OD x 1-3/4, roller pin
89 241574607 A B C D E Cover-access, w/label
89* 241500301 A B C D E Screw, hex washer head, 8-18AB x 0.500
92 241624301 A – C – E Screw-hinge mtg, hex head, 1/4-20 x 1.00
92 5303001479 – B – D – Screw-hinge mtg, hex hd, 1/4-20 x 0.875
114 241554901 A B C D E Switch-light/lamp
* 5303321321 A – – – – Paint, touch-up, black
* 5304414035 – B C – – Paint, touch-up, bisque
* 5303305324 – – – D E Paint, touch-up, white

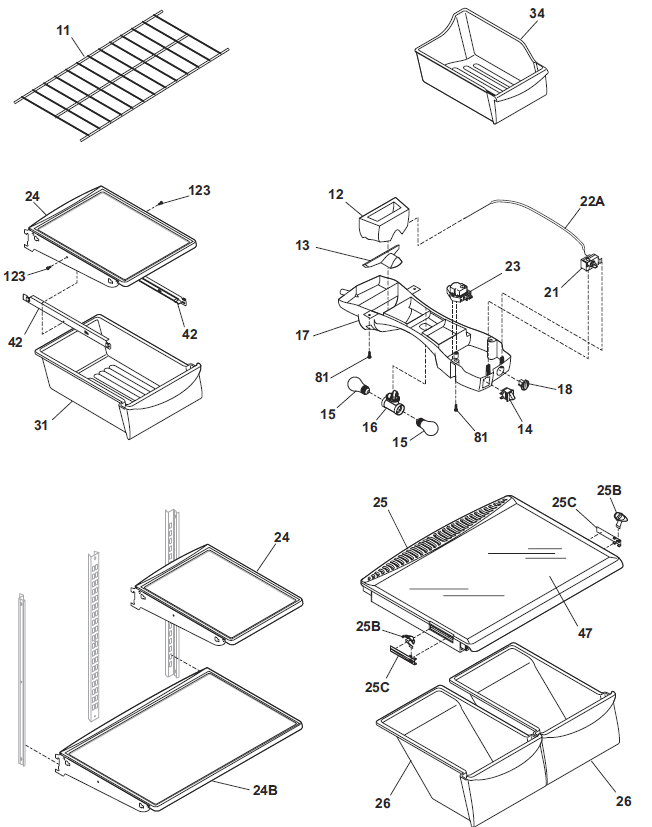

SHELVES
Model Index: A FRT18FR7E (FRT18FR7EB2)
B FRT18FR7E (FRT18FR7EQ0)
C FRT18FR7E (FRT18FR7EQ2)
D FRT18FR7E (FRT18FR7EW0)
E FRT18FR7E (FRT18FR7EW2)
POS. NO PART NO. DESCRIPTION
11 240358005 A B C D E Shelf, freezer, full-width, wire
11* 5303299664 A B C D E Spacer, shelf
12 241542001 A B C D E Diffuser, air, top
13 240362601 A B C D E Diffuser, air, bottom
14 # 241554901 A B C D E Switch-light/lamp
15 241560701 A B C D E Light Bulb
16 240364202 A B C D E Socket-light/lamp, dual
17 240352701 A B C D E Control Box
17* 240568607 A B C D E Seal
17*# 240388701 A B C D E Wiring Harness, control box
18 240360801 A B C D E Knob, temp control
21 5304421256 A B C D E Control, temperature
22A 240468201 A B C D E Tube, sensor sleeve, 31 inch, plastic, white
23 # 241621501 A B C D E Timer-defrost
23* 5303001259 A B C D E Screw-timer mtg, pan hd, 6-20 x 0.438, (2)
24 241616602 A B C D E Shelf, fixed, Spill Safe
24B 240408804 A B C D E Shelf-“Spill-Safe”, cantilever fixe
25 240364714 A B C D E Cover-crisper pan
25B 240361201 A B C D E Control-humidity
25C 240361301 A B C D E Damper, humidity cont.
26 240337107 A B C D E Pan-crisper, clear, (2), no graphics
31 240530810 A B C D E Pan, meat bin
34 240385201 A B C D E Container, ice bin
42 240356501 A B C D E Track, meat pan hanger, RH
42 240365401 A B C D E Track, meat pan hanger, LH
47 240350643 A B C D E Insert-pan cover, glass
81 5308016566 A B C D E Screw, hex washer head, 8-15A x 0.625, low profile
123 215005100 A B C D E Screw, hanger/rlr mtg, 8-10 x 0.438

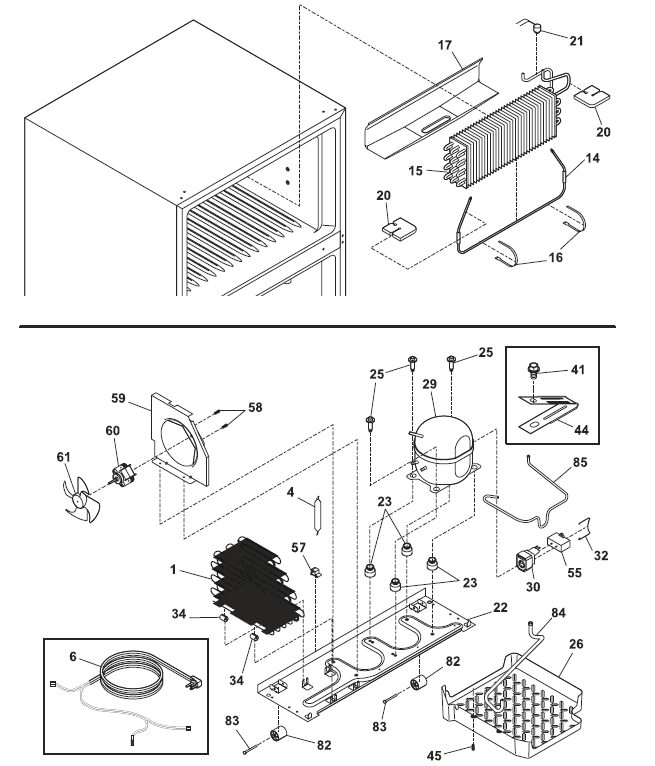

SYSTEM
Model Index: A FRT18FR7E (FRT18FR7EB2)
B FRT18FR7E (FRT18FR7EQ0)
C FRT18FR7E (FRT18FR7EQ2)
D FRT18FR7E (FRT18FR7EW0)
E FRT18FR7E (FRT18FR7EW2)
POS. NO PART NO. DESCRIPTION
1 # 240444401 A B C D E Condenser, dynamic
4 # 218944001 A B C D E Drier-filter, R134a System
6 # 240496101 A B C D E Wiring Harness, machine compt, w/electric cord
6* # 240388701 A B C D E Wiring Harness, control box
6* 241537701 A B C D E Wiring Harness, freezer section, with light
14 # 5303918208 A B C D E Defrost Heater Kit
15 # 5303918274 A B C D E Evaporator Kit
16 5308000110 A B C D E Strap-evap/heater, aluminum, (2)
17 241551801 A B C D E Trough-drain
20 241551901 A B C D E Insulation Block
21 # 5303918202 A B C D E Thermostat-defrost, kit
22 241602001 A B C D E Base-compressor
22* 218252200 A B C D E Screw, #8 truss hd, 10-32CA x 0.500
23 218513300 A B C D E Grommet-compr mtg, (4)
25 240491501 A B C D E Screw-compressor mtg, 1/4-28 x 1.16, shoulder, typ CF
26 240332608 A B C D E Pan-defrost drain
29 # 5303918299 A B C D E Compressor, w/electricals
30 # 241527802 A B C D E Starter
32 241527901 A B C D E Clamp, elec cont mtg, compressor
34 240405201 A B C D E Grommet, rubber, black, cond tube/wire
41 240433202 A B C D E Screw, hex washer head, 8-18 x 5/16
44 5303001199 A B C D E Clamp-wiring harness, strain relief, galv steel
45 5308016566 A B C D E Screw, hex washer head, 8-15A x 0.625, low profile
55 218909915 A B C D E Capacitor-run, 220 VAC, 15 microfarad
57 240542601 A B C D E Clip-wiring harness
58 218897002 A B C D E Screw, hex washer head, 8-32 x 0.375
59 5304430246 A B C D E Bracket-cond motor assy
59* 240346701 A B C D E Tape-foam seal, shroud
59* 240359401 A B C D E Screw-fan shroud, (2)
60 # 240525402 A B C D E Motor, condensor fan
61 # 240524101 A B C D E Fan Blade, galv steel, condenser fan
82 5304418225 A B C D E Roller, compressor base, rear, (2)
83 5303316859 A B C D E Rivet, flat head, 1/4 OD x 1-3/4, roller pin
84 240500801 A B C D E Tube-drain, rubber, lower
85 240553501 A B C D E Tube-connector, suction
* 5303918263 A B C D E Heat Exchanger Kit, suction line
* 5303918222 A B C D E Hot Tube Repair Kit, service

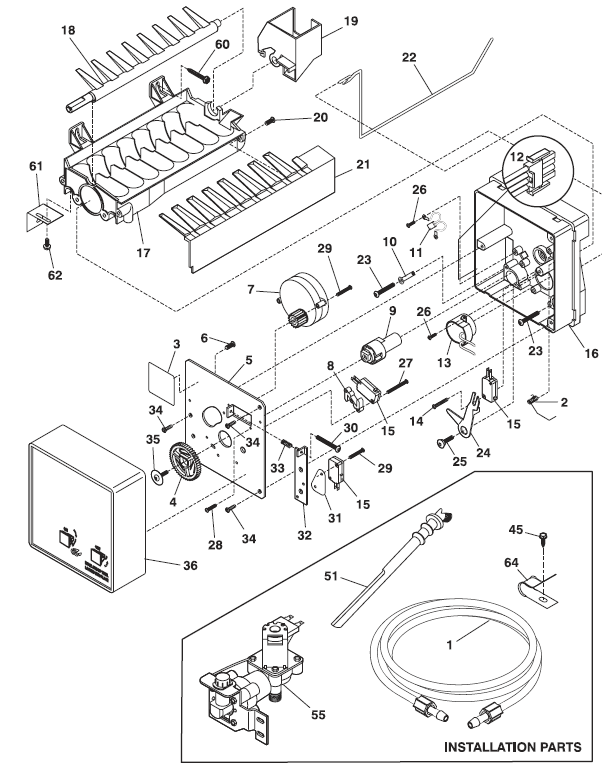

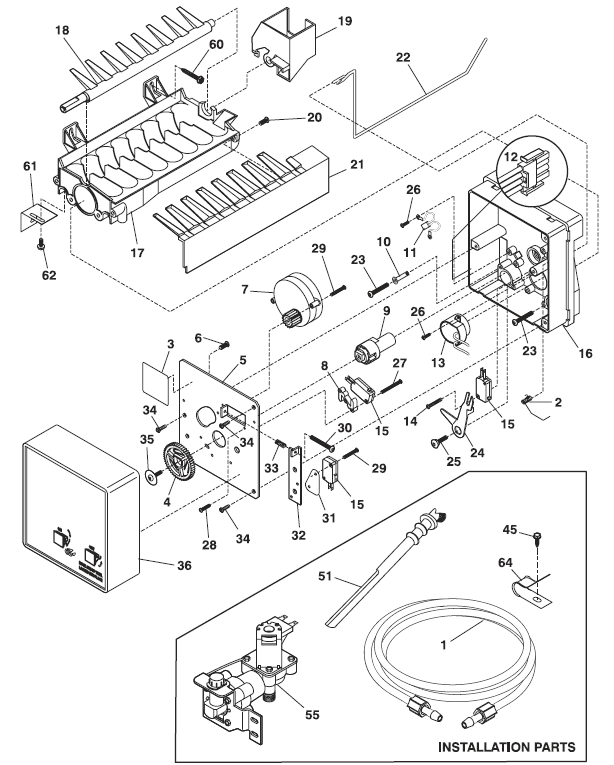

ICE MAKER
Model Index: A FRT18FR7E (FRT18FR7EB2)
B FRT18FR7E (FRT18FR7EQ0)
C FRT18FR7E (FRT18FR7EQ2)
D FRT18FR7E (FRT18FR7EW0)
E FRT18FR7E (FRT18FR7EW2)
POS. NO PART NO. DESCRIPTION
1* 218976901 A B C D E Tube-water inlet, inlet valve, to ice maker
1* 240561701 A B C D E Seal-water inlet, inlet valve, to ice maker
2 5304420650 A B C D E Spring, shut-off arm
3 3206299 A B C D E Label, ID plate
4 3206301 A B C D E Gear
5 3206303 A B C D E Plate-mounting
6 3206305 A B C D E Screw-ground wire, 8-32 x 0.250
7 # 3206306 A – C – E Motor-ice maker
7 # 5304445222 – B – D – Motor-ice maker Svo
7* 5304445223 – B – D – Spring Beam
8 3206312 A B C D E Spacer-hold switch
9 3206313 A B C D E Cam
10 3206315 A – C – E Clamp
11 # 3206319 A – C – E Thermal Cutoff, ICE MAKER, complete assy
12 # 5304420651 A B C D E Wiring Harness, ICE MAKER, internal, with plug
12* 218843800 A B C D E Screw, hex wshr hd, 8-15A x 0.500
13 # 3206322 A – C – E Thermostat Assy, ICE MAKER
14 5304420652 A B C D E Screw, 4 x 0.750, switch mtg.
15 # 3206324 A B C D E Switch, (3)
16 5304420653 A B C D E Support, phenolic
17 # 5303320545 A B C D E Mold-ice maker, Radius Cube, with heater
18 3206328 A B C D E Ejector-ice
19 3206330 A B C D E Bearing & Inlet
20 5304408581 A B C D E Screw, 8-32 x 0.375
21 3206332 A B C D E Ice Stripper
22 3206333 A B C D E Shut-off Arm
23 5304408582 A B C D E Screw, 8-32 x 0.875, mold-to-support, (3)
24 3206335 A B C D E Lever Arm
25 3206336 A B C D E Screw, 8-18 x 0.562, lever arm/sprt
26 5304420654 A – C – E Screw-thermo/sprt, 4-24 x 0.375, (4)
27 3206338 A B C D E Screw, 4-40 x 1.000, hold switch mtg, (2)
28 3206339 A B C D E Screw-timing stop, 4-40 x 0.375
29 3206323 A B C D E Screw, 4-24 x 0.750, (6)
30 3206341 A B C D E Screw-timing adj, 8-32 x 1.000
31 3206342 A B C D E Insulator
32 3206343 A B C D E Plate-valve switch
33 5304408583 A B C D E Spring-timing adj
34 5304420655 A B C D E Screw, plazscrew, 8-10, (3)
35 5304408585 A B C D E Screw
36 3206347 A B C D E Cover-ice maker
42 5303001199 A B C D E Clamp-wiring harness, strain relief, galv steel
45 5303001343 A B C D E Screw, hex washer head, 8-15A x 0.500
46 5303001193 A B C D E Clamp, .50 ID, steel, water tube
49 218362500 A B C D E Screw, hex washer head, 8-18AB x 1.250, spacer, (2)
51 240387101 A B C D E Tube-water, ice mold fill, extension
51 241523501 A B C D E Tube-water, ice mold fill, extension
Model Index: A FRT18FR7E (FRT18FR7EB2)
B FRT18FR7E (FRT18FR7EQ0)
C FRT18FR7E (FRT18FR7EQ2)
D FRT18FR7E (FRT18FR7EW0)
E FRT18FR7E (FRT18FR7EW2)
POS. NO PART NO. DESCRIPTION
55 # 240519601 A B C D E Valve-water, single solenoid, 60 Hz, 105/120 V
61 218721500 A B C D E Bracket-leveling, ICE MAKER
62 218737900 A B C D E Screw-IM brkt mtg, hex washer head, 8-32D x 0.375
64 5303001549 A B C D E Clamp, 0.31 ID, steel, copper wtr line
* 218888001 A B C D E Adapter-water supply, nut & sleeve, compression ftg
* 240352409 A – C – E Ice Maker, Radius Cube, 115 V, no instl parts
* 241642501 – B – D – Ice Maker Svo, Radius Cube, 115 V, no instl parts
* 241642601 – B – D – Harness-wiring Svo

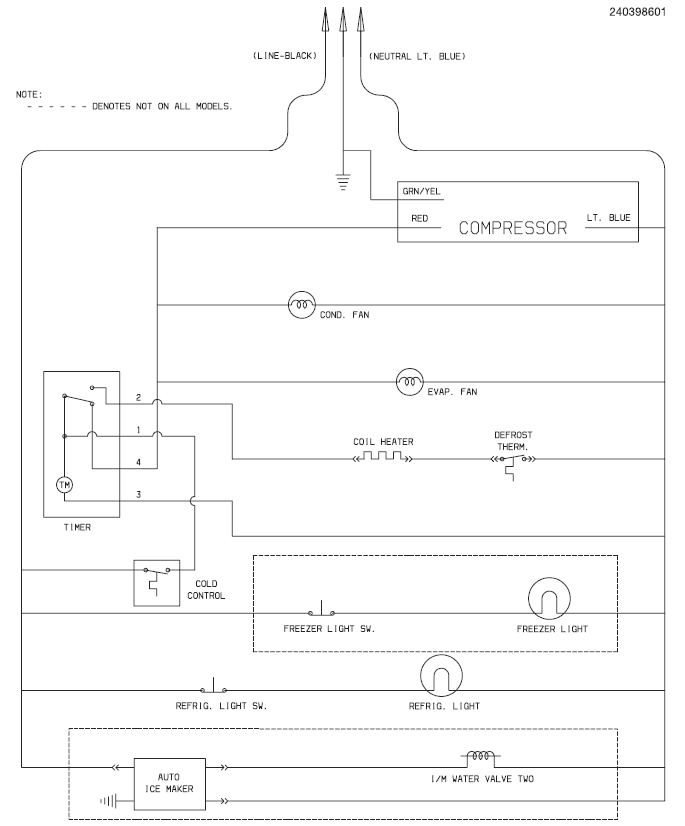

WIRING SCHEMATIC

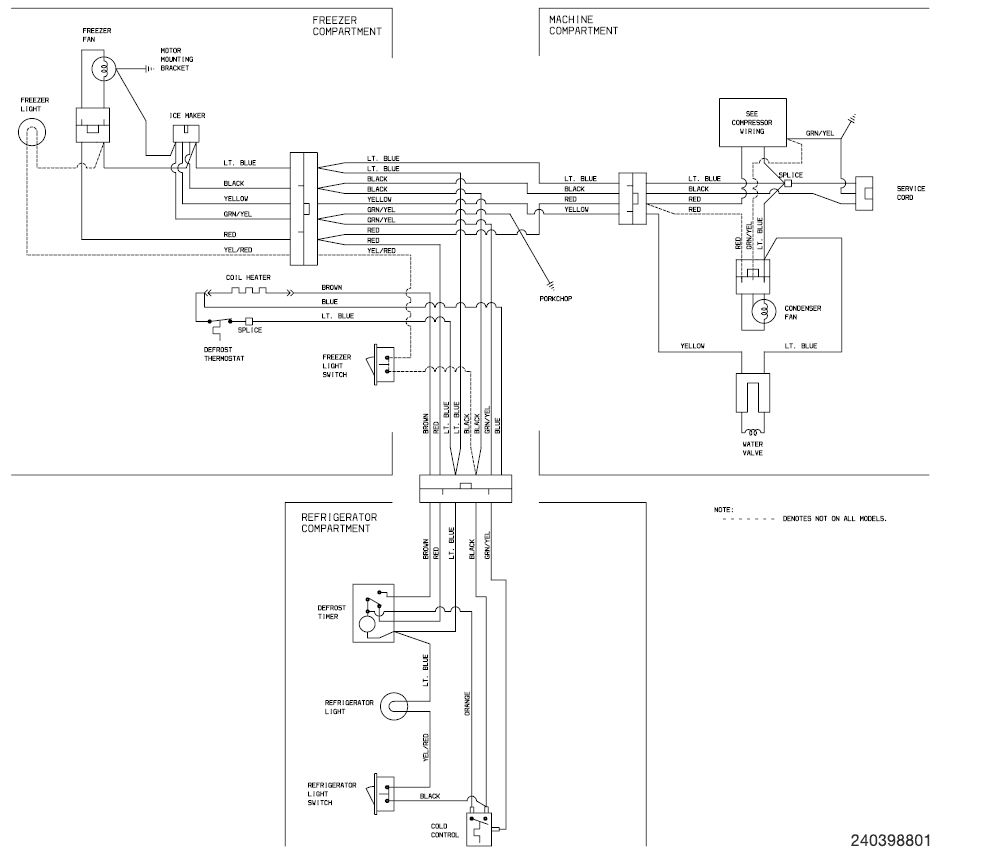

WIRING DIAGRAM
For more manuals by Frigidaire, visit ManualsLibraryy
Frigidaire R134a Top-Mount Refrigerator-FAQs
What refrigerant is used in Frigidaire refrigerators?
Frigidaire refrigerators commonly use R-134a refrigerant, which is environmentally friendly and suitable for various sizes of home refrigeration systems.
Why is my Frigidaire ice maker not producing ice?
Common issues include a clogged filter, problems with the water line, incorrect freezer temperature, or a malfunctioning ice dispenser. You can troubleshoot these or consult a professional.
What gas is used for cooling in modern refrigerators?
Most modern refrigerators use HFC-134a (R-134a), a refrigerant that doesn’t harm the ozone layer.
Why is my Frigidaire refrigerator running but not cooling?
This could be due to a locked compressor, a faulty electronic control board, or a damaged evaporator.
Does the ice maker stop making ice when full?
Yes, ice makers are designed to stop automatically when the ice storage bucket is full.
What is Freeze Boost on a Frigidaire refrigerator?
Freeze Boost is a mode that quickly lowers the temperature in the freezer, remaining active for up to 24 hours or until deactivated.
Can R-134a refrigerant be used in refrigerators?
Yes, R-134a is a widely used refrigerant in modern refrigeration systems for effective cooling.
Why is my Frigidaire refrigerator beeping?
A beeping sound often indicates the door isn’t fully closed. Check the door gasket for dirt, damage, or misalignment, and clean or replace it if necessary.
What should I check first if my refrigerator stops cooling?
Start by inspecting the evaporator fan for proper operation and the condenser fan near the compressor. Issues with these components can affect cooling performance.
