GAMDIAS Argus M1 RGB Mid Tower Gaming Case Installation Guide

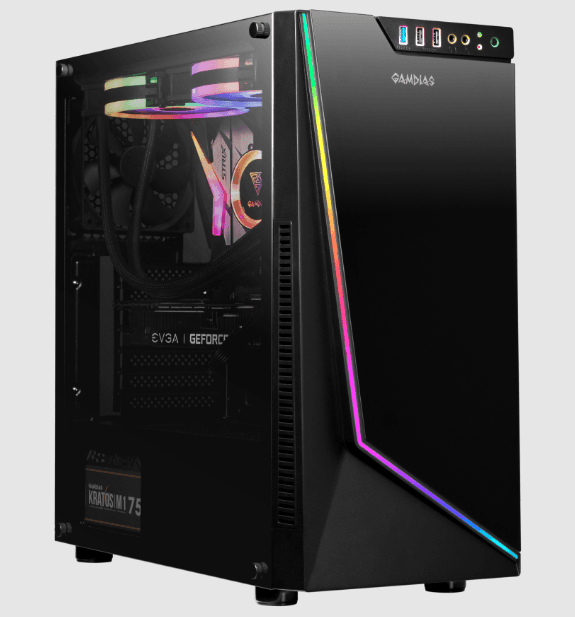

GAMDIAS Argus M1 RGB Mid Tower Gaming Case

SPECIFICATIONS

• Model Name: ARGUS M1
• Dimensions: (H x W x D) 450 × 210 x 460 mm 17.7 × 8.2 x 18.1 inch
• Case Type: MID Tower
• Material(s): Tempered Glass, SPCC, ABS
• Side Panel: 4mm Tempered Glass x 2 (Left & Front)
• Motherboard Support:
  • 6.7″ x 6.7″ (Mini IT X),
  • 9.6″ x 9.6″ (Micro ATX),
  • 12″ x 9.6″ (ATX)
  • 12″ × 13″ (E-ATX)
• IO Port Light: Rainbow Color RGB
• Panel Light: Rainbow Color RGB
• IO Port:
  • USB3.0 x 1,
  • USB2.0 × 2,
  • HD Audio x1,
  • LED Control x1,
  • IO LED Control x1
• Expansion Slots: 7
• Drive Bays: 2 × 3.5″ or 2 x 2.5″(HDD Cage) 2 × 2.5″
• Radiator Support:
  • Front: 360mm, 280mm
  • Rear: 120mm
• Fan Support:
  • Front: 3 x 120mm, 2 x 140mm
  • Top: 2 x 120mm, 2 x 140mm
  • Rear: 1 x 120mm
• PSU: ATX PS2
• Clearance:
  • CPU cooler height limitation: 168mm
  • VGA length limitation: 350mm
  • PSU length limitation: 180mm

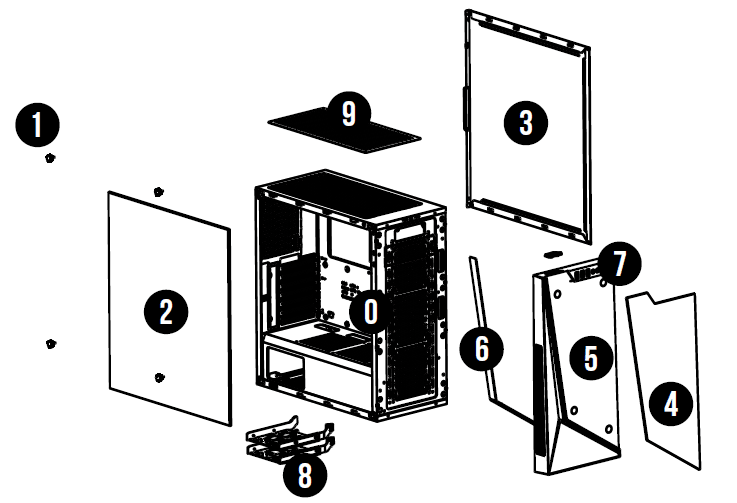

EXPLODED VIEW PARTS

PARTS

1. Chassis Body
2. Screw
3. Tempered Glass Side Panel
4. Right Side Panel
5. Tempered Glass Front Panel
6. Front Panel
7. RGB Light
8. IO Port
9. HDD Tray
10. Top Dust Filters

ACCESSORY

SIDE PANEL REMOVAL

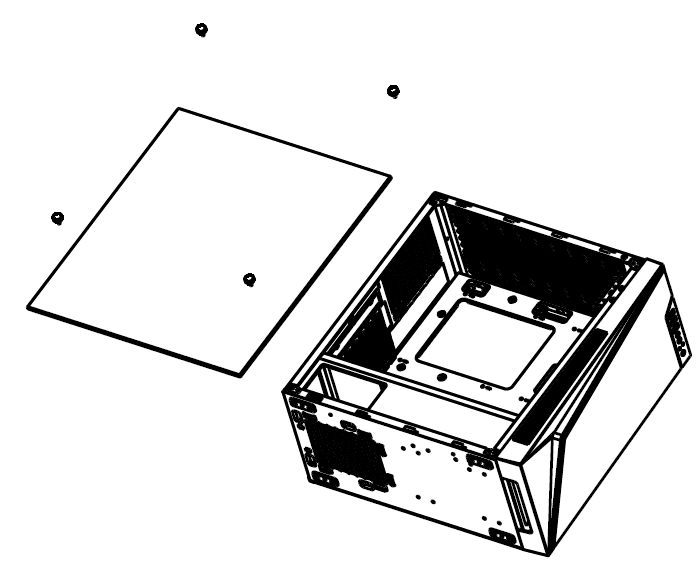

Remove the side panel.

MOTHERBOARD INSTALLATION

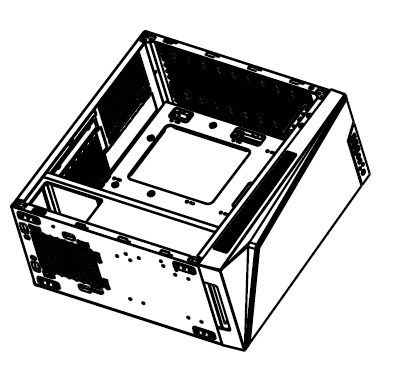

Lay down the chassis Install the motherboard in proper location and secure it with screw.s

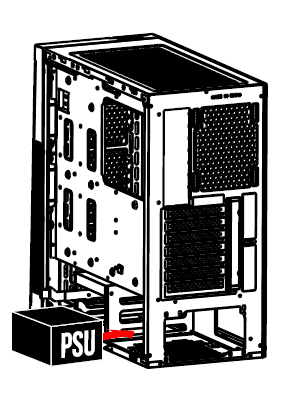

PSU INSTALLATION

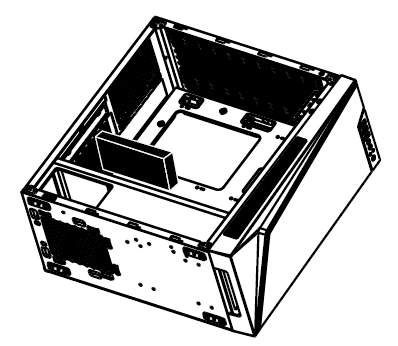

Place the PSU in the proper location

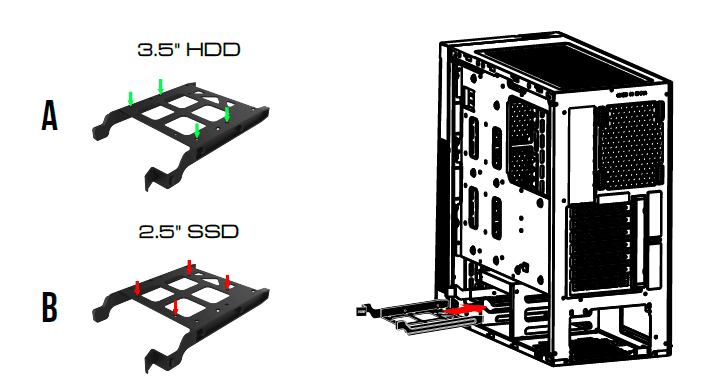

3.5″ 2.5″ HDD INSTALLATION

• A. 3.5″ HDD
  Align the HDD into the mounting holes and screw in.
• B. 2.5″ SSD
  Align the SSD into the mounting holes and screw in.

PCI-E / PCI CARD (s) USAGE

(Optional) Extend in stalling to the Motherboard. PCI-E Cable Not Included.

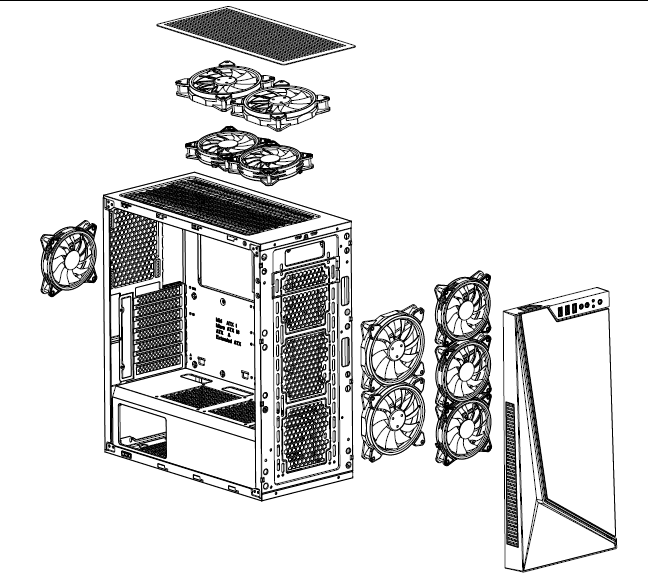

AIR COOLING COMPATIBILITY

• Top 120 mm x 2 or 140 mm x2
• Front 120 mm x 3 or 140 mm x2
• Rear 120 mm x 1

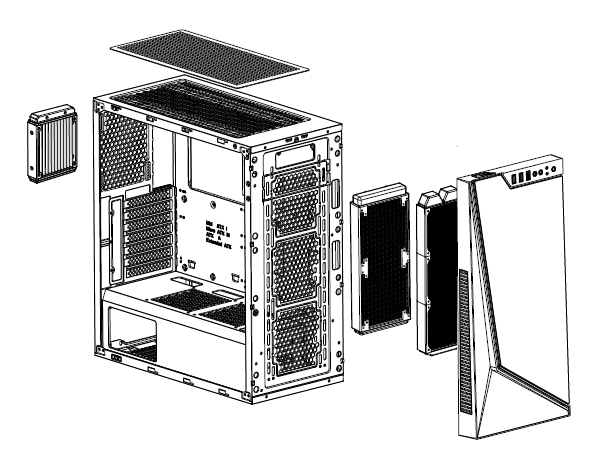

RADIATOR COMPATIBILITY

• Front 360 mm or 280 mm
• Rear 120 mm

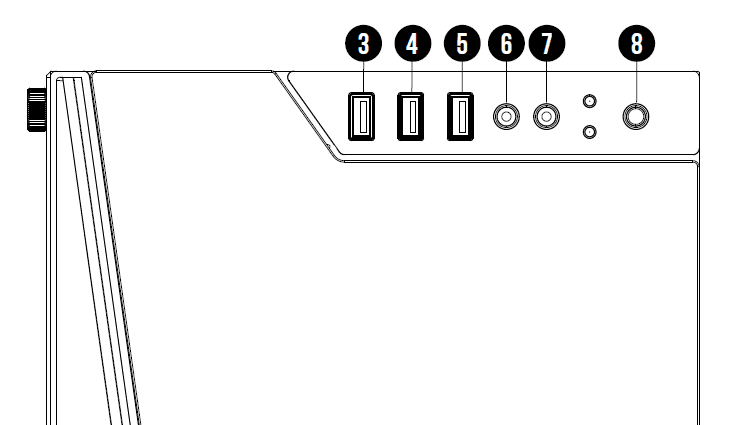

I/O PORTS

1. Power Button
2. LED Control
3. USB 3.0
4. USB 2.0
5. USB 2.0
6. Headphone
7. Mic
8. IO LED Control

• Sync With Motherboard: Press the LED Control button for 3 Seconds.
• LED off: Press and hold the LED Control button for 3 Seconds(if you have not installed the MB Sync).
• IO LED Off: Press and hold the IO LED Control button for 3 Seconds.

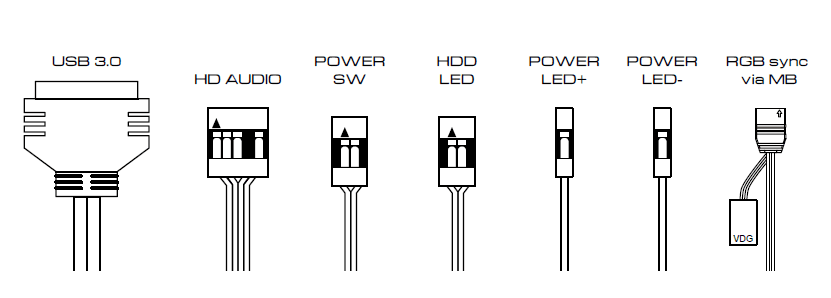

I/O CONNECTORS

See your motherboard’s manual for front panel header locations and pi-outs.
