Introduction

WARNING

See the Important Safety and Product Information guide in the product box for product warnings and other important information. Always consult your physician before you begin or modify any exercise program.

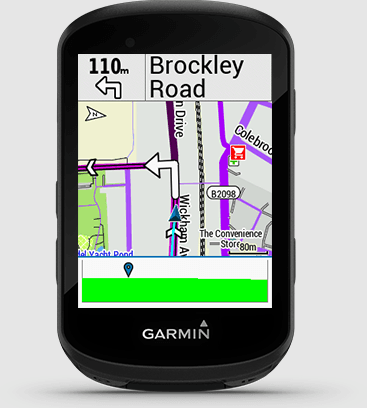

Device Overview

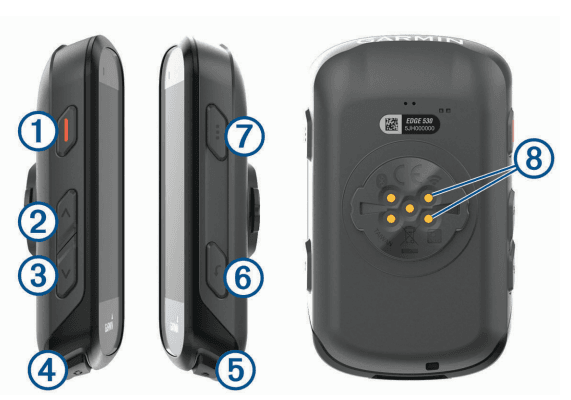

1.  Select to enter sleep mode and wake the device. Hold to turn the device on and off.
2.  Select to scroll through the data screens, options, and settings. From the home screen, select to view the status page.
3. Select to scroll through the data screens, options, and settings.
   From the home screen, select the device menu.
4.  Select to mark a new lap.
5.  Select to start and stop the activity timer.
6.  Select to return to the previous screen. Hold to return to the home screen.
7.  Select to choose an option or to acknowledge a message. During a ride, select to view menu options such as alerts and data fields.
8. Electrical contacts
   Charge using an Edge external battery pack accessory

NOTE: Go to www.buy.garmin.com to purchase optional accessories.

Viewing the Status Page

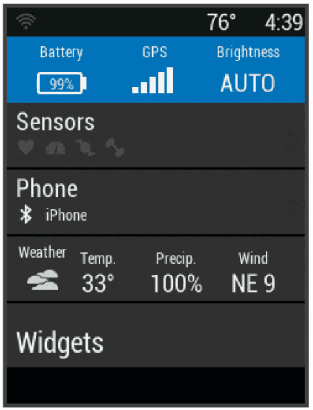

The status page displays the connection status of the GPS, wireless sensors, and your smartphone.
Select an option:

• From the home screen, select .
• During a ride, select > Status Page.

The status page appears. A flashing icon means the device is searching for a signal. A solid icon means the signal was found or the sensor is connected.

Viewing Widgets

Your device is preloaded with several widgets, and more are available when you pair your device with a smartphone or other compatible device.

1. From the status page, select Widgets.
2. Select or view more widgets.
   The next time you view the widgets, the last widget you viewed appears.

Using the Shortcut Menu

Shortcut menu options are available to quickly access features or perform functions, such as editing the current activity profile from the home screen.

• When it appears on the screen during a ride, select to view the shortcut menu options.
• When it appears on the screen, hold to view the shortcut menu options.

Pairing Your Smartphone

To use the connected features of the Edge device, it must be paired directly through the Garmin Connect™ app, instead of from the Bluetooth® settings on your smartphone.

1. From the app store on your smartphone, install and open the Garmin Connect app.
2. Hold to turn on the device.
   The first time you turn on the device, you will select the device language. The next screen prompts you to pair with your smartphone.
   TIP: You can select Menu > Settings > Connected Features > Phone > Pair Smartphone to manually enter pairing mode.
3. Select an option to add your device to your Garmin Connect account:
   • If this is the first device you have paired with the Garmin Connect app, follow the on-screen instructions.
   • If you have already paired another device with the Garmin Connect app, from the or menu, select Garmin Devices > Add Device, and follow the on-screen instructions.
     NOTE: Based on your Garmin Connect account and accessories, your device suggests activity profiles and data fields during setup. If you have sensors paired with your previous device, you can transfer them during setup.

After you pair successfully, a message appears, and your device syncs automatically with your smartphone.

Charging the Device

NOTICE
To prevent corrosion, thoroughly dry the USB port, the weather cap, and the surrounding area before charging or connecting to a computer. The device is powered by a built-in lithium-ion battery that you can charge using a standard wall outlet or a USB port on your computer.

NOTE: The device will not charge when outside the approved temperature range (Edge Specifications, page 54).

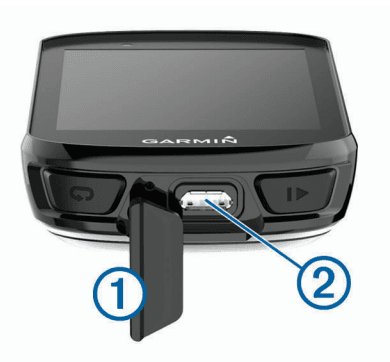

1. Pull up the weather cap 1 from the USB port 2.
2. Plug the small end of the USB cable into the USB port on the device.
3. Plug the large end of the USB cable into an AC adapter or a computer USB port.
4. Plug the AC adapter into a standard wall outlet.
   When you connect the device to a power source, the device turns on.
5. Charge the device completely.

After you charge the device, close the weather cap.

About the Battery

WARNING

This device contains a lithium-ion battery. See the Important Safety and Product Information guide in the product box for product warnings and other important information.

Installing the Standard Mount

For the best GPS reception, position the bike mount so the front of the device is oriented toward the sky. You can install the bike mount on the stem or the handlebars.

1. Select a secure location to mount the device where it does not interfere with the safe operation of your bike.

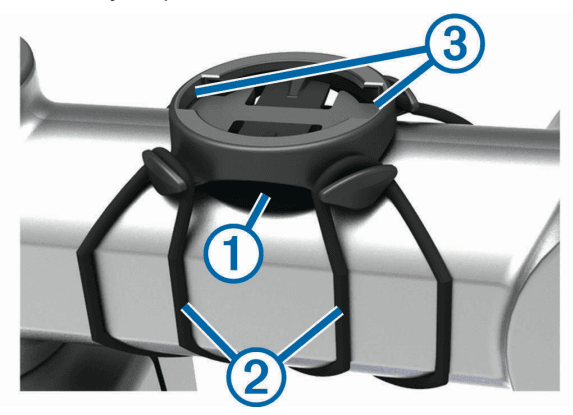

2. Place the rubber disk 1 on the back of the bike mount.
   Two rubber disks are included, and you can select the disk that best fits your bike. The rubber tabs align with the back of the bike mount so it stays in place.
3. Place the bike mount on the bike stem.
4. Attach the bike mount securely using the two bands 2.

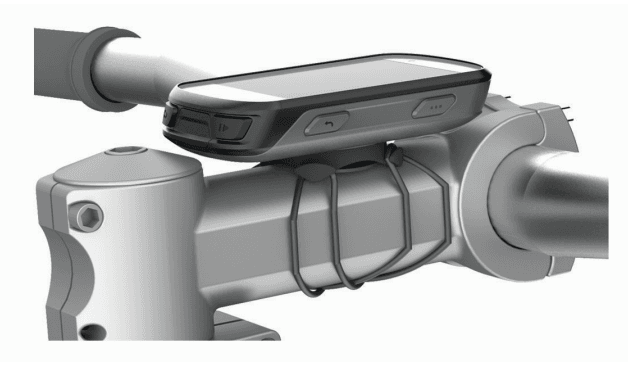

5. Align the tabs on the back of the device with the bike mount notches 3.
6. Press down slightly and turn the device clockwise until it locks into place.

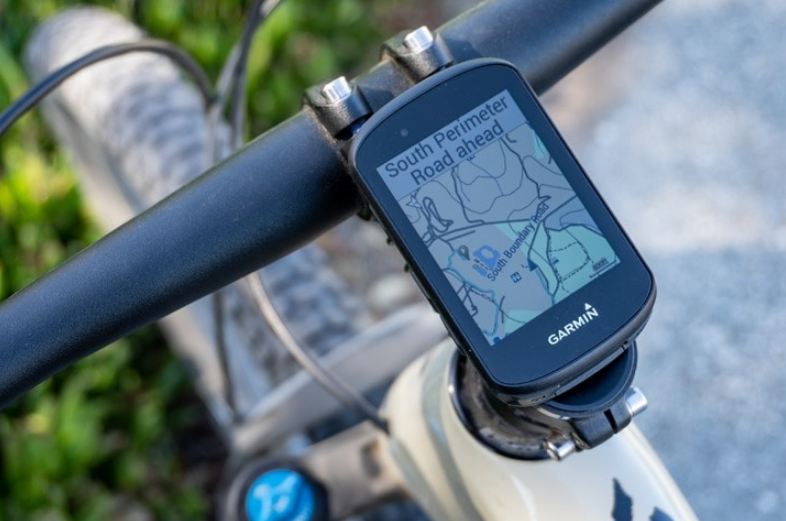

Installing the Out-Front Mount

NOTE: If you do not have this mount, you can skip this task.

1. Select a secure location to mount the Edge device where it does not interfere with the safe operation of your bike.

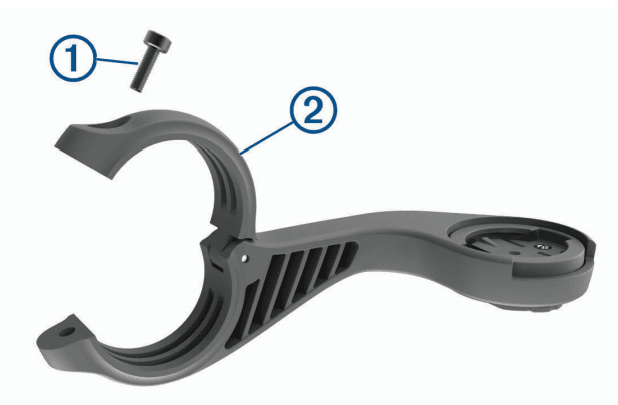

2. Use the hex key to remove the screw 1 from the handlebar connector 2.
3. Place the rubber pad around the handlebar:
   • If the handlebar diameter is 25.4 mm, use the thicker pad.
   • If the handlebar diameter is 31.8 mm, use the thinner pad.
4. Place the handlebar connector around the rubber pad.
5. Replace and tighten the screw.
   NOTE: Garmin® recommends tightening the screw so the mount is secure, with a maximum torque specification of 7 lbf-in. (0.8 N-m). You should check the tightness of the screw periodically.

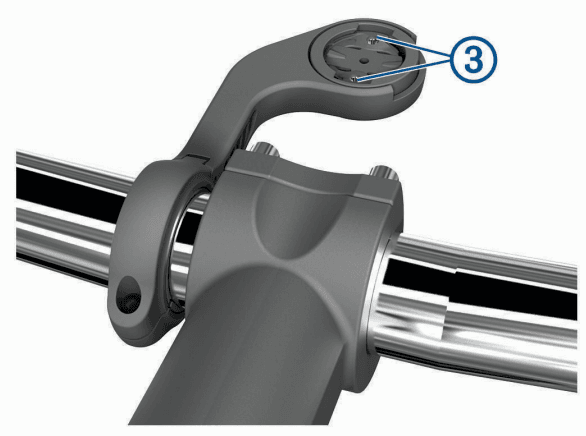

6. Align the tabs on the back of the Edge device with the bike mount notches 3.
7. Press down slightly and turn the Edge device clockwise until it locks into place.

Releasing the Edge

1. Turn the Edge clockwise to unlock the device.
2. Lift the Edge off the mount.

Installing the Mountain Bike Mount

NOTE: If you do not have this mount, you can skip this task.

1. Select a secure location to mount the Edge device where it does not interfere with the safe operation of your bike.

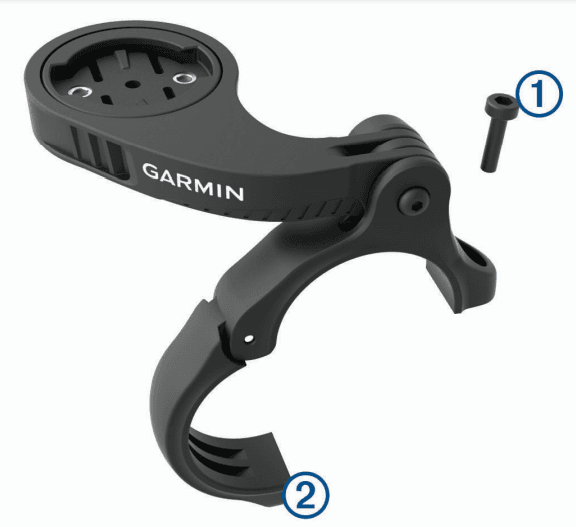

2. Use the 3 mm hex key to remove the screw 1 from the handlebar connector 2.
3. Select an option:
   • If the handlebar diameter is 25.4 mm, place the thicker pad around the handlebar.
   • If the handlebar diameter is 31.8 mm, place the thinner pad around the handlebar.
   • If the handlebar diameter is 35 mm, do not use a rubber pad.
4. Place the handlebar connector around the handlebar, so that the mount arm is above the bike stem.

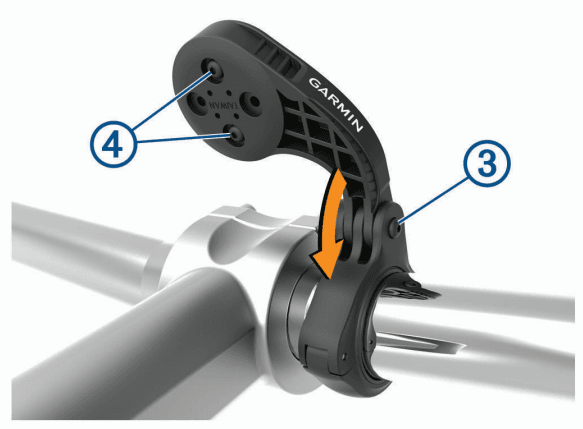

5. Use the 3 mm hex key to loosen the screw 3 on the mount arm, position the mount arm, and tighten the screw.
   NOTE: Garmin recommends tightening the screw so the mount arm is secure, with a maximum torque specification of 20 lbf-in. (2.26 N-m). You should check the tightness of the screw periodically.

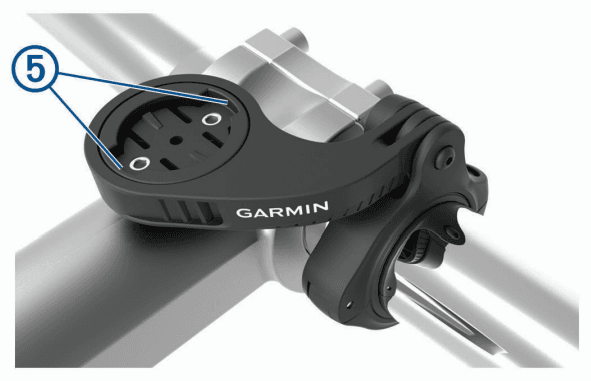

6. If necessary, use the 2 mm hex key to remove the two screws on the back side of the mount 4, remove and rotate the connector, and replace the screws to change the orientation of the mount.
7. Replace and tighten the screw on the handlebar connector.
   NOTE: Garmin recommends tightening the screw so the mount is secure, with a maximum torque specification of 7 lbf-in. (0.8 N-m). You should check the tightness of the screw periodically.
8. Align the tabs on the back of the Edge device with the bike mount notches 5.
9. Press down slightly and turn the Edge device clockwise until it locks into place.

Acquiring Satellite Signals

The device may need a clear view of the sky to acquire satellite signals. The time and date are set automatically based on the GPS position.

TIP: For more information about GPS, go to www.garmin.com/aboutGPS.

1. Go outdoors to an open area.
   The front of the device should be oriented toward the sky.
2. Wait while the device locates satellites.
   It may take 30–60 seconds to locate satellite signals.

Training

Going for a Ride

If your device was packaged with a wireless sensor, they are already paired and can be activated during initial setup.

1. Hold to turn on the device.
2. Go outside and wait while the device locates satellites.
   The satellite bars turn green when the device is ready.
3. From the home screen, select .
4. Select an activity profile.
5. Select to start the activity timer.
   NOTE: History is recorded only while the activity timer is running.

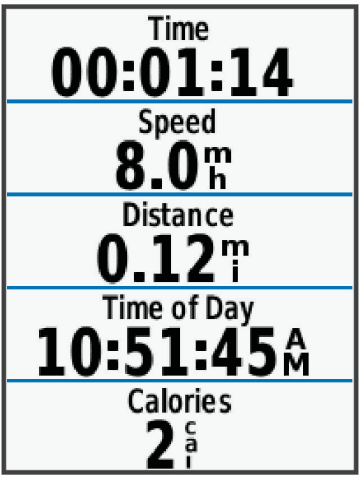

6. Select or for additional data screens.
7. If necessary, select to view menu options such as alerts and data fields.
8. Select to stop the activity timer.
   TIP: Before you save this ride and share it on your Garmin Connect account, you can change the ride type. Accurate ride type data is important for creating bike-friendly courses.
9. Select Save Ride.

Segments

Following a segment

You can send segments from your Garmin Connect account to your device. After a segment is saved to your device, you can follow the segment.

NOTE: When you download a course from your Garmin Connect account, all segments in the course are downloaded automatically.

Racing a segment

You can race a segment, trying to match or exceed your personal record or other cyclists who have ridden the segment.

Strava™ Segments

You can download Strava segments to your Edge 530 device. Follow Strava segments to compare your performance with your past rides, friends, and pros who have ridden the same segment.

To sign up for a Strava membership, go to the segments widget in your Garmin Connect account. For more information, go to www.strava.com.

The information in this manual applies to both Garmin Connect segments and Strava segments.

Using the Strava Segment Explore Widget

The Strava Segment Explore widget allows you to view and ride nearby Strava segments.

• From the Strava Segment Explore widget, select a segment.
• The segment appears on the map.

Following a Segment From Garmin Connect

Before you can download and follow a segment from Garmin Connect, you must have a Garmin Connect account (Garmin Connect, page 44).

NOTE: If you are using Strava segments, your starred segments are transferred automatically to your device when it syncs with the Garmin Connect app.

1. Select an option:
   • Open the Garmin Connect app.
   • Go to connect.garmin.com.
2. Select a segment.
3. Select Send to Device.
4. Follow the on-screen instructions.
5. On the Edge device, select Menu > Training > Segments.
6. Select the segment.
7. Select Ride.

Enabling Segments

You can choose which segments currently loaded on the device are enabled.

1. Select Menu > Training > Segments > Segment Options > Enable/Disable > Edit Multiple.
2. Select the segments to enable.

Racing a Segment

Segments are virtual race courses. You can race a segment and compare your performance to past activities, other riders’ performance, connections in your Garmin Connect account, or other members of the cycling community. You can upload your activity data to your Garmin Connect account to view your segment position.

NOTE: If your Garmin Connect account and Strava account are linked, your activity is automatically sent to your Strava account so you can review the segment position.

1. Select to start the activity timer, and go for a ride.
   When your path crosses an enabled segment, you can race the segment.
2. Start racing the segment.

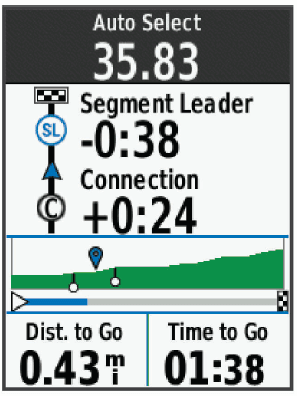

   The segment data screen appears automatically.
3. If necessary, select to change your goal during your race.
   You can race against the segment leader, your past performance, or other riders (if applicable). The goal automatically adjusts based on your current performance.

A message appears when the segment is complete.

Viewing Segment Details

1. Select Menu > Training > Segments.
2. Select a segment.
3. Select an option:
   • Select Map to view the segment on the map.
   • Select Elevation to view an elevation plot of the segment.
   • Select Leaderboard to view the ride times and average speeds for the segment leader, group leader or challenger, your personal best time and average speed, and other riders (if applicable).
     TIP: You can select a leaderboard entry to change your segment race goal.
   • Select Enable to enable segment racing and prompts that alert you to approaching segments.

Device Information

Product Updates

On your computer, install Garmin Express (www.garmin.com/express). On your smartphone, install the Garmin Connect app.
This provides easy access to these services for Garmin devices:

• Software updates
• Map updates
• Data uploads to Garmin Connect
• Product registration

Updating the Software Using the Garmin Connect App

Before you can update your device software using the Garmin Connect app, you must have a Garmin Connect account, and you must pair the device with a compatible smartphone (Pairing Your Smartphone, page 3).

• Sync your device with the Garmin Connect app.
• When new software is available, the Garmin Connect app automatically sends the update to your device.

Updating the Software Using Garmin Express

Before you can update your device software, you must have a Garmin Connect account, and you must download the Garmin Express application.

1. Connect the device to your computer using the USB cable.
   When new software is available, Garmin Express sends it to your device.
2. Follow the on-screen instructions.
3. Do not disconnect your device from the computer during the update process.
   NOTE: If you have already set up your device with Wi‑Fi connectivity, Garmin Connect can automatically download available software updates to your device when it connects using Wi‑Fi.

Specifications

Edge Specifications

• Battery type
  Rechargeable, built-in lithium-ion battery
• Battery life
  Up to 20 hr., typical usage
• Operating temperature range
  From -20º to 60ºC (from -4º to 140ºF)
• Charging temperature range
  From 0º to 45ºC (from 32º to 113ºF)
• Wireless frequency/protocol
  2.4 GHz @ 13.7 dBm nominal
• Water rating
  IEC 60529 IPX71

HRM-Dual™ Specifications

• Battery type
  User-replaceable CR2032, 3 V
• Battery life
  Up to 3.5 years. at 1 hr./day
• Water resistance
  1 ATM1
  NOTE: This product does not transmit heart rate data while swimming.
• Operating temperature range
  From -5° to 50°C (from 23° to 122°F)
• Wireless frequency/protocol
  2.4 GHz @ 2 dBm nominal

Speed Sensor 2 and Cadence Sensor 2 Specifications

• Battery type
  User-replaceable CR2032, 3 V
• Battery life
  Approximately 12 mo. at 1 hr./day
• Speed sensor storage
  Up to 300 hr. of activity data
• Operating temperature range
  From -20º to 60ºC (from -4º to 140ºF)
• Wireless frequency/protocol
  2.4 GHz @ 4 dBm nominal
• Water rating
  IEC 60529 IPX72

Viewing Device Information

You can view device information, such as the unit ID, software version, and license agreement.

• Select Menu > Settings > System > About > Copyright Info.

Viewing Regulatory and Compliance Information

The label for this device is provided electronically. The e-label may provide regulatory information, such as identification numbers provided by the FCC or regional compliance markings, as well as applicable product and licensing information.

1. Select Menu.
2. Select Settings > System > Regulatory Info.

Troubleshooting

Resetting the Device

If the device stops responding, you may need to reset it. This does not erase any of your data or settings.

• Hold for 10 seconds.
• The device resets and turns on.

Restoring the Default Settings

You can restore the default configuration settings and activity profiles. This will not remove your history or activity data, such as rides, workouts, and courses.

• Select Menu > Settings > System > Device Reset > Reset Default Settings > OK.

Clearing User Data and Settings

You can clear all user data and restore the device to its initial setup. This removes your history and data, such as rides, workouts, and courses, and resets the device settings and activity profiles. This will not remove any files you added to the device from your computer.

• Select Menu > Settings > System > Device Reset > Delete Data and Reset Settings > OK.

Maximizing Battery Life

• Turn on Battery Save Mode (Turning On Battery Save Mode, page 59).
• Decrease the backlight brightness (Using the Backlight, page 52) or shorten the backlight timeout (Display Settings, page 52).
• Select the Smart recording interval (Data Recording Settings, page 53).
• Turn on the Auto Sleep feature (Using Auto Sleep, page 50).
• Turn off the Bluetooth wireless feature (Phone Settings, page 52).
• Select the GPS setting (Changing the Satellite Setting, page 51).
• Remove wireless sensors that you no longer use.

Turning On Battery Save Mode

Battery save mode adjusts the settings automatically to extend the battery life for longer rides. During an activity, the screen turns off. You can enable automatic alerts and press a key to wake it up. Battery save mode records GPS track points and sensor data less frequently. Speed, distance, and track data accuracy are reduced.

NOTE: History is recorded in battery save mode when the timer is running.

1. Select Menu > Settings > Battery Save Mode > Enable.
2. Select the alerts that wake up the screen during an activity.

After your ride, you should charge your device and disable battery save mode to use all the device features.

My phone will not connect to the device

If your phone will not connect to the device, you can try these tips.

• Turn off your smartphone and your device, and turn them back on again.
• Enable Bluetooth technology on your smartphone.
• Update the Garmin Connect app to the latest version.
• Remove your device from the Garmin Connect app and the Bluetooth settings on your smartphone to retry the pairing process.
• If you bought a new smartphone, remove your device from the Garmin Connect app on the smartphone you intend to stop using.
• Bring your smartphone within 10 m (33 ft.) of the device.
• On your smartphone, open the Garmin Connect app, select or , and select Garmin Devices > Add Device to enter pairing mode.
• Select Menu > Settings > Connected Features > Phone > Pair Smartphone.

Improving GPS Satellite Reception

• Frequently sync the device to your Garmin account:
  • Connect your device to a computer using the USB cable and the Garmin Express application.
  • Sync your device to the Garmin Connect app using your Bluetooth-enabled smartphone.
  • Connect your device to your Garmin account using a Wi‑Fi wireless network.
    While connected to your Garmin account, the device downloads several days of satellite data, allowing it to quickly locate satellite signals.
• Take your device outside to an open area away from tall buildings and trees.
• Remain stationary for a few minutes.

Temperature Readings

The device may display temperature readings that are higher than the actual air temperature if the device is placed in direct sunlight, held in your hand, or is charging with an external battery pack. Also, the device will take some time to adjust to significant changes in temperature.

Replacement O-rings

Replacement bands (O-rings) are available for the mounts.
NOTE: Use Ethylene Propylene Diene Monomer (EPDM) replacement bands only. Go to http://buy.garmin.com or contact your Garmin dealer.

Getting More Information

• Go to support.garmin.com for additional manuals, articles, and software updates.
• Go to buy.garmin.com or contact your Garmin dealer for information about optional accessories and replacement parts.

For more manuals by Garmin, visit ManualsLibraryy

Garmin Edge 530 GPS Bike Computer with Mapping- FAQs
