GE AHTC05AA Window Air Conditioner User Guide

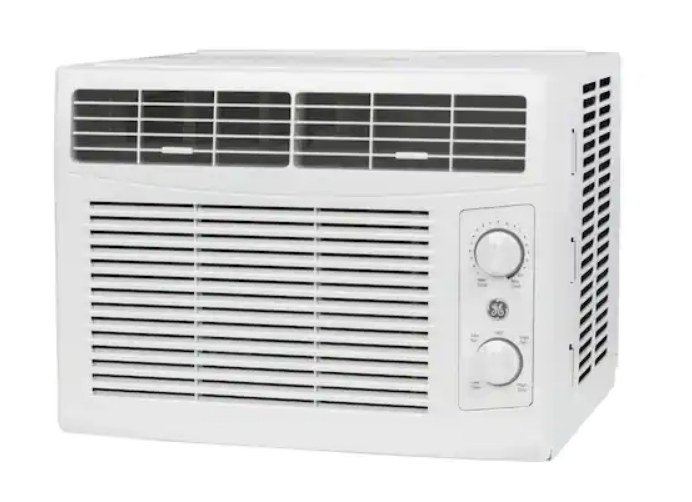

GE AHTC05AA Window Air Conditioner

IMPORTANT SAFETY INFORMATION

READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE

WARNING: For your safety, the information in this manual must be followed to minimize the risk of fire, electric shock, or personal injury.

• This air conditioner must be properly installed in accordance with the Installation Instructions before it is used.
• Never unplug your air conditioner by pulling on the power cord. Always grip the plug firmly and pull straight out from the receptacle.
• Replace immediately all electric service cords that have become frayed or otherwise damaged. A damaged power supply cord must be replaced with a new power supply cord obtained from the manufacturer and not repaired. Do not use a cord that shows cracks or abrasion damage along its length or at either the plug or connector end.
• Turn the unit OFF and unplug your air conditioner before cleaning.
• For your safety…do not store or use combustible materials, gasoline, or other flammable vapors or liquids in the vicinity of this or any other appliance.
• If the receptacle does not match the plug, the receptacle must be changed out by a qualified electrician.

WARNING: Risk of Fire or Explosion. This unit contains flammable refrigerant. Additional safety precautions must be followed.

• Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer.
• The appliance shall be stored in a room without continuously operating ignition sources (for example: open flames, an operating gas appliance, or an operating electric heater.
• Do not pierce or burn refrigerant tubing. Be aware that refrigerants may not contain an odor.
• Keep ventilation openings clear of obstruction.
• When handling, installing, and operating the appliance, care should be taken to avoid damage to the refrigerant tubing.
• Do not drill holes in the unit.
• Maintenance, cleaning, and service should only be performed by technicians properly trained and qualified in the use of flammable refrigerants.
• GE Appliances does not support any servicing of the air conditioner.
• Dispose of the air conditioner in accordance with Federal and Local Regulations. Flammable refrigerants require special disposal procedures. Contact your local authorities for the environmentally safe disposal of your air conditioner.

USING THE AIR CONDITIONER

Controls

Air Conditioner Controls

Temperature Control

This determines how much cooling is provided.

• Max Cool – 10 provides the most cooling and
• Min Cool – 1 provides the least.

Cooling Descriptions

• For Normal Cooling—Select 4-7 on the dial with HCool or LCool selected.
• For Maximum Cooling—Select 8-10 on the dial with HCool selected.
• For Quieter and Nighttime Cooling—Select 1-3 on the dial with LCool selected.

Mode Control

• HCool and LCool provide cooling with different fan speeds.
• HFan and LFan provide circulation and filtering without cooling.

NOTE: If you move the Temperature control from a cool setting to a fan setting or power off the unit while cooling, wait at least 3 minutes before switching back to a cool setting.

Air Direction

Use the lever to adjust the air direction left to right.

CARE AND CLEANING

Do Not Operate in Freezing Outdoor Conditions

This cool-only air conditioner was not designed for freezing outdoor conditions. It must not be used when the outdoor temperature is below freezing (32°F).

Grille and Case

Turn the air conditioner off and remove the plug from the wall outlet before cleaning.

To clean, use water and a mild detergent. Do not use bleach or abrasives.

Air Filter

The air filter behind the front grille should be checked and cleaned at least every 30 days or more often if necessary.

To remove:

Slide the filter from the left side of the unit. Remove the filter.

Clean the filter with warm, soapy water. Rinse and let the filter dry before replacing it. Do not clean the filter in a dishwasher.

CAUTION: DO NOT operate the air conditioner without a filter because dirt and lint will clog it and reduce performance.

Outdoor Coils

The coils on the outdoor side of the air conditioner should be checked regularly. If they are clogged with dirt or soot, they may be professionally cleaned.

INSTALLATION INSTRUCTIONS

BEFORE YOU BEGIN

Read these instructions completely and carefully.

Save these instructions for the local inspector’s use.

• IMPORTANT – Observe all governing codes and ordinances.
• Note to Installer – Be sure to leave these instructions with the Consumer.
• Note to Consumer – Keep these instructions for future reference.
• Skill level – Installation of this appliance requires basic mechanical skills.
• Completion time – Approximately 1 hour
• We recommend that two people install this product.
• Proper installation is the responsibility of the installer.
• Product failure due to improper installation is not covered under the Warranty.
• You must use all the supplied parts and use proper installation procedures as described in these instructions when installing this air conditioner.

ELECTRICAL REQUIREMENTS

These models require a 115/120-volt AC, 60-Hz grounded outlet protected with a 15-amp time-delay fuse or circuit breaker.

The 3-prong grounding plug minimizes the possibility of an electric shock hazard. If the wall outlet you plan to use is only a 2-prong outlet, it is your responsibility to have it replaced with a properly grounded 3-prong wall outlet.

CAUTION

• Do not, under any circumstances, cut or remove the third (ground) prong from the power cord.
• Do not change the plug on the power cord of this air conditioner.
• Aluminum house wiring may present special problems—consult a qualified electrician.

The power cord includes a current interrupter device. A test and reset button is provided on the plug case. The device should be tested on a periodic basis by first pressing the TEST button and then the RESET button while plugged into the outlet. If the TEST button does not trip or if the RESET button will not stay engaged, discontinue use of the air conditioner and contact a qualified service technician.

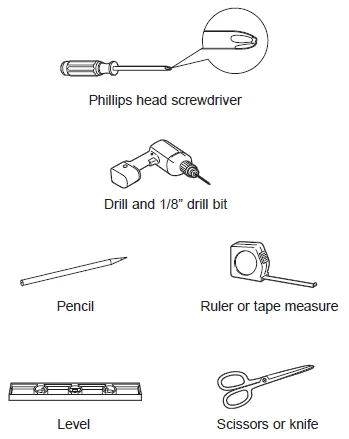

TOOLS YOU WILL NEED

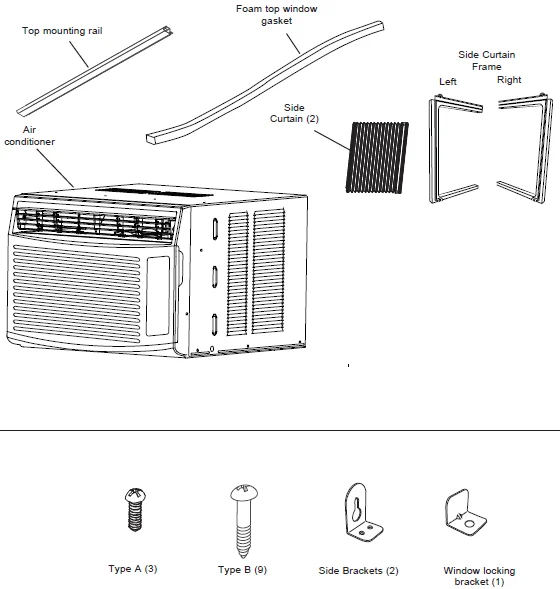

PARTS INCLUDED (Appearance may vary)

WINDOW REQUIREMENTS

• These instructions are for a standard double-hung window. You will need to modify them for other types of windows.
• The air conditioner can be installed without the side curtain panels if needed to fit in a narrow window. See the window opening dimensions.
• All supporting parts must be secured to firm wood, masonry, or metal.
• The electrical outlet must be within reach of the power cord.

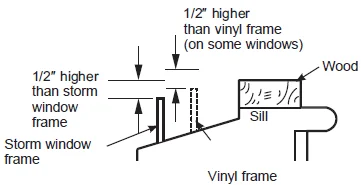

STORM WINDOW REQUIREMENTS

A storm window frame will not allow the air conditioner to tilt toward the outside and will keep it from draining properly. To adjust for this, attach a piece of wood to the sill.

• WOOD PIECES WIDTH: 2
• LENGTH: Long enough to fit inside the window frame.
• THICKNESS: To determine the thickness, place a piece of wood on the sill to make it 1/2 higher than the top of the storm window frame or the vinyl frame.

Attach securely with nails or screws provided by the installer.

PREPARE THE AIR CONDITIONER

• Install the top mounting rail with 3 Type A screws.
• Slide the side curtain panels into the side panel rails.
• Slide left and right side curtain frames into top and bottom rails. Make sure that side curtains snap into side of the frames.

INSTALL THE AIR CONDITIONER IN THE WINDOW

• Measure the width of the window opening and mark the center line on the inside window sill. Place the unit in the window. Lower the window to hold the unit in place.
• Set the air conditioner in the window so that it is centered. Place the air conditioner so that the front edge of the bottom mounting rail is against the back edge of the sill.
• Install the side bracket into the unit and into the window sill using two 1” wood screws provided. repeate on other side.
• Bring the window down so that the front edge of the top mounting is in front of the window. Make sure that the air conditioner is level or tilting slightly to the outside.

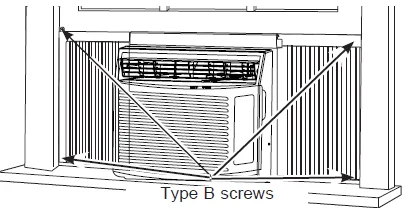

• Extend the curtain panels until they fill the window. Mark the location of the holes in each comer. Use the drill and 1/8 drill bit to drill pilot panels in place.

INSTALL WINDOW LOCKING BRACKET AND FOAM TOP WINDOW GASKET

Use type B Screw to install the window lock bracket on top of the bottom window.

• CAUTION: To prevent broken glass or damage to windows, on vinyl or other similarly constructed windows, attach the window locking bracket to the window side jamb with one Type B screw.
• Cut the foam top window gasket to the window width.
• Stuff the foam between the glass and the window to prevent air and insects from getting into the room.

NOTE: If the gasket supplied does not fit your window, obtain appropriate material locally to provide a proper installation seal.

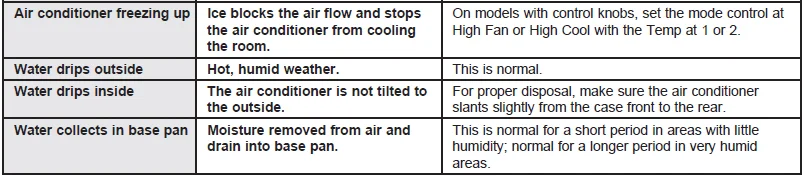

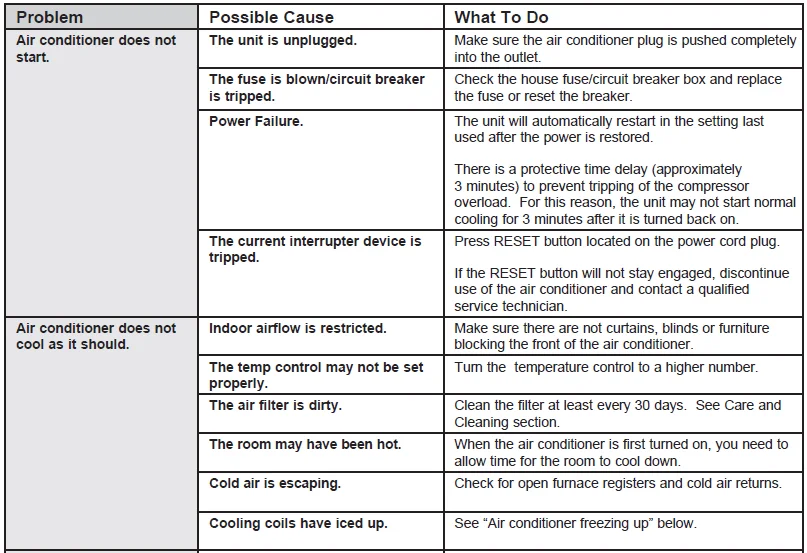

Troubleshooting Tips

Before you call for service

Save time and money! Review the charts on the following pages first and you may not need to call for service.

Normal Operating Sounds

• You may hear a pinging noise caused by water being picked up and thrown against the condenser on rainy days or when the humidity is high. This design feature helps remove moisture and improve efficiency.
• You may hear the thermostat click when the compressor cycles on and off.
• Water will collect in the base pan during high humidity or on rainy days. The water may overflow and drip from the outdoor side of the unit.
• The fan may run even when the compressor does not.
• Water droplets being thrown against the outside coils can make a pinging noise. This helps cool the condenser. You can reduce this noise by removing the subbase water plug.

To ensure maximum efficiency, it is recommended to check to ensure the rubber drain plug is properly inserted. This plug may be removed during operation to minimize water in the back of the unit; however, removing it will lower the efficiency of your unit.

NOTE: Do not drill a hole in the base pan.

Consumer Support

GE Appliances Website

Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hours a day, any day of the year! You can also shop for more great GE Appliances products and take advantage of all our online support services designed for your convenience. In the US: GEAppliances.com

Register Your Appliance

Register your new appliance online at your convenience! Timely product registration will allow for enhanced communication and prompt service under the terms of your warranty, should the need arise. You may also mail in the pre-printed registration card included in the packing material. In the US: GEAppliances.com/register

Parts and Accessories

Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes (VISA, MasterCard, and Discover cards are accepted). Order online today, 24 hours a day.

In the US: GEApplianceparts.com or by phone at 877.959.8688 during normal business hours.

Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally should be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause unsafe operation.
