GE Profile XPIO23SCSS Opal 2 Nugget Ice Maker User Manual

GE Profile XPIO23SCSS Opal 2 Nugget Ice Maker

Table of Contents

Parts Included

Getting Started

Installation Requirements

CAUTION: Lifting Hazard: It is recommended to have two people move and install the ice maker in order to prevent injury.

The product is designed to be installed indoors. Do not • Install the product in a well-ventilated area with an use your ice maker outdoors. ambient temperature between 55°F and 90°F.
Product must be installed upright on a flat, level • Do not place the product near heat sources such as surface that is able to support the total weight when ovens or cooktops. Full of water.
Do not place the product in direct sunlight.
Ensure a minimum of three inches (3″) clearance around the side and back walls of the ice maker for proper air circulation.

Prepare Opal For Use

Carefully remove packing material. Do not use sharp tools that can damage the box contents.
Ensure all components are present. If any item is missing, please contact 1.866.907.6718.
Place the ice maker upright on a flat, level surface and plug it in.
Install the drip tray by sliding it under the front edge of the Opal. The tray slots should align with the front feet of Opal.
Sanitize and rinse the ice maker with clean water for five minutes before first use.

NOTICE: Some types of under-cabinet lamps can be hot enough to cause damage to your Opal top’s appearance.

Care and Cleaning

To keep your nugget ice tasting fresh and your Opal looking great, we recommend cleaning/sanitizing your Opal once per week.

To clean the exterior of the ice maker, unplug the product, then use a soft cloth dampened with soapy water to gently clean the exterior surfaces. Dry with a soft cloth.

The exterior stainless steel surfaces can be cleaned with a commercially available stainless steel cleaner. Use only a liquid cleaner free of grit and rub in the direction of the brush lines with a damp, soft sponge. Do not use appliance wax, polish, solvents, or chemicals on the stainless steel. Do not use soap to clean the reservoir. Use a soft cloth moistened with water.
WARNING: Chemical Exposure Hazard, when cleaning with bleach, use bleach in a well-ventilated area and avoid mixing bleach with other household cleaners.

WARNING: Unplug the product before cleaning by hand, and when not in use.

System Cleaning / Sanitizing Procedure

To clean Opal’s internal components, complete the following steps:

Unplug Opal.
Remove water filter (if present), and replace with the reservoir’s screened intake cap. See Figure 1.
Drain Opal (see page 8 for detailed instructions).
Create a solution of five cups of water and one teaspoon of household bleach. Skip to page 9 for further instructions on how to remove hard mineral deposits.
Pour the solution into the water reservoir, up to the fill line shown. See figure 2.
Plug in Opal and hold the ‘Clean’ button for 3 seconds to initiate the cleaning process. See figure 3.
Water will begin circulating, and the ‘Cleaning’ indicator will light up on the left-hand side of the unit to confirm the unit is now in the cleaning process. See figure 4. After three minutes, the water will stop, and the ‘Cleaning’ indicator light will turn off. NOTE: Do not use soap to clean the water reservoir.
When the ‘Cleaning’ indicator light turns off, drain the Opal.

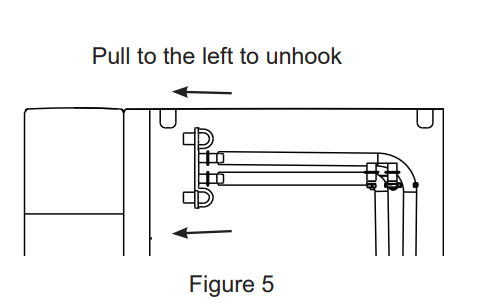

Unhook the top of the drain hoses at the back of the unit. See figure 5.
Then lay them down to drain into a sink or bucket that is below the level of the ice maker. See figures 6 and 7.
Remove the plugs and allow the water to completely drain. See figure 7.
Once water stops flowing, re-insert the drain plugs.
To rinse: add five cups of fresh water to the water reservoir, and press the ‘Clean’ button to initiate a second cleaning cycle. To exit the cleaning cycle at any time, press and hold the ‘Clean’ button for 3 seconds.
Repeat steps 8 through 13 two more times, adding fresh water to the reservoir each time (you may continue to repeat the rinse cycle, for as many times as you like).
Replace the drain tubes on the back. See figure 8.

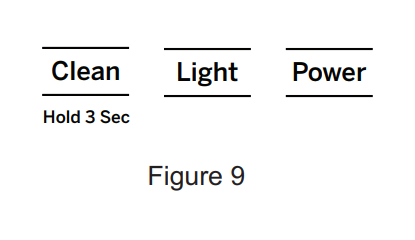

When complete, fill the unit with fresh water and press the ‘Power’ button to start making ice. See figure 9.

Removal of Mineral Deposits

Fill the reservoir with white vinegar to the max fill line and run up to three cleaning cycles. Or purchase an Opal Cleaning Kit and follow the instructions inside.
If using vinegar, leave the vinegar in the unit for 18 hours and set a vinegar-soaked towel on the ice chute overnight to further dissolve any mineral buildup. See figure 10.

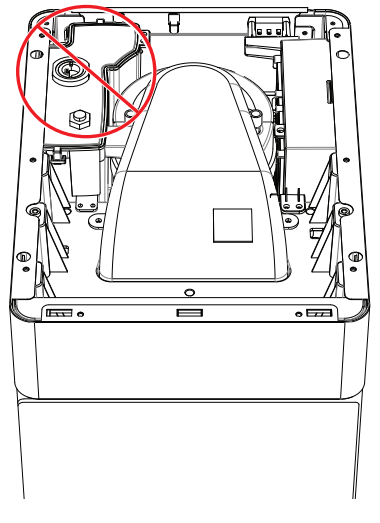

Clean the sensors with vinegar and wipe them clean with water. After draining the vinegar, run three rinse cycles, using fresh water for each rinse. See figures 11, 12, and 13 to reference the location of the sensors.

Cleaning the Bin and Tray

To clean the ice bin, remove the ice bin from the ice maker and clean with a soft cloth dampened with soapy water. Rinse thoroughly. Dry with a soft cloth. Do not use solvents or chemicals.

The drip tray should be wiped dry. Water left in this area may leave deposits. To clean the drip tray, remove the tray from Opal and use a soft cloth dampened with mild soapy water to gently clean the surface. Dry with a soft cloth. Do not use solvents or chemicals.

Understanding the display

Power

The Power button, when pressed, will begin the ice-making process. When pressed, while ON, it will turn the ice maker off.

Light

The light feature has three different modes: ON/DIM/OFF. Toggle between the three modes by pressing the light button until you reach your desired lighting mode.

Clean

The cleaning cycle is initiated by pressing and holding the ‘Clean’ button for three seconds.

Indicator Lights

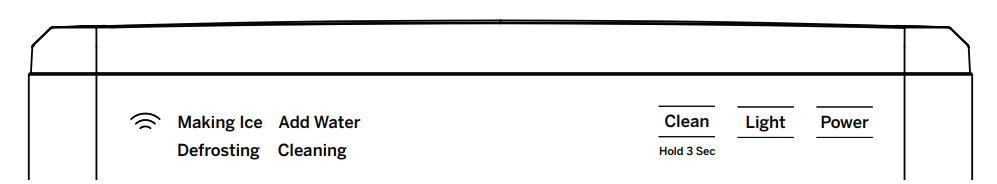

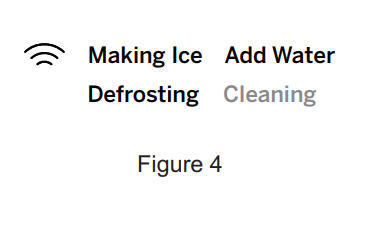

The four indicator lights on the left-hand side of the unit display the current status of the Opal. If ‘Add Water’ is highlighted, your unit needs more water before it can cycle to make ice or clean.

WiFi

Using the complimentary SmartHQ mobile app, customers can connect to their Opal and control it from their Android or iPhone. The indicator light on the left-hand side will confirm a successful connection. See page 14 for how to connect the Opal 2.0 Ice Maker to the WiFi Application.

Making Ice with Opal

Once Opal has been cleaned/sanitized, move the ice maker to its desired location and complete the following steps:

Remove the ice bin.

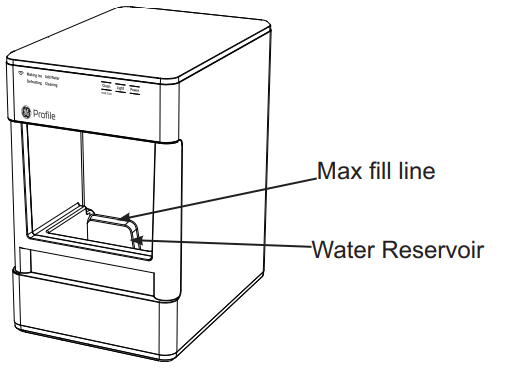

Fill the reservoir with potable (safe to drink) water up to the “Max Fill” line. Water hardness must be less than 12 grains per gallon. Do not fill the reservoir with any liquid except water. Using any liquid except potable water is misuse and will void your warranty.
Plug the ice maker into a grounded outlet.
Touch the Power button to start the ice maker. The indicator on the left-hand side will light up ‘Making Ice’ to confirm that the unit has begun to make ice.
Opal will begin to produce ice in 15-30 minutes. It will continue to make ice until the bin is full or it runs out of water. To continue making ice, just add more water.

Draining Opal

We recommend draining your Opal when:

You put it away, or anytime it’s being relocated
You turn it off for more than a few days. (i.e., vacation)
You are not using much ice. Continuous recirculation of meltwater may affect taste. For best results, drain your Opal.

Water Filter

The Opal Water Filter is available at GE Appliances and is the only water filter compatible with Opal. Please follow the installation instructions included with your filter.

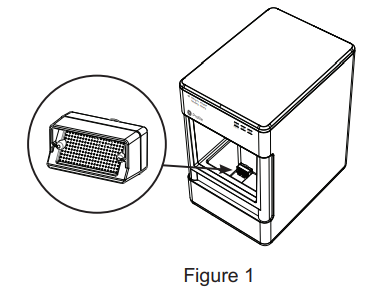

NOTE: Remove your water filter (if installed) and reinstall the screened intake cap before cleaning your Opal.

Side Tank Accessory

NOTE: The Side Tank Accessory is only included with model numbers XPI013BCBT and XPIO13SCSS.

NOTE: There are two drain tubes located on the back of your Opal Nugget Ice Maker, indicated as drain tubes A and B in the illustration on page 11.

Hand Wash Only: Rinse and hand wash the Opal Side Tank with warm water and a mild dish soap. Remove the Opal Side Tank’s cap and wash the cap and rubber valve with water and a mild dish soap. The Side Tank base can be washed by disconnecting the hose and adding a small amount of soapy water to it. Scrub as needed and rinse thoroughly. The rinse water should drain out the port in the back.
Rinse the cap, rubber valve, tank, and base well to remove any residual soap (see illustration).
DO NOT WASH THE SIDE TANK IN THE DISHWASHER.
Unplug the Opal Nugget Ice Maker. Unhook Opal’s drain tubes and drain the water from the reservoir.

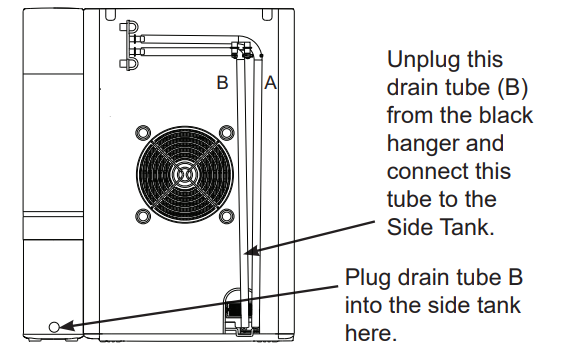

Connect the drain tube, labeled B, to the back of the Opal Side Tank’s base.
Make sure the drain tube (A) is connected to the black hanger and installed on the back of Opal.
Make sure the drain tube (B) connecting to the Side Tank is resting flat on the countertop.

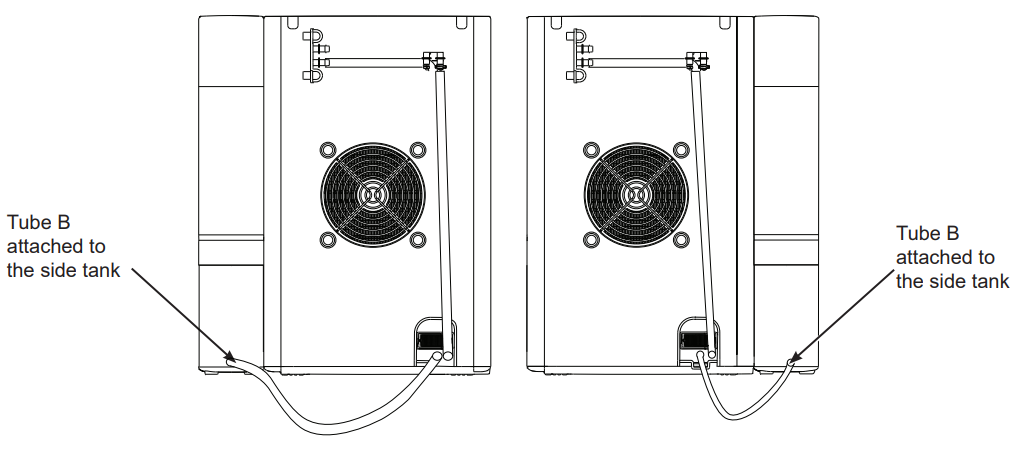

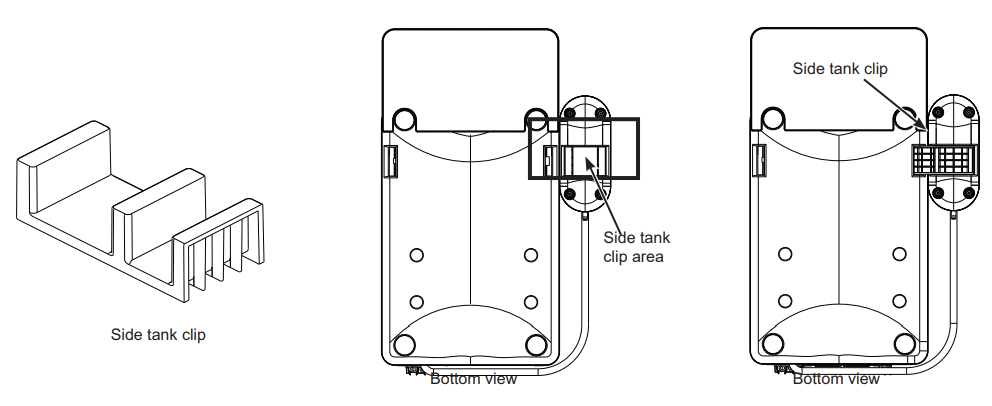

Place the Opal Side Tank on the right or left-hand side of the Opal Nugget Ice Maker. Using the side tank attachment, slide the shorter side of the attachment under the unit, near the front of the unit. The attachment will slide into a slot on the bottom of the unit. Once this is placed, the side tank can slide onto the opposite attachment. See figures below and on the next page.
NOTE: Care should be taken to connect the correct tube to the Opal Side Tank. Tube (B) should always be connected to the Side Tank, whether it is installed on the left or right side of the Opal Nugget Ice Maker. It is important to make sure the tube is lying flat, otherwise, water may not flow from the side tank into the ice maker.

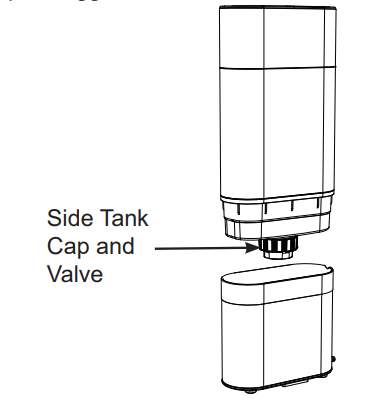

Remove the Opal Side Tank’s reservoir from its base.
Unscrew the Opal Side Tank’s cap from the reservoir. Fill the clear reservoir with water.
Replace the Opal Side Tank’s cap. Ensure the cap is clean when installing.
Carefully flip over the Opal Side Tank’s reservoir and place it in the base. Water should start flowing into the Opal Nugget Ice Maker, and bubbles in the Opal Side Tank will appear periodically during the time water is flowing to the ice maker.
NOTE: If water does not appear to flow into the ice maker, please check for the following:
- There may be bubbles in the tube (B) connecting the Side Tank to the Opal.
- Tube (B) is not lying flat.
  If either of the above issues is present, adjust tube (B) to allow the water to flow.
Fill the Opal Nugget Ice Maker’s reservoir (if desired).
Plug in the Opal Nugget Ice Maker and begin making ice.

WARNING: To reduce the risk of electrical shock or injury when using your Opal, follow these basic safety precautions:

Unplug the product before cleaning by hand and when not in use.
Do not use with water that is microbiologically unsafe or of unknown quality.
Use caution when filling and installing the Opal Side Tank, as the filled unit may be heavy.
Do not use this side tank for any liquid other than water.
Children should not fill or install the Opal Side Tank, as the filled unit may be heavy.
The side tank should be assembled to the ice maker per the installation instructions. Installing a side tank differently may result in an overturning risk.
Make sure that the Opal Nugget Ice Maker is unplugged when draining the reservoir and installing the Opal Side Tank.
Ensure that the Opal Side Tank is installed on a level surface that will be stable even when the Opal Side Tank is full.
Make sure the cap of the Side Tank remains clean during filling and operation. Hands should be washed and clean before opening and closing the cap.

Use and Care

Cleaning the Side Tank

Remove and drain the Side Tank.
If there is residual water in the Opal Side Tank base unit, flip the Opal Side Tank’s base to drain.
Remove and wash the Opal Side Tank’s cap and valve with dish soap and warm water as needed. Ensure the cap is clean after removing and reinstalling by hand.
Only remove drain tubes while near a sink or bucket, as removing drain tubes from the Other Pal or Opal Side Tank will drain any water in either unit.

Proper Installation and Location

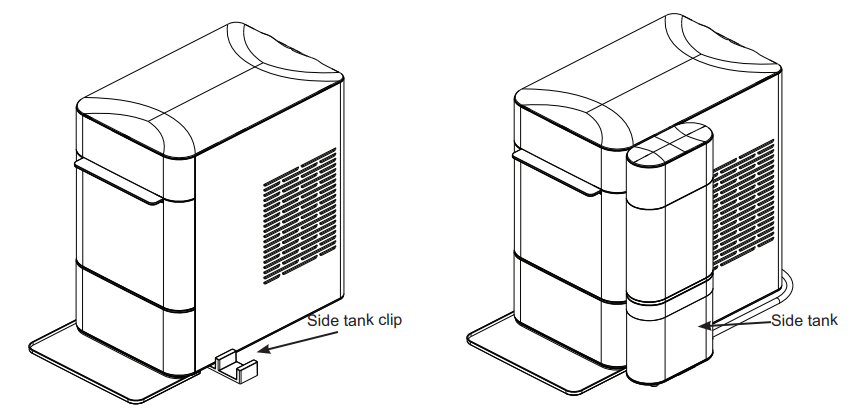

The side tank should be installed flush to the front of the Opal Nugget Ice maker. The Opal Side Tank needs to sit on the same level surface as your Opal Nugget Ice Maker. Do not elevate the Opal Side Tank, or your Opal may overflow.

To Remove Mineral Deposits

Mix two quarts of water with two quarts of white vinegar, OR use the Opal Cleaning Kit. Clean any visible mineral buildup or deposits with this solution. If deposits are present in the tank, fill the tank with this solution and let it soak. Be sure to drain and rinse the tank thoroughly after cleaning. Stubborn deposits may require more than one treatment.

Side Tank Troubleshooting

If water does not flow from the Side Tank to the Opal Ice Maker, there may be bubbles in the tube connecting the side tank to the Opal if the tube is not lying flat. Try adjusting the tube to allow the water to flow. Once water starts flowing, it typically will not need further adjusting.

Normal Operating Sounds

Your new ice maker may make sounds that are not familiar. Most of these sounds are normal. Hard surfaces like the floor, walls, and countertops can amplify these sounds. The following describes the sounds that may be new to you and what may be creating them.

WHIR – When Opal is first turned on, you may notice the condenser fan spinning.
BUZZ – When the water pump first turns on, it may be dry and slightly noisy. Once it is filled with water, the noise reduces significantly.
RATTLE – Rattling noises may be produced from the flow of the refrigerant. These noises should reduce significantly once the refrigerant system has stabilized.
GURGLE – When the refrigerant system shuts off, there may be a brief gurgle as the refrigerant stops flowing.
HUM – The compressor is a motor. It produces a low-toned humming sound while it is running.
CLICK – As nugget ice is produced, it drops into the ice drawer. The first nuggets produced are the loudest, as they impact the bottom of the ice bin. As the bin fills, this noise reduces significantly.
SQUEAK – When Opal needs defrosting, it may start to squeak as ice starts to build up around the mechanisms. The defrost cycle is automatic, nd may take 30-45 minutes. During this time, the front button won’t respond. More frequent squeaking usually requires white vinegar cleaning to remove internal mineral scale buildup.

Radio Frequency Interference

This product has been tested and found to comply with the limits outlined in Title 47 CFR Part 15 – Radio Frequency Devices. Operation is subject to the following conditions:

This device may not cause harmful interference, and
This device must accept any interference received, including interference that may cause undesired operation.

This product generates, uses, and can radiate radio frequency energy, and if not used according to the instructions, may cause harmful interference to radio communications. If this product does cause harmful interference to radio or television reception, which can be determined by unplugging Opal, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the TV or radio antennas.
Increase the distance between the product and the TV or radio.
Plug the Opal into a separate outlet from a radio or TV. The transmitter must not be co-located or operating in conjunction with other antennas or transmitters.

WiFi Connect – SmartHQ

Your OPAL 2.0 ice maker is WiFi Connect Enabled. A WiFi communication card is built into the product, allowing it to communicate with your smartphone for remote monitoring, control, and notifications.

Please visit

geappliances.com/ge/connected-appliances/ to learn more about connected appliance features and to learn what connected appliance apps will work with your smartphone.

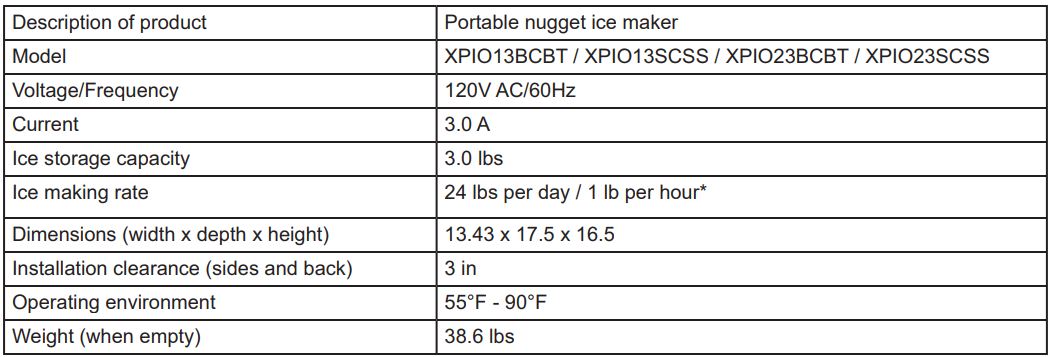

Ice Maker Product Specifications

NOTE: Technical data and performance information provided for reference only.

Specifications are subject to change. Check the rating label on your ice maker for the most accurate information.

*The actual quantity of ice produced will vary with environmental conditions.

Note: Products containing refrigerants

This product contains a refrigerant, which under Federal Law must be removed before product disposal. If you are disposing of this or any refrigeration product, check with your local waste company for guidance.

WARNING: To avoid exposure to UV radiation, disconnect power to the ice maker before removing the external covers.

Do not attempt to repair or replace the UV lamp.

GE Appliances Ice Maker Limited Warranty

GEAppliances.com

Please have your serial number and your model number available when calling for service. Call 1.866.907.6718 for service questions.

For the Period of:

One Year from the date of the original purchase

GE Appliances Covers

If the ice machine fails due to a defect in materials or workmanship, during the limited one-year warranty, GE Appliances will either replace your product with a new or remanufactured product or refund the purchase price of the product at GE Appliances’ sole discretion.

What GE Appliances Will Not Cover:

Service trips to your home.
Improper installation, delivery, or maintenance.
Failure of the product if it is abused, misused, or used for other than the intended purpose, or used commercially.
Replacement of house fuses or resetting of circuit breakers.
Damage caused after delivery.
Replacement of the light bulbs, if included.
Damage to the product caused by accident, fire, floods, or acts of God.
Incidental or consequential damage caused by possible defects with this appliance.
Software bugs that can be corrected with an update via the SmartHQ App
Labor and other charges to install and/or remove the product

EXCLUSION OF IMPLIED WARRANTIES

Your sole and exclusive remedies are product exchange or refund as provided in this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law.

For sale in the 50 United States and the District of Columbia only

For US Customers: This limited warranty is extended to the original purchaser for products purchased for home use within the USA. In Alaska and Hawaii, the limited warranty does not include the costs of shipping units.

Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state’s Attorney General.

Warrantor: GE Appliances, a Haier company, Louisville, KY 40225
