Igloo IGLICEBSC26 Automatic Self Cleaning Ice Maker User Manual

Igloo IGLICEBSC26 Automatic Self Cleaning Ice Maker

IMPORTANT SAFEGUARDS

A person who has not read and understood all operating and safety instructions is not qualified to operate this appliance. All users of this appliance must read and understand this Instruction Manual before operating or cleaning this appliance. When using electrical appliances, basic safety precautions should always be followed, including:

1. Read all instructions before operating this appliance.
2. DO NOT TOUCH the hot surfaces. Use handles or knobs.
3. This appliance is NOT A TOY.
4. Unsupervised young children and individuals with cognitive challenges should never operate this appliance.
5. Close supervision is necessary when any appliance is used by or near children.
6. To protect against electrical shock, do not immerse he cord, plug, or any part of this unit in water or other liquids.
7. Unplug from the outlet when not in use, before removing parts, and before cleaning. Allow to cool before putting on or taking off any parts, and before cleaning.
8. DO NOT operate any appliance with a damaged cord or plug, or after the appliance malfunctions, or if the appliance has been damaged in any manner. Return the appliance to the nearest repair shop for examination, repair, or adjustment.
9. The manufacturer does not recommend the use of accessory attachments other than is provided by the manufacturer. Use of attachments may cause injuries.
10. DO NOT use the appliance for anything other than its intended use.
11. DO NOT use outdoors. FOR HOUSEHOLD USE ONLY.
12. DO NOT place on or near a hot gas or electric burner, or in a heated oven.
13. DO NOT let the cord hang over the edge of the table or counter, or touch hot surfaces.
14. NEVER leave the unit unattended while in use or when plugged into an outlet.
15. Extreme caution must be used when moving an appliance containing hot food.
16. Always attach the plug to the appliance first, then plug the cord into the wall outlet. To disconnect, turn any control to “off,” then remove the plug from the wall outlet.

ADDITIONAL IMPORTANT SAFEGUARDS

Operating Safety Precautions

1. DO NOT touch the Evaporator while the unit is in use or during the ice-making process. This could cause severe burns.
2. DO NOT clean the unit with flammable liquids. The fumes can create a fire hazard or an explosion.
3. Check the Ice Hopper for the presence of foreign objects before use.
4. DO NOT turn the unit upside down while in use, or when filled with ice.

Instructions for the Electrical Cord and Plug

1. This appliance has a 3-prong plug. To reduce the risk of electrical shock, this plug is intended to fit into an outlet only one way.
2. A short power supply cord is provided to reduce the risk resulting from becoming entangled or tripping over a long cord.
3. If a long detachable power supply cord or extension cord is used:
   • Extension cords can be used if care is exercised in their use.
   • The marked electrical rating of the cord or extension cord should be at least as great as the electrical rating of the appliance.
   • When using a longer cord or extension cord, make sure that the cord does not drape over a countertop or tabletop where it can be pulled on or tripped over unintentionally.
4. The manufacturer does not recommend using this machine in countries that do not support 120V AC, even if a voltage adapter, transformer, or converter is in use.

SAVE THESE INSTRUCTIONS!

INTRODUCTION

Congratulations! You are now the proud owner of the SELF-CLEANING ICE MAKER from Igloo®! This stylish and portable ice maker allows you to make ice accessible virtually anywhere. With its intuitive, easy-to-use design, you’ll be making ice cubes soon after you plug in your new appliance. Perfect for the kitchen, RVs, clubhouses, home bars, and more!

Features

• Makes up to 26 lbs. of ice per day
• Produces 9 ice cubes every 7-15 minutes
• Water tank capacity: 1.5 quarts
• Ice basket capacity: 1.5 pounds
• Multiple ice cube sizes: small and large
• Control panel with LED indicator lights
• Compact and elegant design
• Transparent lid for easy viewing
• Removable ice basket
• Includes an ice scoop
• Refrigerant: R600a

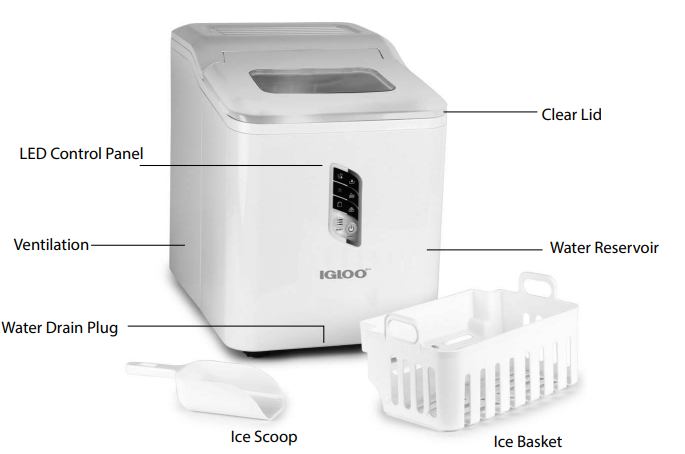

PARTS & ASSEMBLY

Before first use, be sure to remove all interior and exterior packaging, and follow the steps under CLEANING & MAINTENANCE to properly clean your unit.

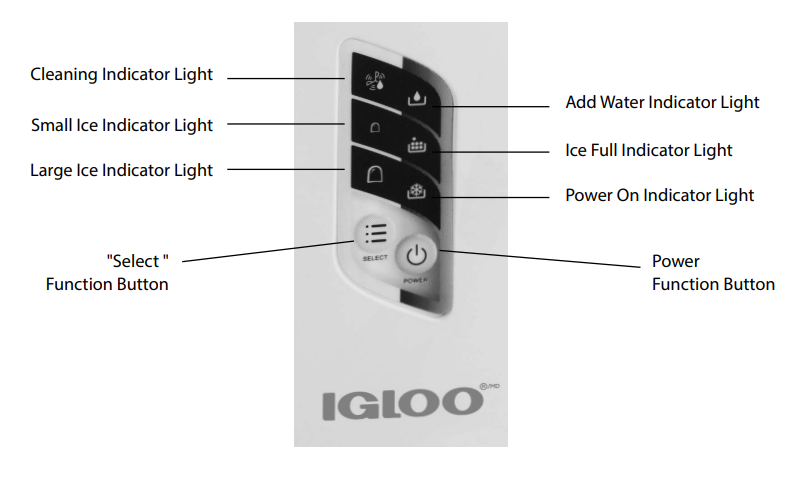

CONTROL PANEL WITH LED INDICATOR LIGHTS

HOW TO OPERATE

BEFORE FIRST USE

1. Follow the steps under CLEANING & MAINTENANCE before using this unit.
2. Place the unit on a flat, level surface in a location that is protected from direct sunlight and other sources of heat (i.e., stove, furnace, radiator). Ensure there is at least four inches of space on all sides of the unit.
3. Allow one hour for the refrigerant fluid to settle before plugging the cord into an electrical outlet for the first time.

USING YOUR ICE CUBE MAKER

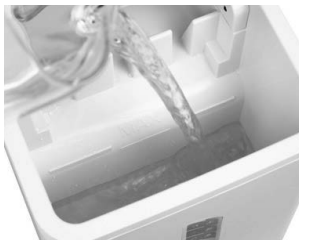

1. Open the Clear Lid to remove the Ice Basket and pour water into the Water Reservoir. Keep the water level below the MAX level mark. If water levels exceed the MAX level mark, drain any excess water by removing the Water Drain Plug.
2. Press the POWER button on the LED Control Panel to begin the ice-making cycle.
3. Select the desired size of the ice cubes by pressing the SELECT button. If the room temperature is lower than 60°F (16°C), it is recommended to select the small-sized ice cubes in order to keep ice from sticking together.
4. Each ice-making cycle lasts 6 to 15 minutes, depending on the size of the ice cube selected and the ambient temperature of the room. In extremely hot temperatures, ice-making time may vary considerably.
5. While the ice maker is on, check the water level periodically. If the water pump is unable to pump water, the unit will stop automatically, and the Add Water light will illuminate.
6. If the water level is low, press the POWER button to turn the unit OFF, fill water up to the MAX level ma,rk and press the POWER button again to turn the unit again.
7. The unit automatically stops working when the Ice Basket is full, and the ICE FULL light will illuminate.
8. To ensure a reasonable hygiene level, change the water in the Water Reservoir every 24 hours. If the unit isn’t in use, drain all water left in the Water Reservoir.
   IMPORTANT NOTE: If the power is disconnected during the ice-making cycle or if the LED lights on the Control Panel are blinking, press the POWER button to stop the ice-making cycle. Unplug the unit from the electrical outlet. Allow the unit to sit for a few minutes to let it warm up and allow ice to fall from the evaporator fingers. Empty the Water Tray and wait three minutes before restarting the unit.

DO NOT touch the Evaporator while the unit is in use or during the ice-making process. This could cause severe burns.

HELPFUL TIPS

ADD WATER INDICATOR

If the Add Water Indicator comes on, try the following:

• Turn off the unit, add water, and press the POWER button again to restart the unit.
• There may be too much ice. Turn off the Ice Maker, and remove some ice from the Ice Basket.

ICE CUBES STICK TOGETHER

• The ice cycle may be too long. Stop the Ice Maker, then restart it when the ice cubes melt. Select the smaller-sized ice cubes using the SELECT button.
• The water temperature in the Water Reservoir may be too low. Change the water in the Water Reservoir. The room temperature should be set between 45˚ F – 90˚ F.

ICE MAKER NOT WORKING

If the ice-making cycle seems to be running properly, but no ice is being made, try the following:

• The ambient temperature or water temperature in the Water Reservoir may be too high. The unit must be in an environment below 90˚ F. Try pouring colder water (between 45˚ F – 90˚ F) into the Water Reservoir.
• If changing the water or allowing the unit to cool does not work, there may be a leakage of the refrigerant fluid, or a pipe in the cooling system may be blocked.

LED LIGHTS

• If the LED lights on the Control Panel are blinking, there may be a disruption in the power source. Press the POWER button to stop the ice-making cycle. Let the ice maker sit for several minutes to let it warm up and allow ice to fall from the evaporator fingers. Empty the Water Tray and wait three minutes before restarting the unit.

CLEANING & MAINTENANCE

Your AUTOMATIC ICE MAKER is equipped with an automatic cleaning function to help clean the interior of your unit, including the water lines. Following these steps will help to maintain the unit and add to its longevity.

1. Remove the Ice Basket, then drain any leftover water by unplugging the Water Drain Plug on the bottom of the unit. Replace the Water Drain Plug.
2. Prepare your cleaning solution.
   Common cleaning solutions:
   • Vinegar and water (ratio of 1:1)
   • Lemon and water (ratio of 1:1)
   • Bleach and water (ratio of 1 tsp. bleach: 2 qts. water)
   • Commercial ice maker descaling and cleaning solution
3. Make sure the unit is plugged in and the POWER indicator light is not illuminated. Add cleaning solution to the Water Reservoir.
4. Press the SELECT button until the CLEAN indicator light is illuminated. The unit will automatically cycle the cleaning solution 5 times.
5. When the cleaning cycles have completed, drain the interior water by unplugging the Water Drain Plug on the bottom of the unit. Replace the Water Drain Plug.
6. Clean the remainder of the interior and the exterior of the unit using warm, soapy water and a non-abrasive towel.
7. Drain the interior of any remaining water by unplugging the Water Drain Plug on the bottom of the unit, then dry with a non-abrasive towel. Replace the Water Drain Plug.
8. Before storing, keep the Clear Lid open and allow the unit to dry completely for 24 hours.

RECIPES

Your AUTOMATIC ICE MAKER can be used to instantly make ice cubes for a variety of beverages. Here are some delicious beverages that you can make at home.

MUDDY WATER

• 1 part cola: Fill 1/4 of each glass with ice made with your AUTOMATIC ICE MAKER.
• 1 part orange juice: Pour orange juice until the glass is half full, or to taste.
• Ice: Pour cola until the glass is full.
  Stir well.

ROY ROGERS

• 6-8 oz. Cola: Fill glasses with ice from your AUTOMATIC ICE MAKER.
• 1/4 oz. Grenadine: Add in Cola and grenadine.
• Maraschino cherries: Stir well.
• Ice: Add a maraschino cherry as a garnish.

STRAWBERRY LEMONADE

• 8 large strawberries, halved: Place strawberries in a blender and top with 2 tablespoons sugar. Pour 1 cup of water over sugared strawberries.
• 11/8 cups white sugar: Blend until the strawberry chunks transform into juice.
• 7 cups water: Combine strawberry juice, 6 cups water, 1 cup sugar, and lemon juice in a large pitcher. Stir until well blended.
• 2 cups freshly squeezed lemon juice: Fill glasses with ice from your AUTOMATIC ICE MAKER.
• Lemon slices: Pour strawberry lemonade into glasses.
• Mint leaves: Garnish with a lemon slice and mint leaves, if desired.

GINGER BEER MOJITO MOCKTAIL

• 6 oz. Ginger beer: Muddle the mint and lime juice in your glass.
• 2 oz. Fresh lime juice: Fill a glass with ice from your AUTOMATIC ICE MAKER.
• 10 mint leaves: Add ginger beer to the glass.
• Fresh lime slices: Stir thoroughly.
• Ice: Garnish with additional mint leaves and a fresh lime slice.

BLACKBERRY BASIL ICED TEA

6 cups water: Combine water, tea bags, blackberries, and basil leaves in a pitcher.

4 bags of lack tea: Cover and refrigerate for 12-24 hours.

12 oz. fresh blackberries: When ready, remove tea bags and add liquid sweetener to taste.

8-12 basil leaves: Fill a tall glass with ice from your AUTOMATIC ICE MAKER.

Liquid sweetener to taste: Add iced tea to the glass until full.
