GE Washer User Manual

GE Washer

IMPORTANT SAFETY INFORMATION.

READ ALL INSTRUCTIONS BEFORE USING.

WARNING! For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, personal injury, or loss of life.

WATER HEATER SAFETY

Under certain conditions, hydrogen gas may be produced in a water heater that has not been used for two weeks or more. Hydrogen gas can be explosive under these circumstances.

If the hot water has not been used for two weeks or more, prevent the possibility of damage or injury by turning on all hot water faucets and allowing them to run for several minutes. Do this before using any electrical appliance that is connected to the hot water system. This simple procedure will allow any built-up hydrogen gas to escape. Since the gas is flammable, do not smoke or use an open flame or appliance during this process.

PROPER INSTALLATION

This washer must be properly installed and located according to the Installation Instructions before it is used. If you did not receive an Installation Instructions sheet, you can receive one by visiting ge.com or by calling 800. GE.CARES (800.432.2737).

• Install or store it where it will not be exposed to temperatures below freezing or to the weather, which could cause permanent damage and invalidate the warranty.
• Properly ground the washer to conform to all governing codes and ordinances. Follow the details in the Installation Instructions.

YOUR LAUNDRY AREA

• Keep the area underneath and around your appliances free of combustible materials such as lint, paper, rags, chemicals, etc.
• Close supervision is necessary if this appliance is used by or near children. Do not allow children to play on, with, or inside this or any other appliance.

WHEN USING THE WASHER

• Never reach into the ashtray while it is moving. Wait until the machine has completely stopped before opening the lid.
• Do not mix chlorine bleach with ammonia or acids such as vinegar and/or rust remover. Mixing different chemicals can produce a toxic gas that may cause death.
• Do not wash or dry articles that have been cleaned in, washed in, soaked in, or spotted with combustible or explosive substances (such as wax, oil, paint, gasoline, degreasers, dry-cleaning solvents, kerosene, etc.). These substances give off vapors that may ignite or explode. Do not add these substances to the wash water. Do not use or place these substances around your washer or dryer during operation.
• The laundry process can reduce the flame retardancy of fabrics. To avoid such a result, carefully follow the garment manufacturer’s wash and care instructions.
• To minimize the possibility of electric shock, unplug this appliance from the power supply or disconnect the washer at the building’s distribution panel by removing the fuse or switching off the circuit breaker before attempting any maintenance or cleaning.
  NOTE: Turning the Cycle Selector Knob to an off position, or pressing PAUSE, does NOT disconnect the appliance from the power supply.
• Never attempt to operate this appliance if it is damaged, malfunctioning, partially disassembled, or has missing or broken parts, including a damaged cord or plug.

WHEN NOT IN USE

• Turn off water faucets to relieve pressure on hoses and valves and to minimize leakage if a break or rupture should occur. Check the condition of the fill hoses; GE recommends changing the hoses every 5 years.
• Before discarding a washer or removing it from service, remove the washer lid to prevent children from hiding inside.
• Do not attempt to repair or replace any part of this appliance unless specifically recommended in this Owner’s Manual, or in published user-repair instructions that you understand and have the skills to carry out.
• Do not tamper with controls.

READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.

SAVE THESE INSTRUCTIONS

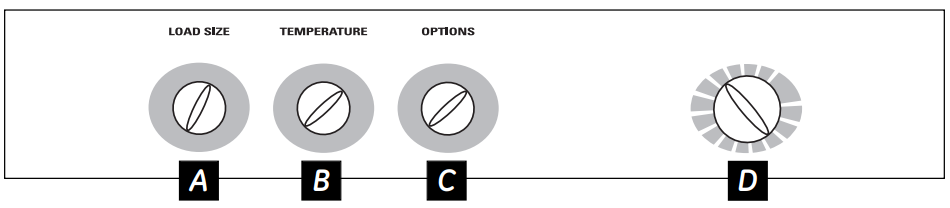

About the control panel—for models with a “pull knob” start.

Quick Start Guide

Controls

• A. Load Size
  Loosely load clothes no higher than the top row of holes in the washer basket. The water level should just cover the clothes. Adjust the load size accordingly.
• B. Temperature (on some models)
  Select the water temperature for the wash and rinse cycles. Always follow the fabric manufacturer’s care label or instructions when laundering.
• C. Options (on some models)
  2nd Rinse Option
  When you use extra detergent or bleach to clean heavily soiled clothes, you may want to use the 2nd Rinse option. It provides a second deep cold rinse.
• D. Wash Cycle—Cycle Selector Knob

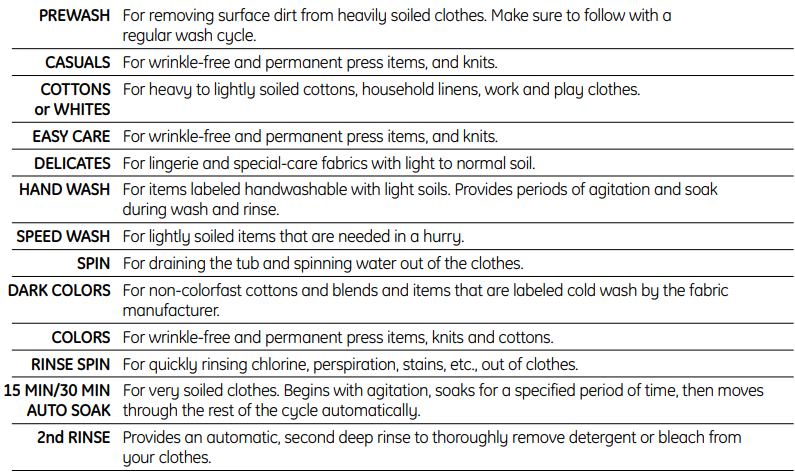

  The chart below will help you match the wash cycle setting with your clothing. The chart is ranked from longest to shortest cycle time and wash intensity.
  Your washer may not have all these cycles. (Cycles vary by model.)

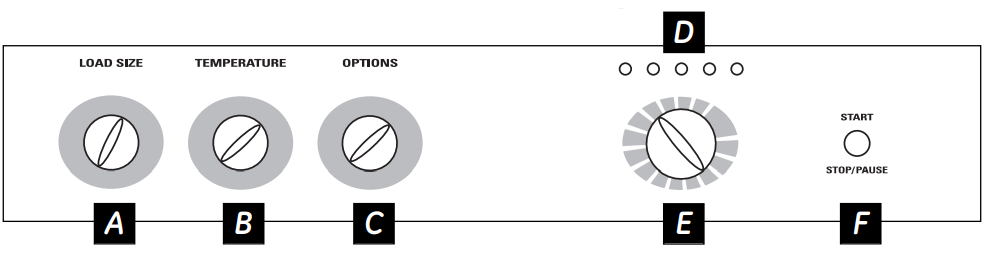

About the control panel—for models with a START button.

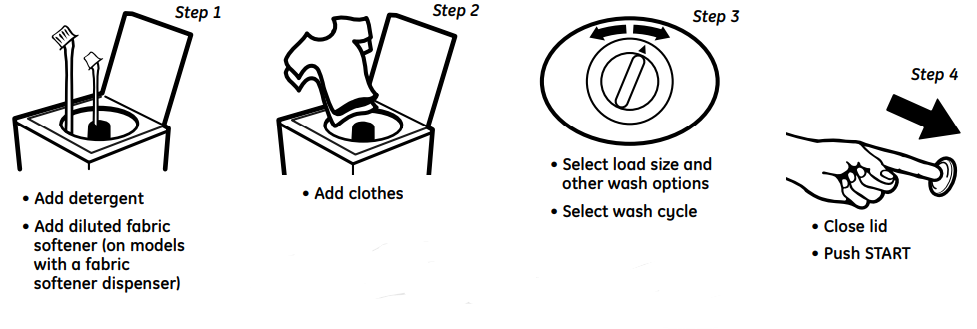

Quick Start Guide

Controls

A. Load Size

Loosely load clothes no higher than the top row of holes in the washer basket. The water level should just cover the clothes. Adjust the load size accordingly.

B. Temperature

Select the water temperature for the wash and rinse cycles. Always follow the fabric manufacturer’s care label or instructions when laundering.

PerfecTemp senses the incoming water temperature and adjusts the fill water to obtain a more precise temperature range for all wash temperatures. For example, in a COLD wash selection, some warm water may be added to reach a temperature needed to better dissolve detergents. Often, detergents are not completely dissolved in very cold water, especially in cooler climates. During winter months, when the water entering your home is colder, or for locations with very cold water year-round, use the PerfecTemp plus COLD to help dissolve powdered detergents and to improve the cleaning of your clothes.

The TAP COLD feature turns the PerfecTemp feature on your washer off, and uses your household tap water temperature for a COLD wash. This can provide energy savings by reducing the amount of hot water used in your wash.

C. Options

• Autosoak Option (on some models)
  This option begins with a brief agitation, soaks for a specified period of time, then moves through the rest of the cycle automatically. On some models, this option is located on the Cycle Selector knob.
• 2nd Rinse Option (on some models)
  When you use extra detergent or bleach to clean heavily soiled clothes, you may want to use the 2nd Rinse option. It provides a second deep cold rinse.
• Extended Spin Option (on some models)
  Use this option to extract more water from your clothes. Clothes will be drier when this option is selected and will dry more quickly in your dryer.

D. Status Indicator Lights

The Cycle Indicator Lights show what stage the washer is in. When the Selector knob is set to a new cycle, the Indicator Lights will flash momentarily, showing what stages the cycle will go through. On models without an AUTO SOAK option, the SOAK light will not light up.

E. Wash Cycle—Cycle Selector Knob

The wash cycle controls the length and intensity of the washing process. The knob can be turned in either direction. Turning the Cycle Selector knob after starting a cycle will stop the washer and reset the cycle to the new selection. Press START to begin the new cycle selection.

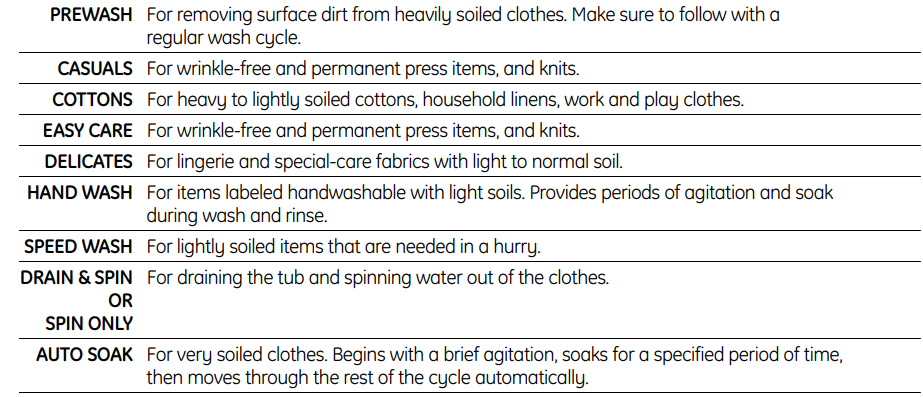

The chart below will help you match the wash cycle setting with your clothing. The chart is ranked from longest to shortest cycle time and wash intensity. (Cycles vary by model.)

F. START

Press START to begin the cycle. Pressing START again or raising the lid will PAUSE the cycle, and the Cycle indicator light will blink.

To continue the cycle, press START again or close the lid. If the machine is paused for more than 24 hours, the cycle will be cancelled. To stop the cycle, hold the button for 3 seconds. If water remains in the machine, select the DRAIN & SPIN OR SPIN ONLY cycle to drain the tub and spin water out of the washer tub.

Raising the lid will stop agitation or spin action, but does not pause the cycle.

About washer features.

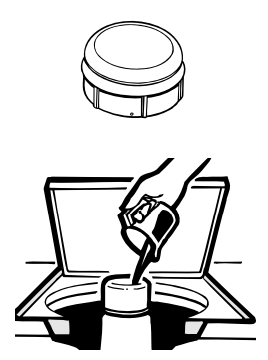

The Agitator Cap or Fabric Softener Dispenser (depending on model)

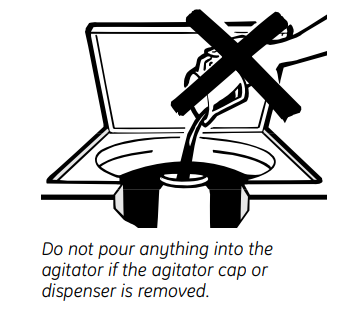

The agitator cap fits into the top of the agitator. If it accidentally comes off, simply put it back on.

The fabric softener dispenser automatically releases liquid fabric softener at the proper time during the cycle.

Do not stop the washer during the first spin. This will cause the dispenser to empty too soon.

To use, follow these steps:

1. Make sure the dispenser is securely attached to the agitator.
2. Use only liquid fabric softener. Pour into the dispenser, using the amount recommended on the package.  Never pour fabric softener directly on clothes. It may stain them.
3. Add water to the dispenser until it reaches the maximum fill line.

Cleaning the Fabric Softener Dispenser (on some models)

1. Remove the dispenser from the top of the agitator.
2. Separate the dispenser cup from the cover by grasping the top and pushing down on the inside of the cup with your fingers. The dispenser cup will pop free from the cover.
3. To clean the dispenser, soak both the dispenser cup and the dispenser cover in the following solution:
   • 1 US gallon (3.8 liters) of warm water
   • 1/4 cup (60 ml) heavy-duty liquid detergent
   • 1 cup (240 ml) bleach
4. If necessary, loosen buildup with a clean, soft cloth after soaking. Do not use a stiff brush; you may roughen the surface of the dispenser.
5. Rinse and reassemble the dispenser. Place the dispenser back on the agitator.

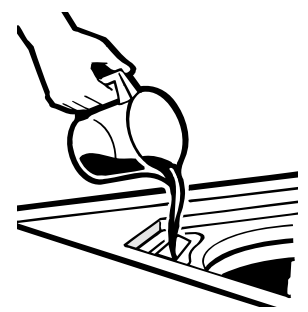

Liquid Bleach Funnel

The water fills with diluted liquid chlorine bleach as the washer fills for the wash cycle.

1. Check clothing care labels for special instructions.
2. Measure liquid bleach carefully, following instructions on the bottle.
   • Never pour undiluted liquid chlorine bleach directly onto clothes or into the wash basket.
   • Do not pour powdered bleach into the bleach funnel.
3. Before starting the washer, pour a measured amount of bleach directly into the bleach funnel. Avoid splashing or over-filling the dispenser. If you prefer to use powdered bleach, add it into the wash basket with your detergent.
   • Do not mix chlorine bleach with ammonia or acids such as vinegar and/or rust remover. Mixing can produce a toxic gas that may cause death.

Loading and using the washer.

Always follow the fabric manufacturer’s care label when laundering.

Sorting Wash Loads

Sort by color (whites, lights, colors), soil level, fabric type (sturdy cottons, easy care, delicates), and whether the fabric produces lint (terry cloth, chenille) or collects lint (velveteen, corduroy).

Proper Use of Detergent

Add detergent and start the washer before adding clothes so that the detergent can work effectively. Using too little or too much detergent is a common cause of laundry problems.

You can use less detergent if you have soft water, a smaller lo, ad, or a lightly soiled load.

Loading the Washer

Load dry items loosely, no higher than the top row of holes in the washer basket. When loading wet items, make sure you set the load/water level high enough to allow the items to move freely. The water level should just cover the clothes. To add items after the washer has started, lift the lid and submerge additional items next to the agitator.

• Do not wrap long items like sheets or pants around the agitator.
• Do not wash fabrics containing flammable materials (waxes, cleaning fluids, etc.).
• Agitation will not start with the lid up.

Care and cleaning of the washer.

Wash Basket

Leave the lid open after washing to allow moisture to evaporate. If you want to clean the basket, use a clean, soft cloth dampened with liquid detergent; then rinse. (Do not use harsh or gritty cleaners.)

Fill Hoses

GE recommends changing the hoses every 5 years.

Exterior

Immediately wipe off any spills. Wipe with a damp cloth. Try not to hit the surface with sharp objects.

Moving and Storage: Ask the service technician to remove water from the drain pump and hoses. See the Installation Instructions packed with the product for information on how to reinstall the shipping rod to keep the tub stationary when moving the washer.

For more information, visit ge.com or call 800. GE.CARES (800.432.2737). Do not store the washer where it will be exposed to the weather.

Long Vacations

Be sure the water supply is shut off at faucets. Drain all water from hoses if the weather is below freezing.

Before you call for service…

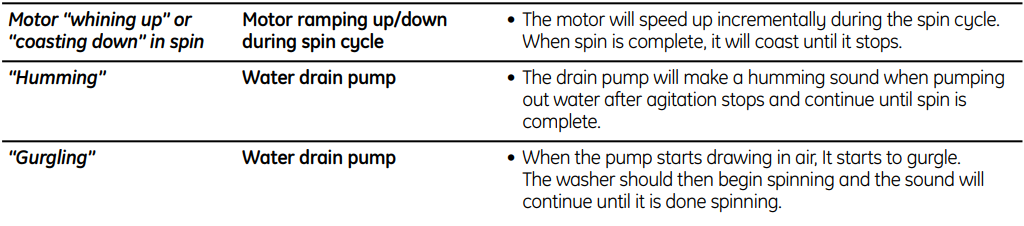

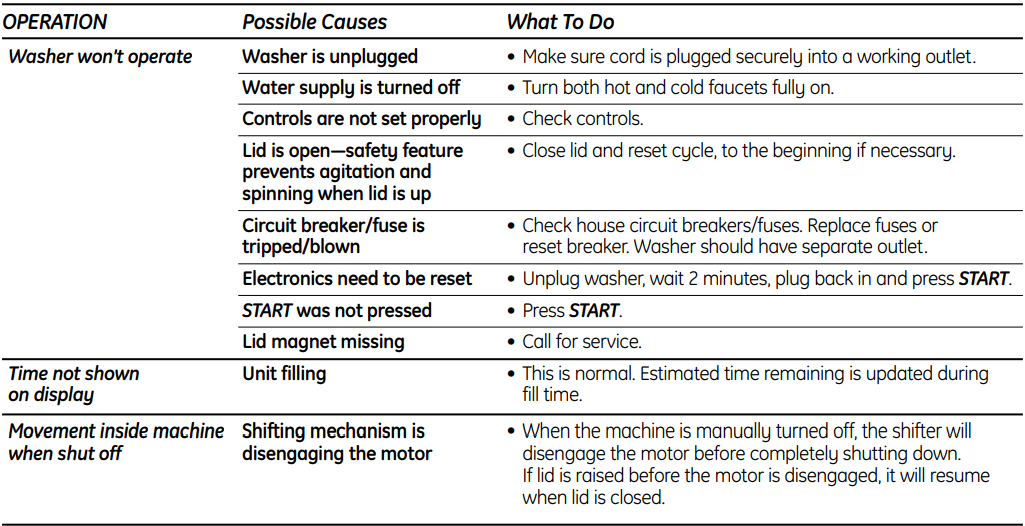

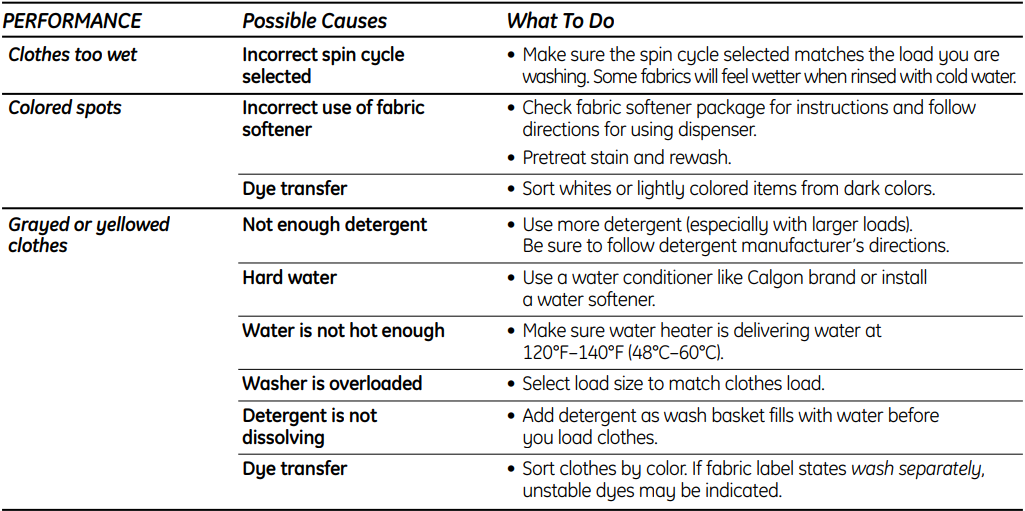

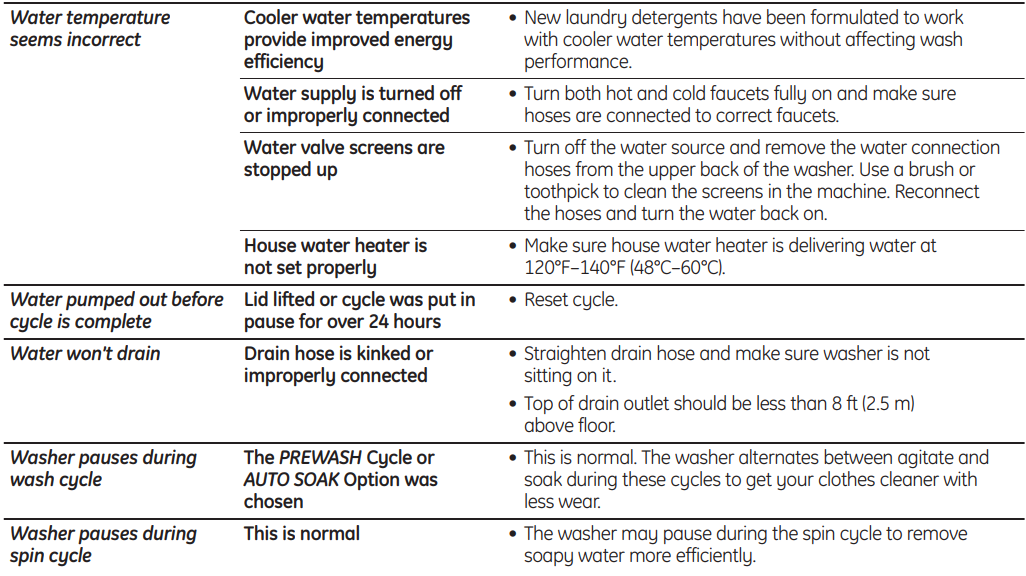

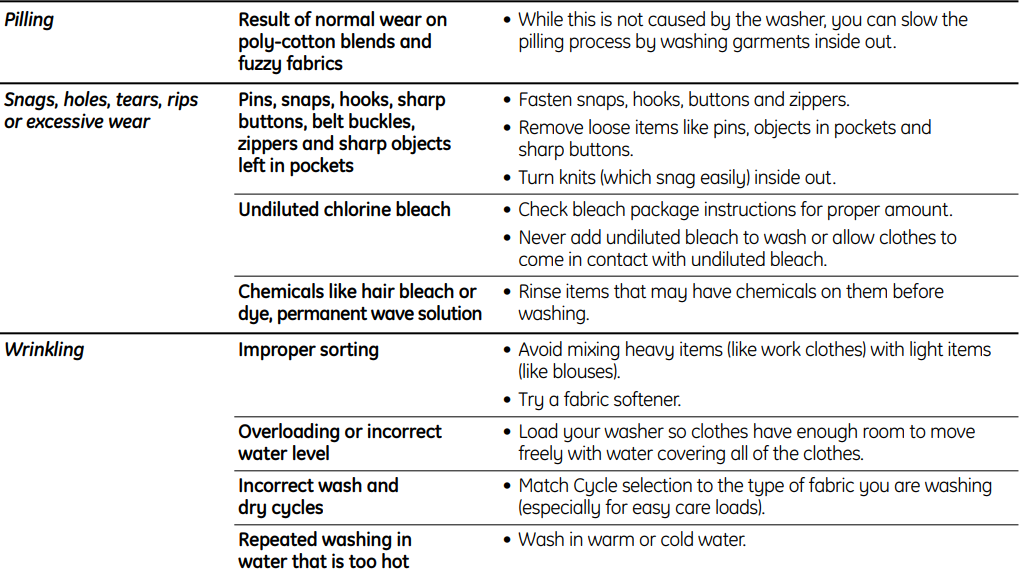

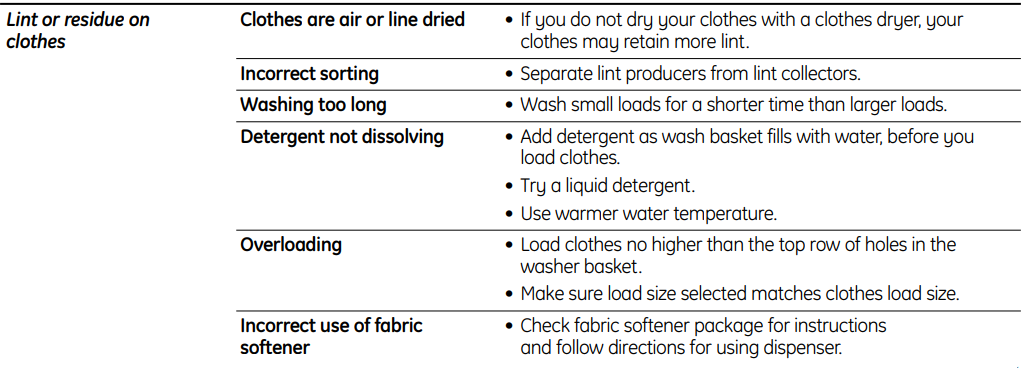

Troubleshooting Tips

Save time and money! Review the charts on the following pages, or visit ge.com. You may not need to call for service.

GE Washer Warranty.

All warranty service is provided by our Factory Service Centers or an authorized Customer Care® technician. To schedule service, online 24 hours a day, visit us at ge.com, or call 800. GE.CARES (800.432.2737). Please have the serial number and model number available when calling for service.

For The Period Of

One Year From the date of the original purchase

We Will Replace

Any part of the washer that fails due to a defect in materials or workmanship. During this limited one-year warranty, we will also provide, free of charge, all labor and related services to replace the defective part.

What Is Not Covered

• Service trips to your home to teach you how to use the product.
• Improper installation, delivery, or maintenance.
• Failure of the product if it is abused, misused, or used for other than the intended purpose, or used commercially.
• Replacement of house fuses or resetting of circuit breakers.
• Products that are not defective or broken, or that are working as described in the Owner’s Manual.
• Damage to the product caused by accident, fire, floods, or acts of God.
• Incidental or consequential damage caused by possible defects with this appliance.
• Defects or damage due to operation in freezing temperatures.
• Damage caused after delivery. The product is not accessible to provide the required service.

EXCLUSION OF IMPLIED WARRANTIES

Your sole and exclusive remedy is product repair as provided in this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law.

This warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within the USA. If the product is located in an area where service by a GE Authorized Servicer is not available, you may be responsible for a trip charge, or you may be required to bring the product to an Authorized GE Service location. In Alaska, the warranty excludes the cost of shipping or service calls to your home.

Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state’s Attorney General.

Consumer Support.

GE Appliances Website

Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hours a day, any day of the year! For greater convenience and faster service, you can now download Owner’s Manuals, order parts, or even schedule service online.

Schedule Service

Expert GE repair service is only one step away from your door. Get online and schedule your service at your convenience 2,4 hours any day of the year! Or call 800. GE.CARES (800.432.2737) during normal business hours.

Real Life Design Studio

GE supports the Universal Design concept—products, services, and environments that can be used by people of all ages, sizes, and capabilities. We recognize the need to design for a wide range of physical and mental abilities and impairments. For details of GE’s Universal Design applications, including kitchen design ideas for people with disabilities, check out our Website today. For the hearing impaired, please call 800.TDD.GEAC (800.833.4322).

Extended Warranties

Purchase a GE extended warranty and learn about special discounts that are available while your warranty is still in effect. You can purchase it online anytime, or call 800.626.2224 during normal business hours. GE Consumer Home Services will still be there after your warranty expires.

Parts and Accessories

Individuals qualified to service their oppliances can have parts or accessories sent directly to their homes (VISA, MasterCard, and Discover cards are accepted). Order online today, 24 hours every day or by phone at 800.626.2002 during normal business hours.

Instructions contained in this manual cover procedures to be performed by any user. Other servicing should generally be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause unsafe operation.

Contact Us

If you are not satisfied with the service you receive from GE, contact us on our Website with all the details, including your phone number, or write to: General Manager, Customer Relations GE Appliances, Appliance Park, Louisville, KY 40225

Register Your Appliance

Register your new appliance online—at your convenience! Timely product registration will allow for enhanced communication and prompt service under the terms of your warranty, should the need arise. You may also mail in the pre-printed registration card included in the packing material.
