GE HTW200 Top Load Washer Manual

GE HTW200 Top Load Washer

Safety Requirements

GE Factory Service Employees are required to use safety glasses with side shields, safety gloves and
steel toe shoes for all repairs.

• Steel Toed Work Boot
• Electrically Rated Glove and Dyneema® Cut Resistant Glove Keeper
• Dyneema®Cut Resistant Glove

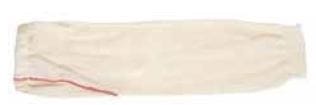

• Cut Resistant Sleeve(s)
• Plano Type Safety Glasses

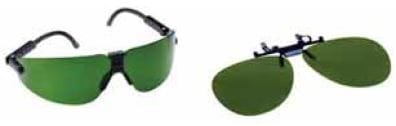

• Brazing Glasses

WARNING! Prior to disassembly of the washer to access components, GE Factory Service technicians are REQUIRED to follow the Lockout / Tagout (LOTO) 6 Step Process:

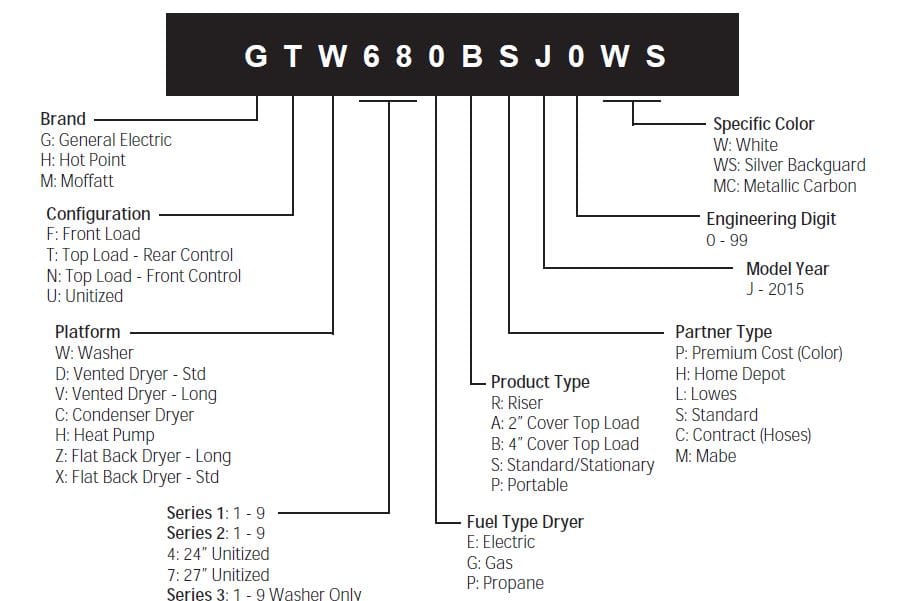

Nomenclature

Introduction

GE Top Load Washer Features

GE’s 27″ Top Load Washer has features the consumer has asked for. Between the cycles and options selected, the consumer will be happy with the washability of this product.

Features include:

• Deep Fill: Option to add more water for larger loads.
• Deep Rinse: Removes any leftover soap residue.
• Warm Rinse: Option to select between a warm or cold rinse.
• Auto Soak: Loosens stains by soaking up to 2 hours.
• Agitator or Impeller Models: Provides gentle wash action with great turnover for great washability.
• Load Size: Automatically measures load size, and adjusts settings and water levels accordingly. Settings are customizable, so you always get the wash you want.
• Stain Removal Guide: Assists removing tough stains with preprogrammed selectable settings that
  modify your cycle to treat the four most common stains.
• Sanitize with Oxi: Removes 99.9 % of bacteria with a dedicated cycle that uses an Oxi additive to boost your detergents cleaning power, while keeping fabrics looking their best.

Control Features

Throughout this manual, features and appearance may vary by model.

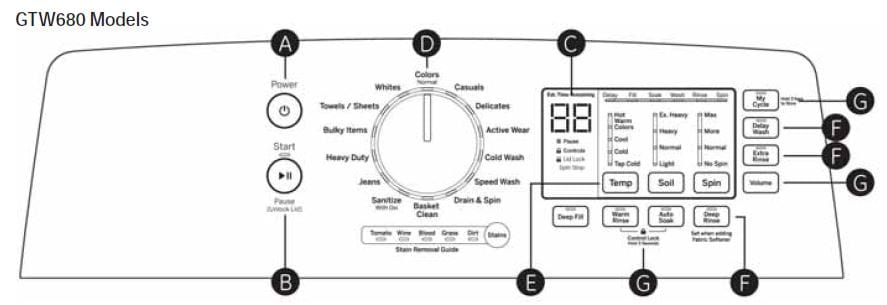

• A: Power
  Press to “wake up” the display. If the display is active, press to put the washer into idle mode.
  NOTE: Pressing Power does not disconnect the appliance from the power supply.
• B: Start/Pause
  Press Start to begin the cycle. NOTE: The lid must be closed for the washer to start the cycle. If the lid is open, “Lid” will scroll across the display. If the lid is closed, the lid will lock, the Lid Lock light will illuminate, and “SEnSing” will scroll across the display. Pressing Pause will unlock the lid (if locked at that time), pause the cycle and the Start indicator light will blink. To continue the cycle, press Start again. If the machine is paused more than 24 hours, the cycle will be cancelled. If water remains in the machine, select the Drain & Spin cycle to drain basket and spin water out of the washer basket.
• C: Display and Status Lights
  Display: The display shows the approximate time remaining until the end of the cycle.
  NOTE: The cycle time is affected by how long it takes the washer to fill. This depends on the water pressure in the home. The size of the load being washed also significantly impacts cycle time, with larger loads taking longer.
  In addition, this display will, “scroll” the washer status:
  • Balancing: Start of rebalancing cycle to redistribute clothes. Stops after rebalancing is complete.
  • Delay: When Delay Wash is initiated. Replaced with estimated time when cycle starts.
  • End:  End of current cycle.
  • FILL: For the first 45 seconds of a fill, the estimated end of cycle time is displayed. For the rest of the fill time, “FILL” is scrolled until the fill completes.
  • H2O SUPPLY : Cannot sense water level (valves possibly turned off).
  • LId: Cycle stopped because lid is open. Close the lid.
  • Sensing: Sensing load size and type before and during fill (normal).
  • PAUSE: Cycle paused because the Start/Pause button was pressed and the washer was set to Pause. Press the Start button again to restart the cycle.

Cycle status lights: Shows whether the washer is in the Delay, Fill, Soak, Wash, Rinse or Spin portion of the cycle. If an out-of-balance condition is detected by the washer, the Spin light will blink during the remaining portion of the cycle and will stay illuminated for a short time after cycle completion. When this occurs, the washer is taking actions to correct the out-of-balance condition and complete the cycle normally. In some cases, the washer may not be able to balance the load and spin up to full speed. If the load is more wet than normal at the end of the cycle, redistribute the load evenly in the wash basket and run a Drain & Spin cycle. Feature status lights indicate (see sections F and G for more details):

• • Pause: Will display when washer is paused between cycles.
  • Controls: The washer is locked – will blink once if any button is pressed or the cycle knob is turned.
  • Lid Lock: The lid is locked. See the Control Lock description.
  • Spin Stop: Indicates wash basket is coasting to a stop following spin. Lid will not unlock until basket has fully come to a stop.

Wash Cycles-Cycle Selector Knob

The wash cycle controls the type of washing process. The cycle selector knob can be turned in either direction. Turning the knob after starting a cycle will stop the washer and change the cycle options to the new selection. Press Start to begin the new cycle selection. The chart below will help match the items to be washed with the best wash cycle settings. For optimal performance, select the cycle that most closely matches the items being washed.

Selections and options shown in bold are default settings for that cycle. Some cycles and options may not be available on some models.

Sanitize with Oxi
The Sanitize with Oxi cycle, when using an Oxi additive along with the detergent, is designed to remove 99.9% of bacteria found in home laundry. Measure the detergent and the Oxi products carefully. Using the amounts appropriate for a large heavily soiled load, follow the detergent and the Oxi product label instructions. The detergent should be added using the dispenser instructions as shown on page 9 of the Use and Care book. Place the Oxi product directly in the bottom of the wash basket, before adding the clothes.The washer hot water supply connection must provide a minimum of 120°F to ensure the effectiveness of this cycle.

NOTE: The default Sanitize With Oxi cycle water temperature can NOT be changed

The Sanitize With Oxi cycle is certified by NSF International, an independent third party testing and certification organization. The certification verified that the cycle reduced 99.9% of bacteria typically found in residential laundry and that no significant contamination is transferred to subsequent washer loads. Only the Sanitize With Oxi cycle has been designed to meet the requirements of NSF Protocol P172 for sanitizing effectiveness.

Stain Removal Guide

The Stain Removal Guide feature allows the user to indicate what stains are on the garments in the load. This feature incorporates a patent pending treatment method. An initial water fill is performed at a temperature tailored to the stain type selected and to an amount which enables a concentrated cleaning step. A stain scrubbing period, followed by an active soak, is conducted to effectively treat the stain. Then additional water is added to the selected temperature and the wash phase is conducted for the cycle selected.

This feature can be applied to most wash cycles as described in the cycle guide.

To use Stain Removal Guide:

1. Select the desired wash cycle.
2. Press the Stain Removal Guide button.

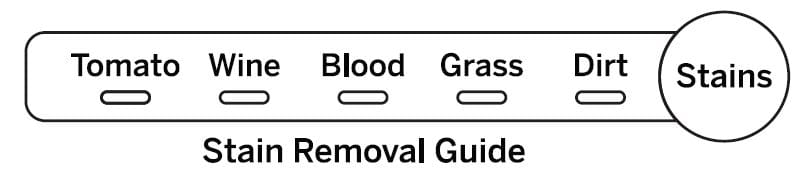

Continue to press to select Tomato stain, Wine stain, Blood stain, Grass stain or Dirt stain. The indicator light will show the selected stain. To select a different stain, press the Stain Removal Guide button until desired stain to be removed is lit. To turn off Stain Removal Guide, press until no indicator lights are illuminated.

NOTE: The Soil and Temperature levels will be changed to match the recommended default setting for each stain type. Turning off Stain Removal Guide will return the settings to default.

• • Recommended temperatures are optimal for stain removal performance; adjust temperature selection to suit load being washed.
  • Ensure stain is completely removed after wash cycle and before placing in dryer; very tough stains may require a second treatment.
• E: Settings

Individual settings for agitation (Soil), water temperature (Temp), and spin (Spin) can be set from the minimum (lowest in column) to maximum (highest in column). In general, the higher up the column, the more washer energy will be used.

NOTE: Longer Spin times typically reduce dryer time/energy usage (i.e.: reduces total energy when using both a washer and a dryer).

Cycle Options

Deep Fill

Select the Deep Fill feature for loads where extra water is needed. Press the Deep Fill button once before starting the cycle to add an incremental amount of water to the wash load. Holding the Deep Fill button for 3 seconds will provide the deepest fill level possible; this will increase cycle time due to the additional time it takes to fill the washer.

To cancel the option if desired, press the Deep Fill button again.

NOTE: The Deep Fill button can also be pressed after the washer has completed filling and is in the wash phase if additional water is desired. To stop the extra fill, press the Deep Fill button again and the water will stop.

Warm Rinse
Provides a warm rinse to the wash load. Note that rinsing operations may be different with this operation selected in order to effectively apply the warm rinse water to the load.

Auto Soak
This option begins with a brief agitation, soaks for a specified period of time, then moves through the rest of the cycle automatically. Repeated pressing of the Soak button will scroll through 15 minute, 30 minute, 1 hour, and 2 hour selections and then return back to 0 soak minutes.

Deep Rinse
Set this option to provide a deep rinse or when using fabric softener. It may change other settings (e.g. Spin may go to a higher setting) to maximize performance.

NOTE: Do not use fabric softener dispensing balls with this washer. They do not work correctly in high efficiency washers.

Delay Wash
When the Delay Wash button is repeatedly pressed, the delay time is set from 1 (01H) to 9 (09H) hours and back to clear (00H) hours. If the user presses and holds the Delay Wash button for 3 seconds, it will immediately reset.

Extra Rinse
When the user uses extra detergent or bleach to clean heavily soiled clothes, use the Extra Rinse option to better remove additional residues.

NOTE: This option is not allowed for some cycles.

Additional Options

My Cycle Settings
As the cycle selector knob is turned, the Temp, Soil and Spin settings change to automatic pre-set default settings for each cycle. If the user desires different default settings, select the desired options or changes to the cycle settings, then press and hold the My Cycle button for 3 seconds to store them. The My Cycle button will light when active. In the future, when the user turns the selector knob to that cycle, the settings will be automatically recalled. To restore the factory defaults temporarily (i.e.: for this load), press the My Cycle button for 1/2 second. The My Cycle light will turn off and the factory defaults will load.

However, the next time the user selects this cycle, My Cycle settings will load. If the user wishes to permanently restore the factory default settings for the cycle; when the My Cycle is active (button light on) press and hold the My Cycle button for 3 seconds. The factory defaults will load for the selected cycle and the My Cycle light will turn off. The default settings will load when this cycle is selected in the future and the My Cycle light will remain off.

NOTE: My Cycle saves the following options: Temp, Soil, Spin, Extra Rinse, Deep Fill, Warm Rinse, Auto Soak, Deep Rinse and Stain Removal Guide.

Volume
Use the Volume button to change the volume of the end of cycle signal and other system tones. Press the button until the desired volume (high, medium, low) is reached or off.

Control Lock
Use the control lock before or during a cycle to prevent any selections from being made.
To lock/unlock the washer controls, press and hold the Warm Rinse and Auto Soak buttons for 3 seconds. The control lock icon will light up when it is on. NOTE: The Power button can still be used when the machine is locked.

Operating Instructions

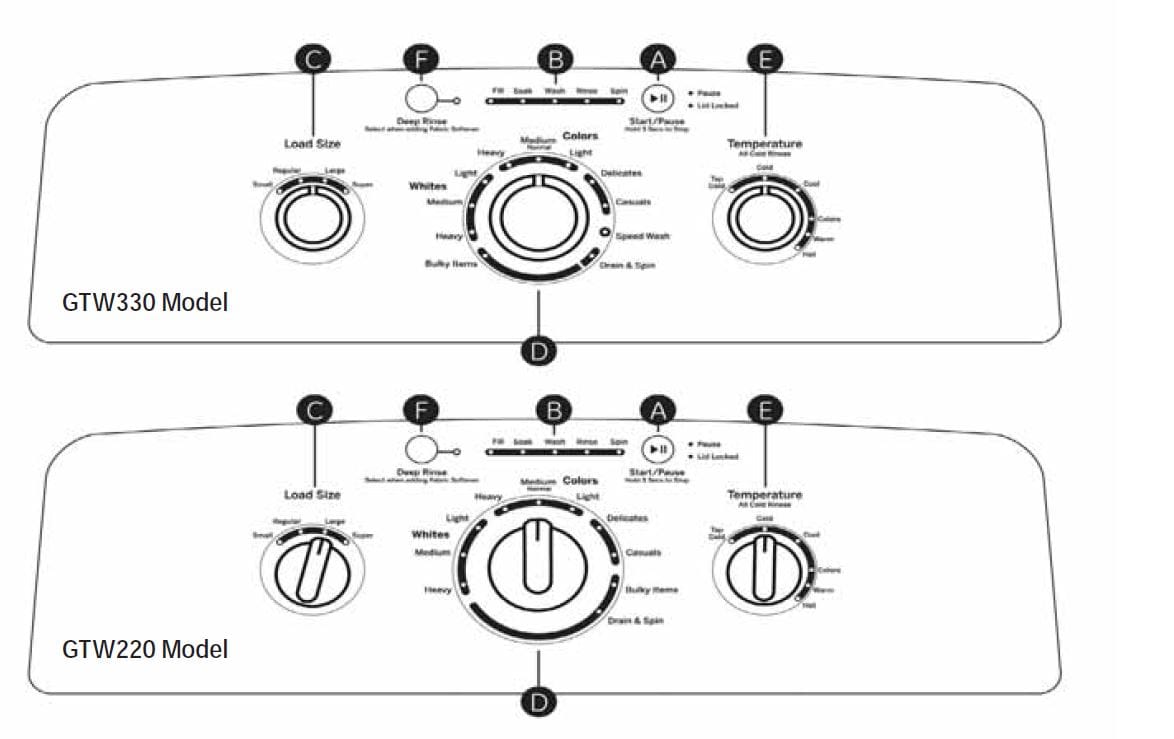

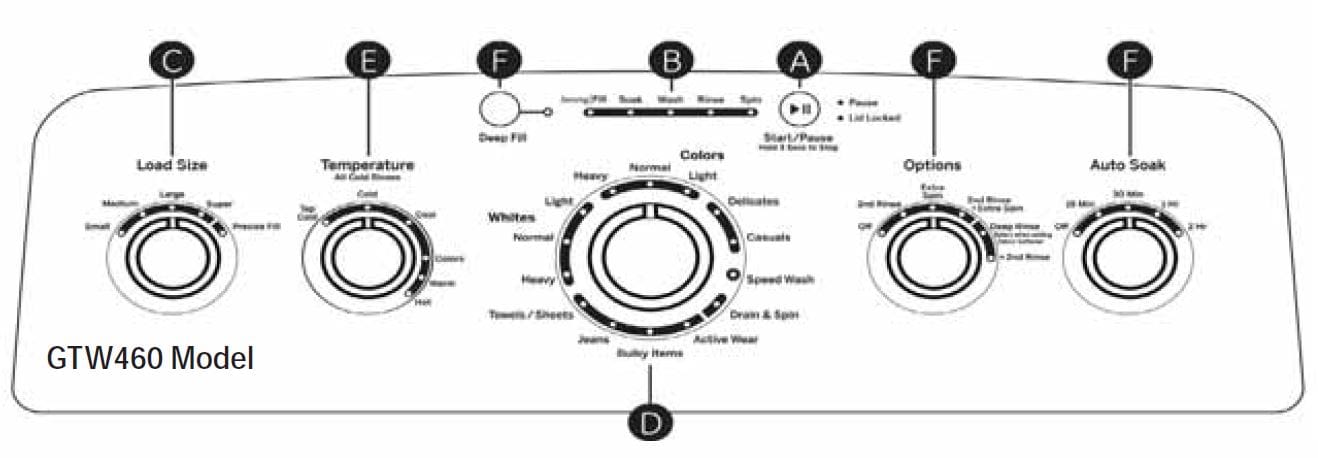

• A: Start/Pause
  Press Start to begin the cycle. NOTE: The lid must be closed for the washer to start the cycle. If the lid is closed, the lid will lock and the Lid Locked light will illuminate. Pressing Pause will unlock the lid (if locked at that time), pause the cycle and the Pause indicator light will blink. To continue the cycle, press Start again. If machine is paused more than 24 hours, the cycle will be cancelled. If water remains in the machine, select the Drain & Spin cycle to drain basket and spin water out of the washer basket.
• B: Cycle Status Lights
  Shows whether the washer is in the Fill, Soak, Wash, Rinse or Spin portion of the cycle.
  If an out-of-balance condition is detected by the washer, the Spin light will blink during the remaining portion of the cycle and will stay illuminated for a short time after cycle completion. When this occurs, the washer is taking actions to correct the out-of-balance condition and complete the cycle normally. In some cases, the washer may not be able to balance the load and spin up to full speed. If the load is more wet than normal at the end of the cycle, redistribute the load evenly in the wash basket and run a Drain & Spin cycle.

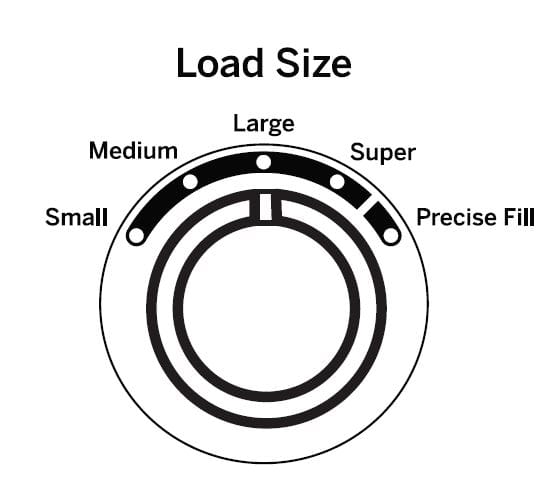

• C: Load Size (on some models)
  Add high efficiency detergent to the bottom of the basket and fabric softener to the dispenser (on some models) prior to loading clothes. Loosely load items in the washer basket. Overloading may negatively impact wash performance. Adjust the load size accordingly.

Make the load selection

Precise Fill (on some models)

• • For convenience, best performance and optimal efficiency, select Precise Fill for models so equipped. This selection automatically provides the correct amount of water suited to the size and type of load placed in the unit. The lid will be locked for the duration of the load sensing process, which includes a series of short spins and a portion of the water fill.
  • If the user prefers to manually select the water level, select Small through Super. While Precise Fill is best for most loads and general washing, the user may want to manually select the load size for specialty items such as bulky, lightweight comforters or pillows, where it may be necessary to make sure that a larger water level is applied. Manual load size selections should be made for wet items placed in the washer, such as soaked towels or garments.
  • The washer will not fill with water when Precise Fill is selected if the lid is opened. When the lid is closed, the machine is able to begin filling with water in order to sense the load size.
    NOTE: This is a high-efficiency washing machine. This system requires less water while providing effective cleaning action. It may be noticeable that the water level is lower than on a previous washer. This is normal.
• D: Wash Cycles – Cycle Selector Knob
  The wash cycle controls the type of washing process. The cycle selector knob can be turned in either direction. Turning the knob after starting a cycle will stop the washer and change the cycle/options to the new selection. Press Start to begin the new cycle selection. The chart below will help match the items to be washed with the best wash cycle settings. For optimal performance, select the cycle that most closely matches the items being washed. Selections and options shown in bold are the recommended settings for that cycle. Some cycles and options may not be available on some models.

• E: Settings

Select settings for agitation (Soil) and water temperature (Temp).

NOTE: Longer Spin times typically reduce dryer time/energy usage (i.e.: reduces total energy when using both a washer and a dryer).

• F: Cycle Options
  Stain PreTreat (on some models)
  The Stain PreTreat feature allows the user to indicate what stains are on the garments in the load. This feature incorporates a patent pending treatment method. An initial water fill is performed at a temperature tailored to the stain type selected and to an amount which enables a concentrated cleaning step. A stain scrubbing period, followed by an active soak, is conducted to effectively treat the stain. Then additional water is added to the selected temperature and the wash phase is conducted for the cycle selected.
  This feature can be applied to most wash cycles as described in the cycle guide.
  To use Stain PreTreat:
  1. Select the desired wash cycle.
  2. Select the stain to be treated under the Stain PreTreat options.

• • Recommended temperatures are optimal for stain removal performance; adjust temperature selection to suit load being washed.
  • Ensure stain is completely removed after wash cycle and before placing in dryer; very tough stains may require a second treatment

Deep Fill
Select the Deep Fill feature for loads where extra water is needed. Press the Deep Fill button once before starting the cycle to add an incremental amount of water to the wash load. Holding the Deep Fill button for 3 seconds will provide the deepest fill level possible; this will increase cycle time due to the additional time it takes to fill the washer. To cancel the option if desired, press the Deep Fill button again.

NOTE: The Deep Fill button can also be pressed after the washer has completed filling and is in the wash phase if additional water is desired. To stop the extra fill, press the Deep Fill button again and the water will stop.

Auto Soak
This option begins with a brief agitation, soaks for a specified period of time, then moves through the rest of the cycle automatically.

2nd Rinse
When using extra detergent or bleach to clean heavily soiled clothes, use the 2nd Rinse option to better remove additional residues.

Extra Spin
Select to provide additional spin time, increasing energy efficiency through reducing drying times.

2nd Rinse + Extra Spin
Provides both a second rinse and an extra spin.

Deep Rinse
Set this option to provide a deep rinse or when using fabric softener. This option may change other settings (e.g. Spin may go to a higher setting) to maximize performance.
