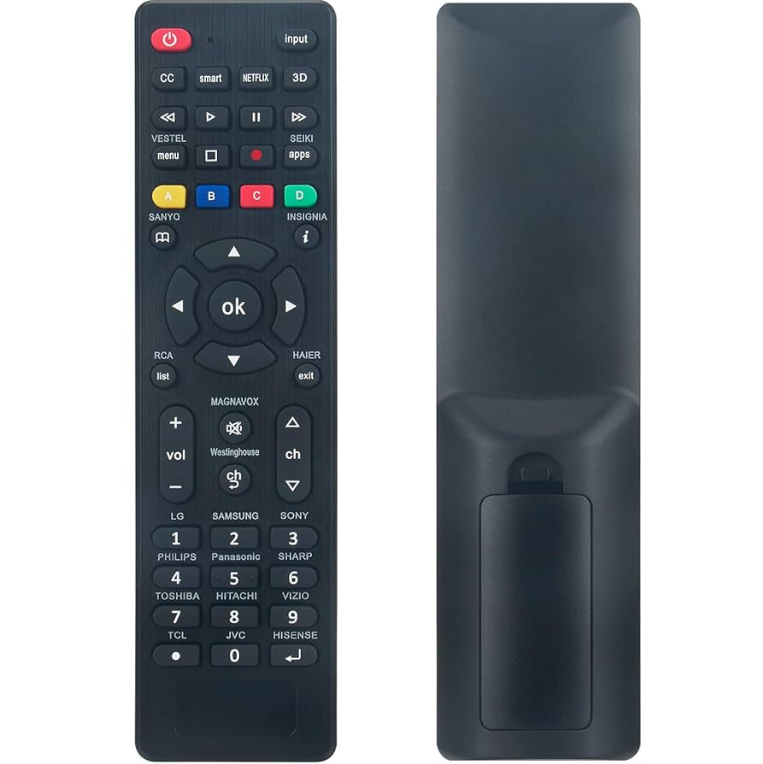

Gmatrix RC-G008 Universal TV Remote Control
Automatic Search

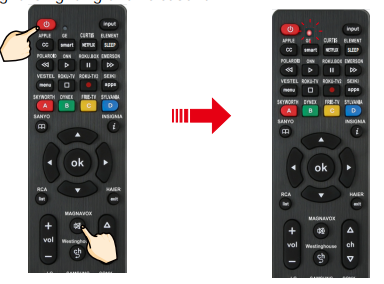

STEP 1: Press the mute and power buttons together; the LED light will turn on, then release.
STEP 2: Press the mute button again, and the remote control enters the automatic
search mode. If the volume appears on the TV, press the mute key again. The automatic search stops, and you can press other keys to test the function.
STEP 3: If the function is correct, you can press the power key to exit search mode, and the current function will be saved.
Set up by Code
Press the mute and power buttons together; the LED light will turn on, then release.

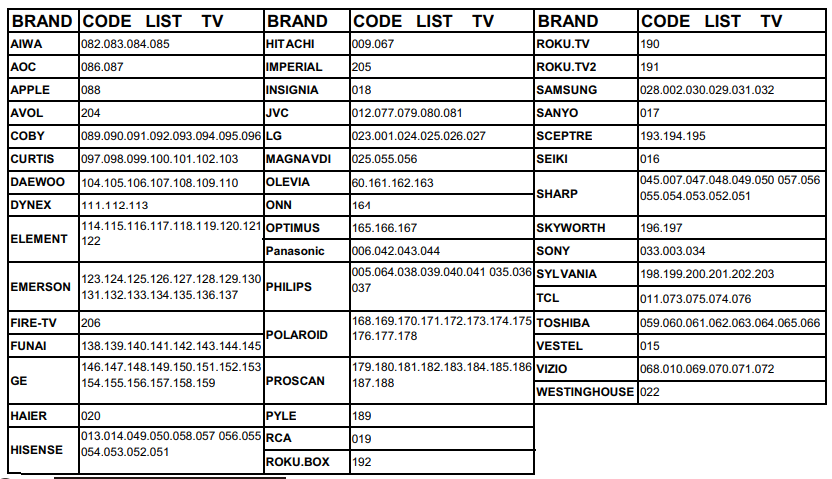

STEP 2: Input your 3-digit TV CODE from the code list. If the code is right, the LED light will go o. If the code is wrong, the LED light will still be on. If this happens,t to enter the code again as there may have been an error the first time.
STEP 3: Please check the function of Remote. If it doesn’t work well, please you can t one of the other codes and repeat the process from step 1.

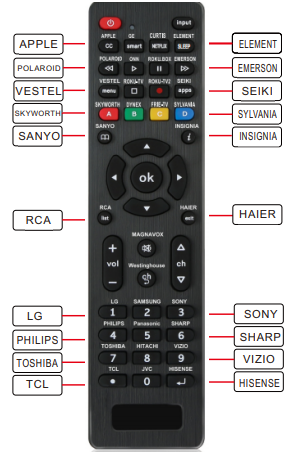

Brand Search
Brand Key Table

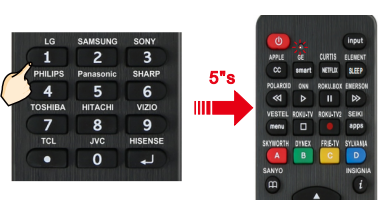

Turn on the TV. Press the button of the corresponding brand for 5 seconds, the LED flashes three times, then the setting is completed.
Default Mode:
- Under the default setting, RC-G008 can directly control many brands, including LG/ SAMSUNG/ SONY/ PHILIPS/ PANASONIC/SHARP TV.
- Restore to the initial setting, please, and hold the [ OK ] + [ 0 ] buttons for about 3 seconds; the LED light will blink four times; now it is in the initial setting.
FOR MORE MANUALS BY BLOGS, VISIT MANUALSLIBRARYY
Gmatrix RC-G008 Universal TV Remote Control-FAQs
How do I connect a universal remote to my TV?
Turn on your TV → Press and hold the device button (e.g., TV) on the remote → Enter the correct brand code → Release the button → Test the functions.
What if I don’t have the TV code?
Use the auto-programming method: Press the TV button and the Power button together → Hold until the TV turns off → Release → The remote is now paired.
How do I find the TV code for my universal remote?
Check the code list inside the battery compartment or in the user manual. If unavailable, search online for your TV brand and model.
How do I know if my remote is working?
Point the remote at a phone camera → Press a button → If you see a flashing light on the screen, the remote is transmitting an infrared signal.
Why is my universal remote not working?
Check or replace the batteries.
Reprogram the remote with the correct code.
Make sure there is no obstruction between the remote and the TV’s IR sensor.
How do I reset the RC-G008 remote control?
Remove the batteries → Press and hold the Power button for 3–5 seconds → Reinsert the batteries. This resets the remote to factory settings.
How do universal remotes work?
Universal remotes send infrared (IR) signals that match specific TV codes. When you press a button, the remote transmits a signal pattern that your TV recognizes and responds to.
What type of signal does the RC-G008 use?
The RC-G008 uses Infrared (IR) signals, which require a direct line of sight between the remote and the TV.
Can one universal remote work with all TVs?
Yes, most modern universal remotes like the RC-G008 work with all major TV brands, but you need to program them with the correct code or use the auto-scan method.
