Gyroor URBANMAX C1 Electric Scooter User Manual

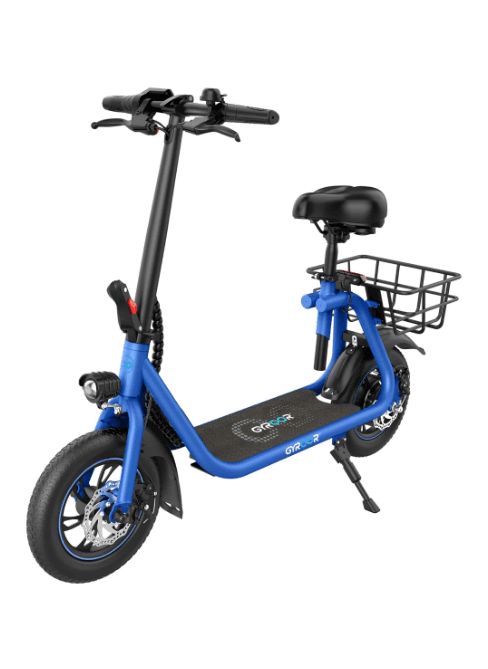

Gyroor URBANMAX C1 Electric Scooter

Configuration & Packing Listing

Assembling the Device

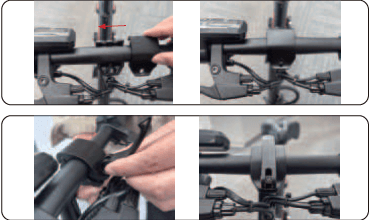

1. As the picture, put it in.
2. As in the picture, align stickers up and down.
3. As in the picture, tighten the screws.
4. As in the picture, close the lock lever.

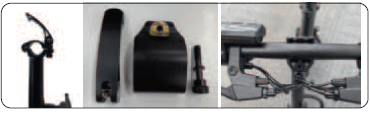

1. As picture, open the quick release, and loosen the screws at the bottom, then remove moving parts. The removed parts are shown in the picture. Ass picture. Put the transverse handle into the slot.
2. As picture. The moving part slides into the corresponding position.
3. As a picture, tighten the screws on the bottom.
4. As a picture, close the quick release.

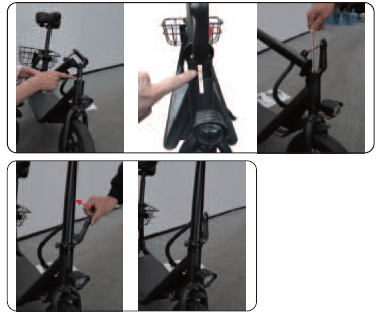

Open the quick release on the seat post mount on the frame and insert the seat post. Adjust the seat height to a comfortable position and then close the quick release.

Preparation

Remove the 4 mounting screws for the luggage basket above the rear mudguard. Adjust the luggage basket and fix it in place with the screws you just removed.

ATTENTION!

• Make sure that the front light, rear light, bell, and brakes are working well.
• Check the battery capacity on the display and make sure you have enough battery.
• Regularly check the tire pressure and fill the tires with air as needed.
• The recommended tire pressure is 2.5 bar.

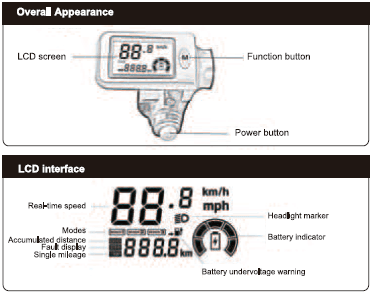

Display functions

Operating Instructions

1. Power on/off: Single press the power button on and single press again off.
2. Switch modes: Single press M button to change between mode1 ,mode2,mode3. Different modes correspond to different speed limits.
3. Switch on/off lights: Double press the M button to switch it on and double press again off.
4. Switch the mileage area display content: By default, single mileage is displayed. Long press the function button (>3 seconds) to switch the display content in the mileage area. Cumulative mileage (ODO)-> single mileage (TRIP)-> Battery voltage (UXX.X) -> Failure code (ERR).
   Note: Every time you restart the machine, the single mileage will be reset, and the accumulated mileage will continue to accumulate. If no fault is detected, the fault code is skipped during the switchover.
5. Fault code display: When a fault is detected, the “ERR” icon will be displayed. You can find the fault code according to the fault code displayed in the current mileage area The current fault. Please refer to the attached table for the meaning of the fault code.
6. Battery undervoltage: When the battery undervoltage is detected, the undervoltage (charge) sign is displayed on the screen, and the scooter can still ride for some distance.but I recommend charging it immediately.

Using the battery

Charging the battery

1. The charging port is located at the rear end of the running board as shown.
2. Open the protective cap over the charging port.

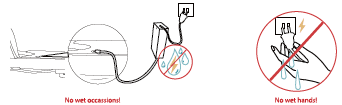

3. Make sure the charging port and charger are dry.
4. Make sure that the Folding E-Scooter is turned off.
5. Connect the charging cable to the charging port.
6. Connect the charging device’s mains plug to a suitable wall socket (100 – 240V I 50 – 60 Hz).
7. The charging light on the charger will light red when charging.
8. The battery is charged once the charging light changes from red to green. You should stop charging at this point.
9. Disconnect the charger from the mains and the Folding E-scooter.

Using the battery

WARNING

• Never remove the battery from the Folding E-Scooter.
• Charge the battery every 1 months for at least 1 hour, even if the Folding E- Scooter has not been in use, otherwise it will lose capacity.
• Regular charging protects the battery from total discharge.
• Never heat the battery or throw it into an open fire.
• Never dispose of battery cells in the household waste.
• Never get moisture on the battery contacts.
• The optimal operating temperature for the battery is between 10° C and 30° C. Above and below this temperature, the power output will deteriorate, resulting in a reduced range and power output.
• The Folding E-Scooter may only be charged with the supplied charger. Ensure the correct voltage supply (100 – 240V / 50 – 60 Hz).
• The Folding E-Scooter must not be charged if the charging cable is damaged. Please contact customer service.
• A battery’s service life and performance depend on its age, care ,and how often it has been used.
• For optimum battery life, charge and store the E-Scooter in a dry and clean environment, preferably at a temperature between 7 and 15° C.
• The Folding E-Scooter takes approx. 5 hours to charge. If the charger is permanently connected to the battery and power supply, this will have a negative effect on the battery life.
• The Folding E-Scooter and the charger must not be covered during charging.
• Please note that a over-discharged battery is irreparably destroyed and must to be replaced for a fee. The battery should never be completely discharged during operation.

Precautions Before Riding

Please kindly check

• if all parts of the E-scooter are well installed without damage
• if the brake is well;
• if the folding mechanism is locked;
• if there is enough power;
• if the tire is in good condition;
• if the handle is fixed.

You need to

• find an open, flat place with a square of at least 4m *20m to practice riding indoors or outdoors;
• fully understand the riding surroundings, and avoid being disturbed by cars, pedestrians, pets, or other obstacles.
• Have a skilled assistant who is familiar with riding an e-bike and knows about all precautions and riding methods in this user manual.
• Dry and brake it in a safe place after cleaning the bike, for moisture makes the brake react slowly.

Please do not

• on smooth and wet grounds.
• increase the brake distance on rainy days;
• use the E-scooter in bad weather such as rainy, snowy, or icy conditions.
• If you insist on riding the E-scooter in any environment, please ensure that the brake is OK.

First use

Before you start

Wear a safety helmet and protectors for your own safety.

• Wear comfortable leisure or sports clothing and flat shoes while riding.
• Before riding for the first time, make sure you have plenty of space and ensure that there are no obstacles in the way.
• Fold the handlebar up and check the tire pressure.
• Please check your E-Scooter before every journey (see the section on “Maintenance and Care”).
• Switch on the E-Scooter (see section on “Display functions” ).
• Fold in the kickstand before riding, otherwise, there may be a risk of accidents and injuries.

First steps

• Use the throttle twist grip to accelerate.
• You can use the front and rear brakes to brake.
• You can choose between three-speed levels.

Tips

• Please turn the rear light off after riding every time.
• Please check the battery level before riding and charge if the power is low.
• To fold the E-scooter, please pull the lock lever of the upright tube first.
• Please note the information on storage (see section on “Using the battery”)

Maintenance and care

• Before each ride, please make sure that all screws or lock levers and quick-release clamps are tightened.
• Make sure the tire pressure is correct!
• Only use a soft, damp cloth for cleaning the Folding E-Scooter. Dirt that cannot be removed this way can be removed with plastic polish. Follow the manufacturer’s instructions in this regard.

NOTE!

• Never use alcohol, cleaner’s naphtha, acetone, or other corrosive and volatile chemical solvents that are corrosive to surfaces. These substances can damage the bike’s appearance and its exterior or interior structure.
• Never clean the Folding E-Scooter with a strong jet of water or high ­pressure cleaner.

Adjusting the brake calipers:

• Check regularly to see whether the brake calipers of the two-disc brakes are properly adjusted.
• You will need the Allen key and a rubber band to adjust the brake calipers:

1. Slightly loosen the two brake caliper mounting bolts until you can move the brake caliper
2. Then fix the brake lever with the rubber band to the recenter brake caliper.
3. Tighten both brake caliper mounting bolts again. After removing the rubber band, check whether the wheel can be moved easily.

Tautening/loosening the brake cables

1. To tauten or loosen a brake cable, you first need to loosen the lock nut on the brake lever in question.
2. Then turn the adjusting nut to tauten the brake cable (distance between the brake shoes and brake disc is reduced), or in the opposite direction to loosen it (distance between the brake shoes and brake disc increases).
3. After you have tautened the brake cable, tighten the lock nut again to fix the adjusting nut in place.

Parameters

Warranty

The warranty does not apply in the following cases:

• Use other than the intended, improper operation, care, and/or maintenance or storage (e.g. damage caused by moisture or excessive temperatures, neglected products, etc.)
• Unauthorized maintenance, misuse, collision, negligence, abuse, intake, accident. Improper use of non-product in case of improper transport packaging and/or improper transport in the event of improper mechanical influences on the product or parts of the product all events which are not due to the processing and manufacture of the product (e.g. fall, impact, damage due to external influences, fire, earthquake, flood damage, lightning, etc.) unless original proof of purchase is presented when used for private purposes, especially for commercial.

If this product is used for commercial purposes, all warranty conditions are not maintained.

If the product incurs costs for sending it back/returning it, although neither a warranty case nor a right to return exists, these must be borne by the purchaser.
