Hamilton Beach 49933 2-Way Drip Coffee Maker

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

1. Read all instructions.
2. This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are closely supervised and instructed concerning use of the appliance by a person responsible for their safety.
3. Close supervision is necessary when any appliance is used by or near children. Cleaning and user maintenance shall not be made by children without supervision. Children should be supervised to ensure that they do not play with the appliance.
4. Do not touch hot surfaces. Use handles or knobs. Care must be taken, as burns can occur from touching hot parts or from spilled hot liquid.
5. To protect against electric shock, do not place the cord, plug, or coffeemaker in water or other liquid.
6. Unplug from the outlet when either the coffee maker or the clock is not in use and before cleaning. Allow to cool before putting on or taking off parts and before cleaning the appliance.
7. The coffeemaker must be operated on a flat surface away from the edge of the counter to prevent accidental tipping.
8. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
9. Do not operate any appliance with a damaged supply cord or plug, or after the appliance malfunctions, or has been dropped or damaged in any manner. Supply cord replacement and repairs must be conducted by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard. Contact Customer Service for information on examination, repair, or adjustment as set forth in the Limited Warranty.
10. Do not use outdoors.
11. Do not let the cord hang over the edge of the table or counter or touch hot surfaces, including the stove.
12. Do not place on or near a hot gas or electric burner, or in a heated oven.
13. Use only the carafe provided with the appliance.
14. The carafe is designed for use with this coffeemaker. It must never be used on a range top or in a microwave oven.
15. Do not set a hot carafe on a wet or cold surface.
16. Do not use a cracked carafe or one with a loose or weakened handle.
17. Do not clean the carafe with cleansers, steel wool pads, or other abrasive materials.
18. Do not use the appliance for anything other than its intended use.
19. WARNING! To reduce the risk of fire or electric shock, do not remove the bottom cover of the coffeemaker. There are no user-serviceable parts inside. Repair should be done by authorized service personnel only.
20. To disconnect, turn any control to the OFF position and then remove the plug from the wall outlet. To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.
21. Be certain the carafe lid is securely in place during the brew cycle and when pouring coffee. Do not use force when placing the lid on the carafe.
22. Keep-Hot plate may remain hot after the coffee maker is turned off.

SAVE THESE INSTRUCTION

Other Consumer Safety Information

This appliance is intended for household use only.

WARNING Shock Hazard: This appliance has a polarized plug (one wide blade) that reduces the risk of electric shock. The plug fits only one way into a polarized outlet. Do not defeat the safety purpose of the plug by modifying the plug in any way or by using an adapter. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, have an electrician replace the outlet.

The length of the cord used on this appliance was selected to reduce the hazards of becoming tangled in or tripping over a longer cord. If a longer cord is necessary, an approved extension cord may be used. The electrical rating of the extension cord must be equal to or greater than the rating of the appliance. Care must be taken to arrange the extension cord so that it will not drape over the countertop or tabletop where it can be pulled on by children or accidentally tripped over.

To avoid an electrical circuit overload, do not use another high-wattage appliance on the same circuit as this appliance.

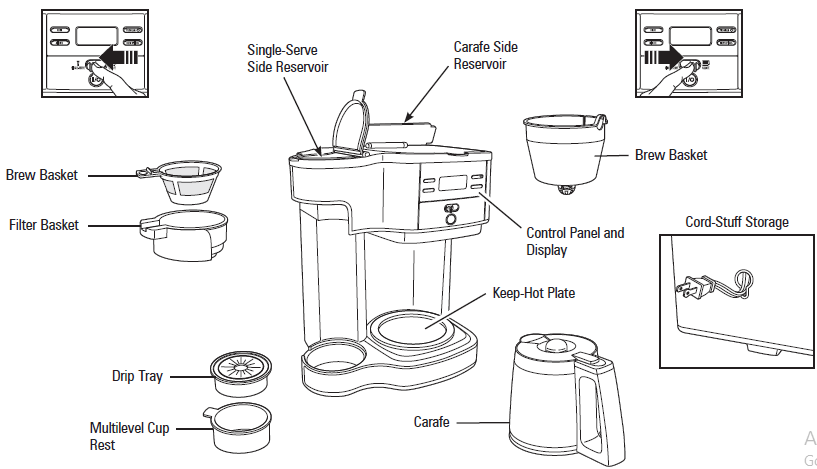

Single-Serve Side, Carafe Side Parts and Features

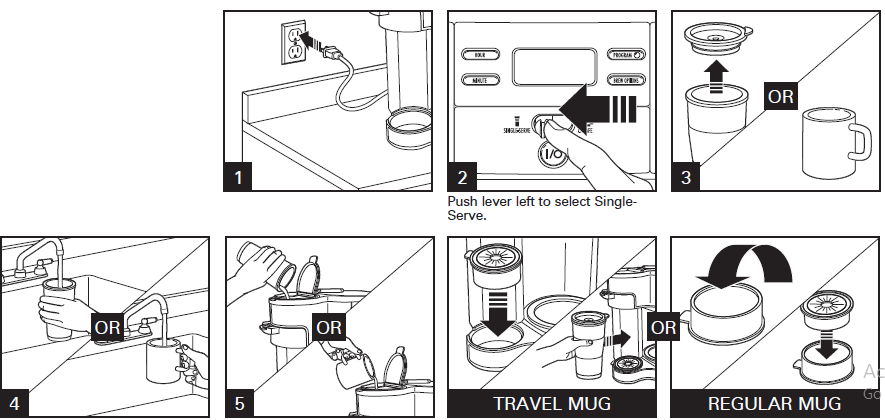

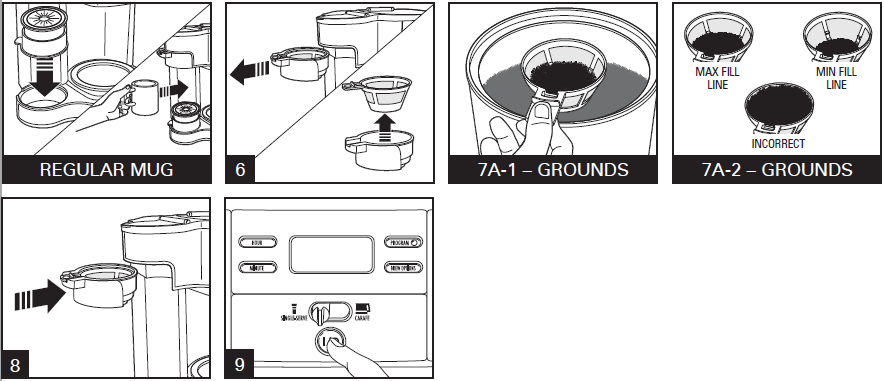

How to Use Single-Serve Side

WARNING: Burn Hazard.

To avoid contact with hot coffee or water:

• Do not use more than 14 ounces (414 ml) of water.
• Fill the single-serve reservoir with a mug or cup into which the coffee will be brewed.
• Fully insert the mug or cup under the filter basket.

AUTOMATIC SHUTOFF:

The coffeemaker will automatically shut off after the brew cycle is complete.

NOTES:

• The unit will only brew on one side at a time.
• To avoid overflow, use slightly less grounds when brewing decaf or flavored coffees.

• For regular coffee, use a maximum of two level tablespoons of grounds. To avoid overflow, use slightly less grounds when brewing decaf or flavored coffees. WARNING! Keep ground coffee below the MAX fill line to prevent overflow.
• Single-serve brew basket has two markings: the lower level marking for making 8 oz. (237 ml) of coffee, and the higher level mark for making 14 oz. (414 ml) of coffee. DO NOT fill the scoop to the top, or this will cause overflow.
• Press the (ON/OFF) button to begin the flow of coffee. The coffeemaker will shut off when the brew cycle is complete. To stop the flow of coffee mid-cycle, press the (ON/OFF) button.

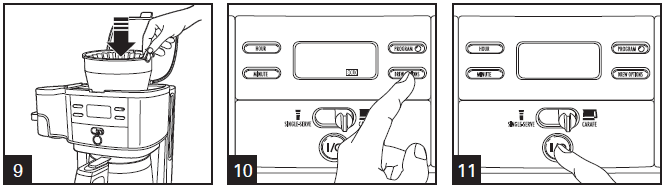

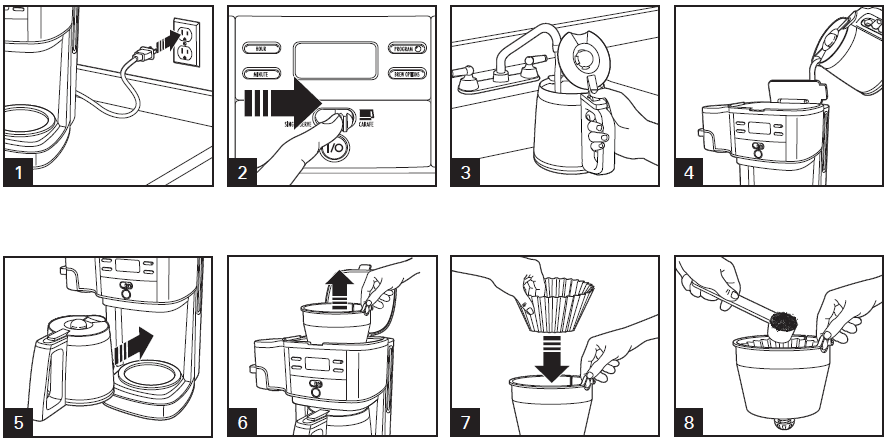

How to Use the Carafe Side

AUTOMATIC SHUTOFF:

The coffeemaker will automatically shut off 2 hours after the brew cycle is complete.

NOTE: The unit will only brew on one side at a time.

• Push the lever right to select Carafe.
• Lift the lid and pour water from the carafe into the reservoir. NOTE: Do not fill past the 12-cup mark (60 ounces [1.8 L]).
• Place the carafe, with the carafe lid attached, on a keep-hot plate.
• Place a cupcake-style paper filter in the brew basket. A permanent filter may also be used.
• For each cup of coffee being made, place one level Tablespoon (15 ml) of coffee into the filter.
• Place the brew basket in the brew basket well. Ensure the brew basket is fully seated.
• For enhanced full/strong-flavored coffee, press the BREW OPTIONS button until BOLD is displayed.
• Press the (ON/OFF) button to start. Press the (ON/OFF) button again to turn it off.

NOTE: If the coffeemaker is not turned off manually, it will automatically shut off in 2 hours.

NOTE: BOLD mode will require additional time to complete a brewing cycle. If the Brew Option is not selected, the coffeemaker will automatically brew on the regular/default setting.

To Order Permanent Filter or Other Parts and Accessories:

visit hamiltonbeach.com

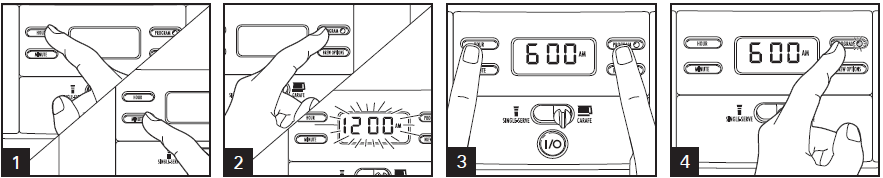

Programming

(For Either the Single-Serve OR Carafe Side)

NOTE: The unit will only brew on one side at a time.

• Press HOUR and then MINUTE to set the clock.
• Hold the PROGRAM until the clock flashes.
• Continue holding the PROGRAM button, press HOUR and MINUTE until the desired brewing start time is reached, and then release the PROGRAM button.
• Press PROGRAM to activate automatic brewing. A green LED will illuminate to indicate the unit is programmed.

Tips for Best-Tasting Coffee

• All coffees are made from either Arabica beans, Robusta beans, or some combination of both. Arabica beans are slightly more expensive but tend to produce better-tasting coffee.
• Ground coffee will become stale much faster than whole beans. If buying pre-ground coffee, choose a package with the latest expiration date or a smaller quantity.
• If grinding whole beans, set your coffee grinder on a fine/medium grind. This will yield the best-tasting grounds. Try to use freshly ground coffee within about a week of grinding.
• Using a water filter, filtered water, or bottled water will yield better-tasting coffee than tap water.
• Use approximately 1 Tablespoon of grounds for each cup of coffee being made. To avoid overflow, use slightly less grounds (3/4 Tablespoon [11.1 ml]) when brewing decaf or flavored coffees. Also, be aware that using coffee that is ground too finely may also cause the filter basket to overflow.
• Make sure your coffeemaker is clean. See the  “Care and Cleaning” sections.

Care and Cleaning – Single-Serve Side

All coffee makers should be cleaned at least once a month (once a week for areas with hard water).

• Pour 1/2 cup (118 ml) of plain white vinegar and 1/2 cup (118 ml) of cold water into the single-serve side reservoir.
• Press the (ON button. Press the (OFF) button after 30 seconds and wait 30 minutes. Press the (ON) button. Press the (OFF) button when finished.
• Run 2–3 more brew cycles with CLEAN WATER only. Allow to cool between cycles.
• DO NOT use the “SANI” setting when washing in the dishwasher. “SANI” cycle temperatures could damage your product.

Troubleshooting (Single-Serve Side)

Weak coffee.

Not enough ground coffee was used. See “How to Use Single-Serve Side.”

Coffee overflows from the brew basket, travel mug, or regular mug.

Excessive amount of water in the single-serve reservoir. Use a travel mug or a mug into which coffee will be brewed to fill the reservoir. Use slightly less ground when brewing decaffeinated or flavored coffees. Set the coffee grinder to automatic drip grind.

Coffee tastes bad.

• The coffeemaker needs cleaning.
• Coffee grounds are too coarse or too fine. Set the coffee grinder to automatic drip grind.
• Poor coffee quality and freshness.
• Poor water quality (use filtered or bottled water).

Troubleshooting (Carafe Side)

The brew basket overflows or the coffee brews slowly.

• Excessive amounts of ground coffee.
• Decaffeinated and/or coffee grounds too finely ground can cause overflow. Set the coffee grinder to automatic drip grind and use slightly less ground.
• The coffeemaker needs cleaning.

If using a paper filter:

• Coffee grounds between the paper filter and the brew basket.
• The paper filter is not open and in the proper position.
• Rinse the brew basket before inserting the paper filter so the edges will remain pressed against the sides of the basket.
• Poor-quality paper filter.

Coffee leaks onto the base.

The carafe was removed from the keep-hot plate for more than 20 seconds during the brewing cycle.

Coffee tastes bad.

• The coffeemaker needs cleaning.
• The coffee grounds are too coarse or too fine. Set the coffee grinder to automatic drip grind.
• The coffee-to-water ratio is unbalanced. Adjust for personal preference.
• Poor coffee quality and freshness.
• Poor water quality (use filtered or bottled water).

Coffee sediment in the cup.

Use a high-quality, basket-style paper filter instead of an optional permanent coffee filter.

The coffee is not brewing, or the unit will not turn on.

• The carafe is not positioned on the keep-hot plate.
• The water reservoir is empty.
• The unit is unplugged.
• Power outage.
• Power surge. Unplug; then plug the unit back in.
• The clock requires a reset after a power outage.

Longer than normal brew time.

Mineral deposits can build up in the pump of your coffeemaker. Periodic cleaning of the inside of the unit is recommended. More frequent cleaning may be necessary, depending on the hardness of your water. See the “Care and Cleaning – Carafe Side” section.

NOTE: Do not disassemble the unit.
