HAPPRUN H1 Portable Native 1080P Bluetooth Projector User Manual

HAPPRUN H1 Portable Native 1080P Bluetooth Projector

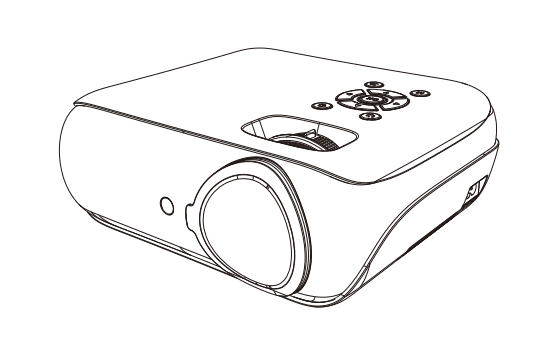

Projector description

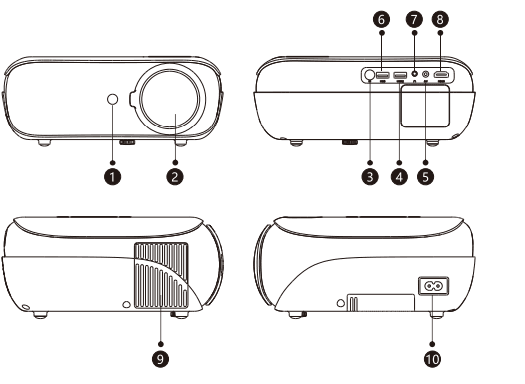

1. IR Receiver
2. Lens,
3. IR Receiver
4. UsB2 Port
5. AV Port
6. USB Port
7. Headphone Jack
8. HDMI Port
9. Cooling Window
10. Power Jack

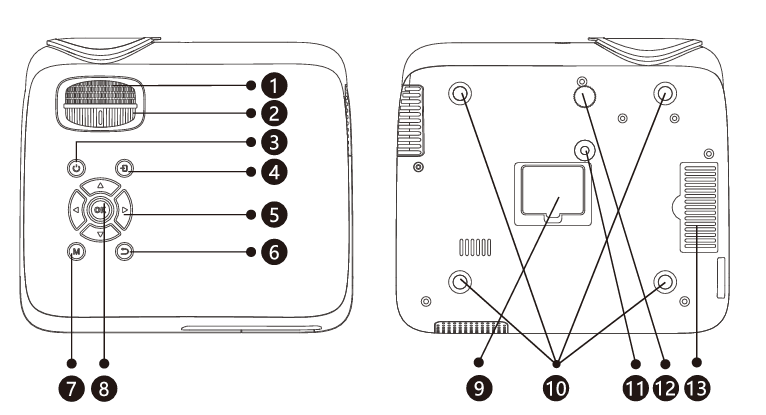

1. Focusing
2. Keystone Correction
3. Power Key
4. Source Key
5. Arrow Keys
6. Return Key
7. Menu Key
8. 0K Key
9. Bottom Label (Tear off the bottom sticker, you can remove the bottom dust cover to clean up the dust)
10. Hanger Fixing Screw Holes (8 Points: Remove the machine foot pads before hoisting)
11. Hole for Stand(1/4 inch)
12. Height Adjustment Machine Feet
13. Dust-Proof Net

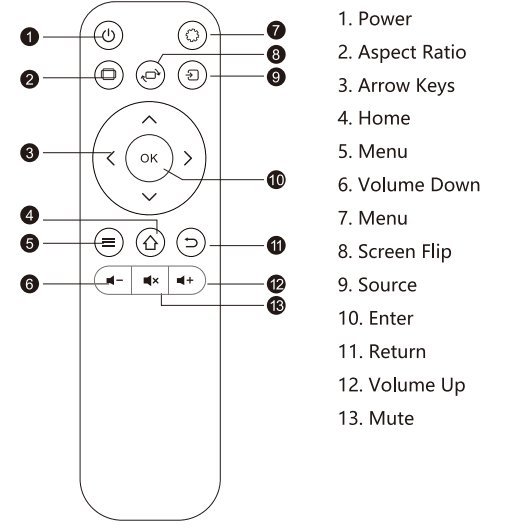

Remote Control Button Function

Specifications

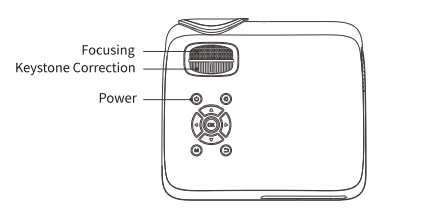

Power/Focus/Keystone Correction

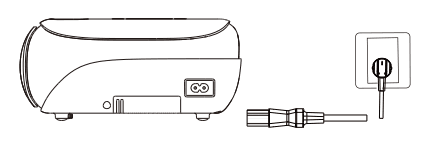

1. Plug the power cord into a power outlet.
2. Press the button)” on the projector or the remote control.

Focus

Let the projector be perpendicular to the wall, with the Focusing button to make the picture clear. When focusing, you can broadcast programs to help you finish focus.

Keystone Correction

At different angles you put the projector, the projection will be deformed like a trapezoid, use the keystone correction to correct it.

Connections

Add: Different brand laptop output keys are as follows:

Connect the Smartphones

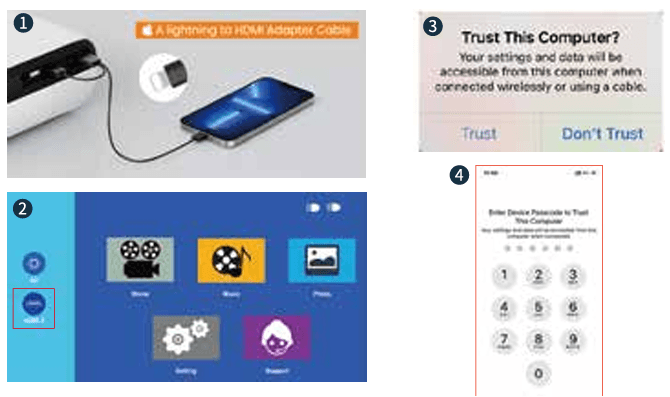

Note: When connecting to a smartphone, please purchase an HDMI conversion cable (for smartphones) separately. (Note: If you purchase the wrong HDMI conversion cable, you will not be able to project the screen of your smartphone normally. Please contact us for any questions.) When connecting to an iPhone / iPad

• You need an extra lightning to HDMI adapter to connect your iOS device to the projector. (HDMI adapter not included)

1. Plug the HDMI plug of the HDMI conversion cable into the “HDMI” port of the projector.
2. Insert the USB plug of the HDMI conversion cable into the USB port of the projector.
3. Plug the lightning terminal into your iPhone / iPad.
4. Select “HDMI” on the screen with the arrow keys on the remote control or projector.
5. Select “Trust” on the iPhone / iPad screen and enter the passcode. Then you will see the iPhone / iPad screen.

When connecting to an Android smartphone

* You need to buy a Micro USB/ Type C to HDMI adapter to connect your Android devices. (HDMI adapter not included)

1. Plug the HDMI plug of the HDMI conversion cable into the “HDMI” port of the projector.
2. Insert the USB plug of the HDMI conversion cable into the USB port of the projector.
3. Insert the lightning terminal / Type-C terminal into your smartphone.
   Select “HDMI” on the screen with the arrow keys on the remote control or projector. Then the smartphone screen will be displayed.

Connecting

1. Connect a USB drive

1. Different from other devices, when you connect a USB drive, you don’t need to click “8” to select the USB signal source, directly select the file you want to play on the main menu.
2. To play a video stored on a USB drive, select “Movie” on the main menu, and press the “OK”
3. To play a picture, music, or text stored in a USB drive, select”Photo”/ “Music”/”Text” on the main menu, and press “OK”.

2. Connect AV video devices.

1. Use the 3.1 video cable (Included in the package) to connect with AV.
2. Choose the media signal channel: “AV”.

3. Connect a 3.5mm audio device.s

Support 3.5mm earphones and other cable sound devices.

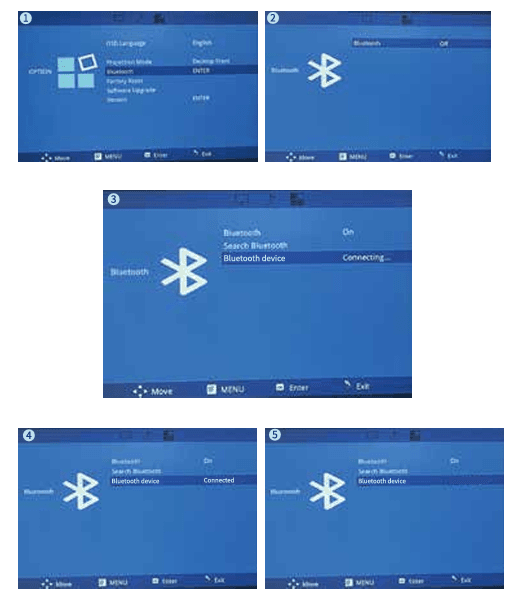

Bluetooth Settings

Please note: The Bluetooth function is only compatible with audio output devices such as soundbars and Bluetooth speakers.

1. Click “Bluetooth”.
2. Set Bluetooth on / off on the “ </ > ” of the projector or remote control.
3. Search for Bluetooth on the audio output device.
4. Connect the Bluetooth of the audio output device.
5. The Bluetooth connection is complete.

More Tips about Netflix, Prime Video, Hulu, etc

It works with YouTube, Chrome, Safari, and FaceTime when you connect it to a smartphone directly. It doesn’t support play-protected video via the APP when you connect it to your smartphone directly. (Netflix, Prime Video, Hulu, etc.) Due to this video having an encryption protocol, the projector has no right to be recognized when it is connected directly to the phone via the USB interface. You can try playing a protected video via a browser when connected to your iPhone.

But it works with Netflix, Amazon Prime Video, or any other copyrighted video when connecting this projector to a laptop, Fire TV stick, Roku, or Chromecast. The reason why Firestick or other HDMI devices can play Netflix is that the HDMI interface encryption protocol includes Netflix. Last but not least, this projector does not support Dolby sound. So there will be no sound when you play Dolby Sound videos (Amazon Fire Stick, Netflix, Blu-ray movies, and so on). In this case, please kindly turn off the Dolby sound on your device or apps.

The instructions for your reference to turn off the Dolby sound (Settings > Display & Sounds > Audio > Dolby Digital Output >and then turn Dolby Digital (OFF)

Projector Settings

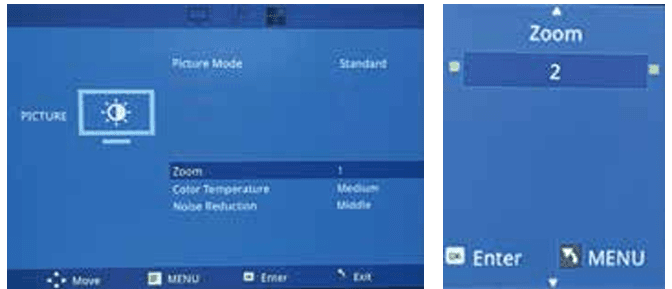

Please set the option related to “Image” on this screen Zoom settings

1. Click “Menu” on the projector or “Menu” on the remote control to move to the settings menu.
2. Click “Zoom” and set the zoom with ” <‘/ >” on the projector or remote control.

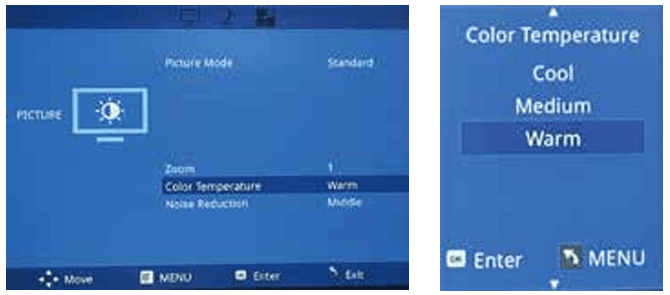

Color Temperature Setting
The “medium”, “warm” and “cold” temperature modes default for different color preferences.

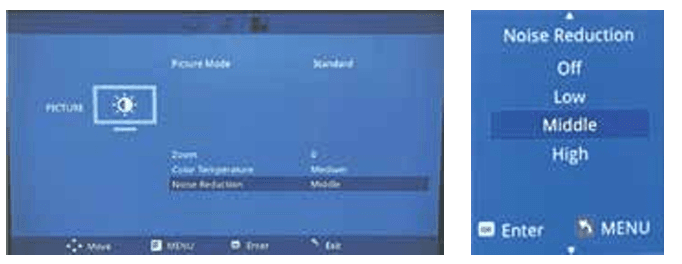

Noise Reduction Settings

Set screen noise reduction effect (medium/high/off/low).

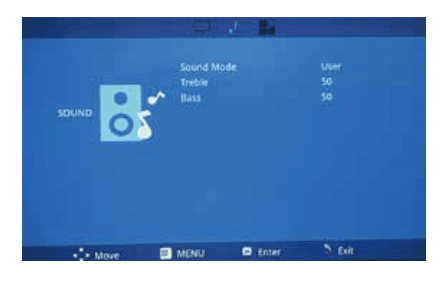

Please set your Voice-related options on this screen

Audio: Audio Mode/Treble/Bass.

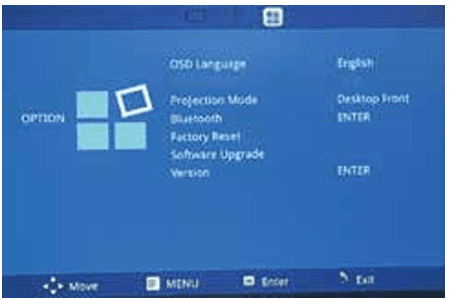

Projector Settings

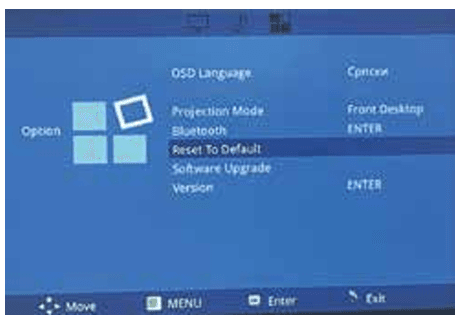

Please set options related to “Settings” on this screen

1. Click “Menu” on the projector or “Menu” on the remote control to move to the settings menu.
2. Use Left and Right on the projector or remote control to move to Settings.

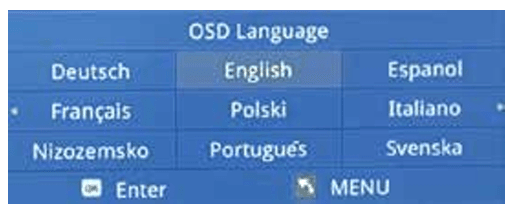

Language Settings

1. Set the language on your system (there are 23 languages). The initial setting is English.
2. Use “^/, </> “on the projector or remote control to search for the language.

Projector Settings

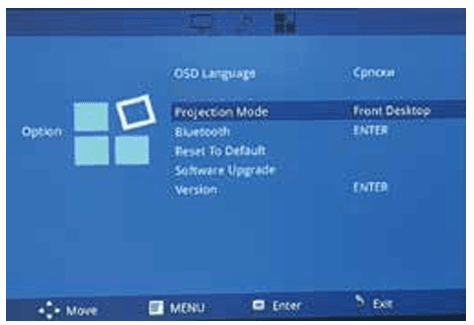

Projection Mode Settings: Adjust the image upside down. You can get the desired image by clicking the “OK” key.

Reset to Default Settings
Please choose “Reset to Default”, click “ok”, and return to the shipping default setting.
