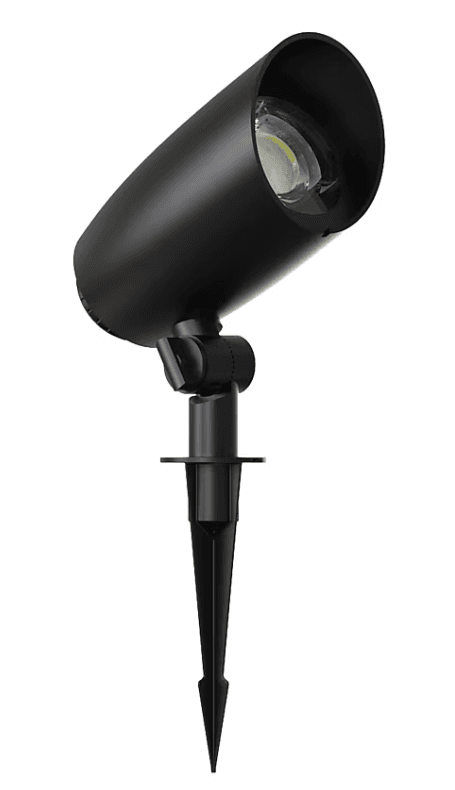

Harbor Breeze ZDL1194 Adjustable LED Spotlight
PREPARATION
- Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents list. If any part is missing or damaged, do not attempt to assemble the product
- Estimated Assembly Time: 10 minutes
- No tools required
- Visit www.lowes.com for more information
TROUBLESHOOTING
PROBLEM | POSSIBLE CAUSE | CORRECTIVE ACTION |
The light does not turn on at night.
| 1. The transformer is not plugged in or turned on. 2. Fixture connector is not properly installed | 1. Make sure the transformer is plugged in and turned on. 2. Make sure the contact pins pierce the wire insulation and make proper contact with the wire. |
CARE AND MAINTENANCE
- Clean the lens, lamp head and lamp stand regularly with a non-abrasive cleaner. Warning: Always make sure the light is unplugged and completely cool before attempting to clean it
SAFETY INFORMATION
- Please read and understand this entire manual before attempting to assemble, operate or install the product.
- WARNING
- Be sure the electricity to the wires you are working on is shut off.
- For use with low-voltage landscape lighting systems only.
- The wire is intended for shallow burial, less than 6 in. deep
- Install all luminaires 10 ft. or more from a pool, spa or foundation
- Keep lamp away from material that may burn
- Do not touch hot lens, guard or hot fixture housing
- Do not operate or install a fixture with missing or damaged parts
- Do not touch the LED at any time as this may cause damage to the fixture
- Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment

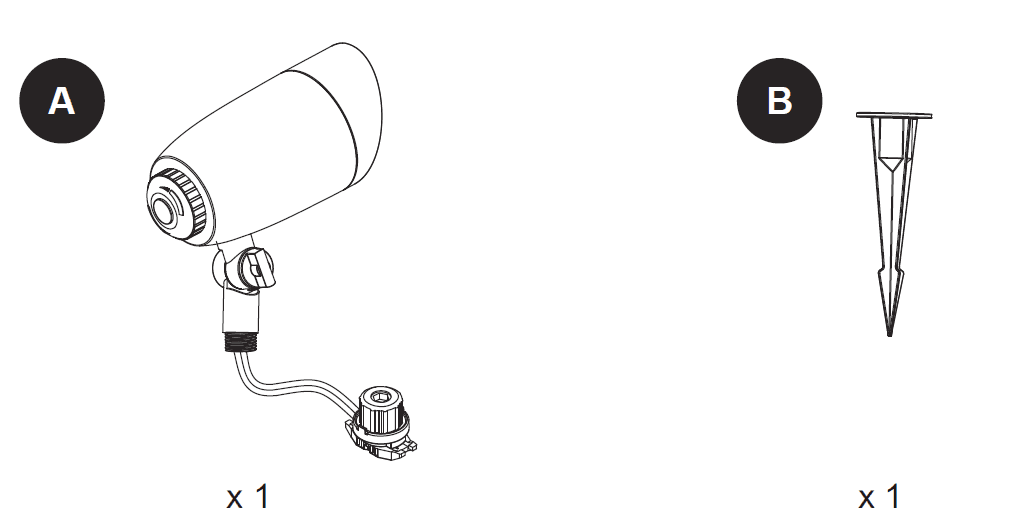

PACKAGE CONTENTS

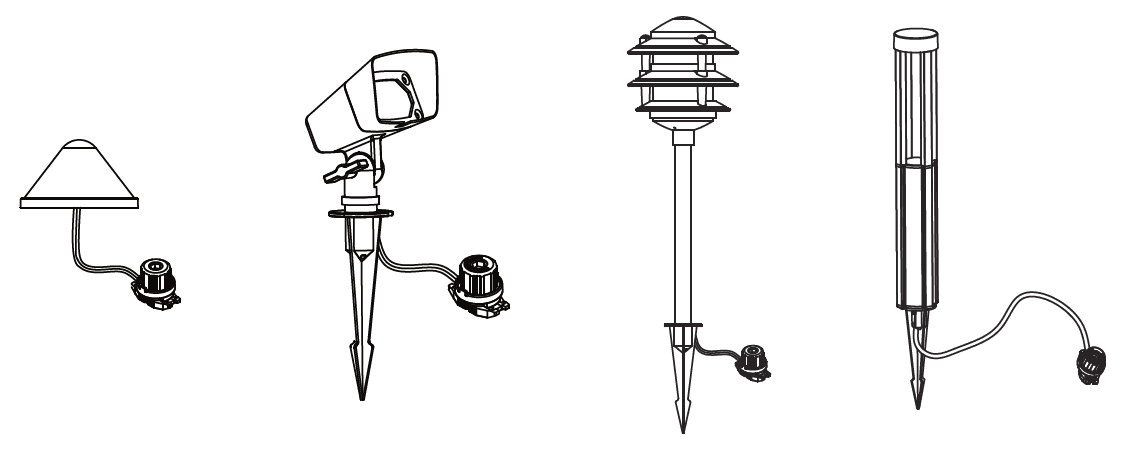

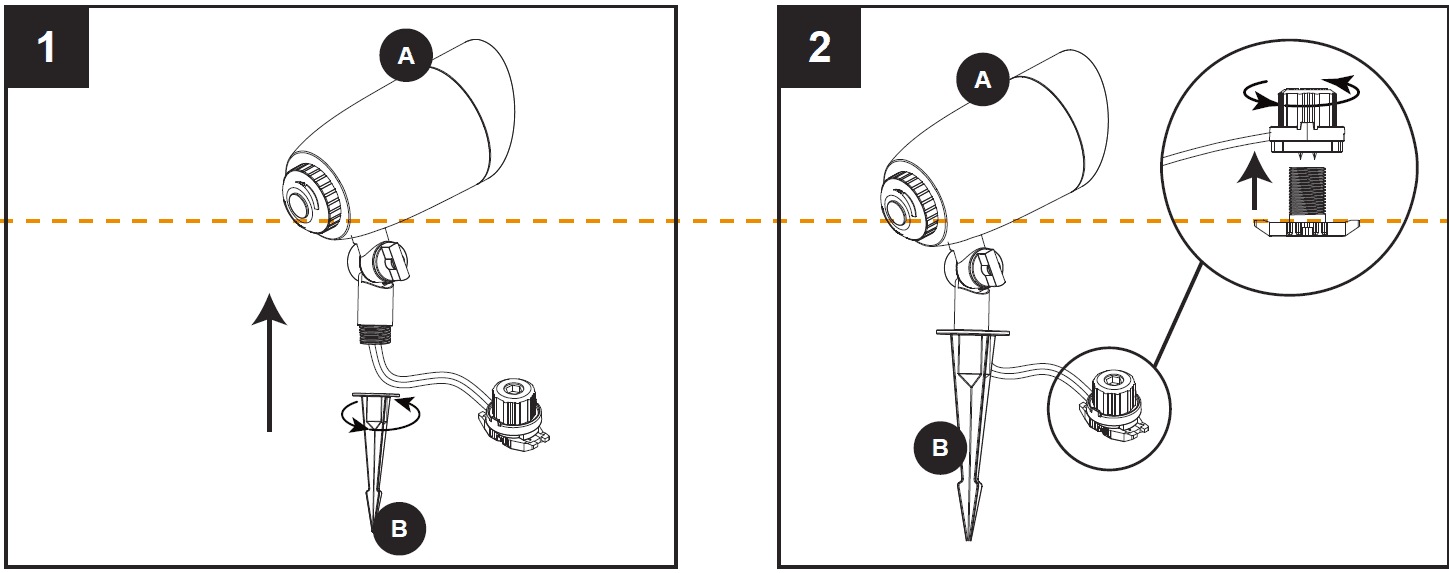

INSTALLATION OVERVIEW
- For 16 AWG cables, insert the wire into the connector directly.

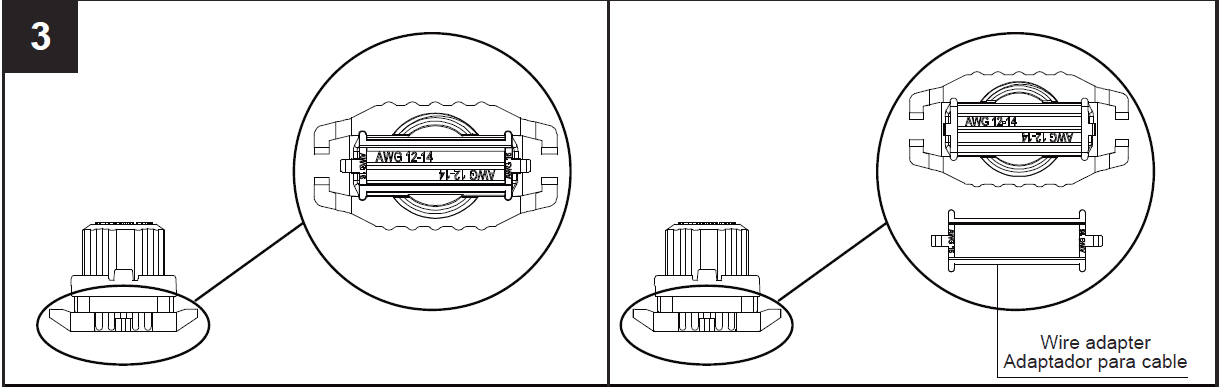

- For 12-14 AWG landscape lighting cable, remove the wire adapter before inserting the wire into the connector

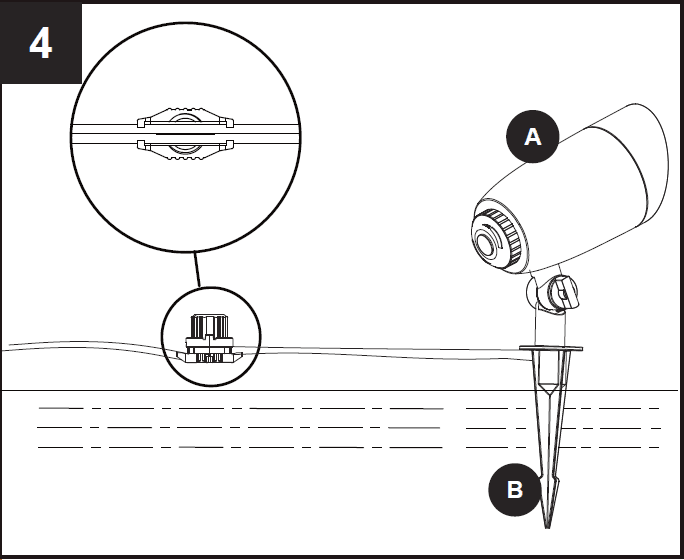

- Insert wire from low-voltage transformer (sold separately) into the wire guide by twisting the wire into each end of the wire guide. Align the pins on the connector top cover so that each pin lines up with opposite sides of the wire. Securely tighten the connector top cover making sure the pins completely pierce
the plastic shield of the wire.
OPERATING INSTRUCTIONS

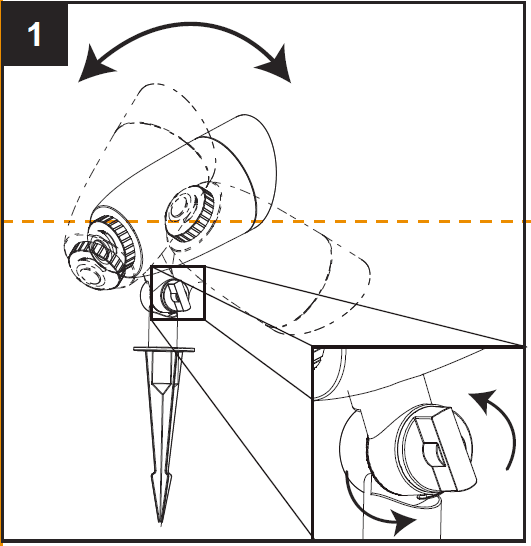

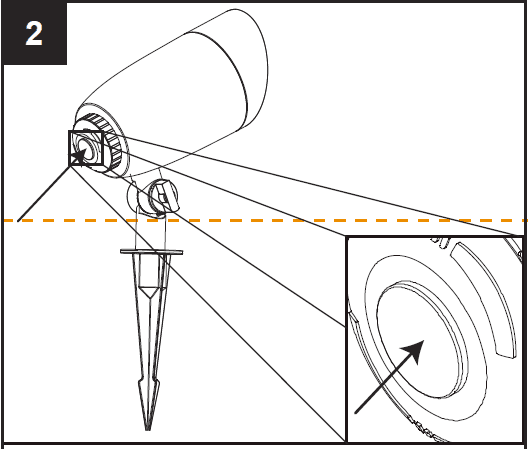

- Push the button, select desired color temperature

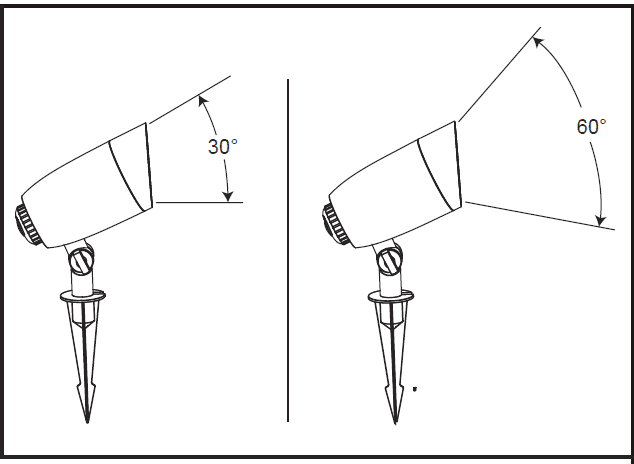

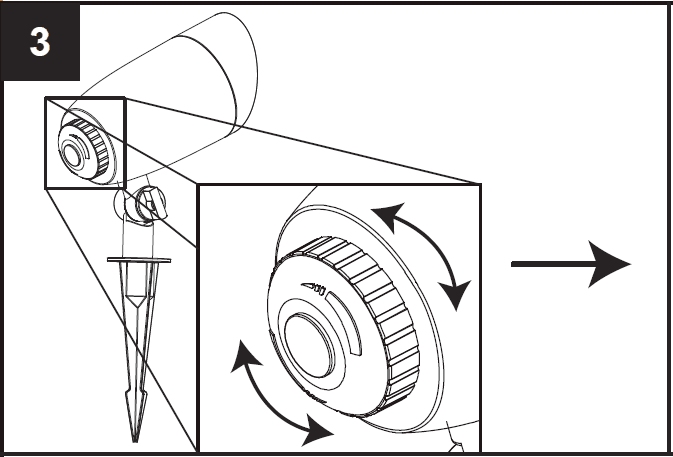

- Choose your preferred beam angle: from min 30°-max 60°. Rotate the beam angle control knob clockwise or counterclockwise to adjust to your desired beam angle
