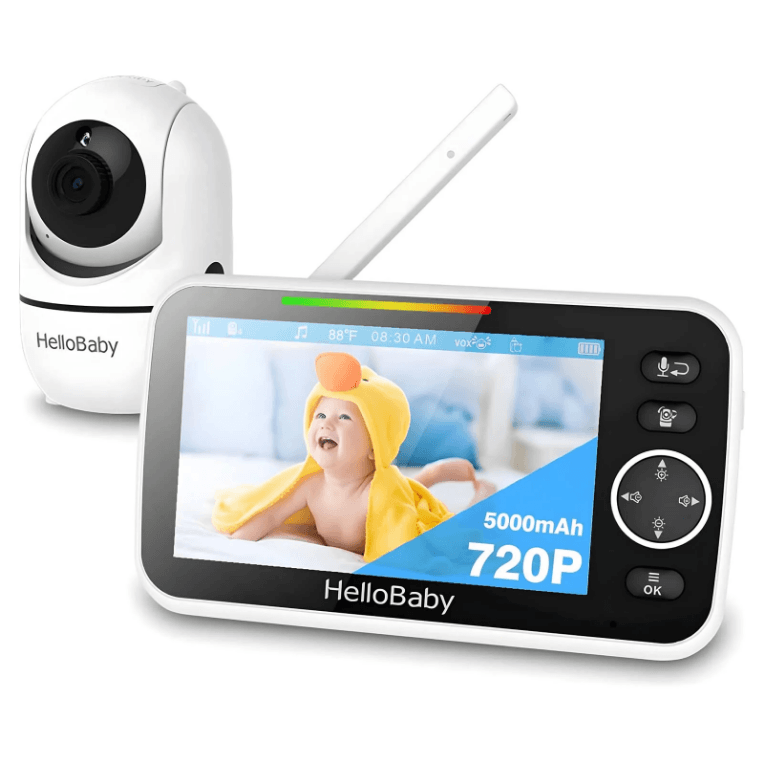

HelloBaby HB26 Digital Wireless Video Baby Monitor
Thank you for purchasing the HB 26 Baby Monitor. With our baby monitor, you can see and hear your baby sleeping or playing in the room anytime.
Please retain your original dated sales receipt for your records. For warranty service of your product, you will need to provide a copy of your dated sales receipt to confirm warranty status. Registration is not required for warranty coverage.
Please make sure the following is included in your package
- Parent unit x 1
- Camera unit x 1
- Power Adapter x 2
- User manual x 1
- Wall-mounting kit x 1
SAFETY INSTRUCTIONS
CAUTION: Keep the device away from children.
Strangulation Hazard: Children have STRANGLED in cords. Keep this cord out of the reach of children (more than 3t (0.9m) away). Never use extension cords with AC Adapters. Only use the AC Adapters provided
Choking hazard: This product contains small parts; please be careful when unpacking and assembling the product.
Read and keep to instructions: All the safety and operating instructions should be read before the video baby monitor is operated. This product cannot replace responsible adult supervision.
Water and moisture: This product is designed for indoor use only. The unit should not be exposed to rain, moisture, dripping, or splashing. No objects filled with liquid should be placed on top of, or beside the product, such as a glass or vase. This item should not be used near water.
DO NOT use the appliance if the cord or plug is damaged. If your baby monitor is not operating properly or has suffered any damage, contact the “Videotimes” service center to request inspection and repair of the appliance in order to avoid any possible risk.
DO NOT: Do not attempt to repair or adjust any of the electrical or mechanical functions of the unit. Otherwise, the guarantee will be made void.
Ventilation: This baby monitor should not be used on a bed, sofa, rug, or similar surface that may block the ventilation openings, or be placed in an enclosed area such as a bookcase or drawer that may impede air flow.
Keep away from sources of heat: This unit should not be exposed to direct heat sources such as a candle, radiator, heat register, stove, or other appliance that emits heat. The unit should not be left in direct sunlight.
Power source: This unit should only be used with the AC power adapters included in this package (rated 5V DC 1A).
Damage requiring service: This unit should be serviced by qualified personnel only when:
- Objects have fallen or liquid has been spilled into the product;
- The units have been exposed to rain;
- The units do not appear to operate normally or exhibit a distinct change in performance;
- The units have been dropped or the enclosure damaged;
WARRANTY TERMS
We offer a one-year warranty from the original purchase date against defects in workmanship and materials. If you have warranty or support issues, please contact our after-sales service via email.
INSTALLATION GUIDELINES
- To use your parent unit and camera unit together, you have to establish a radio link between them, and the range will be affected by environmental conditions.
- Any large metal object, like a refrigerator, a mirror, a filing cabinet, metallic doors or reinforced concrete between the baby and parent unit may block the radio signal.
- The signal strength may also be reduced by other solid structures, like walls, or by radio or electrical equipment, such as TV, computers, cordless or mobile phones, fluorescent lights, or dimmer switches.
- Use of other 2.4GHz products, such as wireless networks (Wi-Fi routers), Bluetooth systems, or microwave ovens, may cause interference with this product, so keep the baby monitor away at least 5ft (1.5m) from such products, or turn them off if they cause interferences.
PLACEMENT OF THE BABY MONITOR
The camera can be placed on the desktop or mounted on the wall. Don’t place the baby monitor on soft quilts or blankets or in the corners of cupboards, shelves, etc. Keep the baby monitor away from heat sources such as radiators, chimneys, cookers, and direct sunlight. Keep the baby unit away from TV sets, microwave ovens, and radios. If interference occurs, move the camera elsewhere;
Place the camera within 6 feet (2 meters) of the area being monitored for optimum performance.
GETTING STARTED
TURN ON THE BABY UNIT:
- Insert the DC plug of the power adapter into the DC jack in the rear of the Baby Unit;
- Insert the other end of the power adapter into a suitable electrical outlet.
- Once the adapter is connected, the power LED will light up;
TURN ON THE PARENT UNIT:
- Insert the DC plug of the power adapter into the DC jack in the side of the parent Unit;
- Insert the other end of the power adapter into a suitable electrical outlet.
- Press and hold the power key for 3 seconds on the side of the parent unit;
- Once the parent unit is on, the power LED will light up, and the image will display on the LCD.
INFRARED NIGHT VISION (AUTOMATIC)
The infrared night vision function allows the camera to pick up images in dark or low-light conditions. In this mode, only black and white images will be displayed on the monitor. The optimum image lies where the baby unit is 6ft (2m) away from the object. With the cameras in night vision mode, the icon will be displayed on the top of the screen.

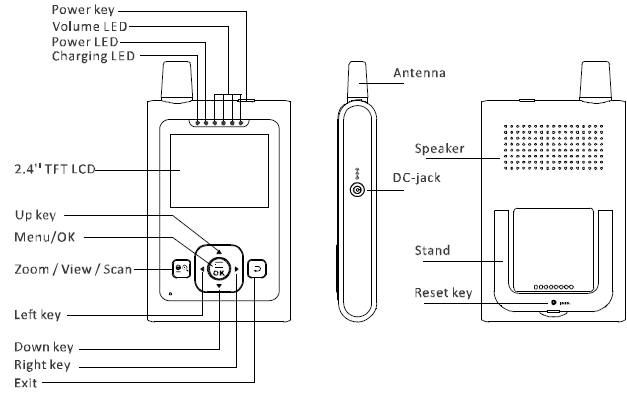

PRODUCT OVERVIEW

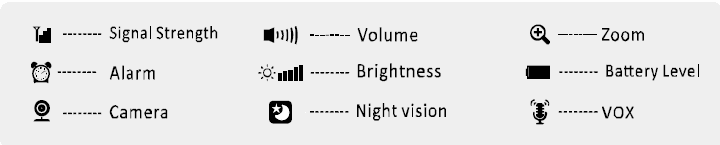

1 ICONS OVERVIEW:

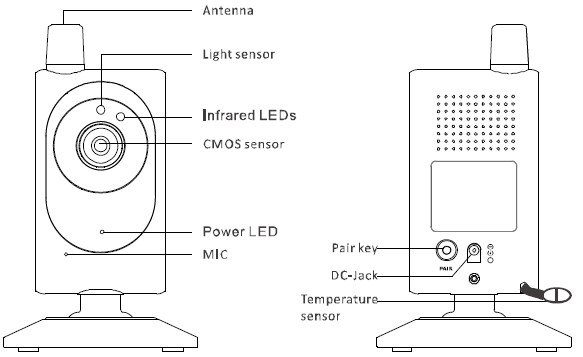

BABY UNIT OVERVIEW:
ICONS OVERVIEW:
KEY OPERATION
POWER SAVE/SCREEN OFF
Short press the power key to turn on / off the screen.
VOLUME ADJUSTMENT
Press the UPPER key to increase the volume; Press the LOWER key to decrease the volume;
BRIGHTNESS ADJUSTMENT
Press the LEFT key to decrease the brightness; Press the RIGHT key to increase the brightness;
CAMERA VIEW / SCAN
Press the Scan Zoom key to view/scan the camera. During scan mode, the scan icon will be displayed on the top of the screen. Each camera’s video will stay on the LCD around 10 seconds and then turn to the next camera alternately;
DIGITAL ZOOM & PAN / TILT
Press and hold the camera zoom key for around 2 seconds to operate Zoom in | out: At the Zoom mode, press the LEFT key to Pan left; press the RIGHT key to Pan ight; press UPPER key to tilt up; press LOWER key to tilt down; During digital zoom mode, the zoom icon will be displayed on the top of screen.
Warm reminder: If you want to adjust the volume/Brightness, you have to exit the Zoom mode before you operate it.
MENU OPERATION
PAIRING THE CAMERA AND PARENT UNITS
The baby unit is pre-registered to your parent unit. You do not need to register it again unless the baby unit loses connection with the parent unit. To re-register your baby unit or register a new baby unit, follow the steps below:
ADD CAMERA
- Press the MENU OK key, then the menu will pop up;
- Press the LEFT/RIGHT/UPPER/LOWER key until the camera icon is selected by a red box;
- Press the OK key to enter into the sub-menu, then press the UPPER/LOWER key to select your desired camera;
- Press the OK key to enter into sub-menu; Press the UPPER/LOWER key to select ZOOM+, then press the OK key;
- When the icon TIMER is displayed on the LCD screen, press the PAIR button on the back of the camera;
- Once paired, the Successful pairing icon shows on the LCD screen;
- If it fails, repeat the above steps.
VOX SETTING
This mode allows you to control the sound activation of your baby unit. If there is no sound around the baby unit within 30 seconds, it will stop the audio transmission and turn off the screen of the parent unit. When the baby unit detects any sounds louder than the sensitivity level, it will start transmitting the signal to the parent unit again and turn on the screen of the parent unit. To change the VOX level, please follow the below instructions.
- Press the MENU (OK) key; the menu will pop up;
- Press the left/right/upper/lower key until the VOX icon is selected by the red box.
- Press the OK key to enter into the sub-menu, then press the upper/lower key to select the desired level;
- Press the OK key to confirm.
- Press the return key to Exit.
MAINTENANCE
- Clean your baby monitor with a slightly damp or anti-static cloth.
- Never use cleaning agents or solvents.
DISPOSAL GUIDE FOR BATTERY AND PRODUCT
- Do not attempt to repair or adjust any of the electrical or mechanical functions of the unit;
- Remember to dispose of the product in an environmentally responsible way.
- For proper collection and processing of these products, take them to the collection points designated by local authorities. You can also contact the store where you purchased the product.
Improper or incorrect use of batteries may cause corrosion or battery leakage, which could cause personal injury or damage to property. Use only the types of batteries that are indicated in this manual.
CAUTION: Risk of Fire and Burns. Do Not Open, Crush, or Heat Above 45 degrees C or Incinerate. Follow Manufacturer’s Instructions.
- Disposal of a battery into fire or a hot over, or mechanically crushing or cutting of a battery, that can result in an explosion;
- Leaving a battery in an extremely high temperature surrounding environment that can result in an explosion or the leakage of flammable liquid or gas;
- A battery subjected to extremely low air pressure may result in an explosion or the leakage of flammable liquid or gas.
- The battery shall not be exposed to excessive heat such as sunshine, fire, or the like;
WARNING
Strangulation Hazard: Children have STRANGLED in cords. Keep this cord out of the reach of children (more than 3 ft (0.9 m) away). Do not remove this tag.
