HIFI WALKER H2Touch Pro Hi-Res Player

Product Introduction

1. Product features
   • 3.5-inch high-resolution IPS true color full touch and multi-touch capacitive screen.
   • Pure aluminum alloy material, CNC processing technology with 2.5D tempered glass mirror.
   • High-fidelity digital lossless music player.
   • Professional ARM 64-bit quad-core Cortex-A35 audio processor and imported stereo headphones decode to restore real audio.
   • Bluetooth 4.2 provides fast pairing and stable connections.
   • Album cover and lyrics synchronization.
   • The breakpoint function memorizes the trackposition of the stopped song, the startup volume, or the custom volume.
   • High-precision Time function.
   • An external TF card with a maximum capacity of 1TB.
   • CUE breakpoint function.
   • MP3, WMA, WAV, FLAC, APE, OGG, M4A, AIFF, DTS, DSF, DFF, DSD256, and other formats, with excellent sound quality.
   • Equalizer functions include Custom, Vocal, Pop, Jazz, Rock, Metal, Classical, Dance, Sad, and Off.
   • Multiple play modes: playlist, single play, random play, and list loop.
   • Add my favorite songs to the playlist.
   • Multi-theme wallpapers and DIY wallpapers.
   • Song search function, genre, and voice search.
2. What’s in the box?
   • 1* HIFIWALKER H2 Touch Pro Player
   • 1* TYPE C USB Cable
   • 1* Card Ejection Pin
   • 1* Velvet bag
   • 1* Quick Guide
3. Product safety information
   Warming: This manual describes how to properly use your new MP3 player. Read it carefully to avoid damaging the player and injuring yourself. Pay particular attention to the following serious warnings:
   • Do not disassemble, repair, or modify this product on your own.
   • Do not get the product wet or drop it in water. If the product gets wet, do not switch it on because you could get an electric shock.
   • Do not use the product during a thunderstorm, as it may cause a malfunction or a risk of electric shock.
   • Do not use the earphones while you are driving a bicycle, automobile, or motorcycle. It can cause a serious accident, and is prohibited by law in some areas. Using the earphones while
     walking or jogging on a road, in particular, on a crosswalk, can lead to a serious accident.
   • For your safety, make sure the earphone cable does not get in the way of your arm or other surrounding objects while you are taking exercise or a walk.
   • Do not place the product in damp, dusty, or sooty areas because these environments could lead to fire or electric shock.
   • Using earphones or headphones for an extended time may cause serious damage to your hearing.
   • Do not spray water on the product. Never clean the product with chemical substances such as benzene or thinner, as it may cause fire, electric shock or deteriorate the surface.

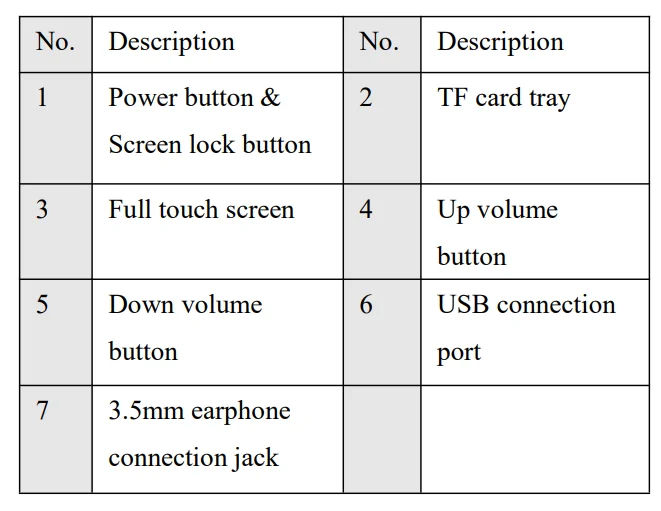

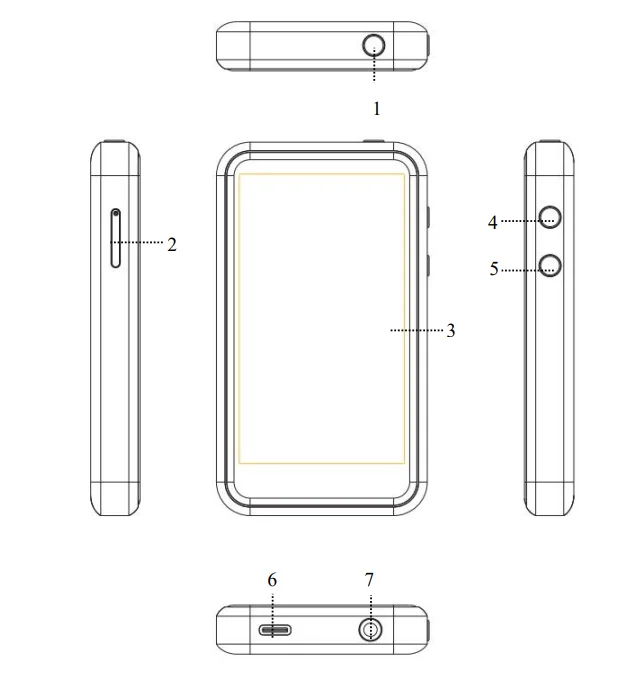

4. Product illustration and function

Operation Instructions

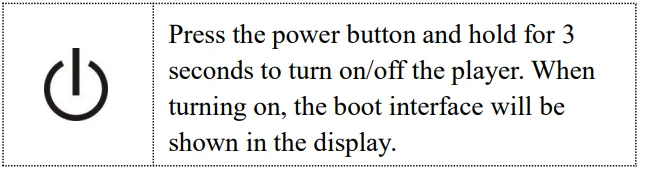

1. Power ON/OFF

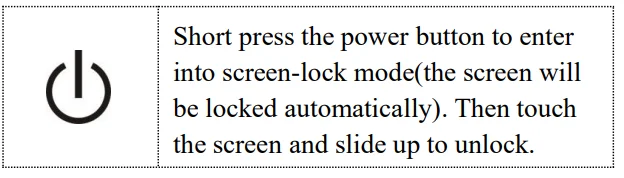

2. Lock mode
3. Reboot the player
   If the player crashes, press the power button and hold for 8 seconds, then release it to reset the system. If the player still cannot be turned on, check that the remaining amount of the player battery is sufficient to turn on.
4. Return
   “<” : return back to last menu.
   “” : return back to the main menu.
5. Volume adjustment
   “Volume+”: to turn up the volume.
   “Volume-“: to turn down the volume.
   Note: In the screen-locked state, the volume can also be adjusted directly.
6. Introduction of touch gestures
   In the Main interface, swipe left and right to switch the main interface; In the File list or Menu list, swipe up/down to scroll up/down the list.

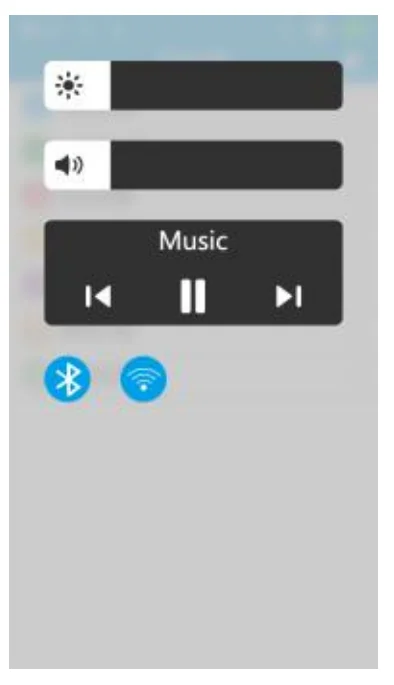

7. Drop-down menu
   1. Swipe down from the top of the display screen to get short-cut menu.
   2. 5 functions: Brightness level adjustment, Volume adjustment, Music control(the last song/the next song, play/pause), Bluetooth on/off, and WiFi on/off.

Introduction of Functions

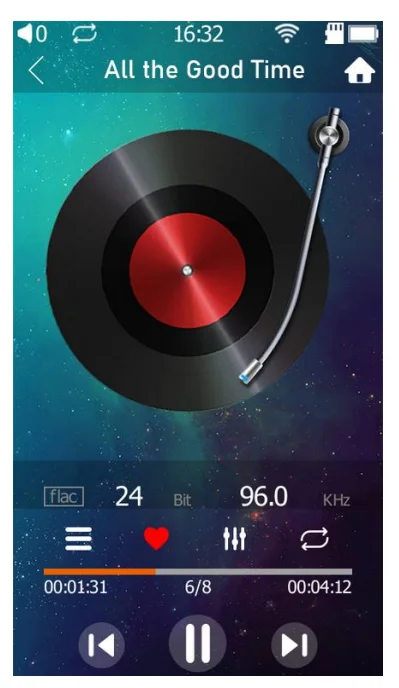

1. Music
   Tap the “Music” icon and enter the playing interface.
   • Tap “” to enter into playback settings, which is the same function as “Playing Set”.
   • Tap”” to mark and add the song into favorite song list.
   • Tap”” to set the equalizer.
   • Tap”“to change its play mode.
     Fast forward/rewind the previous song/next song
     Tap “” to switch the playing music to the last song.
     Tap”” to switch the playing music to the next song.
     Fast forward/rewind: drag the progress bar directly to the position.
     Play/Pause
     Tap “‖” to pause the playing music.
     Tap “” to resume playing the music.
     Music file selection
     Tap “<” to return to the playlist menu.
2. Playing Set
   On the main interface, tap the “Playing Set” icon, or “” when the music is playing, it will be directed to the play function for the following 9 functions:
   1. Play Mode
      Tap the “play mode” to choose a playing way from: Playlist, Single play, Shuffle, and List loop.
   2. Memory play
      Tap the “Memory Play” menu to choose memory mode from: Close, Track, and Position.
   3. Maximum volume
      Tap the icon to set up the maximum volume from 0 to 32 by dragging the progress bar.
      Save the volume
      When it is ON, it will memorize and store the shutdown volume. And its start-up volume will always be the same as the last shutdown volume.
   4. Equalizer
      Tap the “Equalizer” icon to fast choose an equalizer from: Custo, Voice, Pop, Jazz, Rock, Metal, Classic, Dance, Sad, Close.
   5. Digital filter
      Choose from Fast Roll-off, Slow Roll-off, and Minimum Phase for audio quality fine-tuning.
   6. List update
      When it is on, the player will automatically search and update the playlist the next time it is turned on.
   7. Delete the current file
      Tap “Delete Current File” icon to delete the selected file from cthe urrent play-list.

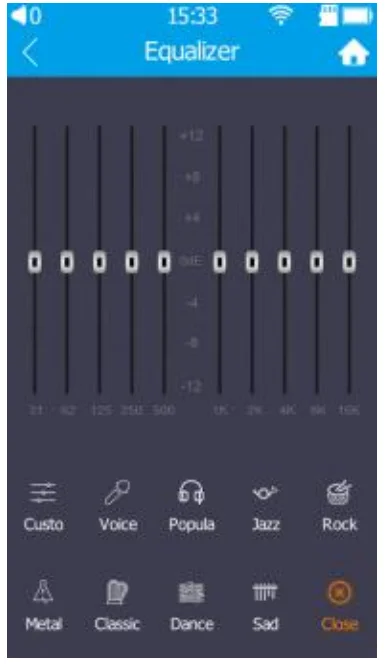

3. Equalizer
   On the main interface, tap the “Equalizer” icon to quickly choose an equalizer effect from: Custo, Voice, Pop, Jazz, Rock, Metal, Classic, Dance, Sad, or Close.
   Tips: Custo means customization, which supports users to set all factors by themselves.
   Tap the “<” back button to exit.

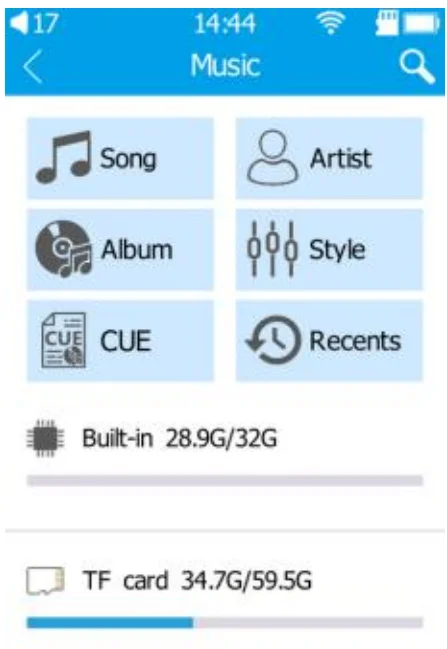

4. Folder
   In the main menu, tap the “Folder” icon.
   • All musics are classified according to song name, Artist, Album, Style, CUE, and recently played music, convenient for players to fast identify preferred music.
   • Built-in storage contains all the music stored in the built-in player.
   • The TF Card contains all the music stored in the external TF card.
5. Favorites
   1. Add to my favorites
      • Tap the “Music” menu and mark the song as “Favorite”. When the heart icon turns red, it is successful.
      • In the Favorite list, tap”+” in the upper-right corner to add the favorite songs.
   2. Play my favorite songs
      • Tap the song title to play directly
   3. Delete my favorite markers
      • Cancel “Favorites” in the music play interface
      • Long-press the song’s title in my favorite song’s list, and choose “Yes” when asked if to “Delete this file”

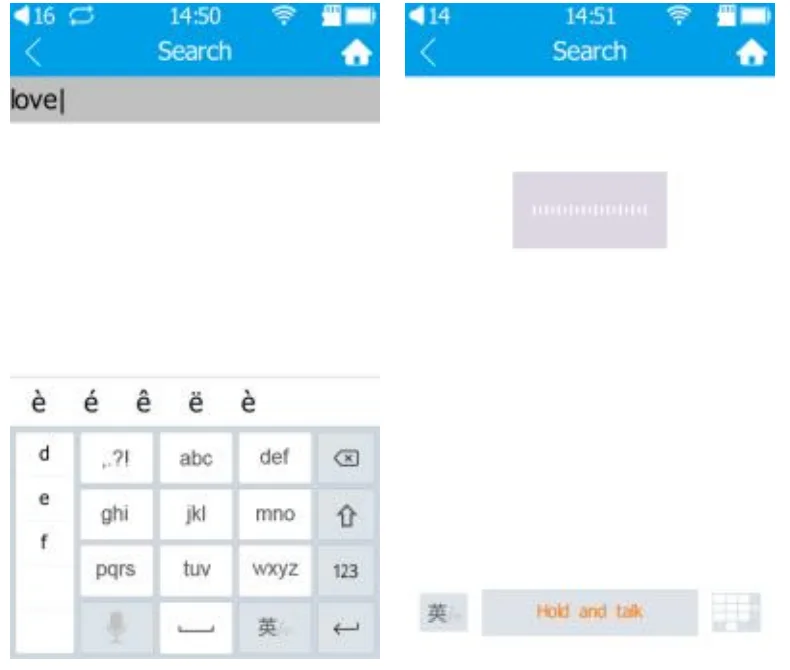

6. Search
   Tap the ” Search” icon to star song search function. Before searching, athe vailable WIFI should be connected. It supports both manual song name search or voice search.
   1. Manual search
      Manual type research supports Chinese and Englishlanguage. Tapto finish typing and start a search.
   2. Voice search
      Tap the microphone icon, then press and talk to speakout the song’s title.(Local music search is only available when connected to WIFI)

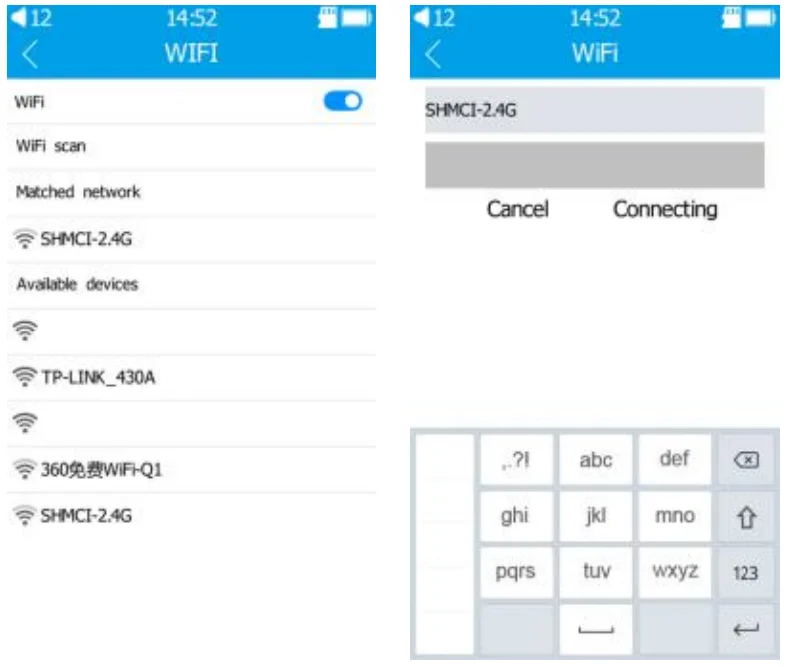

7. WIFI
   1. Turn on Wifi switch, it will automatically scan available Wifi.
   2. Choose available Wifi and connect it with Wifi password.
   3. After connecting successfully, Wifi name will be displayed in the Matched network.
   4. Wifi could be turned off.

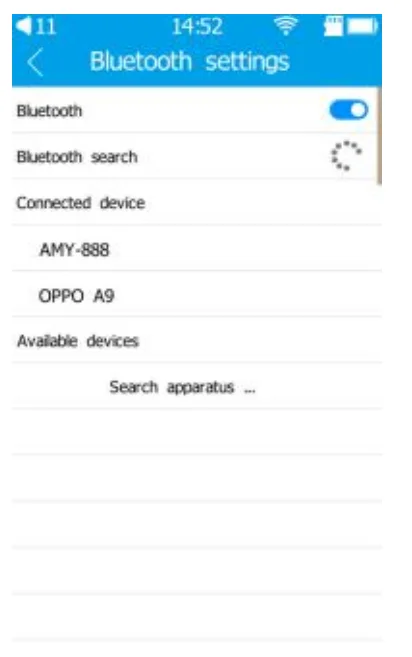

8. Bluetooth
   1. Turn on the Bluetooth switch, it will automatically scan available Bluetooth devices.
   2. All available devices will be listed. Choose the wanted device, tap the Bluetooth name, and it will start to connect automatically.
   3. After connecting successfully, the connected Bluetooth device name will be displayed in the Connected device.
   4. Bluetooth could be turned off.

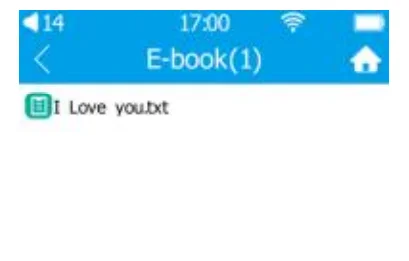

9. E-book
   • Tap the “E-book” menu to enter the list of e-book files.
   • Tap the E-book title and then scroll up/down to check the details.
   • Touch the top of the screen to select Exit or Return to Main Menu.

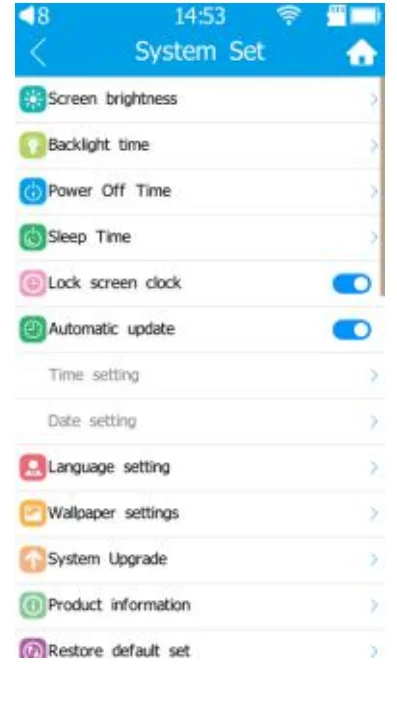

System Set

Tap System Set icon for the system set

1. Screen brightness
   Set screen brightness from 0 to 10. When the set is finished, tap any point of the screen to exist set action.
2. Backlight time
   Set the machine backlight time from 10s to 120s, or on for always-on-display.
3. Power off time
   It is time to automatically turn off the system to save power. It could be chosen from 1-8 minutes, or turned off directly.
4. Sleep time
   The MP3 will be turned off automatically in the playing status. It could be set from 10 minutes to 20 minutes, or turned off.
   Tips: The set is for once only.
5. Lock the screen clock
   When it is turned on, when the MP3 is unlocked, it is required to slide up to close the screen lock first, then enter the main interface. When it is turned off, whenever you unlock the MP3, it will enters into main interface directly. The screen lock clock can be set on or off.
6. Automatically update
   When turned on, it will automatically update in Wifi connected status. When it is turned off, the update time and date can be manually set
7. Language setting
   It supports multiple languages, including Simplified Chinese, Traditional Chinese, English, Japanese, Korean, Deutsch, Le francais, Lingua Italiana, Español, Russian, and Portuguese.
8. Wallpaper settings
   It supports system-built-in or DIY wallpaper for the main interface. DIY watch faces maximum supports 720*1280. which could be selected
9. System upgrade
   It supports OTA upgrade. When new firmware is officially released, the system will be automatically upgraded under WIFI connected status.
   Tips: The battery should be higher than 50%.
10. Product information
    The product details, including model, RAM, ROM, external flash, software version, and serial number, will be displayed.
11. Restore the default set.
    Factory setting: the factory setting can be restored.
12. Format disk
    Format TF Card or Built-in Storage.
    Note: All data cannot be recovered after formatting. Please pay attention to the backup.

Connecting Computers

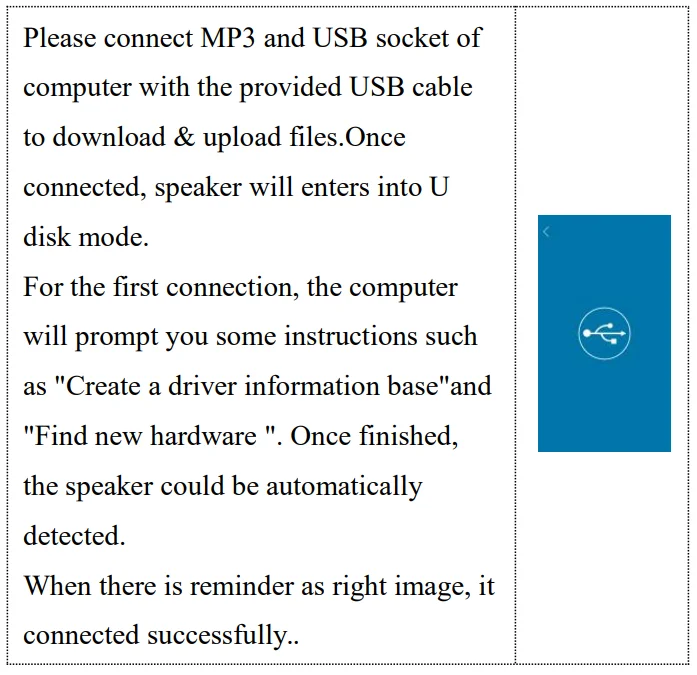

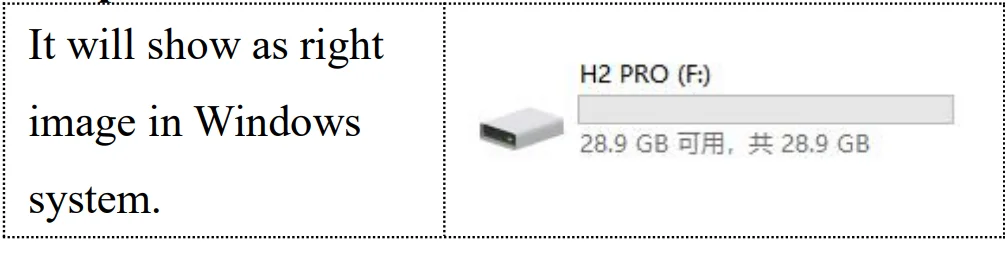

1. Connect to the computer

2. Upload and download files
3. Disconnect from the computer
   After the file transfer finishes, please turn off “My computer” or “File Explorer” first, then unplug the connecting cable as follows.
   For Windows 2000 and above, please operate the system as follows:

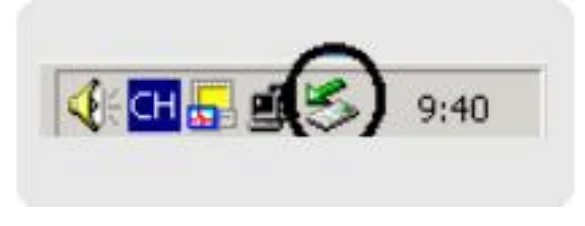

   • Click the green arrow in the lower right corner of your computer.

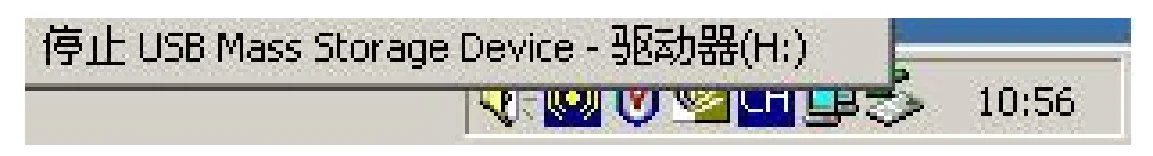

   • Click”stop USB Mass Storage Device Disk-drive”.
   • Click “OK” in the dialog box of “Safely remove hardware, then unplug the USB cable.
     Note: Different operating systems may have slight changes. The above picture is for reference only.

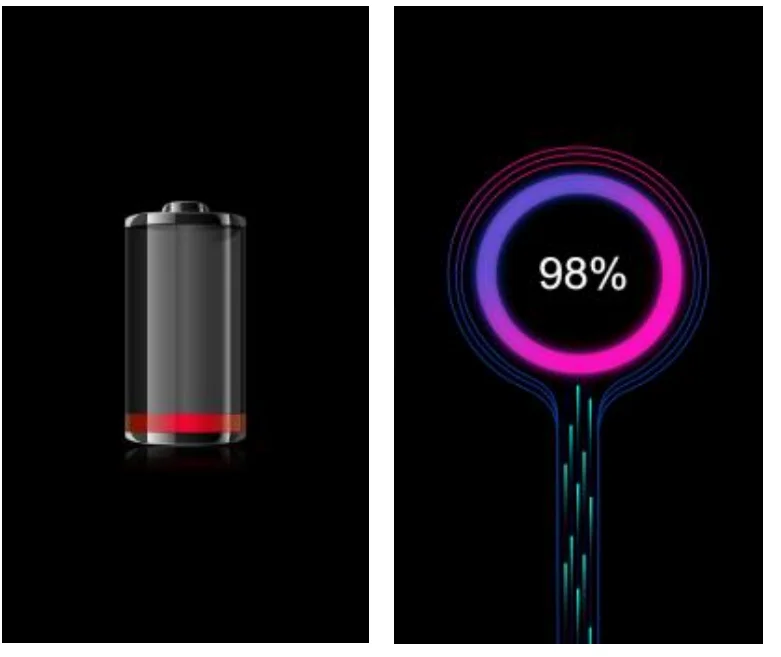

4. Batteries and chargingCheck the remaining battery power after start-up. If in low power, please charge it in time to ensure normal use! When the system enters the low-power state, there will be a low-power reminder and it will be
   Note: Different operating systems may have slight changes. The above picture is for reference only. shut down automatically.
   • Charging via adapter: Please use the standard 5V 2000mA power adapter and the provided charging cable. The charging time is around 3 hours.
   • Charging via computer USB: When the USB cable is connected between the player and computer, please remove it as hardware according to the above instruction. Then it will be in a charging situation. The charging time might be longer than 3 hours.
   • In the charging state, press the power on/off button, it will enters into main interface, and the battery charging still.
5. Trouble Shooting
   • Black screen after turning on
     Please charge the battery ensure there is enough power for turning on. If the machine crashes, please press and hold the “power” key for 8 seconds to reset the system and
     restart it. If it still fails to start, please check the power status.
   • No sound when playing the song
     Please turn up the volume
     Please download the music file
   • Music files are unable to download after connecting
     Please upgrade the motherboard driver.
   • Computer abnormal when plugging and unplugging the player
     Please do NOT disconnect during file transfer progress
   • Overall memory display is inconsistent with the actual memory.
     Some memory space is used to store programs and display fonts.
   • Some MP3 songs can’t play properly in the player.
     1. Ensure the file is in MPEG I Layer 3 format
     2. Delete the incompatible songs from the player
   • Are the files in the player unable to be deleted through the management software? Or when deleting files in the player, “Delete failed or delete error” is reminded?
     Check whether the files in the player are “read-only” through “My Computer”. If yes, modify the “read-only” into “archive attribute” and delete it.
   • When it is used as an external hard drive, any driver installation is required in WINDOWS XP/VISTA/WINDOWS 10 systems?
     No need to install drivers. Currently, WINDOWS98 operating system is not supported.

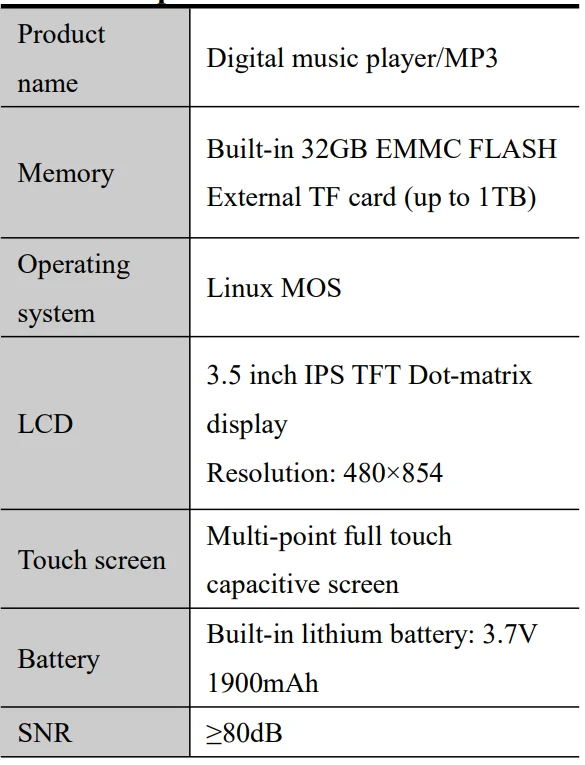

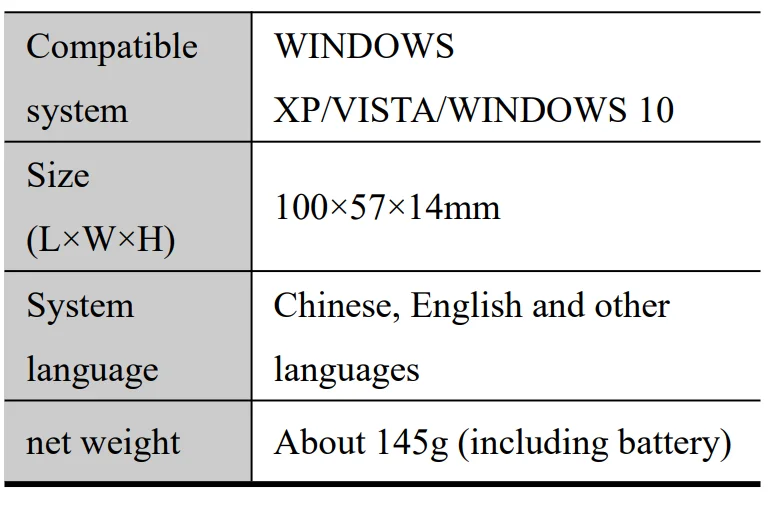

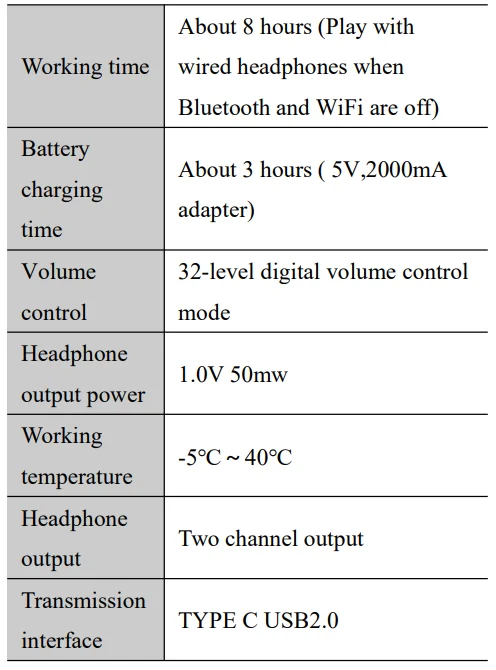

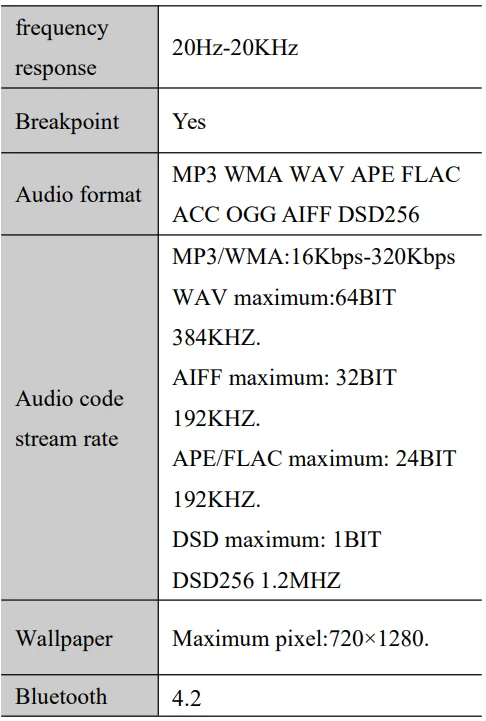

6. Technical specificationsThe contents of this instruction manual are subject to change without prior notice.
