HoMedics Home Touch PS-250 Steamer

IMPORTANT SAFEGUARDS

WHEN USING ELECTRICAL PRODUCTS, ESPECIALLY WHEN CHILDREN ARE PRESENT, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED, INCLUDING THE FOLLOWING:

WARNING – TO REDUCE THE RISK OF BURNS, ELECTROCUTION, FIRE, OR INJURY TO PERSONS:

• Read all instructions before using.
• To reduce the risk of contact with hot water emitting from steam vents, check the appliance before each use by holding it away from your body and operating the unit.
• Use the appliance only for its intended use.
• To reduce the risk of electric shock, do not immerse the appliance in water or other liquids.
• Never pull the cord to disconnect from the outlet; instead, grasp the plug and pull to disconnect.
• Do not allow the cord to touch hot surfaces. Let the appliance cool completely before putting it away. Loop the cord loosely around the appliance when storing.
• Always disconnect the appliance from the electrical outlet when filling with water or emptying, and when not in use.
• Do not operate the appliance with a damaged cord, or if the appliance has been dropped or damaged. To reduce the risk of electric shock, do not disassemble or attempt to repair the appliance.
• Return to HoMedics Service Center for examination and repair. Incorrect reassembly or repair could cause a risk of fire, electric shock, or injury to persons when the appliance is used.
• Close supervision is necessary for any appliance being used by or near children. Do not leave the appliance unattended while plugged in.
• Never steam a garment while it is being worn.
• Burns could occur from touching hot metal parts, hot water, or steam. Use care when you turn a steam appliance upside down – there may be hot water in the reservoir.
• Let the unit cool for at least 30 minutes before pouring water out of the reservoir.
• Never drop or insert any object into any opening or hose.
• Do not use outdoors or operate where aerosol (spray) products are being used or where oxygen is being administered.
• Surfaces of this appliance may be hot when in use. Do not let eyes or bare skin touch heated surfaces.
• Do not place the steam nozzle directly on any surface or on the appliance power cord while it is hot or plugged in. Use the stand provided.
• Always keep the hose and nozzle elevated above the water container.
• To reduce the likelihood of circuit overload, do not operate another high-wattage appliance on the same circuit.
• Do not use an extension cord to operate the appliance. If an extension cord is necessary, a 15-ampere-rated cord should be used. Cords rated for less amperage may overheat. Care should be taken to arrange the cord so that it cannot be pulled or tripped over.
• Never pour water directly into the reservoir. Pour water into the water tank only.
• When changing attachments, please be sure the unit is off, and no steam is being released to avoid contact with hot water.
• Use caution when changing attachments, as they may contain hot water from condensation. Ensure the attachments are dry or cooled off to avoid contact with hot water.

Perfect Steam Features

• Safe for use on all types of fabrics
• Quick heat-up feature emits steam in 45 seconds
• Convenient integrated garment hanger
• Telescoping design for compact storage
• 5-foot flexible hose with Safe Touch® hose cover for safe and comfortable handling
• Easy-fill water tank provides 45 minutes of continuous steam
• Rolling casters for excellent mobility
• Low water auto shut-off for safe use

Assembly Instructions

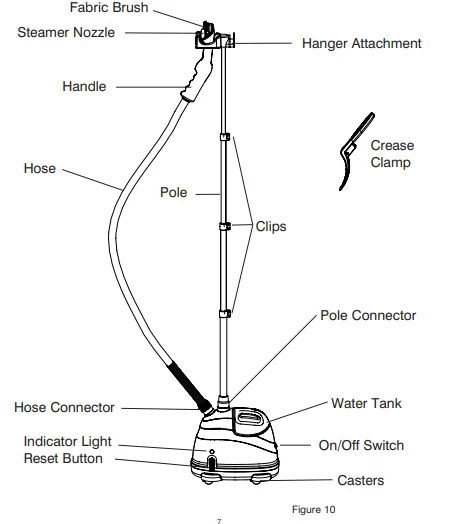

1. Carefully remove all contents from the packaging and inspect the product to make sure all components have been received (Fig. 10).
2. Insert the pole into the top of the unit. Match the grooves on the pole with the notches in the pole connector and push down. Securely tighten the nut on the pole over the connector by turning it clockwise (Fig. 1).
3. To attach the hanger attachment, align the tabs in the hanger attachment with the grooves on the pole and push down (Fig. 2).
4. Fully extend the telescopic pole. To do so, open the 3 clips on the pole and pull the pole upward (Fig. 2). When fully extended, close the clips. Make sure that the pole is securely locked into place and cannot be pushed downward.
5. Attach the fabric brush to the nozzle by setting it into place (Fig. 3).
6. Attach the handle and hose assembly to the unit. Line up the nut on the hose with the screw on the hose connector. Turn the nut clockwise until it is securely tightened on the hose connector (Fig. 4). It should be tightly screwed into place. Then you may hang the steamer handle onto the hanger attachment (Fig. 3). NOTE: Do not hang the hose on the hanger attachment until after it has been connected to the base to prevent the hose from falling on you.
7. Attach the crease clamp (Fig. 5) onto the nozzle tab and gently push it into place. NOTE: Do not use the crease clamp and the fabric brush at the same time.

Instructions for Use

1. Remove the water tank from the unit by grasping the handle and turning it upside down. Unscrew the cap from the bottom of the water tank. Hold the tank under cold running water and fill to the desired level (Fig. 6). DO NOT fill past the 45 min. fill line. When you have finished filling the tank, screw the cap back on and turn it over (Fig. 7). Place the water tank back into the unit and make sure it is sitting properly and securely in the cavity. NOTE: Only fill the water tank with cold water. DO NOT use HOT water.
2. Plug the steamer cord into a 120V AC electrical outlet.
3. Turn the On/Off switch to the On position. The switch will light to indicate that the garment steamer is on. Steam will emit from the nozzle in 45 seconds.
4. Hang the garment onto the hanger attachment (Fig. 8). Steam the garment in an up-and-down motion, starting from the top of the garment to the bottom. Always keep the hose and nozzle elevated above the water container.
5. This unit has a reset button (Fig. 10). When the unit runs out of water, it will automatically shut off to ensure safe use, and the red indicator light will come on above the reset button. If you wish to continue your streaming session:
   • Turn the On/Off switch to the “Off” position and unplug the power cord.
   • Remove and refill the water tank by following Step 1 under Instructions for Use.
   • Plug the steamer cord into a 120V AC electrical outlet.
   • Push the reset button on the side of the unit.
   • Turn the On/Off switch to the “On” position.
6. When you are finished with your steaming session, place the On/Off switch in the Off position and remove the plug from the outlet.

NOTE: Be cautious when handling until the steamer has fully cooled.

Using Attachments

NOTE: When installing or changing attachments, be sure the unit is off, unplugged, and no steam is being released to avoid contact with hot water.

1. Fabric Brush
   • Helps open the fabric for greater steam penetration.
   • Attach the fabric brush onto the steam nozzle (Fig. 3).
   • Move the fabric brush in a downward motion from top to bottom, gently brushing the fabric.
2. Crease Clamp
   • Helps create a straight crease.
   • Attach the crease clamp to the steam nozzle (Fig. 5).
   • Push the trigger to open the crease clamp.
   • Place the garment between the crease clamp and the steam nozzle.
   • Release the trigger.
   • Move the crease clamp in a downward motion from top to bottom to set a crease.

Cleaning and Maintenance

1. Be sure the steamer is turned off and unplugged.
2. Allow the steamer to cool for at least 30 minutes.
3. Empty any excess water from the water tank and allow it to air dry before replacing the cap and setting it back in the unit.
4. Empty excess water from the reservoir by tipping the unit over a sink.

Storing

1. Open the 3 clips (Fig. 2) on the telescopic pole and glide it slowly to collapse, being careful not to pinch your fingers. When it is all the way down, close the 3 clips back into place.

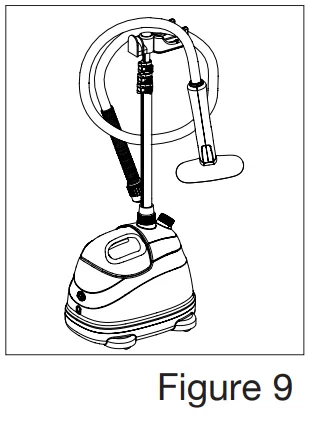

2. Coil the hose and place it on the hanger attachment (Fig. 9).
3. Store in a cool, dry place.

Removing Mineral Buildup

One common problem with steamers is mineral buildup caused by the high mineral content in many municipal water supplies. Mineral residue inside the internal pipes and heater can cause intermittent steaming or, in severe cases, no steaming at all. The best way to avoid this is to use de-mineralized or distilled water in the unit. The procedure below can be used to clear mineral buildup. If you are unable to use de-mineralized or distilled water, we recommend you use this procedure every 30 hours of operation to help avoid mineral buildup.

1. Turn the unit off and unplug the power cord.
2. Unscrew and remove the hose from the hose connector on the top of the unit.
3. Remove the pole from the unit.
4. Remove the water tank from the main unit and drain any water in the unit over a sink.
5. Make a mixture of 4 oz. white vinegar and 4 oz. water. In most cases, 1 cup of this mixture will be sufficient.

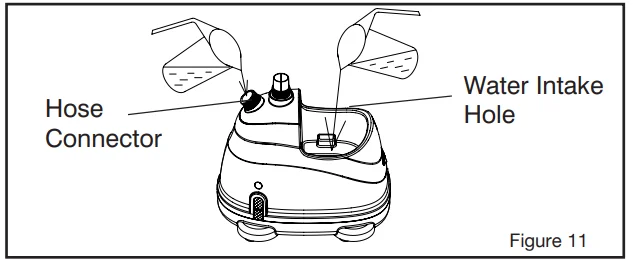

6. Slowly pour the water-vinegar mixture into the hose connector (Fig. 11).
   • a. If the internal piping is only partially blocked by mineral buildup, the water-vinegar mixture will soon start flowing out of the water intake hole. If this happens, proceed to Step 8.
   • b. If the internal piping is completely blocked, continue to pour the mixture into the hose connector until full.
7. Pour the water-vinegar mixture into the water intake hole until full.
8. Let stand for 40 minutes.
9. Drain the water-vinegar mixture from the hose connector or the reservoir by tipping the unit over a sink.
   • Pour clean water through the hose connector and water intake hole until the vinegar smell dissipates.
   • Drain the residual water from the hose connector or the reservoir by tipping the unit over a sink.
   • Reassemble the unit and operate normally.

If the procedure above does not return the unit to normal operation, the unit may need servicing.

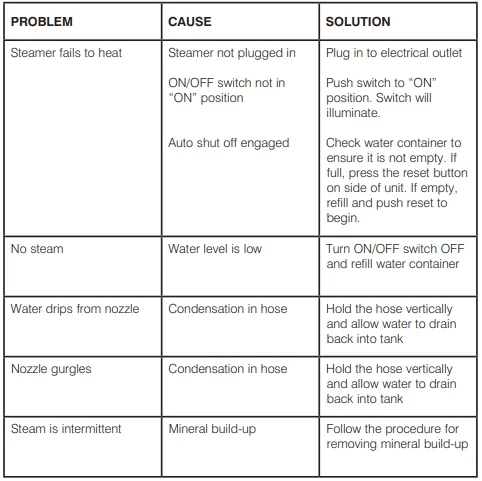

Troubleshooting the Steamer

For more information regarding our product line in the USA, please visit: www.homedics.com.

NOTE:

1. Water mineral content and conditions will vary in different areas. To ensure the continued operation of the steamer, never store it without cleaning and removing excess water from the reservoir and water container.
2. If the reset light comes on with water in the tank, you probably need to remove mineral buildup.
3. In areas where the voltage exceeds 120V, it may be necessary to clean your unit more frequently.
