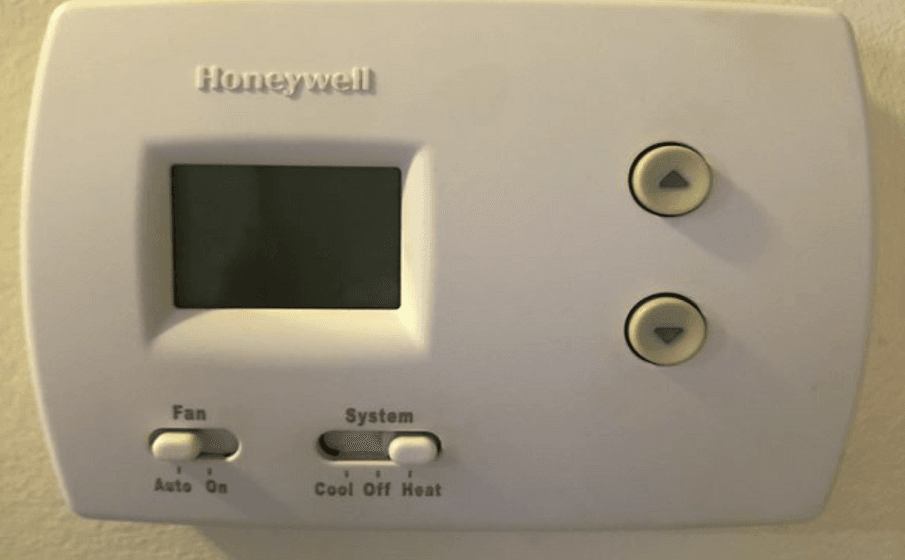

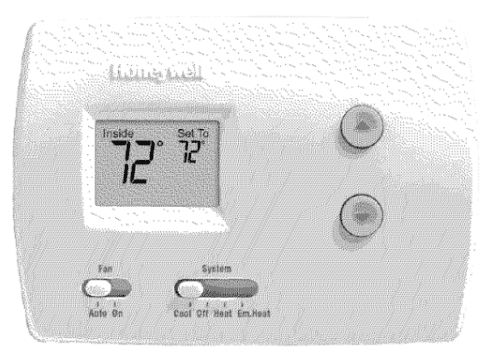

Honeywell PRO TH3000 Series Thermostat
About your new thermostat
- Your new Honeywell thermostat has been designed to give you many years of reliable service and easy-to-use, push-button climate control.
Features
- The large, clear, backlit display is easy to read, even in the dark.

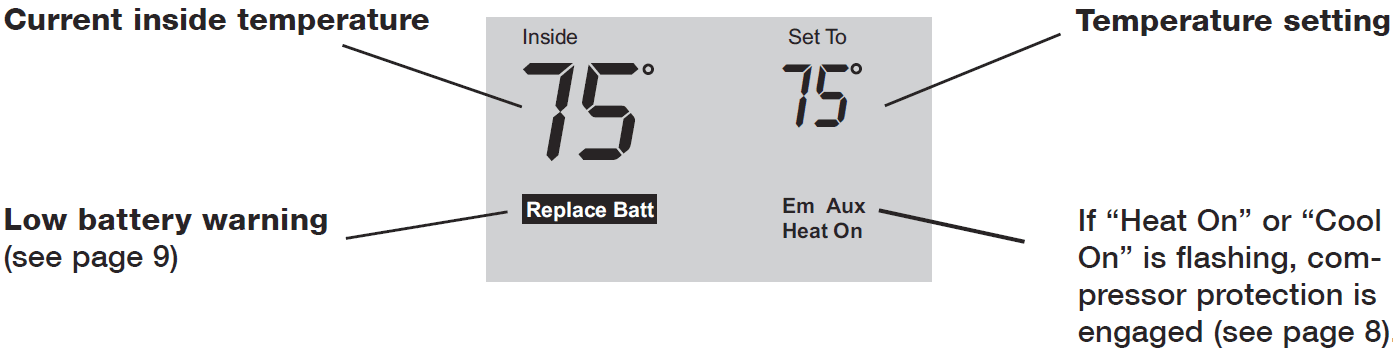

- Displays both room temperature and temperature setting.
- Built-in compressor protection.

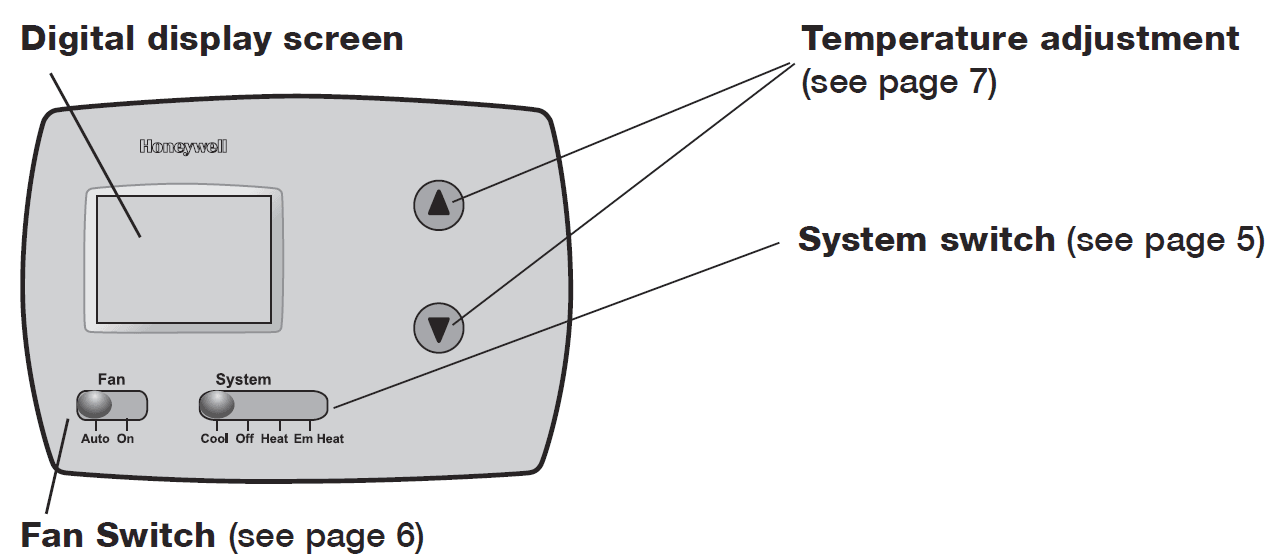

A quick reference to controls
- On: Fan runs continuously.
- Auto: The fan runs only when the heating or cooling system is on
- Cool: Cooling system control.
- Off: All systems off.
- Heat: Heating system control.
- Em Heat: Emergency & Auxiliary Heat control. A compressor is locked out. (Select models only.)
System Status
- Cool On: The cooling system is on.
- Heat On: The heating system is on.
- Em: Emergency heat is on. **
- Aux: Auxiliary heat is on

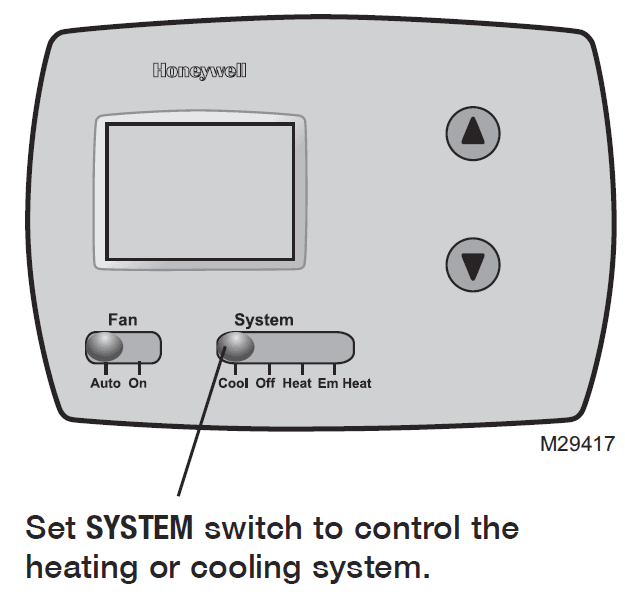

System switch
- The SYSTEM switch can be set to control your heating or cooling system, depending on the season.
- Cool: Cooling system control.
- Off: All systems are off.
- Heat: Heating system control.
- Em Heat: Emergency & Auxiliary Heat control. The compressor is locked out. (Select models only.)

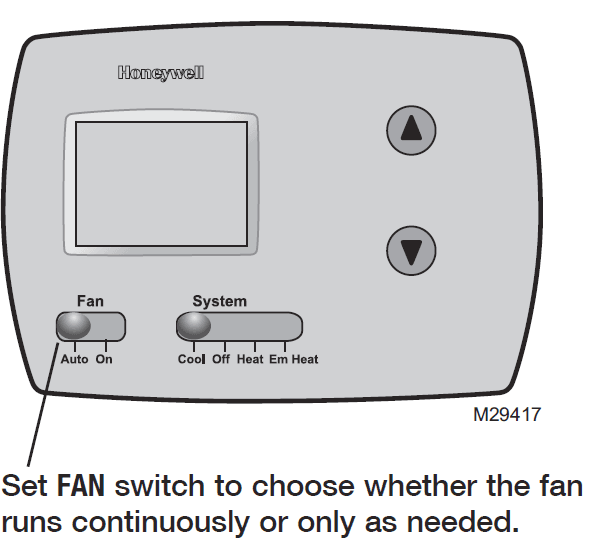

Fan switch
- Set the FAN switch to Auto or On.
- In “Auto” mode (the most commonly used setting), the fan runs only when the heating or cooling system is on.
- If set to “On,” the fan runs continuously
About your new thermostat
- Press the temperature adjustment buttons until the temperature you want is displayed in the upper right portion of the screen.
- Note: Make sure the SYSTEM switch is set to the system you want to control (Heat or Cool).
Built-in compressor protection
- This feature helps prevent damage to the compressor in your air conditioning or heat pump system.
- Damage can occur if the compressor is restarted too soon after shutdown. This feature forces the compressor to wait 5 minutes before restarting.

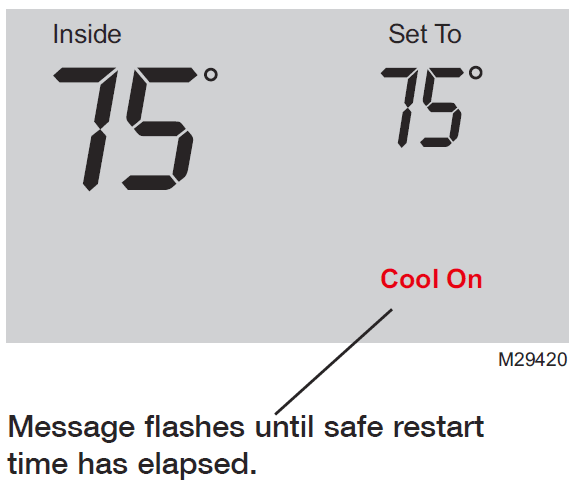

- During the wait time, the display will flash the message Cool On (or Heat On if you have a heat pump). When the safe wait time has elapsed, the message stops flashing and the compressor turns on.

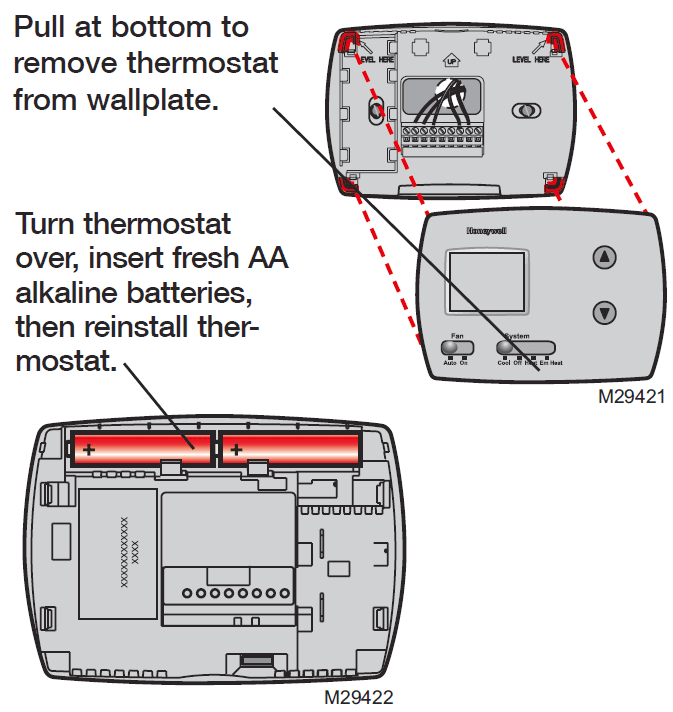

Battery replacement
- Batteries are optional (for backup power) if your thermostat was wired to run on AC power when installed.
- Install fresh batteries when the REPLACE BATT warning begins flashing. The warning flashes about two months before the batteries are depleted.
- Replace batteries once a year, or before leaving home for more than a month. Batteries provide backup power to the display during power interruptions. All settings are permanently stored in memory and do not require battery power
In case of difficulty
If you have difficulty with your thermostat, please try the following suggestions. Most problems can be corrected quickly and easily.
- Display is blank
- Check the circuit breaker and reset it if necessary.
- Make sure the power switch at the heating & cooling system is on.
- Make sure the furnace door is closed securely.
- Make sure fresh AA alkaline batteries are correctly installed (see page 9).
- The heating or cooling system does not respond
- Set the system switch to Heat (see page 5). Make sure the temperature is set higher than the Inside temperature.
- Set the system switch to Cool (see page 5). Make sure the temperature is set lower than the Inside temperature.
- Wait 5 minutes for the system to respond.
- Temperature settings do not change
- Make sure heating and cooling temperatures are set to acceptable ranges:
- Heat: 40° to 90°F (4.5° to 32°C).
- Cool: 50° to 99°F (10° to 37°C).
Customer Assistance
- For assistance with this product, please visit http://yourhome.honeywell.com
- Or call Honeywell Customer Care toll-free at 1-800-468-1502.

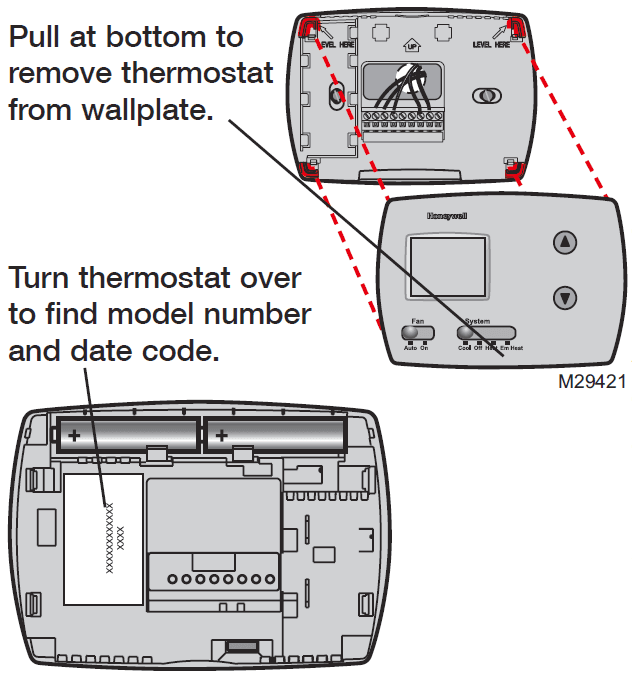

- To save time, please note your model number and date code before calling.
5-year limited warranty
- Honeywell warrants this product, excluding battery, to be free from defects in the workmanship or materials, under normal use and service, for a period of five (5) years from the date of purchase by the consumer. If at any time during the warranty period, the product is determined to be defective or malfunctions, Honeywell shall repair or replace it (at Honeywell’s option). If the product is defective,
- (i) Return it, with a bill of sale or other dated proof of purchase, to the place from which you purchased it; or
- (ii) call Honeywell Customer Care at 1-800-468-1502. Customer Care will make the determination whether the product should be returned to the following address:
- Honeywell Return Goods, Dock 4 MN10-3860, 1885 Douglas Dr. N., Golden Valley, MN 55422, or whether a replacement product can be sent to you.
This warranty does not cover removal or reinstallation costs. This warranty shall not apply if it is shown by Honeywell that the defect or malfunction was caused by damage that occurred while the product was in the possession of a consumer.
Honeywell’s sole responsibility shall be to repair or replace the product within the terms stated above. HONEYWELL SHALL NOT BE LIABLE FOR ANY LOSS OR DAMAGE OF ANY KIND, INCLUDING ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING, DIRECTLY OR INDIRECTLY, FROM ANY BREACH OF ANY WARRANTY, EXPRESS OR IMPLIED, OR ANY OTHER FAILURE OF THIS PRODUCT. Some states do not allow the exclusion or limitation of incidental or consequential damages, so this limitation may not apply to you. - THIS WARRANTY IS THE ONLY EXPRESS WARRANTY HONEYWELL MAKES ON THIS PRODUCT. THE DURATION OF ANY IMPLIED WARRANTIES, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, IS HEREBY LIMITED TO THE FIVE-YEAR DURATION OF THIS WARRANTY.
- Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. This warranty gives you specific legal rights, and you may have other rights which vary from state to state. If you have any questions concerning this warranty, please write Honeywell Customer Relations, 1985 Douglas Dr, Golden Valley, MN 55422, or call 1-800-468-1502. In Canada, write Retail Products ON15-02H, Honeywell Limited/Honeywell Limitée, 35 Dynamic Drive, Toronto, Ontario M1V4Z9.
