Honeywell TPFIT50 50-Pint Portable Dehumidifier User Manual

Honeywell TPFIT50 50-Pint Portable Dehumidifier

Table of Contents

SAFETY RULES

WARNING — READ AND SAVE THESE INSTRUCTIONS BEFORE USING THIS PRODUCT.

The use of electrical products may create hazards that include, but are not limited to, injury, fire, and electrical shock. Failure to follow these instructions may damage and/ or impair its operation and void the warranty. In case there is any inconsistency or conflict between the English version and any other language version of the content of this material, the English version shall prevail.

When using electrical appliances, basic safety precautions should always be followed:

DO NOT touch the dehumidifier or the electrical plug with wet hands.
Check the household voltage to ensure it matches the appliance’s specification.
Before operating, remove all packaging material and check for any damage that may have occurred during shipping.
DO NOT operate any product with a damaged cord or plug.
DO NOT use an extension cord with this appliance.
DO NOT run power cords under carpeting, or cover them with rugs or runners. Keep the cord away from areas where it may be tripped over.
Always power off and unplug the dehumidifier before emptying the water tank.
The water collected in the tank must be discarded. The water should never be used for drinking.
Always unplug the dehumidifier and remove the water from the water tank before cleaning, servicing, or relocating the unit.
Remove the power cord from the electrical receptacle by grasping and pulling on the power cord plug-end only; never pull the cord.
This appliance has been manufactured for use in domestic environments and must not be used for other purposes.
DO NOT use the product in areas where gasoline, paint, or other flammable goods and objects are used or stored.
This dehumidifier is designed for indoor residential applications only. It should not be used for commercial or industrial applications.
DO NOT attempt to repair or adjust any electrical or mechanical functions of the dehumidifier, as this may cause danger and void the warranty.
DO NOT cover the air inlet or outlet on the appliance, as this may cause the unit to fail.
DO NOT insert or allow objects to enter any ventilation or exhaust opening, as this may damage the product and could cause electrical shock or fire.
DO NOT let children play with this appliance, packaging,g, or the included plastic bag.
If the unit is damaged or it malfunctions, do not continue to operate it. Unplug the product from the electrical outlet. Refer to the troubleshooting section and contact the customer support center.
Always place the dehumidifier on a leveled floor.
Never install the product near a bathtub or any water container.
Store in a dry area, away from direct sunlight, when not in use.
This appliance and its packaging materials are not intended for use by persons (including children or the elderly) with reduced physical, sensory, or mental capabilities, or a lack of experience and knowledge, unless they have been given supervision or instructions concerning the use of the appliance by a person responsible for their safety.
Always grip the top handle and keep the unit upright when transporting from room to room – DO NOT tilt the product on its side or upside-down.
If the dehumidifier was transported tilted on its side, you must position it upright again and wait at least 4 hours before using it.
WARNING: To reduce the risk of fire or electric shock, do not use this appliance with any solid-state speed control device.

HOW A DEHUMIDIFIER WORKS

When the dehumidifier is switched ON, a fan pulls moisture-laden air into the dehumidifier, where it passes through dehumidifying coils inside the unit. These coils condense moisture from the air and collect it in the water tank. The dry air is then exhausted from the dehumidifier. The air flows through the air vents of the dehumidifier into the room as dry, warm air.

IMPORTANT: The dehumidifier is designed to operate between 41°F (5°C) and 89°F (32°C). The dehumidifier’s performance may be greatly reduced if the room temperature is beyond this temperature range.

SELECTING A LOCATION – IMPORTANT

Before using the dehumidifier, place the unit UPRIGHT for at least 4 hours before use to allow the refrigerant to stabilize in case it was transported on its side or upside-down.
For optimal efficiency, the dehumidifier must be operated in an enclosed area. Keep all doors, windows, and other outside entrances to the room closed.
Place the dehumidifier in an area where the temperature will not drop below 41°F (5°C)
Place the dehumidifier at least 17.7 inches (45 cm) away from other objects (e.g., curtains or furniture) that may restrict airflow from the back or through the air vents of the unit.
The dehumidifier must be positioned on a level floor.

IMPORTANT: The effectiveness of the dehumidifier can be influenced by different factors. One factor is the rate at which new, moisture-laden air enters the room and the amount of air circulating in and out of the area to be dehumidified. For example, if a door to a basement is constantly opened, letting new, moisture-laden air into the room, dehumidification will take longer than if the door were kept closed. If the dehumidifier is in a room with a storage closet or cabinets, it will have little or no effect in drying the inside of the storage closet or cabinets unless there is adequate circulation of air in and out of these spaces. To dehumidify these spaces, open the storage door or cabinet doors to allow air circulation. You may find that installing a second dehumidifier may be required for larger enclosed areas.

UNPACKAGING THE DEHUMIDIFIER

This Dehumidifier is packaged with a colored or transparent tape to secure some parts during transportation. Remove the colored or transparent packaging tape from the unit.

Gently pull the water tank out of the dehumidifier
Remove the splash guard from the top part of the water tank
Take out the power plug, drain hose, and other accessories, which are placed inside the tank of the dehumidifier.
Once all accessories have been removed, replace the splash guard onto the top part of the water tank. Make sure that the tank is properly positioned.

PARTS DESCRIPTION

Control Panel
Handle
Splash Guard
Water Tank Handle
Water Tank
Water Level Indicator
Casters
Dehumidified Air Exhaust Vent
Washable Dust Filter
Direct Drain Outlet
Direct Drain Cap
Mounting Holes for Cord Winders
* Auto Drain Pump Outlet
*Auto Drain Pump Cap
Power Cord & Plug
Cord Winders
Continuous Water Drain Tube
(Inner Dia.: 0.47 in; Length: 3.28 ft)

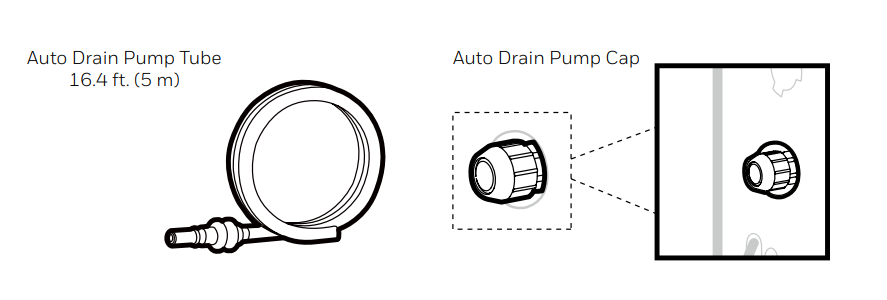

Auto Drain Pump Tube
(Inner Dia.: 0.21 in; Length: 16.4 ft)

* THIS IS ONLY FOR MODEL TPFIT50PWK WITH BUILT-IN DRAIN PUMP

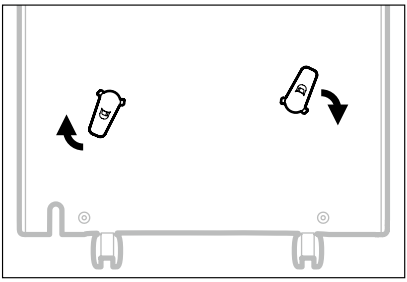

INSTALL THE CORD WINDER

Once you have removed the cord winder accessories from the water tank, follow the steps below.

Step 1: Line up the cord winder pieces with he mounting holes.
Step 2: Rotate 45 degrees clockwise.
Step 3: Once you hear “click”, then you know the cord winder is ready for use.

NOTE: Once the installation of the cord winder has been completed. The cord winder cannot be removed. The installation is permanent.

USE & OPERATION

CONTROL PANEL

Power Control
Display Screen
Fan Speed Control
Humidity / Timer Set Controls
Timer Control
*Auto Drain Pump Mode
*Auto Drain Pump Indicator Light
Comfort Mode Indicator Light
Timer Indicator Light
Water Full Indicator Light

* THIS IS ONLY FOR MODEL TPFIT50PWK WITH BUILT-IN DRAIN PUMP

FUNCTION BUTTONS

POWER CONTROL

Press to switch the dehumidifier ON or OFF.

HUMIDITY CONTROL SETTING

When the unit is switched ON, the Display Screen shows the current humidity percentage. Press + or – to select your preferred humidity level. The humidity is adjusted in increments of 5% by pressing + or -. The adjustable Relative Humidity (RH) range is between 35% RH to 80% RH. 3 seconds after setting the preferred humidity setting, the display will revert to displaying the current humidity.

IMPORTANT: There is a 5% threshold when the desired humidity setting has been reached. The compressor will shut off once the relative humidity is 5% lower than your desired setting. The fan will continue to run for up to 3 minutes to cool the motor and will then shut off. The operation restores once the relative humidity is 5% higher than your desired setting.

Recommended Settings: It is recommended to leave the unit running at 35% humidity at High Fan Speed during the first 2 to 3 days until damp odors are removed. After a few days, when the Relative Humidity has been reduced to a more comfortable level, press or choose a higher RH% that maintains a comfortable humidity level thereafter. A recommended healthy humidity level is between 40% and 50%.

NOTE: The humidity sensor senses current humidity in the surrounding area. It is normal for about a 5% variance above or below the actual relative humidity in the room. Therefore, if there is a slight variance, the unit may sometimes operate slightly longer or shorter than the set RH% level.

CO LAUNDRY MODE

To activate the CO Laundry Mode, press the – button on the Display Screen until it appears. Press to set the desired fan speed. A higher fan speed results in faster moisture removal.

The dehumidifier runs continuously for more powerful dehumidification, which is suitable for drying clothing. Hang damp clothing in the same room as the dehumidifier, taking care not to allow wet clothes to hang over it, ensuring that no water drips onto the dehumidifier.

Keep windows/ doors closed for faster drying.

WATER TANK FULL ALERT

When the water tank is full, the compressor will automatically switch off, while the fan will keep running for another 3 minutes to cool down the system. A beep sound will then activate for 3 seconds, and the icon will illuminate. To reset, empty the water tank and then reinstall it onto the unit, making sure the tank is secured properly in place.

IMPORTANT: Do not place the Water Tank on the floor when full. In case of an uneven base, which may cause the tank to spillover.

TIMER CONTROL

The dehumidifier can be set to automatically switch ON or OFF for a selected period (between 0.5-24 hours intervals). The Timer hours selection is displayed on the Display Screen.

NOTE: Before setting the Timer control, make sure there is power to the unit.

Auto-Off Timer:

While the unit is running, the timer indicator light will flash. Press + or – to select the number of hours (0.5-24 hours) you want the unit to run before it switches off. In 5 seconds without the operation, the Timer start function, the timer indicator light is illuminated. The timer must be set again after each use.

Auto-On Timer:

When the unit is in Standby Mode, the timer indicator light will flash, press + or – to select the number of hours (0.5-24 hours) until you want the unit to automatically start running. In 5 seconds without the operation, the Timer start function, the timer indicator light is illuminated. The previous fan speed and humidity setting will be maintained. The unit will turn on and continue running until the water tank is full (unless the unit is set up for continuous draining) or until you switch it off manually. The timer must be set again after each use.

NOTE:

To cancel any Timer settings, simply press again, and the timer indicator light will disappear.
The solid power light indicates the tank of the unit is full.
“–“display in the LED indicates the unit is in Standby Mode.

Fan Speed Control

There are 3 fan speeds – Low (I), Medium (II), and High (III).

COMFORT MODE

When the unit is in Standby Mode, hold for 3 seconds, and the indicator light will be illuminated.

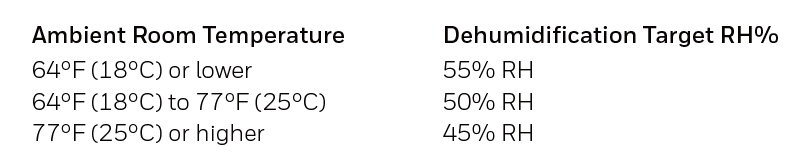

The dehumidifier automatically adjusts the Relative Humidity (RH) percentage settings based on ambient room temperature, for hassle-free operation (see below):

To cancel Comfort Mode, simply switch OFF the dehumidifier or hold the button for 3 seconds, and the indicator light will disappear.

DISPLAY AND WATER TANK ALERTS DEACTIVATED IN COMFORT MODE

Comfort Mode is designed for unobtrusive operation when sleeping:

The display and control lights turn off after one minute of inactivity.
Pressing any button will light up the control panel again.
The water tank full alert light and beeping sounds are deactivated.
When the water tank is full, the dehumidifier automatically turns OFF after 3 minutes.

NOTE: In other modes, the display and control lights automatically turn off after 3 minutes of control panel inactivity.

AUTO DRAIN PUMP MODE*

The Auto Drain Pump function helps to remove condensation vertically and horizontally.

Press the button to activate the Pump function, the indicator light will be illuminated.

IMPORTANT: The pump function setting should be restored after a power outage. If it is not, simply reset and then turn on the pump feature again.

* THIS IS ONLY FOR MODEL TPFIT50PWK WITH BUILT-IN DRAIN PUMP

FROST ON COILS – AUTOMATIC DEFROST FUNCTION

Frost may build up on the internal coils of the unit. When there is frost buildup, the internal compressor will turn off, and the fan will continue to run until the frost has melted. Once the internal coils have defrosted and dried, the fan will continue to run for 8 minutes, and the compressor will automatically restart, and dehumidifying will resume.

DRAINING THE WATER

WARNING: Always drain and discard water collected from dehumidification. The water is not clean and cannot be used for drinking.

WARNING: Clean the water tank with a soft cloth and a drop of dish detergent every 1-2 weeks to prevent mold formation in and around the water tank. Rinse with clean water and dry it before reinstalling the tank into the unit.

Draining water collected in the Water Tank

The condensed water can be collected directly into the water tank. When the water tank is full, the dehumidifier will automatically shut OFF and the indicator will flash on the control panel, followed by a beeping sound.

IMPORTANT: Do not move the dehumidifier when the Water Tank is full, as it will be heavy and can cause water spillage.

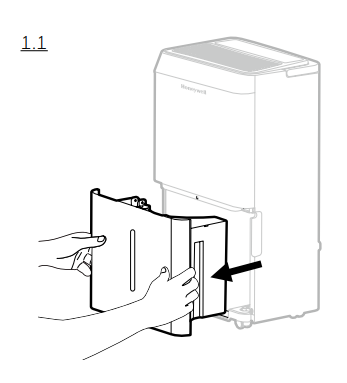

Locate the water tank at the front of the dehumidifier.
Gently pull the water tank out.
Grip the handle inside the water tank and carry the water tank to a sink to empty.
Replace the empty water tank in the front of the dehumidifier. Please make sure that the tank is properly positioned. The safety feature ensures that any misalignment of the tank and the unit will prevent the unit from turning back on.

IMPORTANT: Improper alignment or positioning of the water tank will cause the unit to pause operation.

A beeping sound and warning light will flash when the water tank is not fitted properly*.

* Not applicable on TPFIT50PWK with built-in pump feature.

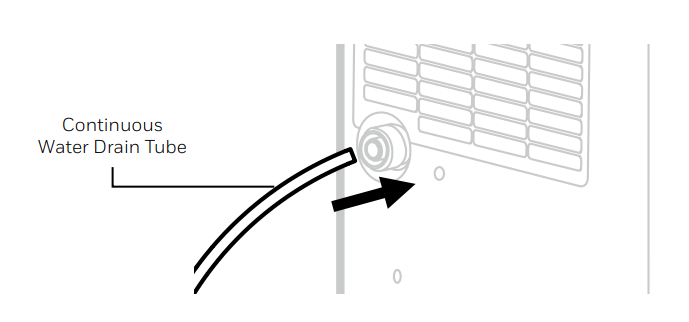

Continuous Water Drainage – Using a Continuous Water Drain Tube (CO Laundry Mode )

VERY IMPORTANT: DO NOT USE PUMP FUNCTION* when you connect a continuous water drain tube.

* THIS IS ONLY FOR MODEL TPFIT50PWK WITH BUILT-IN DRAIN PUMP

A continuous water drain tube is included with this unit. To activate the continuous water draining function, you will require a suitable water drain (e.g., sink or drain hole at floor level) near the dehumidifier.

Locate the drain outlet at the back of the unit. Unscrew and remove the Direct Drain Cap. Insert the Continuous Water Drain Tube into the Direct Drain Outlet.
If there are leaks, the Continuous Water Drain Tube and Cap may have loosened and may not be connected properly. Disconnect, replace, and tighten again.
Position the other end of the Continuous Water Drain Tube in the sink or drain. Make sure the tube is not bent or kinked, which might stop the water flow. Make sure the tube is secured over the drain and will not fall out of place, causing unwanted water spillage.IMPORTANT: Make sure water can flow down the Continuous Water Drain Tube by keeping the tube angled down and free of bends or kinks.
IMPORTANT: If the unit is placed on uneven ground or the Drain Tube is installed incorrectly, the water may fill the water tank and stop running. Please check whether the ground is uneven and reinstall the Drain Tube.

Continuous Water Drainage – Using the Auto Drain Pump option

VERY IMPORTANT: Only use the pump function when you connect an Auto Drain Pump Tube.

The Auto Drain Pump is available if you want to use the continuous drain function, but the drain is further away or located above the dehumidifier. The Auto Drain Pump Tube can be attached to the Direct Drain Outlet located on the back side of the dehumidifier.

Locate the drain outlet at the back of the unit. Push the Direct Drain Cap ① and the Auto Drain Pump Tube ② simultaneously.
To activate the Pump function, press the button until it is illuminated on the display screen.
Place the other end of the tube into the sink or drain. The water can be pumped up to 16.4 ft (5 m) vertically or horizontally.
NOTE: DO NOT use an alternative drain tube that is longer than the one provided with the unit.
IMPORTANT: The pump function setting should be restored after a power outage. If it is not, simply reset and then turn on the pump feature again.
To deactivate the Pump mode, simply press again, and the indicator light will disappear.
To remove the auto drain pump tube. Push the Direct Drain Cap ① and pull the Auto Drain Pump Tube ② simultaneously

CLEANING & MAINTENANCE

WARNING: Always switch OFF the dehumidifier and unplug it from the electrical outlet before attempting any cleaning or maintenance of this product.

Appliance Maintenance

Switch OFF the appliance before disconnecting the power supply.
Only use a soft cloth to clean the appliance.

Dust Filter Maintenance

The Dust Filter located at the back of the unit helps to remove dust particles from the air. A dirty filter clogged by dust particles can reduce the efficiency of the dehumidifier. For optimum dehumidification, it is recommended to clean the dust filter every 2 weeks:

Switch off and unplug the dehumidifier from the electrical outlet.
Carefully pull out the dust filter from the dehumidifier.
Rinse the dust filter under running water, or vacuum away the dust with a vacuum cleaner.
After cleaning the dust filter, dry it in a cool, shaded place, then carefully reinstall it into the unit.

End of Season Storage & Maintenance

If the appliance will not be used for an extended period:

Switch OFF the unit and unplug it from the electrical power outlet.
Empty the water tank and wash it gently with a cloth and a drop of dish detergent to remove any grime that may have collected inside or around the tank. This will help avoid mold formation while in storage. Rinse and dry the tank before reinstalling it into the unit.
If your dehumidifier is connected to the continuous drain hose, you must disconnect the hose, dry and then replace the drain cap back into the drain outlet.
Remove the air filter and clean with water. Let the air filter dry and reinstall back into the unit.
Make sure all parts of the dehumidifier and accessories are dry before storage.
Cover the dehumidifier with a cloth/ plastic bag before storage to protect the surface from dust and scratches.
It is recommended to coil the power cord and store it off the floor to ensure it is protected from bends and kinks.
Store the unit upright in a dry location, away from direct sunlight.

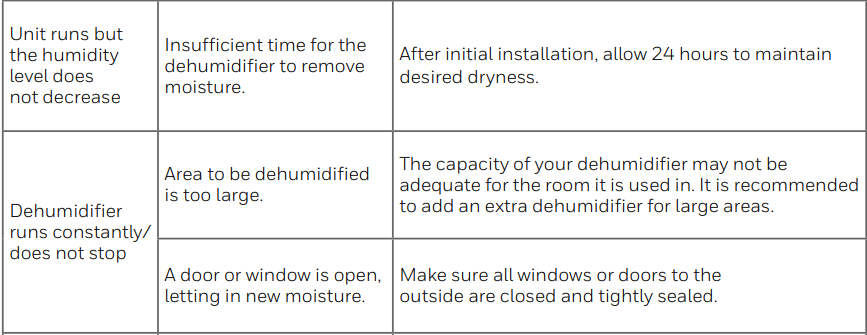

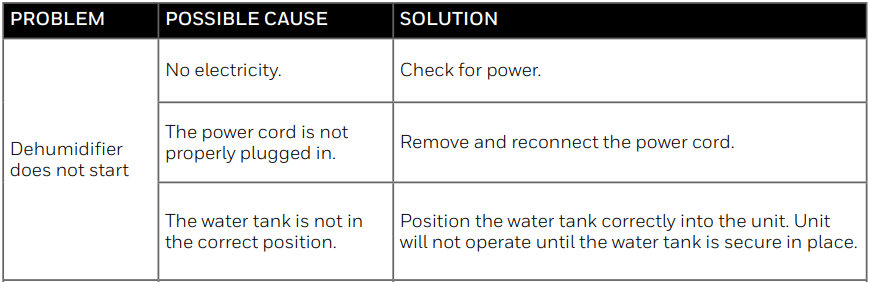

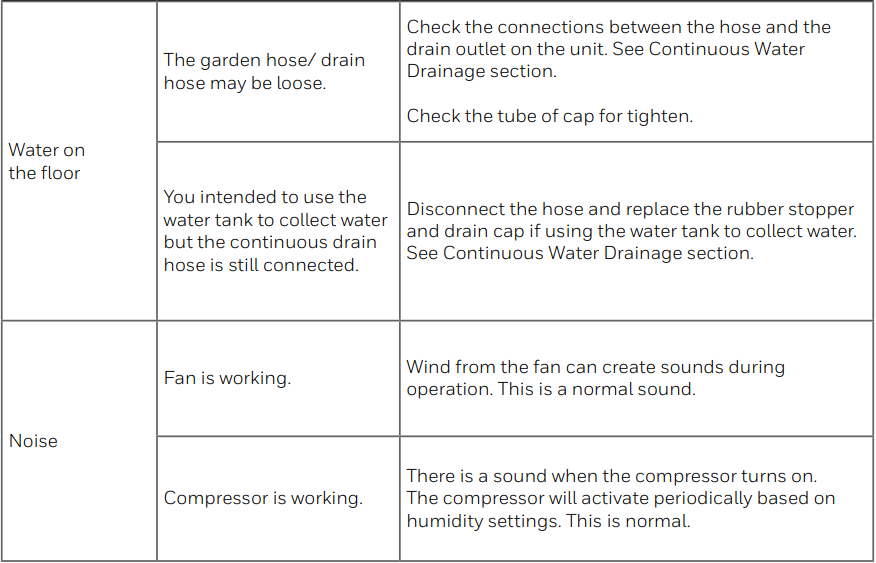

TROUBLESHOOTING GUIDE

The following troubleshooting guide addresses the most common problems. If problems persist, call customer service.

For more troubleshooting steps, please visit:

https://honeywellaircomfort.com/pages/portable-dehumidifier-faqs

REGULATION STATEMENT

FCC INTERFERENCE STATEMENT

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

This device may not cause harmful interference, and
This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used according to the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment info to an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/ TV technician for help.

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum of 20 cm between the radiator and your body. This transmitter must not be collocated or operate in conjunction with any other antenna or transmitter unless authorized to do so by the FCC.

Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
