Hoover SpinScrub 50 Carpet Cleaner User Manual

Hoover SpinScrub 50 Carpet Cleaner

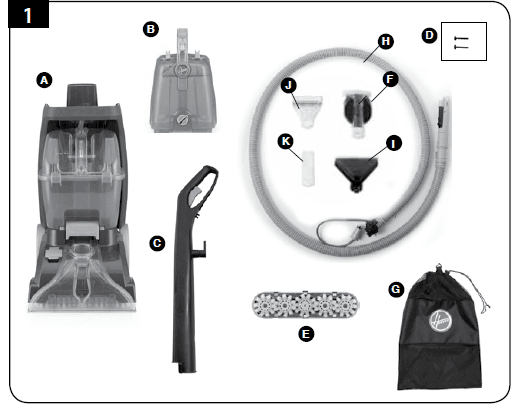

CARTON CONTENTS

• A. Carpet Washer
• B. Water/Solution Tank
• C. Upper Handle
• D. Handle Screws
• E. SpinScrub® Brush Assembly (Pre-assembled in unit)
• F. SpinScrub® Hand Tool
• G. Mesh Tool Storage Bag Tools Included in Mesh Bag
• H. Accessory Hose
• I. Stair Tool
• J. Upholstery Tool
• K. Crevice Tool

HOW TO ASSEMBLE

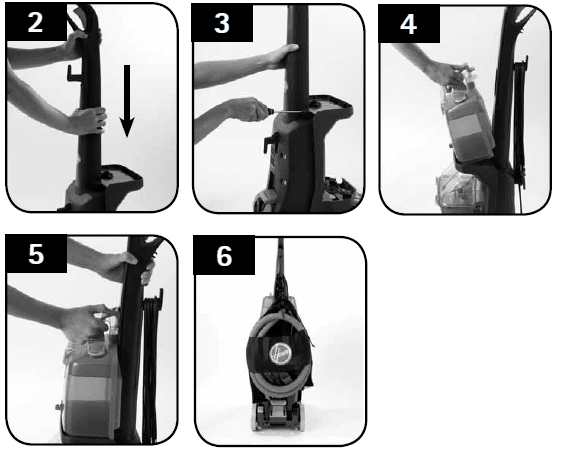

ATTACH HANDLE

1. Position the upper handle and slide it down into the carpet washer base (Fig. 2)
2. Insert both screws and tighten with screwdriver (Fig. 3).
   PLACE SOLUTION/ WATER TANK
3. Position the bottom of the tank onto Carpet Washer (Fig. 4).
4. Push the tank handle while supporting the back of the cleaner with the other hand until the Solution Tank clicks into place (Fig. 5).
5. Check to make sure the tank is securely latched.
   STORE TOOLS
6. Place tools and hose into the Mesh Tool Storage bag provided.
7. Mesh Tool Storage Bag should not be hung on the Carpet Washer while the Carpet Washer is in use.
8. Mesh Tool Storage Bag can be conveniently stored either on the back of the unit or hung elsewhere by the provided hook (Fig. 6).
   CORD STORAGE
9. Wrap cord around cord hooks for convenient storage. Attach the plug end to a cord.

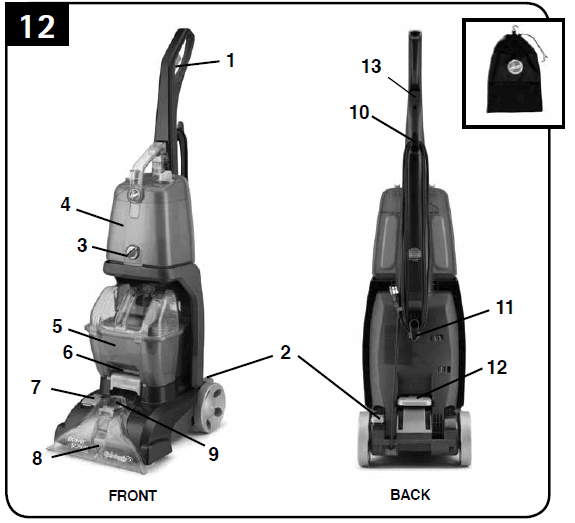

FEATURES

LIST OF FEATURES

1. Solution Trigger: Press to release cleaning solution
2. ON/OFF Pedal
3. Wash/Rinse Selector
4. Clean Water/Solution Tank
5. Dirty Water Tank
6. Dirty Water Tank Latch
7. Solution Tube Connection Port
8. Nozzle
9. Accessory Hose Connection Port
10. Cord Storage Hook
11. Cord Storage Hook (Does not rotate)
12. Handle Release Pedal
13. Cord Clip

HOW TO USE

ON-OFF PEDAL (Fig. 13, A)

1. To turn the cleaner ON, step on the pedal.
2. To turn the cleaner OFF, step on the pedal again.

HANDLE RELEASE PEDAL (Fig 13, B)

1. Grasp handle.
2. Step on the Handle Release Pedal to release the lower handle to the operating position.
3. Do not release the grip on the handle until the handle is returned to a locked upright position

TRANSPORTING

1. To move your cleaner from room to room, put the handle upright and locked.
2. Tilt cleaner back on wheels and push forward (Fig. 14).

CARRY HANDLES

As shown, the carpet washer may also be lifted by any carry handles. Be sure tanks are properly latched in place before attempting to lift (Fig 15).

• A. Upper Handle
• B. Solution Tank Handle
• C. Dirty Water Tank Handle
• D. Solution Tank Shelf

CLEAN WATER/SOLUTION TANK

The Clean Water / Solution Tank (Fig. 16) is divided into two sections. The Clean Water Tank (E) is for water only and the Solution Tank (F) is for cleaning solution only.

How to Fill

1. Turn off and unplug the cleaner from an electrical outlet.
2. To remove the tank, press down on the Solution Tank Latch and pull forward. (Fig. 17).
3. Fill the Clean Water Tank (Fig. 18) with hot tap water. Using hot water instead of cold water significantly improves cleaning performance.
4. Fill the Solution Tank ( Fig. 19) with Hoover® Clean Plus 2X Solution or any other Hoover solution (see “Cleaning Solutions” page 19 for details). Replace container caps and tighten.
5. Place the Solution/Water Tank back onto the unit using the method described on page 6.

DIRTY WATER TANK

The Dirty Water Tank holds the dirty water that is picked up from the surface being cleaned. When the Dirty Water Tank is full, the automatic shut-off will engage, suction will stop and the tank must be emptied (see Automatic Shut Off section).

How to Empty

1. Turn the cleaner off and unplug from the electrical outlet.
2. Release Dirty Water Tank Latch (Fig. 20).
3. Grab the Dirty Water Tank Handle and remove it from the carpet washer (Fig. 21).
4. Unplug the Quick Spout Pour Cap (A), rotate it away from the drain hole, and empty the Tank (Fig. 22).
5. Place the Recovery Tank back on to cleaner making sure to do so with the retaining features (B, Fig. 23) pointing down to ensure proper sealing.
6. Latch the Recovery Tank back into place.

How to Clean

1. Empty Dirty Water Tank.
2. Place on a flat surface and unlatch Dirty Water The tank lid latch is located below the Quick Spout Pour Cap (Fig. 24).
3. Pivot and lift off the Dirty Water Tank Lid (Fig. 25).
4. Remove lint from the filter screen located on the bottom of the Dirty Water Tank Lid (C, Fig. 25).
5. Rinse debris from the Dirty Water Tank Lid and Dirty Water Tank Bottom (Fig. 26).
6. Insert tabs on the Dirty Water Tank lid and reattach the lid to the Dirty Water Tank bottom (D, Fig. 27a).
7. Reattach the Recovery Tank Lid Latch.

AUTOMATIC SHUT OFF

When the Dirty Water Tank is full the yellow float disk will rise and shut off the carpet washer’s suction. The carpet washer will no longer pick up dirty water and the motor sound will become noticeably higher in pitch. When this happens, turn the carpet washer off and empty the Dirty Water Tank before continuing use. Check the Clean Water/Solution Tank also; it may need to be refilled. Do not use without float and float retainer in place. If broken or dislodged, take it to an Authorized Dealer for repair.

HOW TO CLEAN

BEFORE YOU BEGIN CLEANING

1. Vacuum thoroughly – For carpet, use a HOOVER® vacuum cleaner with an agitator for best results. Vacuum upholstery with a vacuum cleaner with cleaning tool attachments. Use a crevice tool to reach into tufts and folds. Do not use the carpet cleaner as a dry vacuum cleaner.
2. For upholstery, check the cleaning code – Use your HOOVER® carpet washer only if the upholstery fabric is marked with a “W” (for “wet” clean) or “S/W” (for “solvent/dry” or “wet” clean). Do not clean fabric marked “S” (“solvent/dry” clean only). If your upholstery does not have a code, seek professional assistance.
3. Test for colorfastness – Wet a white absorbent cloth with the solution. In a small, hidden area, gently rub the surface with the dampened cloth. Wait ten minutes and check for color removal or bleed with a white paper towel or cloth. If the surface has more than one color, check all colors.
4. When cleaning the entire floor, move furniture out of the area to be cleaned (may not be necessary if only high-traffic areas are to be cleaned). For furniture too heavy to move, place aluminum foil or wax paper under the legs. This will prevent wood finishes from staining the carpet. Pin up furniture skirts and draperies.
5. Pretreat spots and heavy traffic areas with an appropriate Hoover Cleaning Solutions, see “Cleaning Solutions” section. Follow the directions on the bottle. Available at additional cost if not included with your model.
6. To prevent staining, use plastic or aluminum foil to protect wood or metal surfaces from possible water spray.
7. To avoid wetting and possible damage to wood floors underneath area rugs/carpet, either move area rugs/ carpet to a non-wood hard floor surface or place waterproof material (e.g. plastic) underneath them before cleaning.

WASHING CARPET

Read the “Before You Begin Cleaning” instructions.

1. Fill the Clean Water Tank according to the instructions (Pg. 8).
2. Fill the solution tank with Hoover® solution according to instructions (Pg. 8).
3. Dry hands and plug the cord into a properly grounded outlet.
4. Step on the handle release the pedal and lower the handle to the operating position.
   Step 1
5. Set Wash/Rinse Selector to Wash (Fig. 28) Turn the cleaner ON.
6. Squeeze the trigger to apply the cleaning solution and slowly push the cleaner forward (equals one wet stroke) (Fig. 29).
7. Continue to squeeze the trigger and slowly pull cleaner back toward you (second wet stroke).
   Step 2
8. Release the trigger and slowly push the cleaner forward over the area just sprayed with solution (dry stroke). Then slowly pull the cleaner back toward you without squeezing the trigger (dry stroke). Continue using dry strokes until little water is visible passing through the Dirty Water Tank lid (Pass over the same area a minimum of 4 times = 2 while squeezing the trigger and 2 without).
9. Keep the nozzle flat on the floor for both forward and reverse strokes. For best cleaning results and to aid in faster drying of carpet, end with more dry strokes. (Continue using dry strokes until little water is visible passing through the Dirty Water Tank lid.) Empty Dirty Water Tank when the motor sound becomes higher pitched and there is a loss in suction (see “Automatic shut-off”). When finished cleaning, follow the “After Cleaning” instructions on page 12.
10. For best cleaning results, Hoover recommends to rinse the carpet with water only. This will remove the residual carpet cleaning solution from your carpets. To Rinse with water only, set the Wash/Rinse Selector to rinse (Fig. 30) and repeat steps 7 and 8.
11. For heavily soiled areas, repeat the cleaning process. Avoid saturating carpets.

AFTER USE

Allow carpet or upholstery to dry. To help prevent matting and re-soiling the carpet, keep children and pets away from the surface until it is completely dry. If it is necessary to walk on damp carpet, place towels or white cloths in the traffic areas.

If furniture must be replaced before the carpet is dry, place plastic or aluminum foil under the legs of the furniture so metal slides or wood finishes will not stain the carpet.

1. See “Dirty Water Tank: How to Empty” on page 9.
2. See “Dirty Water Tank: How to Clean” page 9.
3. See “Cleaning Nozzle” on page 16.
4. See “Cleaning Brushes” on page 16.

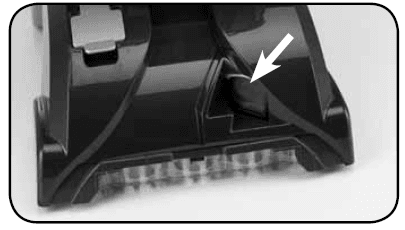

5. Remove lint from the filter screen located behind the nozzle.

TOOLS

CONNECT HOSE FOR TOOL USE

How to Attach

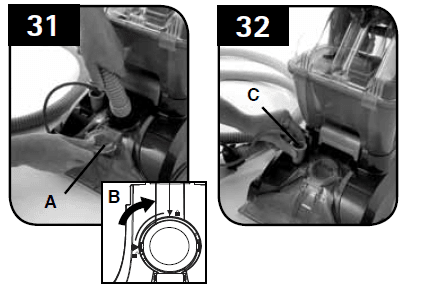

1. Open the Accessory Hose Suction Port (A, Fig. 31). Insert the hose end, aligning the indicator with the unlock arrows.
2. Rotate clockwise to lock position (B, Fig. 31).
3. Hold open the Accessory Hose Solution Port door (Fig. 32).
4. Plug the Accessory Hose Solution Tube connector firmly into the Hose Solution Port (C, Fig. 32).

How to Remove

1. Disconnect the Accessory Hose Solution Tube Connector from the Accessory Hose Solution Port by pulling it up firmly. Do not pull on the tube, this may cause damage. The accessory port door will automatically close.
2. Rotate the accessory Hose end counterclockwise from the locked position to the unlocked position and remove it by pulling out.
3. Snap the Accessory Hose Suction Port door back into place. Make sure to snap both sides to ensure proper suction, the unit may lose suction if not closed properly.

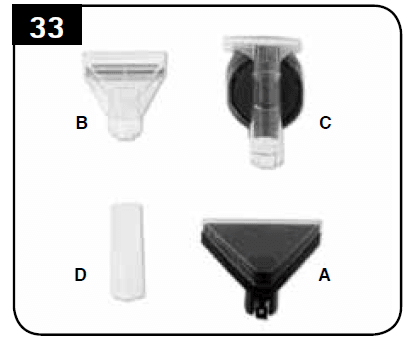

TOOLS (*Available on select models only.)

• A. Stair Tool*: 6 inches wide, 2 built-in rows of brushes to help provide the scrubbing action that some spots may need for removal on your carpeted stairs.
• B. Upholstery Tool has a built-in brush to help provide the scrubbing action some spots may need for removal.
• C. SpinScrub® Hand Tool* has rotating brush(s) for extra scrubbing action on small carpet areas, carpeted stairs, and upholstery. For some models, the brush(s) can be removed for converting to the scrub module.
• D. Crevice Tool*: Great for use around baseboards and those hard-to-reach areas.

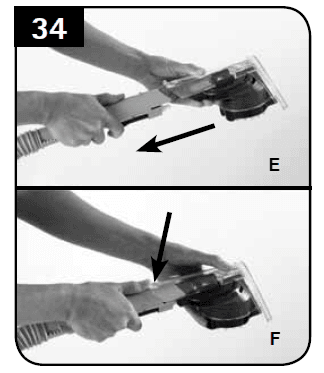

How to Attach Tools

1. To ensure maximum performance and to protect your carpet, be sure to place the handle in the upright position while using the accessory hose. Placing the handle in the upright position shuts off the SpinScrub brushes.
2. Connect the tool to the hose by sliding it onto the connector until the tab locks it securely (E, Fig. 34).
3. Using your thumb, push forward and up on the latch to remove the tool (F, Fig. 34).

After Using Tool

1. Drain the suction hose by turning the cleaner ON and holding the nozzle up for several minutes. Do not press the trigger.
2. Disconnect the hose and solution tube from the cleaner.
3. Drain the solution tube by placing the round end in the sink and raising the trigger end at the hose nozzle above your head (Fig. 35). Press the trigger to release air and fluid.
4. Replace the Hose and tools in the Mesh Storage Bag.

CLEANING CARPETED STAIRS

1. Read the “Before You Begin Cleaning” instructions on page 10.
2. Attach hose and solution tube as instructed (Pg. 13).
3. Place the handle in an upright position. SpinScrub brushes will not rotate while the handle is in an upright position.
4. Fill the Clean Water Tank according to instructions.
5. Fill the Solution Tank with HOOVER® solution according to instructions.
6. Attach the tool to the end of the hose.

CLEANING CARPETED STAIRS

1. Read the “Before You Begin Cleaning” instructions on page 10.
2. Attach the hose and solution tube as instructed (Pg. 13).
3. Place the handle in an upright position. SpinScrub brushes will not rotate while the handle is in an upright position.
4. Fill the Clean Water Tank according to instructions.
5. Fill the Solution Tank with HOOVER® solution according to instructions.
6. Attach tool to the end of the hose.
7. Dry hands and plug cleaner into a properly grounded outlet.
8. Set Wash/ Rinse Selection to WASH. Turn cleaner ON.
9. Pre-spray the carpeted stair by holding the tool about one inch above the carpet and pushing it forward while pressing the trigger (equals one wet stroke) (Fig. 37).
10. Position the tool against the riser and slightly press it into the carpet pile. Press the trigger and pull the tool slowly over the carpet (second wet stroke). Release trigger at end of the stroke.
11. Lift the tool, and position it against the riser. Pull the tool slowly over the carpet without pressing the trigger (dry stroke) (Fig. 38).
12. Overlap strokes by 1/2 inch to help prevent streaking.
13. It is best to alternate wet and dry strokes as described above. End with more dry strokes to aid in faster drying of carpet.
14. To avoid saturating the carpet, do not use more than 4 wet strokes over any one area. Always end with dry strokes.
15. If additional cleaning is necessary, wait until the carpet is completely dry before using the tool again.
16. Empty Dirty Water Tank when the motor sound becomes higher pitched and there is a loss in suction (see “Automatic Shut-Off”).
17. When finished cleaning, follow the “After Cleaning” and “After Using Tool” instructions.

CLEANING UPHOLSTERY

Read the “Before You Begin Cleaning” instructions. Be sure to check the Hoover Cleaning Guide on page 10 and the cleaning code on your upholstery. Use your cleaner only on upholstery marked “W” or “W/S”.

1. Attach the hose and solution tube as instructed.
2. Place the handle in an upright position. SpinScrub brushes will not rotate while the handle is in an upright position.
3. Fill the Clean Water Tank according to the instructions on (Pg. 8).
4. Fill the solution container with HOOVER®  solution according to the instructions on (Pg. 8). Do not use hard floor cleaning solution when cleaning upholstery.
5. Attach tool to the end of the hose.
6. Dry hands and plug cleaner into a properly grounded outlet.
7. Set Wash/Rinse Selector to WASH. Turn cleaner ON.

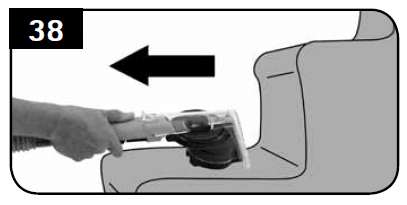

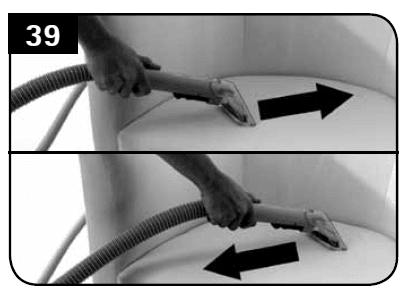

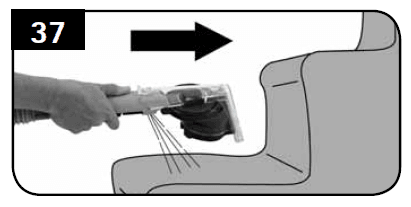

8. Gently press the tool onto the fabric. Press the trigger and slowly pull the nozzle over the fabric (Fig. 39).

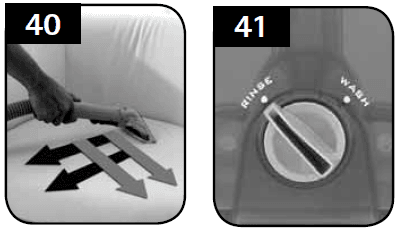

9. Overlap strokes by 1/2 inch to help prevent streaking.
10. Make additional strokes without pressing the trigger to remove more solution. To clean in corners or creases, lift the tool one-half inch from the fabric and press the solution trigger.
11. For heavily soiled areas, it may be necessary to repeat the cleaning process. Make crisscrossing strokes to the original pattern; overlap each pass (Fig. 40). Make no more than 2 passes with the solution over any one area to prevent over-wetting and damage to the fabric.
12. If you want to rinse the carpet only, set the Wash/Rinse Setting switch to RINSE (Fig. 41). For best cleaning results, Hoover recommends rinsing the rug with water only. This will remove the residual carpet cleaning solution from your carpets. Then set the Wash/ Rinse Selector to rinse and repeat steps 7 and 8.

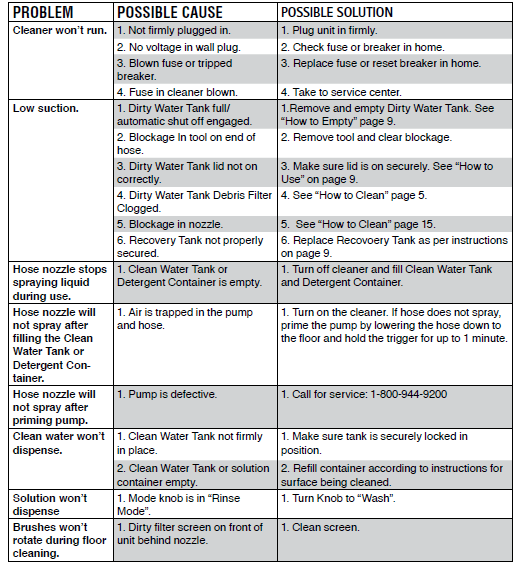

TROUBLESHOOTING
