HyperX Pulsefire Haste Wireless Gaming Mouse User Manual

HyperX Pulsefire Haste Wireless Gaming Mouse

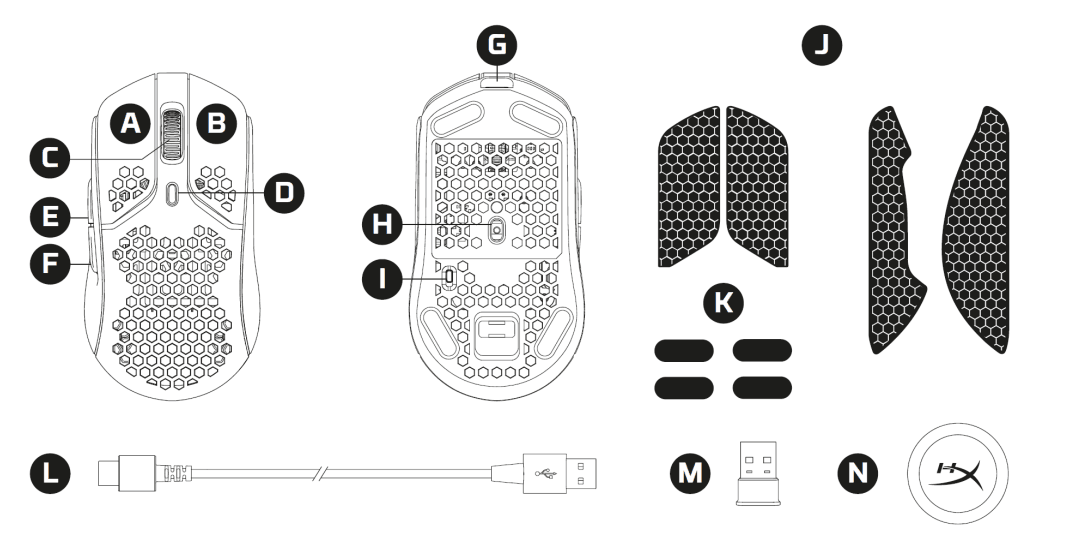

Overview

• A. Left click button
• B. Right click button
• C. Mouse wheel
• D. DPI button
• E. Forward button
• F. Back button
• G. USB-C port
• H. Optical gaming sensor
• I. Power switch
• J. Grip tape
• K. Mouse skates
• L. HyperFlex USB-C/USB-A charge/data cable
• M. USB wireless receiver
• N. Wireless adapter

Specifications

Mouse Specifications

• Shape: Symmetrical
• Sensor: Pixart PAW3335
• Resolution: Up to 16000 DPI
• DPI Presets: 400 / 800 / 1600 / 3200 DPI
• Speed: 450 IPS
• Acceleration: 40G
• Buttons: 6
• Left / Right Button Switches: TTC Golden Micro Dustproof Switch
• Left / Right Button Durability: 80 million clicks
• Light Effects: Per-LED RGB lighting1
• Onboard Memory: 1 profile
• Connection Type: 2.4GHz wireless / wired
• Charging Type: Wired
• Polling Rate: 1000Hz
• Skate Material: Virgin-grade PTFE

Battery Specifications

• Battery Type: 370mAh Li-ion polymer battery
• Battery Life: Up to 100 hours

Physical Specifications

• Length: 124.3mm
• Height: 38.2mm
• Width: 66.8mm
• Weight(without cables): Black – 61,   White – 62g
• Weight(with cables): Black – 95g,  White – 96g
• Cable Type: Detachable HyperFlex USB-C Cable
• Cable Length: 1.8m

1. Per-LED RGB lighting customizable with HyperX NGENUITY software.
2. Tested under continuous usage with lighting disabled. Battery life varies based on usage and computing conditions.

Installation

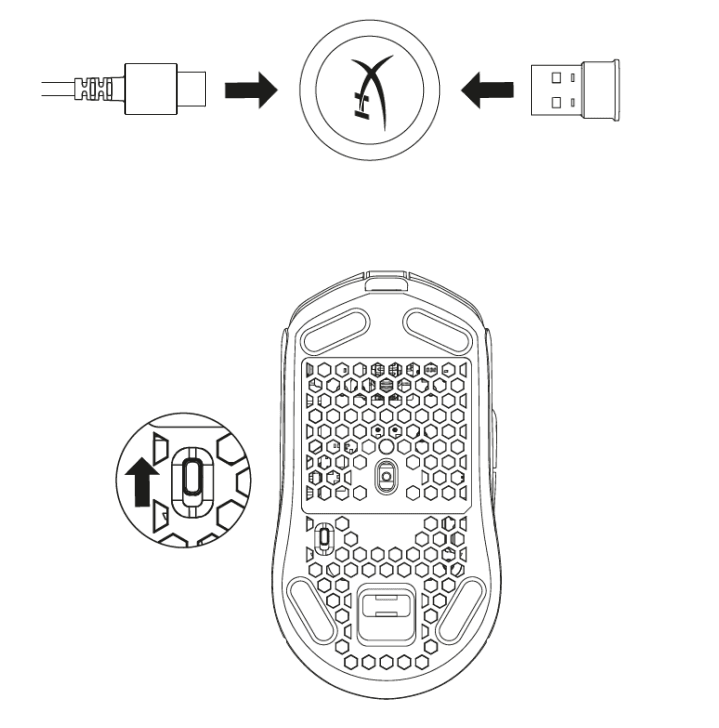

Wireless Mode

For optimal performance, please use the provided wireless adapter and keep within 20cm of the mouse. These instructions apply both for Computers and Game Consoles (PlayStation 5 and Xbox Series X|S).

1. Connect the wireless receiver to the wireless adapter.
2. Connect the USB-C connector to the wireless adapter.
3. Connect the USB-A connector to the computer or game console.
4. Flip the mouse to its underside.
5. Move the power switch to the “On” position. A green colored indicator should be visible.

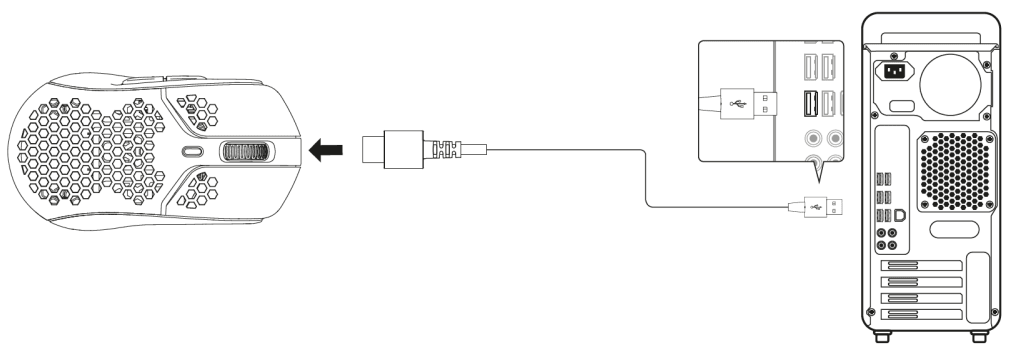

Wired Mode

Connect the mouse to a PC using the included USB-C to USB-A cable. These instructions apply both for Computers and Game Consoles (PlayStation 5 and Xbox Series X|S).

• Connect the USB-C connector into the mouse USB-C port.
• Connect the USB-A connector into the computer or game console.

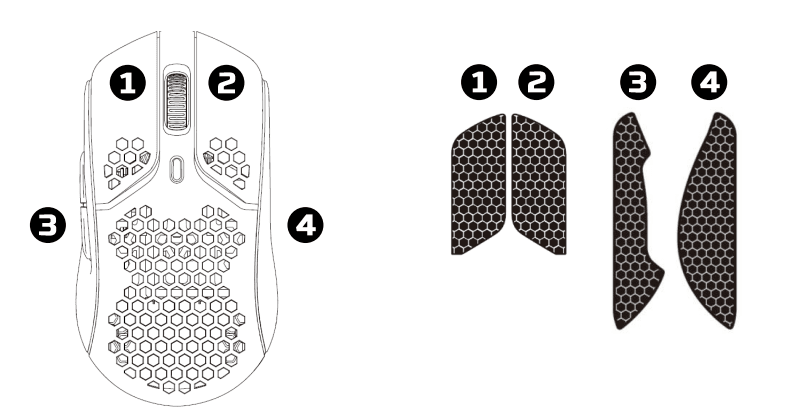

Grip Tape

Pulsefire Haste Wireless includes grip tape that can be used for added control and comfort, if desired. The grip tape will cover the hex cutout holes on the left and right mouse buttons.

1. Attach the button grip tape for the left [1] and right [2] mouse buttons, with the pointed end facing the forward direction of the mouse.
2. Attach the side grip tape for the left [3] and right [4] sides of the mouse, following the shape of the mouse.

Grip tape adhesion may weaken over time, as well as repetitive removal and re-use of the original grip tape applied.

Replacement Skates

Pulsefire Haste Wireless includes an extra set of PTFE skates in case the preinstalled skates are lost, damaged, or worn. To replace the skates, follow these instructions.

1. Remove the skate by gently wedging a flat tool under the skate. If needed, use a small flathead screwdriver or similar tool.
2. Lift and pry the skate from the mouse
3. Remove adhesive residue and debris from the mouse. A clean dry surface will provide optimal adhesion.
4. Peel the replacement mouse skate from the backing paper and install on the mouse. Use tweezers if needed.
5. Remove the outer protective film.

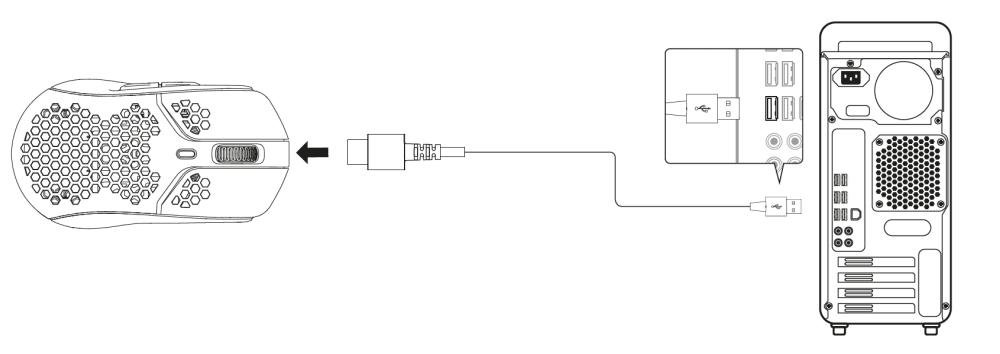

Charging

It is recommended to fully charge your mouse before first use. Battery percentage can be found within NGENUITY. The mouse is charged via USB-C, located at the top part of the mouse. While the cable is attached, the mouse will operate in wired mode.

DPI Presets

There are 4 default DPI presets 400 DPI (red), 800 DPI (blue), 1600 DPI (yellow), 3200 DPI (green). Up to 5 DPI presets can be stored on the mouse. Customizing and saving DPI settings can be done with NGENUITY.

HyperX NGENUITY Software

To customize lighting, DPI, polling rate, lift off distance, macro settings, and check battery life, download the HyperX NGENUITY software at: hyperxgaming.com/ngenuity.

Factory Reset

If you are experiencing any issues with the mouse, you can perform a factory reset. Onboard memory will be cleared, and all settings will revert to default DPI settings listed above and lighting effects (Rainbow Cycle). Hold DPI button + mouse wheel button down for 5 seconds. The mouse wheel will flash red momentarily and disappear once reset has completed.
