iClever BTH27 Toddler Headphones Manual

iClever BTH27 Toddler Headphones

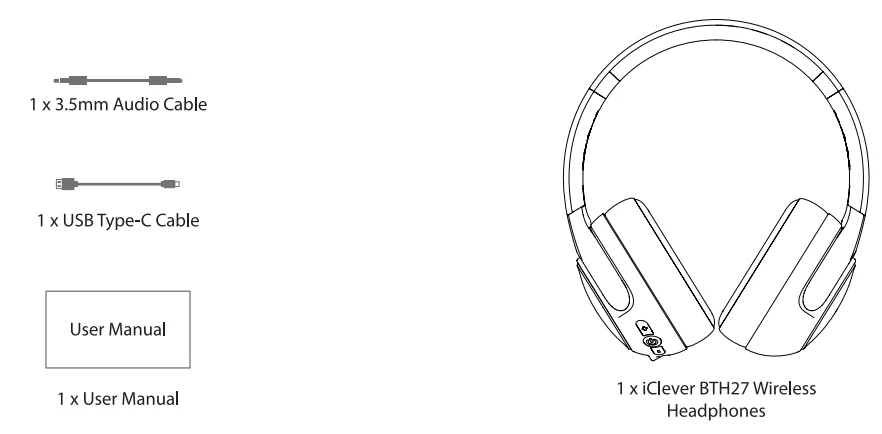

Package Contents

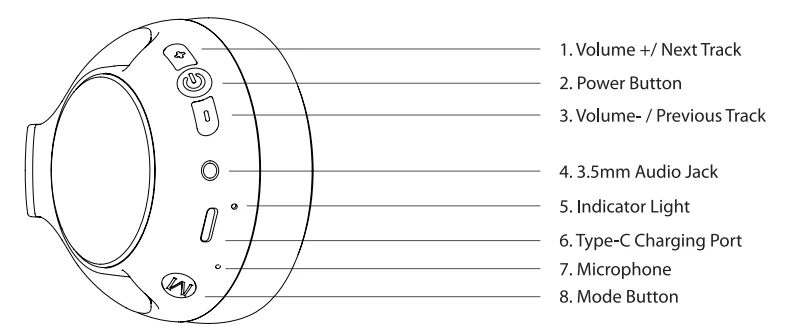

Product Diagram

Power ON/OFF

1. Power On: When the headphones are off, press and hold the power button for 2 seconds to turn them on. A voice prompt will say “Hello iClever,” and the headphones will enter pairing mode.
2. Power Off: When the headphones are on, press and hold the power button for 5 seconds to turn them off. A voice prompt will say “Power Off,” and the headphones will shut down.

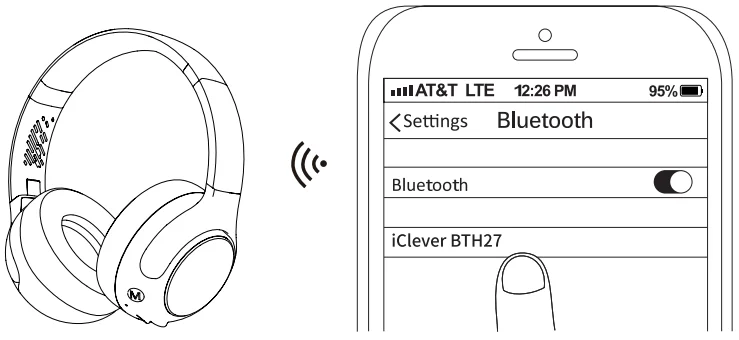

Bluetooth Pairing

1. After powering on, the headphones will enter Bluetooth pairing mode. The blue indicator light will stay on for 3 seconds, then the red and blue lights will flash alternately.
2. Turn on Bluetooth on your phone, search for available devices, and select iClever BTH27 from the list to pair.

Volume Limit Gear Switching

The default volume setting when powering on or restoring to factory settings is Toddler Mode (75dB). Press the volume limit mode button once to toggle between modes, and the headphones will announce the corresponding mode.

Note: The volume levels will cycle between Toddler Mode (75dB) and Normal Mode (80dB). The headphones will default to the last used volume limit setting when powered on next.

Operation of Buttons

• Mode Switch: Press the mode button once.
• Next Track: Long-press the volume + button for 2 seconds.
• Previous Track: Long-press the volume button for 2 seconds.
• Play/Pause: Press the power button once.
• Answer/End Call: Press the power button once.
• Reject Call: Press and hold the power button for 2 seconds.
• Activate Siri: Press and hold the mode button for 2 seconds.
• Clear Pairing Record: In the powered-on (connected) or pairing state, press and hold both the volume + and volume – buttons for 5 seconds. The headphones will automatically clear the pairing list, give off a prompt sound “Pairing,” and enter pairing mode.

Voice Prompt

• Power ON: Hello iClever
• Power OFF: Power off
• Pairing: Pairing
• Successful Bluetooth Connection: Connected
• Bluetooth Disconnection: Disconnected
• Switch to toddler mode: Toddler Mode
• Switch to normal mode: Normal Mode
• Low Battery Alarm: Battery Low

Specifications

• Frequency Range: 2.402-2.48 GHz
• Max. Transmission Power: 4dBm
• Type of Battery: Li-Polymer Battery
• Battery parameters: 3.7Vdc 500mAh
• Charging parameters: DC 5V 1A

How to Charge the Headphones

Connect one end of the Type-C charging cable to a 5V power adapter (adapter not included) and the other end to the headphones. The headphones will automatically turn off when charging. During charging, the red indicator light will stay on, and once fully charged, the indicator light will turn off.

Warning

1. If the product is damaged, please stop using it.
2. When the charging cable USB interface is hot, please replace it in time.
3. Keep away from high temperatures and fire sources.

FCC Statement

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operation.

DOC

Hereby, Thousandshores Deutschland GmbH declares that the radio equipment type Wireless Headphones iClever BTH27 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://files.iclever.com/BTH27-EU-DOC.pdf.

UK

Learn more about the UK Declaration of Conformity. Please click the link below to download: http://files.iclever.com/BTH27-UK-DOC.pdf.

Statements of Compliance

• Product Model: BTH27
• Name and Address of manufacturer: Thousandshores Deutschland GmbH, Sorbenstraße 22, 20537 Hamburg, DE
• Name and Address of Authorised Representative: APEX CE SPECIALISTS LIMITED, 89 Princess Street, Manchester, M14HT, UK
• The statement of compliance is prepared by or on behalf of the manufacturer of the product. In the opinion of the manufacturer, they have complied with either— i) the applicable security requirements in Schedule 1 of SI 2023 No. 1007:
• Provision 5.1-1 of ETSI EN 303 645 & provision 5.1-2 of ETSI EN 303 645;
• Provision 5.2-1 of ETSI EN 303 645;
• Provision 5.3-13 of ETSI EN 303 645.
• The defined support period for the product: 202503
• Signature, name, and function of the signatory:
• The place and date of issue:

The power delivered by the charger must be between min 0.05 Watts required by the radio equipment, and max 2 Watts in order to achieve the maximum charging speed.
