iHome iPP60 Powerplant Charging Station Manual

iHome iPP60 Powerplant Charging Station

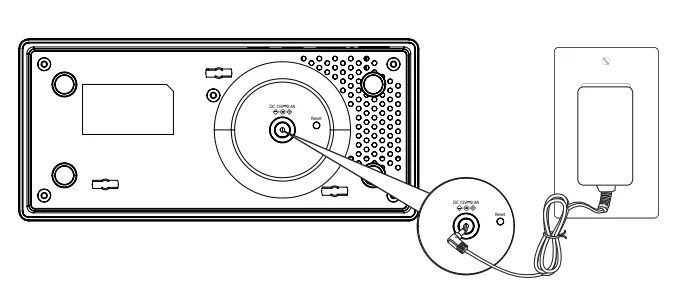

CONNECTING TO AC POWER

This unit operates on AC power using the included 100V-240V universal AC adaptor. Place the unit on a stable surface. Plug the power adaptor into the DC jack on the bottom of the unit and the other end into a working wall socket (If the AC socket is controlled by a switch, please be sure the switch is on). The iPP60 is now ready to charge your devices.

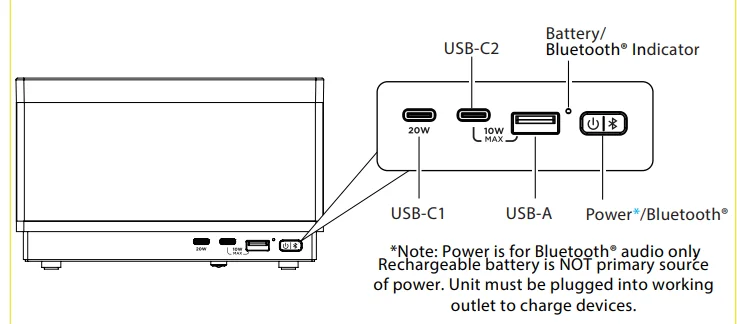

CONTROLS OVERVIEW

TIPS FOR CHARGING

If a device does not charge, please check to make sure the iPP60 is connected to an active wall socket, and please verify the charging cable is compatible and not defective. If you still encounter trouble charging, you may need to use the charger that came with the device.

USING THE USB CHARGING PORT

The USB-C and USB-A charge ports are located on the front of the unit. Connect one end of a compatible USB cable (not included) into the USB port on the unit and the other end into the device you wish to charge. Monitor the charging status of your device. The iPP60 works with Apple devices such as iPhones and AirPods and most Android devices.

LED STATUS INDICATORS:

BATTERY CHARGING AND BLUETOOTH® STATUS

• Low Battery Voice Prompt: Low Battery
• If the battery reaches full charge, then the red LED will turn off. Or if Bluetooth® mode is turned off, then the blue LED would turn off. The purple color indicates Bluetooth® is active and the battery is charging.

POWER BUTTON AND BLUETOOTH® CONNECTION OPERATION

1. Short-press for power on/off.
2. Turn on your Bluetooth® device and make it ‘discoverable’ by turning on Bluetooth® mode.
3. The first time the unit is powered on, the iPP60 will enter Bluetooth® pairing mode. To manually activate Bluetooth® pairing, press and hold the button for 2 seconds.
4. Select ‘iHome iPP60’ on your device to connect Bluetooth®; play/pause, volume control, next track, and previous track operation are controlled on the Bluetooth® connected device.
5. To reset the Bluetooth® pairing table, press and hold the button for 7 seconds.

IMPORTANT SAFETY INSTRUCTIONS

Please heed all warnings, read and follow all instructions, and keep these instructions handy for future reference.

1. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
2. Heat – This product should be situated away from heat sources such as radiators, heat registers, stoves, or other appliances (including amplifiers) that produce heat.
3. Only use attachments/accessories specified by the manufacturer.
4. Unplug this product during lightning storms or when unused for long periods of time.
5. Damage Requiring Service – This product should be serviced by qualified service personnel when:
   • The plug has been damaged.
   • Objects have fallen into the enclosure.
   • The unit has been dropped or the enclosure damaged.
   • The unit exhibits a marked change in performance or does not operate normally.
6. No naked flame sources, such as lighted candles, should be placed on this product.
7. Attention should be drawn to the environmental aspects of battery disposal.
8. This product is suitable for use in tropical and/or moderate climates.
9. Do not dispose of batteries in the household trash or fire.
10. The mains plug of the power adaptor is used as the disconnect device; it shall remain readily operable.
11. Unplug the unit and clean only with a damp cloth. Stronger cleaning agents, such as benzene, thinner, or similar materials, can damage the surface of the unit.
12. CAUTION! Risk of explosion if the battery is replaced with an incorrect type.
13. If the unit is to be unused for an extended period of time, such as a month or longer, charge the unit fully before storage.

FCC INFORMATION

This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device complies with Part 15 of the FCC Rules; operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.

Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

ISED Information

The device complies with ISED RF exposure requirements; users can obtain Canadian information on RF exposure and compliance. This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions:

1. This device may not cause interference.
2. This device must accept any interference, including interference that may cause undesired operation of the device. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
