Insignia NS-MW09SS8 Microwave Oven User Guide

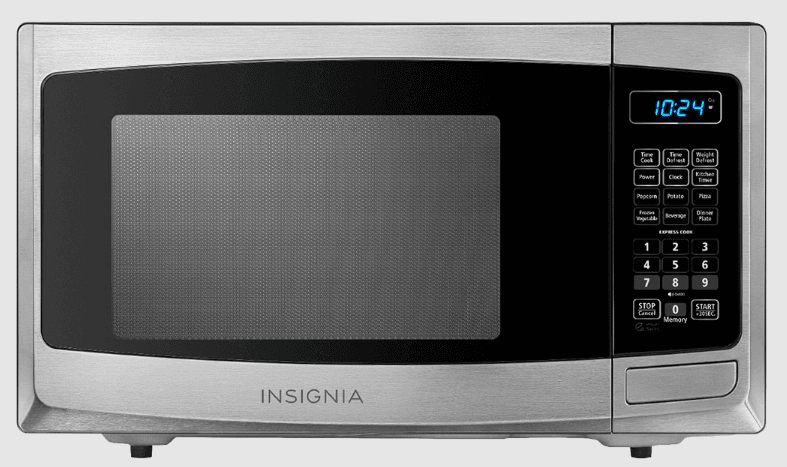

Insignia NS-MW09SS8 Microwave Oven

SAFETY INFORMATION

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY:

1. Do not attempt to operate this oven with the door open because this can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.
2. Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
3. Do not operate the oven if it is damaged. It is particularly important that the oven door closes properly and that there is no damage to the:
   1. DOOR (bent)
   2. HINGES and LATCHES (broken or loosened)
   3. DOOR SEALS and SEALING SURFACES
4. The oven should not be adjusted or repaired by anyone except properly qualified service personnel.

IMPORTANT SAFETY INSTRUCTIONS

1. Read all instructions before using the oven.
2. Read and follow the specific “PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY” found on page 3.
3. As with any cooking appliance, close supervision is necessary to reduce the risk of a fire in the oven cavity or when used by children.
4. To reduce the risk of fire in the oven cavity:
   • Do not overcook food. Carefully attend the oven when paper, plastic, or other combustible materials are placed inside the oven to facilitate cooking.
   • Remove wire twist-ties and metal handles from paper or plastic containers/bags before placing them in the oven.
   • If materials inside the oven ignite, keep the oven door closed. Turn the oven off and unplug the oven or shut off power at the fuse or circuit breaker panel.
   • Do not use the oven cavity for storage purposes. Do not leave paper products, cooking utensils, or food in the cavity when not in use.
5. This oven must be grounded. Connect only to a properly grounded outlet. See “GROUNDING INSTRUCTIONS” found on page 5.
6. Install or locate this appliance only in accordance with the provided installation instructions.
7. Some products, such as whole eggs and sealed containers (for example closed glass jars), are able to explode and should not be heated in this oven.
8. Use this oven only for its intended purpose, as described in this manual. Do not use corrosive chemicals or vapors in this oven. This oven is specifically designed to heat, cook, or dry food. It is not designed for industrial or laboratory use
9. Do not operate this oven if it has a damaged cord or plug, if it is not working properly, or if it has been damaged or dropped.
10. This oven should be serviced only by qualified service technicians. Contact the nearest authorized service facility for examination, repair, or adjustment.
11. Do not cover or block any openings on the oven.
12. Do not store or use this oven outdoors.
13. Do not use this oven near water (for example, near a kitchen sink, in a wet basement, near a swimming pool, or similar locations).
14. Do not immerse the cord or plug in water.
15. Keep the cord away from heated surfaces.
16. Do not let the cord hang over the edge of a table or counter.
17. When cleaning the surfaces of the door and the oven that come together on closing the door, use only mild, nonabrasive soaps or detergents applied with a sponge or soft cloth.
18. Liquids, such as water, coffee, or tea can be overheated beyond the boiling point without appearing to be boiling. Visible bubbling or boiling when the container is removed from the microwave oven is not always present. THIS COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN THE CONTAINER IS DISTURBED OR A SPOON OR OTHER UTENSIL IS INSERTED INTO THE LIQUID.
    • Do not overheat the liquid.
    • Stir the liquid both before and halfway through heating it.
    • Do not use straight-sided containers with narrow necks.
    • After heating, allow the container to stand in the microwave oven for a short time before removing the container.
    • Use extreme care when inserting a spoon or other utensil into the container.

RADIO INTERFERENCE

1. Operation of the microwave oven may cause interference to your radio, TV, or similar equipment.
2. When there is interference, it may be reduced or eliminated by taking the following measures:
   • Clean the door and the sealing surface of the oven.
   • Reorient the receiving antenna of the radio or television.
   • Relocate the oven to the receiver.
   • Move the oven away from the receiver.
   • Plug the oven into a different outlet so that the oven and receiver are on different branch circuits.

Cookware and cooking materials

Cookware and other materials must fit on the turntable. Always use oven mitts or pot holders because cookware may become hot. Refer to the Materials you can use and Materials to be avoided tables as a guide, then test before using.

Cookware and Materials Test:

1. Fill a microwave-safe container with 1 cup (250 ml) of cold water, along with the cookware or materials in question.
2. Cook on maximum power for one minute. Do not exceed one minute cooking time.
3. Carefully feel the cookware or material. If the empty cookware or material is warm, do not use it for microwave cooking.

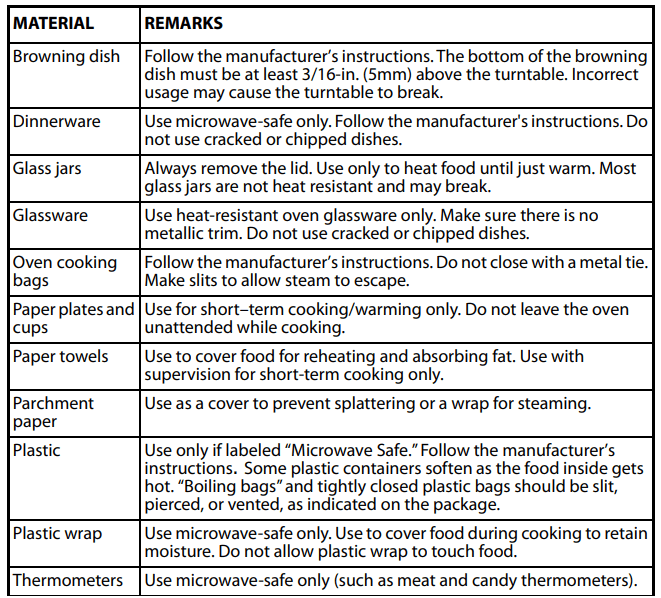

Materials you can use

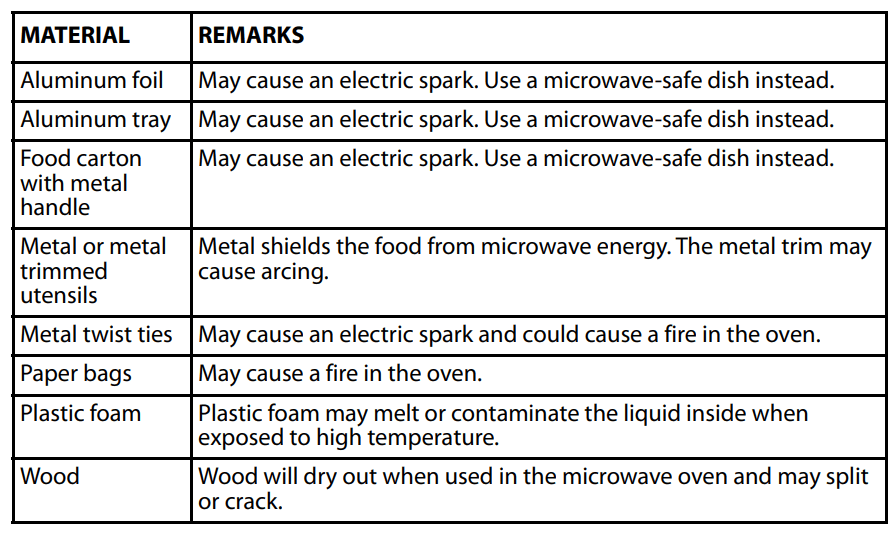

Materials to be avoided

Package contents

• 0.9 Cu. Ft. compact microwave oven
• Glass tray (10.6 in. [270 mm] turntable)
• Turntable ring
• User Guide

Features

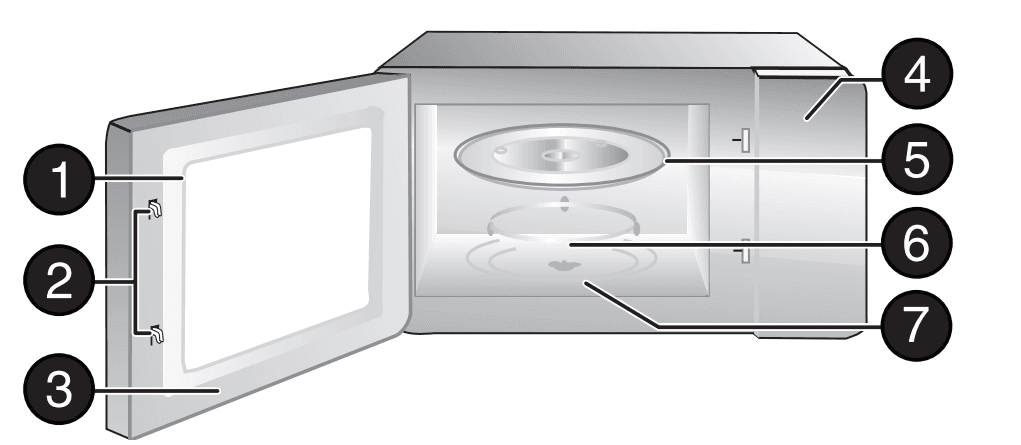

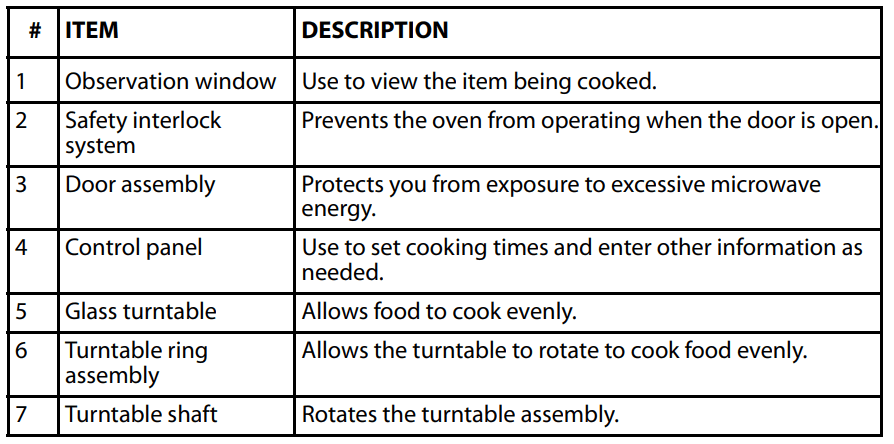

Microwave oven

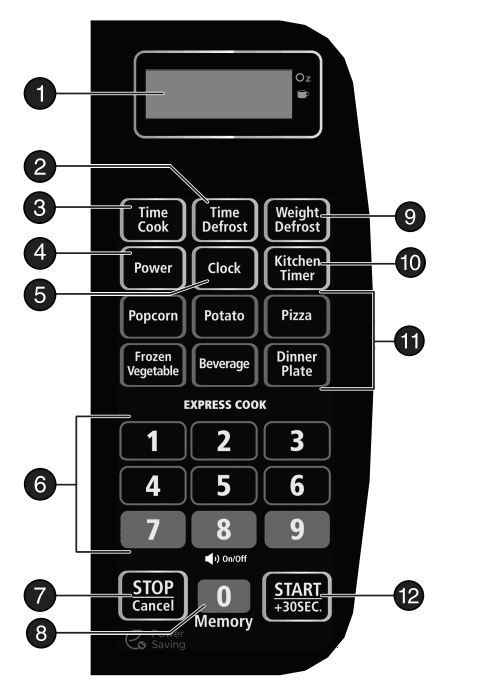

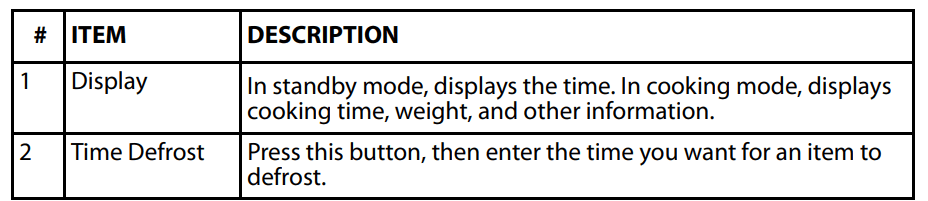

Control panel

Setting up your microwave oven

1. Remove the oven and all materials from the carton and oven cavity.
2. Examine the oven for any damage, such as dents or a broken door. Do not install or use the oven if any damage is found.
3. Remove any protective film from the microwave oven cabinet surface, the door, and the control panel.
4. Place the oven on a level surface that provides enough open space for the intake and outlet vents.
5. Plug your oven into a standard household outlet. Be sure the voltage and the frequency is the same as the voltage and the frequency on the rating label.

Notes:

• Do not remove the light brown mica cover in the oven cavity. This cover protects the magnetron.
• A minimum clearance of 3 inches (7.6 cm) is required between the oven and any adjacent walls. One side must be open.
• Leave a minimum clearance of 3 in. (7.6 cm) above the oven.
• Do not remove the legs from the bottom of the oven.
• Blocking the intake and/or outlet openings can damage the oven.
• Place the oven as far away from radios and TVs as possible. Operation of the microwave oven may cause interference to your radio or TV reception.

CAUTION:

• Do not mount your oven under a cabinet.
• Do not install your oven over a range cooktop or other heat-producing appliance. If installed near or over a heat source, the oven could be damaged, and the warranty would be voided.

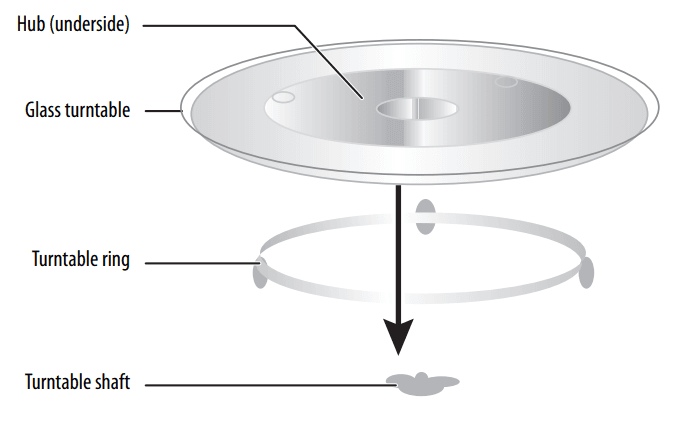

Installing the turntable

Notes:

• Never place the glass tray upside down. The glass tray should never be restricted.
• Both the glass tray and the turntable ring must always be used during cooking.
• Always place all food and containers of food on the glass tray for cooking.
• If the glass tray or turntable ring cracks or breaks, contact your nearest authorized service center.

1. Place the turntable ring in the round depression in the bottom of the microwave oven so that it turns freely.
2. Place the glass turntable (flat side up) on the turntable ring so that the hub engages the turntable shaft in the bottom of the oven. The glass turntable should not turn freely when it is correctly installed.

Using your microwave oven

Understanding and setting the power level

The following table shows the 11 power levels available.

1. Press Power once. The display shows “PL10” (the default power is 100%).
2. Press the number keys to adjust the power level. For example, press 5 to set the power level to 50%.

Setting the clock

1. Press Clock.
2. Press the number keys to enter the current time.
3. Press Clock to confirm the setting.

Using the kitchen timer

1. Press Kitchen Timer.
2. Press the number keys and enter the time you want (the maximum time is 99 minutes and 99 seconds).
3. Press START/+30SEC. to confirm the setting. When the time reaches 0, the buzzer rings five times and the display shows the current time.

Note: While the kitchen timer is running the oven cannot be programmed.

Cooking in your microwave oven

1. Press Time Cook once.
2. Press the number keys to enter the cooking time you want (the maximum cooking time is 99 minutes and 99 seconds). For example, press 1, 5, 0, 0 to cook for 15 minutes.
3. Press Power once. The display shows “PL10” (the default power is 100%).
4. Press the number keys to adjust the power level. For example, press 5 to set the power level to 50%.
5. Press START/+30SEC. to start cooking.

Troubleshooting

If you have a problem with your oven, review the following chart for a possible solution. If the oven still does not work properly, contact the nearest authorized service center.

Maintaining your microwave oven

Keep your microwave oven clean, especially the interior of the oven.

• Clean the exterior with a damp cloth or sponge. Do not allow water or cleaning solution to drip into the ventilation ports.
• Clean the interior with a damp cloth or sponge.

Obtaining replacement parts

Call Insignia Customer Service at 1-877-467-4289.

Specifications

ONE-YEAR LIMITED WARRANTY

Definitions:
The Distributor* of Insignia branded products warrants to you, the original purchaser of this new Insignia-branded product (“Product”), that the Product shall be free of defects in the original manufacturer of the material or workmanship for a period of one (1) year from the date of your purchase of the Product (“Warranty Period”). For this warranty to apply, your Product must be purchased in the United States or Canada from a Best Buy branded retail store or online at www.bestbuy.com or www.bestbuy.ca and is packaged with this warranty statement.

How long does the coverage last?
The Warranty Period lasts for 1 year (365 days) from the date you purchased the Product. Your purchase date is printed on the receipt you received with the Product.

What does this warranty cover?
During the Warranty Period, if the original manufacturer of the material or workmanship of the Product is determined to be defective by an authorized Insignia repair center or store personnel, Insignia will (at its sole option): (1) repair the Product with new or rebuilt parts; or (2) replace the Product at no charge with new or rebuilt comparable products or parts. Products and parts replaced under this warranty become the property of Insignia and are not returned to you. If service of Products or parts are required after the Warranty Period expires, you must pay all labor and parts charges. This warranty lasts as long as you own your Insignia Product during the Warranty Period. Warranty coverage terminates if you sell or otherwise transfer the Product.

How to obtain warranty service?
If you purchased the Product at a Best Buy retail store location or from a Best Buy online website (www.bestbuy.com or www.bestbuy.ca), please take your original receipt and the Product to any Best Buy store. Make sure that you place the Product in its original packaging or packaging that provides the same amount of protection as the original packaging.
To obtain warranty service, in the United States and Canada, call 1-877-467-4289. Call agents may diagnose and correct the issue over the phone.

Where is the warranty valid?
This warranty is valid only in the United States and Canada at Best Buy branded retail stores or websites to the original purchaser of the product in the country where the original purchase was made.

What does the warranty not cover?
This warranty does not cover:

• Food loss/spoilage due to failure of refrigerator or freezer
• Customer instruction/education
• Installation
• Set up adjustments
• Cosmetic damage
• Damage due to weather, lightning, and other acts of God, such as power surges
• Accidental damage
• Misuse
• Abuse
• Negligence
• Commercial purposes/use, including but not limited to use in a place of business or in communal areas of a multiple dwelling condominium or apartment complex, or otherwise used in a place other than a private home.
• Modification of any part of the Product, including the antenna
• Display panel damaged by static (non-moving) images applied for lengthy periods (burn-in).
• Damage due to incorrect operation or maintenance
• Connection to an incorrect voltage or power supply
• Attempted repair by any person not authorized by Insignia to service the Product
• Products sold “as is” or “with all faults”
• Consumables, including but not limited to batteries (i.e., AA, AAA, C, etc.)
• Products where the factory-applied serial number has been altered or removed
• Loss or Theft of this product or any part of the product
• Display panels containing up to three (3) pixel failures (dots that are dark or incorrectly illuminated) grouped in an area smaller than one-tenth (1/10) of the display size or up to five (5) pixel failures throughout the display. (Pixel-based displays may contain a limited number of pixels that may not function normally.)
• Failures or Damage caused by any contact, including but not limited to liquids, gels, or pastes.

REPAIR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS YOUR EXCLUSIVE REMEDY FOR BREACH OF WARRANTY. INSIGNIA SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR THE BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT, INCLUDING, BUT NOT LIMITED TO, LOST DATA, LOSS OF USE OF YOUR PRODUCT, LOST BUSINESS OR LOST PROFITS. INSIGNIA PRODUCTS MAKES NO OTHER EXPRESS WARRANTIES WITH RESPECT TO THE PRODUCT, ALL EXPRESS AND IMPLIED WARRANTIES FOR THE PRODUCT, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF AND CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE AND NO WARRANTIES, WHETHER EXPRESS OR IMPLIED, WILL APPLY AFTER THE WARRANTY PERIOD. SOME STATES, PROVINCES AND JURISDICTIONS DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE OR PROVINCE TO PROVINCE.

Contact Insignia:

• 1-877-467-4289
• www.insigniaproducts.com
• INSIGNIA is a trademark of Best Buy and its affiliated companies.
  *Distributed by Best Buy Purchasing, LLC 7601 Penn Ave South, Richfield, MN 55423 U.S.A.
