Insignia NS Series Chest Freezer User Guide

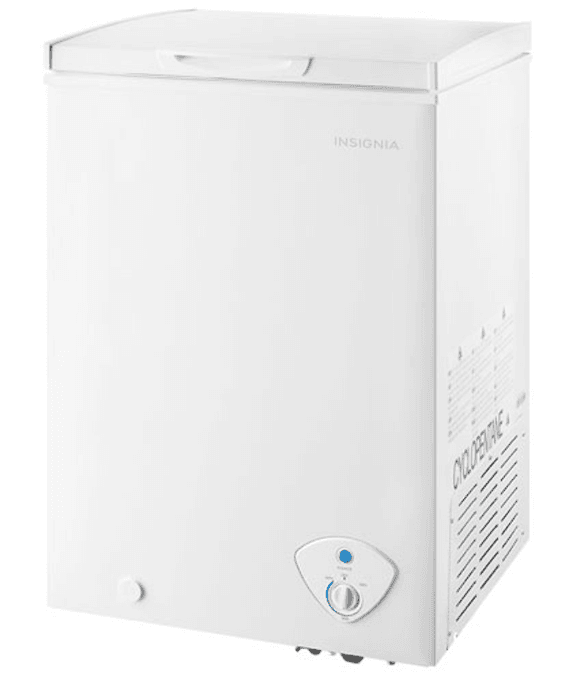

Insignia NS Series Chest Freezer

Important Safety Instructions

WARNING

Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this appliance near water.
Clean only with a damp cloth.
Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades, with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where it exits from the appliance.
Do not attempt to modify or extend the power cord of this appliance.
Unplug this appliance during lightning storms or when it will not be used for long periods.
Make sure that the available AC power matches the voltage requirements of this appliance.
Do not handle the plug with wet hands. This could result in an electric shock.
Unplug the power cord by holding the plug, never by pulling the cord.
Do not turn the appliance on or off by plugging or unplugging the power cord.
Turn off the appliance before unplugging it.
Refer all servicing to qualified service personnel. Servicing is required when the appliance has been damaged in any way, such as the power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the appliance, the appliance has been exposed to rain or moisture, does not operate normally, or has been dropped.
To reduce the risk of fire or electric shock, do not expose this appliance to rain, moisture, dripping, or splashing, and no objects filled with liquids should be placed on top of it.

Features

Package contents

3.5, 5, 7, or 10.2 cubic foot chest freezer
Storage basket
User Guide

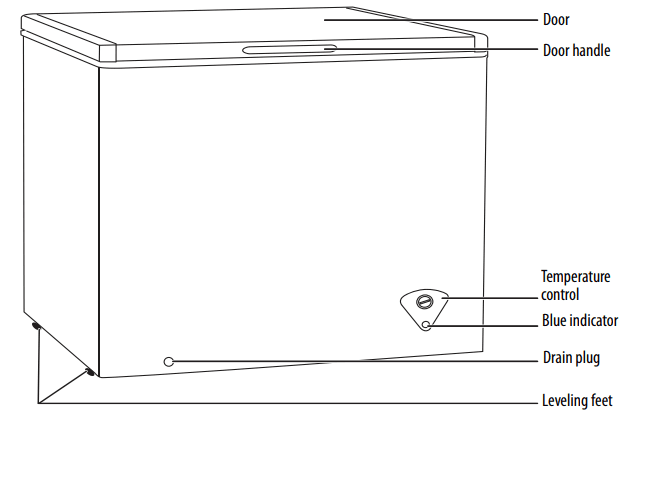

Exterior (NS-CZ70WH6 shown)

Setting up your freezer

Before using your freezer

Remove the exterior and interior packing.
Let the freezer stand upright for approximately two hours before connecting it to power. This reduces the possibility of a malfunction in the cooling system from improper handling during transportation.
Wash the inside with a damp, warm cloth and a baking soda solution (two tablespoons in a quart of water), then wipe dry with a dry cloth. Do this periodically to keep your freezer looking new.

Finding a suitable location

This freezer is designed to be free-standing only, and should not be recessed or built-in.
Place your freezer on a floor that is strong enough to support the freezer when it is fully loaded.
Allow six inches (15 cm) of space between the back and sides of the freezer and any surrounding walls to allow for proper air ventilation. Adjust the feet to keep the freezer level.
Locate the freezer away from direct sunlight and sources of heat, such as a stove, heater, or radiator. Direct sunlight may affect the acrylic coating, and heat sources may increase electrical consumption. Extremely cold temperatures may also prevent the freezer from performing properly.
Avoid locating the freezer in moist areas.

Providing a proper power supply

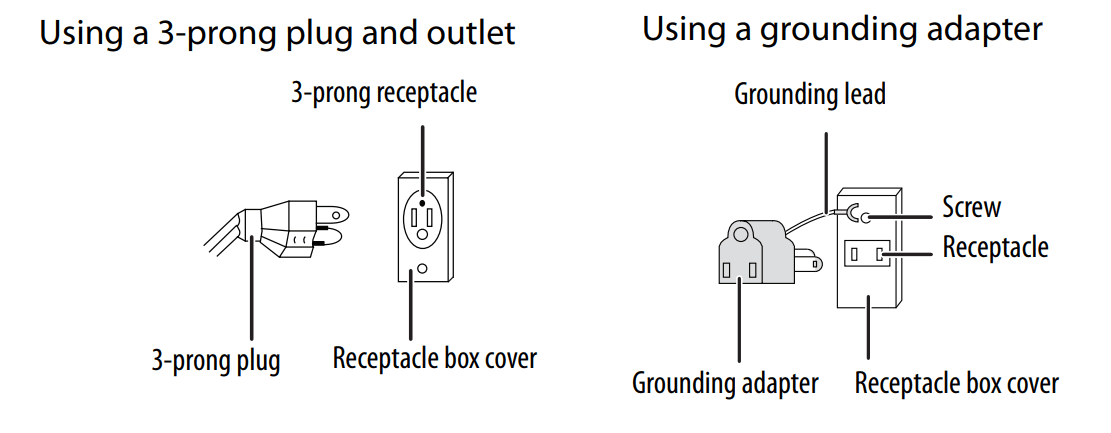

Check your local power source. This freezer requires a 115 V, 60 Hz power supply. Use a receptacle that accepts the grounding prong. The power cord is equipped with a 3-prong (grounding) plug, which mates with a standard 3-prong (grounding) wall outlet to minimize the possibility of an electric shock hazard from this freezer.

NOTES:

The freezer should always be plugged into its own individual electrical outlet which has a voltage rating that matches the rating plate.
Never unplug your freezer by pulling on the power cord. Always grip the plug firmly and pull straight out from the outlet.

Using your freezer

The storage life of frozen foods varies, and the recommended storage time should not be exceeded. Place frozen food into the freezer as quickly as possible after purchase. If there are instructions on the packet, carefully follow these instructions regarding storage times. Pre-packed, commercially frozen food should be stored according to the frozen foods manufacturer’s instructions for a three-star frozen food storage compartment or home freezer. A storage basket is provided for the organization of odd-shaped items. To reach other packages in the freezer, just slide the basket to one side or lift it out.

The first time you turn the freezer on, adjust the temperature control to the setting you want and run it for two to three hours before putting food in.
After it is fully cooled, adjust the temperature control to the setting that best suits your needs. Settings include MIN, MAX, and OFF.

Notes:

Turning the temperature control to OFF stops the cooling cycle but does not shut off the power to the freezer.
If the freezer is unplugged, loses power, or is turned off, you must wait three to five minutes before restarting the it. The freezer will not start if you attempt to restart it sooner.
Large amounts of food lower the cooling efficiency of the freezer.
If you choose to change the thermostat setting, adjust the thermostat control by one increment at a time. Allow several hours for the temperature to stabilize between adjustments.

Defrosting your freezer

For your freezer to operate most efficiently and with minimum energy consumption, it should be defrosted when the frost on the freezer walls is in excess of .2 to .4 inches (5 to 10 mm) thick. To minimize food spoilage, choose a time when your stock of frozen food is low. The instructions regarding the care of frozen foods should be followed when defrosting the freezer. Defrosting usually takes a few hours. Leaving the top open helps speed the process.

CAUTIONS:

Do not use boiling water to defrost your freezer because it may damage the plastic parts. You can use warm water to speed up the process.
Never use a sharp or metallic instrument to remove frost as it may damage the cooling coils and will void the warranty.

Remove the frozen food from your freezer and place it in a refrigerator or cooler to protect the food.
Turn the thermostat knob to OFF and unplug the freezer.
During defrosting the ice melts into the cabinet, so remove the drain plug on the inside of the freezer, then place a shallow pan under the drain outlet so the defrost water can drain into something. Check the pan occasionally so that the water does not overflow.
When your freezer has defrosted, clean the interior of the freezer, then replace the drain plug.
Reset the thermostat to the desired setting, then allow the freezer to cool for one hour.
Return the food to the freezer.

Maintaining your freezer

Your freezer is designed for year-round use with only minimal cleaning and maintenance. We recommend that you do the following every time you defrost it to keep your freezer running odor-free and efficiently:

Turn off the freezer and unplug it from the wall outlet.
Remove all food.
Wash the storage basket with a mild detergent solution.
Wash the inside with a damp, warm cloth soaked in a solution of one quart of water lukewarm water to two tablespoons of baking soda solution.
Dry the interior and exterior with a soft cloth.
Be sure to keep the door gasket (seal) clean to keep the unit running efficiently.

Storing your freezer

Turn off the freezer and unplug it from the wall outlet.
Remove all food.
Clean the freezer.
Leave the door open slightly to avoid the possible formation of condensation, mold, or odor.

Moving your freezer

Turn off the freezer and unplug it from the wall outlet.
Remove all food.
Securely tape down all loose items inside your freezer.
Tape the door shut.
Be sure the freezer stays in the upright position during transportation.

Tips on saving energy

Locate your freezer in the coolest area of the room, away from heat-producing appliances or heating ducts, and out of direct sunlight.
Let hot foods cool to room temperature before placing them in the freezer. Overloading the freezer forces the compressor to run longer. Foods that freeze too slowly may lose quality or spoil.
Wrap foods properly and wipe containers dry before placing them in the freezer. This cuts down on frost build-up inside the freezer.
The freezer storage bin should not be lined with aluminum foil, wax paper, or paper towels. Liners interfere with cold air circulation, making the freezer less efficient
Organize and label food to reduce door openings and extended searches. Remove as many items as needed at one time, and close the door as soon as possible.

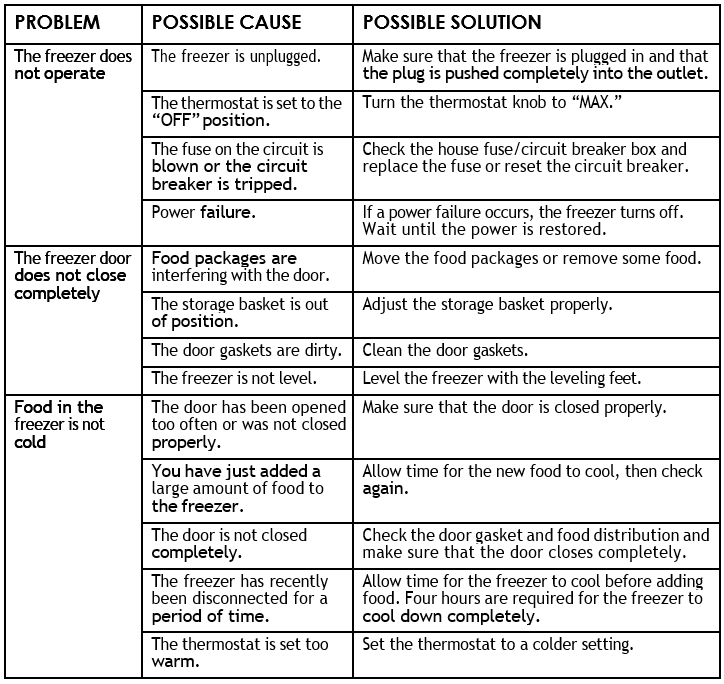

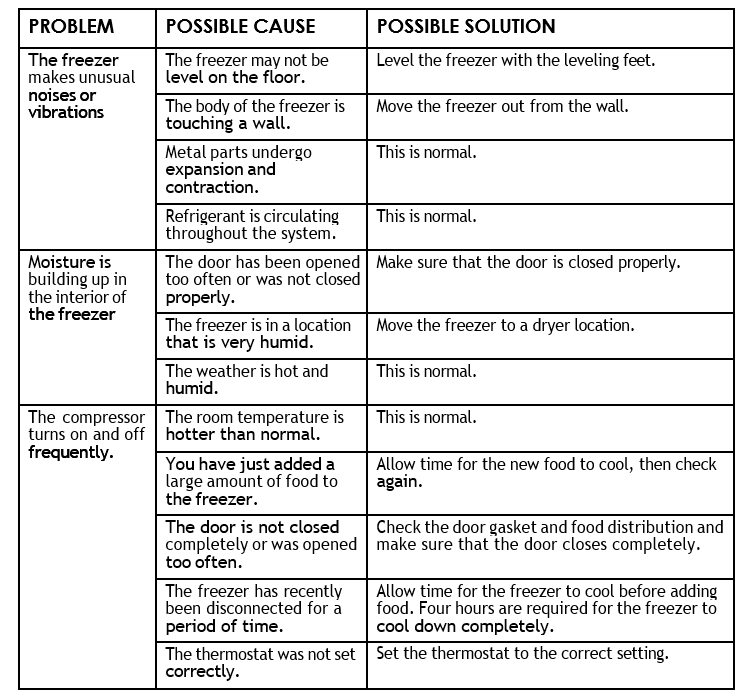

Troubleshooting

CAUTION: Do not try to repair your freezer yourself. Doing so invalidates the warranty.

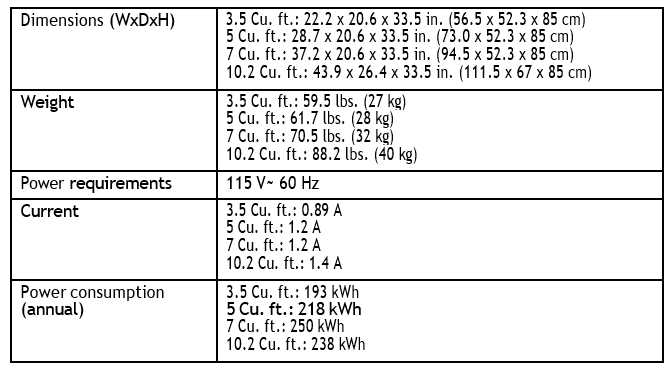

Specifications

ONE-YEAR LIMITED WARRANTY

Definitions:
The Distributor* of Insignia branded products warrants to you, the original purchaser of this new Insignia-branded product (“Product”), that the Product shall be free of defects in the original manufacturer of the material or workmanship for a period of one (1) year from the date of your purchase of the Product (“Warranty Period”). For this warranty to apply, your Product must be purchased in the United States or Canada from a Best Buy branded retail store or online at www.bestbuy.com or www.bestbuy.ca and is packaged with this warranty statement.

How long does the coverage last?
The Warranty Period lasts for 1 year (365 days) from the date you purchased the Product. Your purchase date is printed on the receipt you received with the Product.

What does this warranty cover?
During the Warranty Period, if the original manufacturer of the material or workmanship of the Product is determined to be defective by an authorized Insignia repair center or store personnel, Insignia will (at its sole option): (1) repair the Product with new or rebuilt parts; or (2) replace the Product at no charge with new or rebuilt comparable products or parts. Products and parts replaced under this warranty become the property of Insignia and are not returned to you. If service of Products or parts are required after the Warranty Period expires, you must pay all labor and parts charges. This warranty lasts as long as you own your Insignia Product during the Warranty Period. Warranty coverage terminates if you sell or otherwise transfer the Product.

How to obtain warranty service?
If you purchased the Product at a Best Buy retail store location or from a Best Buy online website (www.bestbuy.com or www.bestbuy.ca), please take your original receipt and the Product to any Best Buy store. Make sure that you place the Product in its original packaging or packaging that provides the same amount of protection as the original packaging.
To obtain warranty service, in the United States and Canada, call 1-877-467-4289. Call agents may diagnose and correct the issue over the phone.

Where is the warranty valid?
This warranty is valid only in the United States and Canada at Best Buy branded retail stores or websites to the original purchaser of the product in the country where the original purchase was made.

What does the warranty not cover?
This warranty does not cover:

Customer instruction/education
Installation
Set up adjustments
Cosmetic damage
Damage due to weather, lightning, and other acts of God, such as power surges
Accidental damage
Misuse
Abuse
Negligence
Commercial purposes/use, including but not limited to use in a place of business or in communal areas of a multiple dwelling condominium or apartment complex, or otherwise used in a place other than a private home.
Modification of any part of the Product, including the antenna
Display panel damaged by static (non-moving) images applied for lengthy periods (burn-in).
Damage due to incorrect operation or maintenance
Connection to an incorrect voltage or power supply
Attempted repair by any person not authorized by Insignia to service the Product
Products sold “as is” or “with all faults”
Consumables, including but not limited to batteries (i.e., AA, AAA, C, etc.)
Products where the factory-applied serial number has been altered or removed
Loss or Theft of this product or any part of the product
Display panels containing up to three (3) pixel failures (dots that are dark or incorrectly illuminated) grouped in an area smaller than one-tenth (1/10) of the display size or up to five (5) pixel failures throughout the display. (Pixel-based displays may contain a limited number of pixels that may not function normally.)
Failures or Damage caused by any contact, including but not limited to liquids, gels, or pastes.

REPAIR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS YOUR EXCLUSIVE REMEDY FOR BREACH OF WARRANTY. INSIGNIA SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR THE BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT, INCLUDING, BUT NOT LIMITED TO, LOST DATA, LOSS OF USE OF YOUR PRODUCT, LOST BUSINESS OR LOST PROFITS. INSIGNIA PRODUCTS MAKES NO OTHER EXPRESS WARRANTIES WITH RESPECT TO THE PRODUCT, ALL EXPRESS AND IMPLIED WARRANTIES FOR THE PRODUCT, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF AND CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE AND NO WARRANTIES, WHETHER EXPRESS OR IMPLIED, WILL APPLY AFTER THE WARRANTY PERIOD. SOME STATES, PROVINCES AND JURISDICTIONS DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE OR PROVINCE TO PROVINCE.

Contact Insignia:

1-877-467-4289
www.insigniaproducts.com
INSIGNIA is a trademark of Best Buy and its affiliated companies.
*Distributed by Best Buy Purchasing, LLC 7601 Penn Ave South, Richfield, MN 55423 U.S.A.
