InSoma SGW05 Outdoor Garden Hose Faucet Timer User Guide

InSoma SGW05 Outdoor Garden Hose Faucet Timer

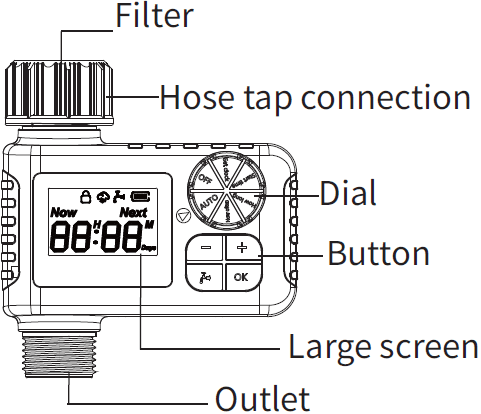

PRODUCT OVERVIEW

NOTE

1. For outdoor use only.
2. Clean the filter regularly and replace it if it is worn in order to extend the working life of the timer.
3. In winter, please remove batteries, drain and store it indoors to away from freezing.
4. Do not install the timer with tools. Hand-tighten ONLY. Use of tools may damage the timer.
5. Do not subject the product to extreme force and shock.
6. To prevent leakage, make sure that the water timer is tightly attached to the faucet and hose, and add a rubber washer and thread seal tape if necessary.

PRODUCT INSTALLATION

Installing the Batteries

1. Remove the battery cover on the back of the timer
2. Install 2 new AA (1.5V) alkaline batteries (not included)
3. Firmly reinstall the cover back into the timer

NOTE:

• Firmly restore the battery to ensure water resistance.
• Removed old batteries at the end of the watering season and disposed of them properly.
• Replace batteries when the low battery indicator appears on the display.
• Please do not insert rechargeable batteries to avoid low voltage.
• The timer doesn’t have programmable memory, it needs to reset once the power is off.

Installing the timer

1. Attach the timer to an outdoor hose faucet.
2. Please turn on the tap after programming the time

NOTE:

• When programming the timer, please turn off the tap to avoid getting wet.
• Do not install the timer with tools. Hand-tighten only.
• Keep away from freezing. The timer should be removed to avoid freezing damage.
• The filter can trap dirt particles. Please clean the filter regularly and replace it if worn.

Automatic Watering Program Setting

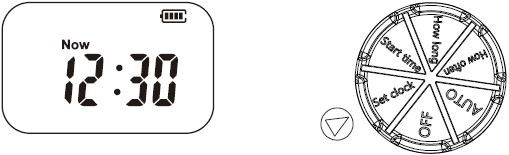

SET CLOCK

1. Turn dial to SET CLOCK
2. Press the “+, -” to set the current hour and minutes. Turn the dial to save the changes

TIPS:

1. Hold the“+ or -” button can increase the time quickly.
2. At the end of setting, please turn dial to save changes. If you press“OK” at the end, it will go back to the first setting.

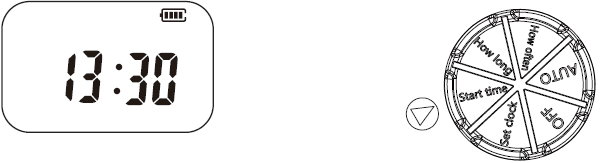

SET START TIME

1. Turn the dial to START TIME
2. Press the “+, -” to set the starting watering hour and minutes. Press “OK” or turn the dial to save changes.

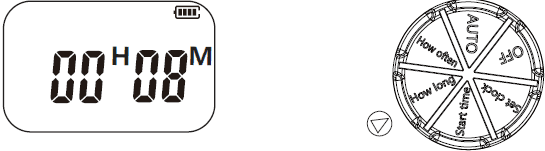

SET HOW LONG

1. Turn the dial to HOW LONG
2. Press the “+,-” to select watering duration and press the “OK” button or turn the dial to save changes.

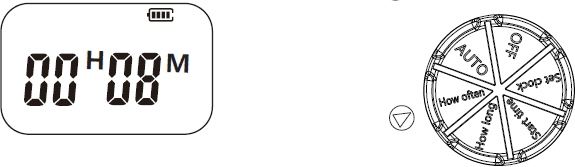

SET HOW OFTEN

1. Turn the dial to HOW OFTEN
2. Press the “+, -” to select watering frequency and press the “OK” button or turn the dial to save changes.

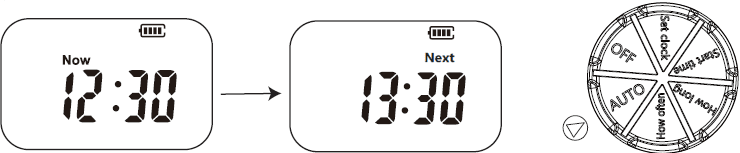

AUTO

1. Turn the dial to AUTO to allow your timer to water as you set the program before
2. It will display the current day and time and follow the next watering plan.

OFF MODE

Turn the dial to OFF, the screen shows OFF and the battery level. All programs are saved, and the timer stops working.

ADDITIONAL FEATURES

MANUAL WATERING

Please make sure the timer is in Auto Run state.

1. Press the “WATERING” Button and press “+, -” to select watering duration from 1 min to 23 hours 59 mins.
2. Press the “OK” button or no operation 10s, it will start to watering.

When you press the “WATERING” button again, the manual watering task ends even if it is watering, and the timer will switch back to Auto mode.

CHILDREN LOCK

1. Please make sure the timer is in Auto Run state.
2. Hold and press the “-” button 5s until the “LOCK” appears on the screen. If you want to cancel the “LOCK”, press the “-” button 5s again.

FAQ

Q1: The LCD screen does not display anything when the batteries are installed.

A1: Two loaded batteries are new 1.5V AA alkaline batteries. Make sure the batteries are properly placed in the battery box.

Q2: Water does not come on at a preset time.

A2: Check if:

• The clock should be set to the correct time.
• The start time is set to the desired time.
• Rain Delay is on.
• OFF mode is on.
• The batteries are low.
• The faucet is turned off.

Q3: The hose tap connection/outlet leaks.

A3: Check if:

• The O-ring is connected correctly to the hose tap.
• The connection outlet or water pipe is broken.
• The faucet and water pipe have different threads.
• If necessary, please use an appropriate adapter or PTFE tape.

After Service Information

1. After service mail box: support@insomasmart.com any problem, like quality problems, not working properly, please mail us, we will do our best to help you solve it.
2. Also, if you need the base oscillating sprinkler or drip emitters to work with our water timer, it and make your watering garden more convenient. Please contact us through our customer support email.
