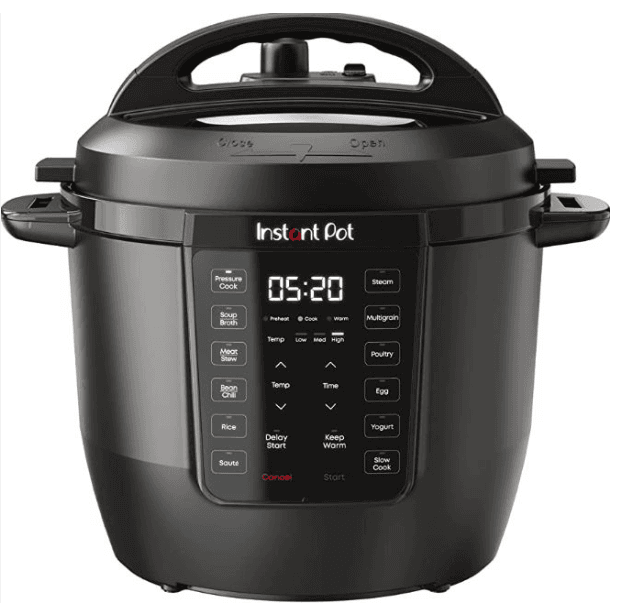

Instant Pot Duo 7-in-1 Electric Pressure Cooker
IMPORTANT SAFEGUARDS
WARNING
Failure to follow safety instructions may result in personal injury and/or property damage and may void your warranty.
READ ALL INSTRUCTIONS
Before using your new appliance, please read all instructions, including the Safety Information below. Keep this manual for reference.
Placement
- DO place the appliance on a countertop only. Always operate the appliance on a stable, non-combustible, level surface.
- DO make sure all parts are dry and free of food debris before placing the inner cooking pot on the cooker base.
- DO NOT place the appliance on or close to a gas or electric burner, or oven.
- DO NOT use the appliance near water, an external heat source or flame.
- DO NOT use outdoors. Keep out of direct sunlight.
- DO NOT place on anything that may block the vents on the bottom of the appliance.
General Use
- The removable inner cooking pot is extremely hot during use and can be extremely heavy when full of ingredients.
- DO use oven mitts when handling the inner cooking pot and removing accessories.
- DO place hot accessories on a heat-resistant surface or cooking plate.
- DO use care when lifting the cooking pot from the cooker base to avoid burn injury.
- DO use extreme caution when the cooking pot contains hot food, hot oil or other hot liquids.
- DO use only the Instant Pot lid that came with this cooker base. Using any other pressure cooker lids may cause personal injury and/or property damage.
- DO NOT use the appliance without the removable inner cooking pot installed.
- DO NOT touch the appliance’s hot surfaces, or any accessories during or immediately after cooking because they will be hot. Only use the appliance’s side handles for carrying or moving.
- DO NOT use this appliance for deep frying or pressure frying with oil.
- DO NOT move the appliance while it is in use and use extreme caution when disposing of hot grease.
- DO NOT allow children or persons with reduced physical, sensory or mental capabilities to operate this appliance. Close supervision is necessary when any appliance is used by or near children and persons with reduced physical, sensory or mental capabilities. Children should not play with this appliance.
- DO NOT use the appliance for anything other than household use. It is not intended for commercial use.
- DO NOT leave the appliance unattended while in use.
Pressure Cooking
This appliance cooks under pressure. Allow the appliance to depressurize naturally or release all excess pressure before opening. Failure to follow these instructions may result in burns, personal injury and/or property damage.
- DO make sure the appliance is properly closed before operating.
- DO check that the steam release valve is installed.
- DO use the pressure cooking lid when pressure cooking.
- DO turn the appliance off if steam escapes from the steam release valve and/or float valve in a steady stream for longer than 3 minutes. If steam escapes from the sides of the lid, turn the appliance off. Once the steam stops, pressure is released and the cooker has cooled, carefully make sure the sealing ring is properly installed.
- DO check the steam release valve, steam release pipe, anti-block shield and float valve for clogging before use.
- DO NOT remove the pressure cooking lid with unprotected hands.
- DO NOT attempt to force the lid off the Instant Pot cooker base.
- DO NOT move the appliance when it is pressurized.
- DO NOT cover or obstruct the steam release valve and/or float valve with cloth or other objects.
- DO NOT attempt to open the appliance until it has depressurized, and all internal pressure has been released. Attempting to open the appliance while it is still pressurized may lead to sudden release of hot contents and may cause burns, personal injury and/or property damage.
- DO NOT place your face, hands or exposed skin over the steam release valve or float valve when the appliance is in operation or has residual pressure, and do not lean over the appliance when removing the lid.
Overfill During Pressure Cooking
Overfilling may cause a risk of clogging the steam release pipe and valve, developing excess pressure.
- DO NOT fill the inner cooking pot over the line labeled ‘PC MAX’ or ‘Max PC Fill’.
- DO NOT fill the inner cooking pot over the line labeled ‘1/2’ when cooking foods that expand during cooking such as rice, dried beans or dried vegetables.
- DO be aware that certain foods, such as applesauce, cranberries, pearl barley, oatmeal or other cereals, split peas, noodles, macaroni, rhubarb, or spaghetti can foam, froth and sputter, and clog the steam release pipe and valve. DO NOT fill the inner cooking pot over the line labeled ‘1/2’ when cooking these foods.
- DO NOT place oversized foods into the inner cooking pot as they may cause risk of fire, personal injury and/or property damage.
- DO check that the sealing ring is properly installed.
Accessories

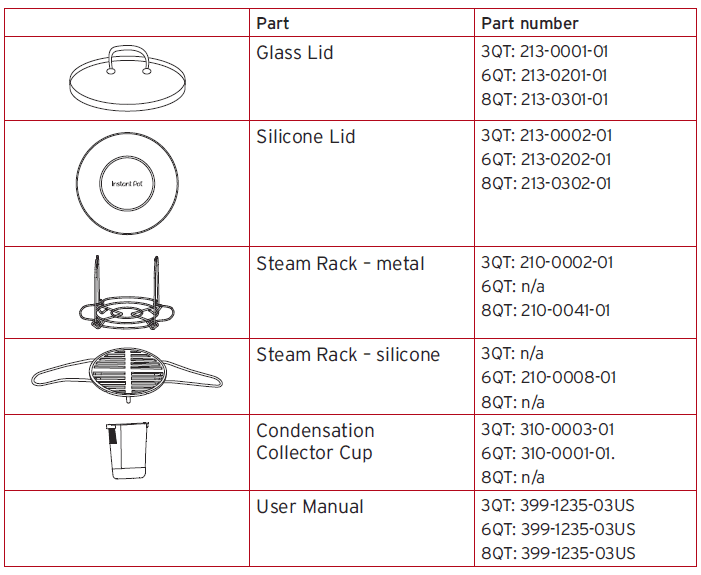

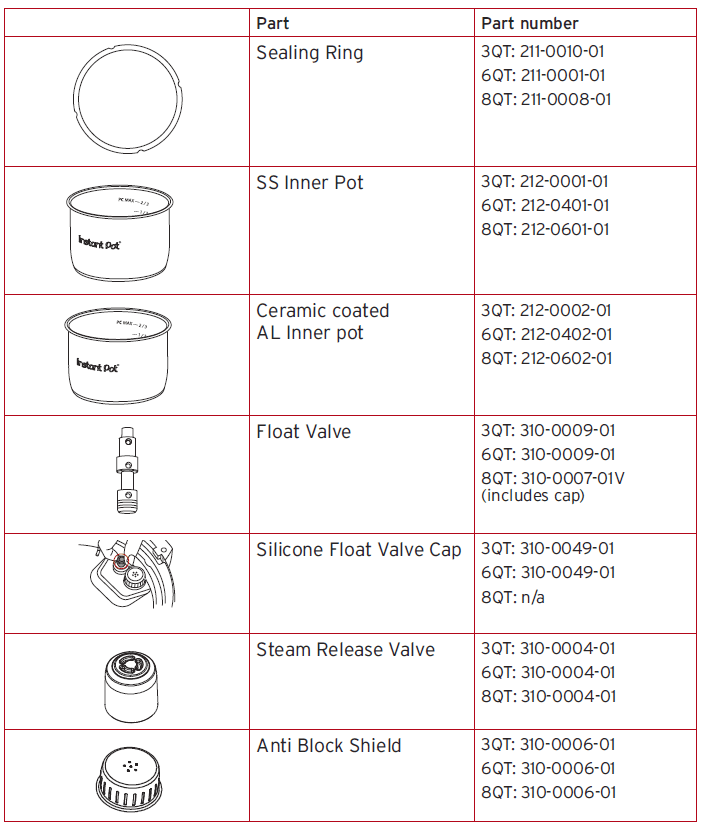

- DO use only accessories or attachments authorized by Instant Brands. The use of parts, accessories or attachments not recommended by the manufacturer may cause a risk of electric shock or other personal injury, fire, and/or property damage.
- DO use only an authorized Instant Pot inner cooking pot to reduce the risk of pressure leakage.
- DO only replace the sealing ring with an authorized Instant Pot sealing ring to prevent personal injury, property damage, and/or damage to the appliance.
- DO NOT use the included accessories in a microwave, toaster oven, convection or conventional oven, or on a ceramic cooktop, electric coil, gas range or outdoor grill.
Care and Storage
- DO let the appliance cool to room temperature before cleaning or storage.
- DO NOT store any materials, other than the inner cooking pot, in the cooker base when not in use.
- DO NOT place any combustible materials in the cooker base, such as paper, cardboard, plastic, Styrofoam or wood.
Power Cord
A short power-supply cord is used to reduce the hazards resulting from grabbing, entanglement or tripping. WARNING: Hot spilled food can cause serious burns.
- DO keep appliance and power cord away from children.
- DO NOT let the power cord hang over edges of tables or counters.
- DO NOT let the power cord touch hot surfaces or open flame, including a stovetop.
- DO NOT use below-counter power outlets. This appliance has a 3-prong grounding plug. To reduce the risk of electric shock:
- ONLY plug the power cord into a grounded electrical outlet.
- DO NOT remove the grounding prong on the electrical plug.
- DO NOT use with extension cords, power converters or adapters, timer switches or separate remote-control systems
- If the unit includes a detachable power cord:
- To connect, always attach the power cord to the appliance first, then plug the power cord into the wall outlet.
Electrical Cautions
The cooker base contains electrical components that are an electrical shock hazard.
- To protect against electrical shock
- To disconnect, select Cancel, then remove plug from power source. Always unplug when not in use, as well as before adding or removing parts or accessories, and before cleaning. To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.
- DO regularly inspect the appliance and power cord.
- DO NOT operate the appliance if the power cord or plug is damaged, or after the appliance malfunctions or is dropped or damaged in any manner. For assistance, contact Consumer Care by email at support@instanthome.com
- DO NOT attempt to repair, replace or modify components of the appliance, as this may cause electric shock or other personal injury, fire and/or property damage, and will void the warranty. For assistance, contact Consumer Care by email at support@instanthome.com
- DO NOT tamper with any of the safety mechanisms, as this may result in personal injury and/or property damage.
- DO NOT put liquid or food of any kind into cooker base. Always place food into the inner cooking pot and place the cooking pot into the cooker base.
- DO NOT immerse the power cord, plug or appliance in water or other liquid.
- DO NOT clean the appliance by rinsing it under a faucet.
- DO NOT use the appliance in electrical systems other than 120 V ~ 60 Hz for North America.
WHAT’S IN THE BOX

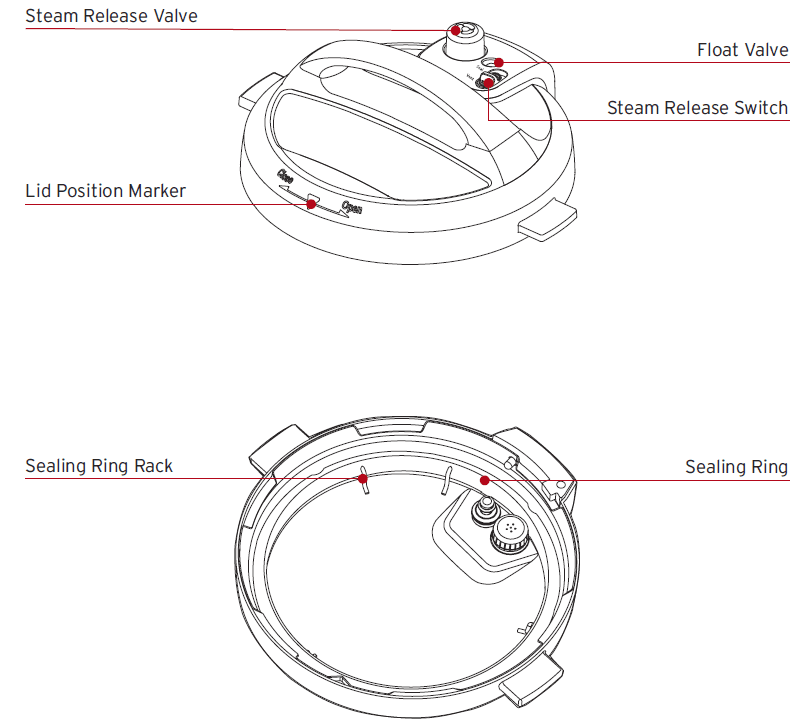

Lid
- Illustrations are for reference only and may differ from the actual product

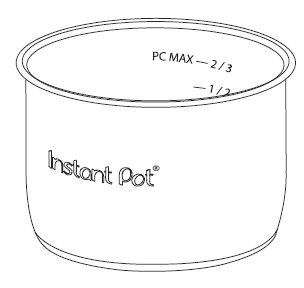

Stainless Steel Inner Cooking Pot

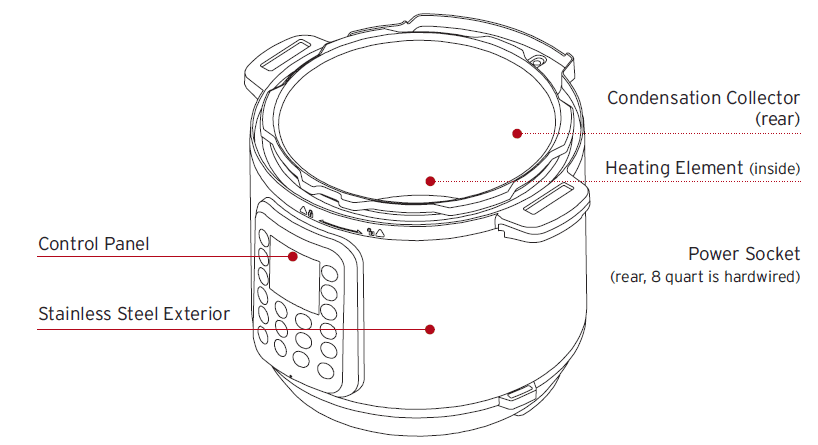

Cooker Base
Remember to recycle
- We designed this packaging with sustainability in mind. Please recycle everything that can be recycled where you live.
USING YOUR DUO

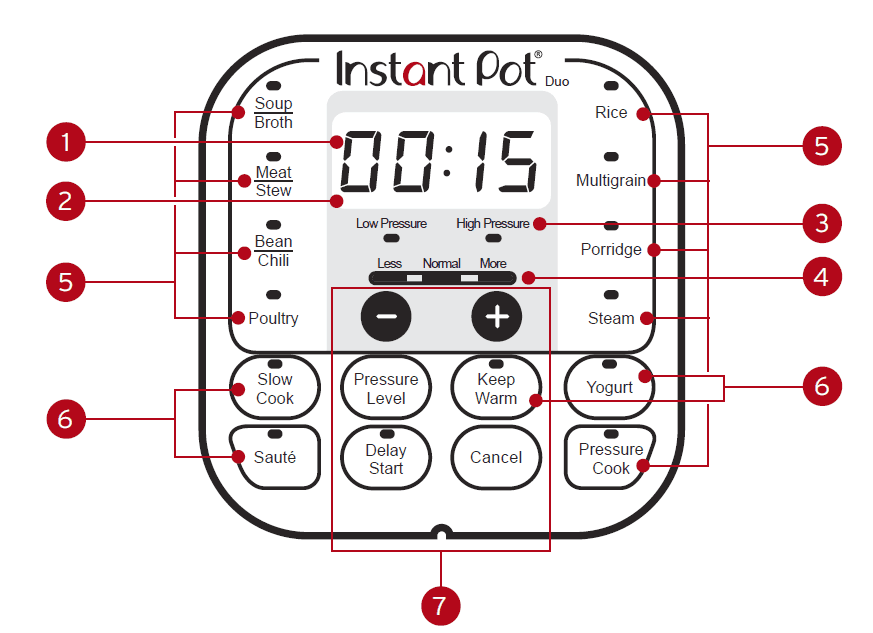

Control panel
We’ve designed the control panel to be simple to use and easy to read.
- Time
- Cooking time
- Delay Start time
- Keep Warm time
- Status Messages
- Pressure
- Low or High
- Time/temperature options
- Pressure cooking: 3 preset time options
- Non-Pressure cooking:
- 3 temperature levels
- Pressure Cooking Smart Programs
- Light shows the active Smart Program
- Non-Pressure Cooking Smart Programs
- Light shows the active Smart Program
- Smart Program Settings
- Choose Pressure Level
- Keep Warm On/Off
- Delay Start On/Off
- Cancel

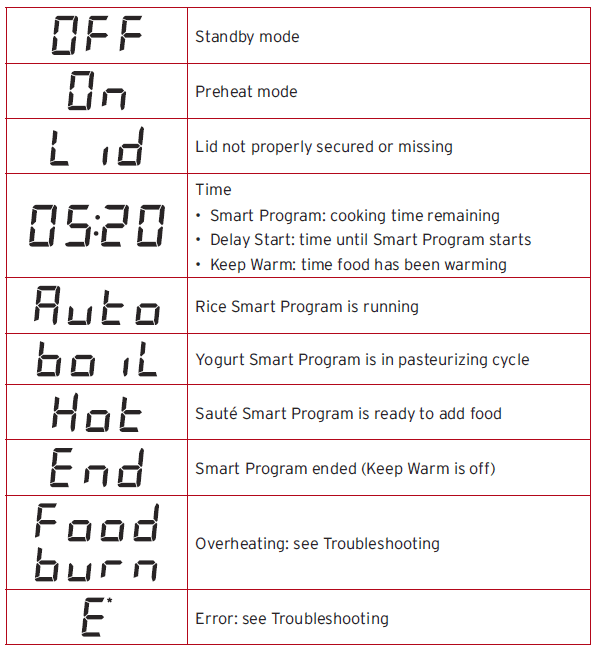

Status messages
The control panel shows information you need to know when using your Instant Pot Duo
Using the lid
- You’ll use the pressure cooking lid for all cooking programs with your Instant Pot Duo. Always use the pressure cooking lid that came with this Instant Pot Duo cooker base.
Open the Lid
- Turn the lid handle to align the arrow symbol on the lid with the unlock symbol on the cooker base.
- Lift the lid up and off the cooker base. You can insert the handle into the cooking base vertically for easy storage.
Close the Lid
- Align the arrow symbol on the lid with the unlock symbol on the cooker base and lower the lid onto the track.
- Turn the lid until the arrow symbol on the lid aligns with the lock symbol on the cooker base.
Turning the sound On/Off
- Turn sound on
- When in Standby mode, press and hold the + button until the display shows S On.
- Turn sound off
- When in Standby mode, press and hold – button until the display shows SOFF. Audible safety alerts (beeps) cannot be turned off.
Delay the start of cooking
You can set a Delay Start timer for a minimum of 10 minutes or a maximum of 24 hours
- Select a Smart Program, adjust the settings as you want, then press Delay Start. Once Delay Start has been selected, there is no way to return to the
cooking settings. To adjust Smart Program settings, press Cancel and enter new selections. - When the hours field flashes, use the – / + buttons to adjust the delay time hours.
- Press Delay Start again to toggle to the minutes field and adjust the delay time minutes.
- Delay Start begins automatically and the timer counts down.
- When Delay Start ends, the Smart Program begins, and the display indicates On. Delay Start is not available with the Sauté or Yogurt Smart Programs.
Reset Smart Programs to original settings
Reset Individual Smart Programs
- With the cooker in Standby mode, press and hold one Smart Program button until the cooker returns to Standby and shows OFF. The Smart Program’s pressure level, cooking time and temperature are restored to the factory default setting. Reset All Smart Programs
- With the cooker in Standby mode, press and hold Cancel until the cooker beeps. All Smart Program pressure levels, cooking times and temperatures are restored to the factory default setting.
INITIAL SETUP
Clean before use
- Wash the inner cooking pot with hot water and soap. Rinse and use a soft cloth to dry the outside. Or you can wash the inner cooking pot in the dishwasher.
- Wipe the heating element inside the cooker base with a soft cloth to ensure there are no stray packaging particles
Setting up the condensation collector
The condensation collector sits at the back of the cooker base and accumulates overflow moisture from the condensation rim. It should be installed before cooking, then emptied and rinsed out after each use
- Remove the condensation collector
- Pull the condensation collector away from the cooker base; do not pull down. Note the tabs on the cooker base and the grooves on the condensation collector.
- Install the condensation collector
- Align the grooves on the condensation collector with the tabs on the back of the cooker base and slide the condensation collector into place
Using the Sealing Ring
When the pressure cooking lid is closed, the sealing ring installed on the underside of the lid creates an air-tight seal between the lid and the cooker base.
- The sealing ring must be installed before using the cooker and should be cleaned after each use.
- Install 1 sealing ring at a time; use one for sweet dishes and one for savory.
- Sealing rings stretch over time with normal use. To keep your product safe, replace the sealing ring every 12 to 18 months. Replace sooner if you notice stretching, deformation, or damage.
Install the Sealing Ring
- Place the sealing ring over the sealing ring rack and press it into place. Press down firmly to ensure there is no puckering.
- The sealing ring should be snug and should not fall out when the lid is turned over
Remove the Sealing Ring
- Grip the edge of the sealing ring and pull it out from behind the sealing ring rack.
- Inspect the rack to ensure it is secured, centered, and an even height all the way around the lid. If the sealing ring rack is deformed, do not try to repair it.
Plug in cord (3QT and 6QT models)
- When you’re ready to use your Instant Pot Duo, plug the electrical cord into the power socket on the back of the unit.
Note: the 8QT model has an electrical cord that is always connected to the unit
Test run
- Setting up your new Instant Pot Duo for a test run is a great way to familiarize yourself with how the unit works before you actually cook a meal
To perform a test run
- Follow the instructions for pressure cooking on page 15 using the Steam Smart Program.
- Add water (but no food) as shown in ‘Using liquid to create steam’ on page 16.
- Set the cooking time to 5 minutes.
- After the cooking session is done, discard any remaining water.
- Wash and dry the inner cooking pot. Now you’re ready to cook a meal in your Instant Pot Duo
PRESSURE COOK
Pressure cooking uses pressurized steam to quickly and evenly cook foods.
How to pressure cook
Prep
Cut, chop, season or marinate your ingredients according to your recipe.
Preheat
- Place the inner cooking pot into the cooker base.
- Add ingredients to the inner cooking pot.
- Place the lid on top of the cooker base and lock the lid. See ‘How to lock the lid’ below.
- Select a Smart Program for cooking by pressing the button on the control panel. See ‘About pressure cooking programs’ above.
- Press the Smart Program again to toggle between time options: Less, Normal or More.
- If you want to increase or decrease the cooking time exactly, press + or –.
- Press Pressure Level to toggle between pressure options: High or Low.
- Keep Warm setting is ON by default. Press Keep Warm again to
turn it off. - After 10 seconds, the display shows On and the Instant Pot Duo is building pressure. It can take up to 30 minutes to reach the pressure setting for cooking. Frozen foods increase the preheating time. The pressure level and time you choose will be the new settings the next time you use that Smart Program.
Cook
- When the pressure is ready, your Instant Pot Duo will beep once and start cooking.
- The cooking timer starts counting down.
- When the timer reaches 00:00, the cooker will beep 5 times and cooking will stop.You can press Cancel to stop a Smart Program at any time.
Release steam
- Choose from the steam release method that works for your recipe. See ‘How to release steam’ below for full details
Using liquid to create steam
- Pressure cooking requires liquid in the inner cooking pot to produce the steam needed. Depending on the size of your Instant Pot Duo, here are the minimum amounts you’ll need
Instant Pot Size Minimum Liquid for Pressure Cooking* 3 Quarts / 2.8 Litres 1 cup (8 oz / 250 mL) 6 Quarts / 5.7 Litres 1 1⁄2 cups (12 oz / 375 mL) 8 Quarts / 7.6 Litres 2 cups (16 oz / 500 mL) - Unless otherwise specified in the recipe.
- Pressure cooking liquids should be water-based, such as broth, stock, soup or juice. If using canned, condensed, or cream-based soup, add water as directed above
How to lock the lid
For pressure cooking, the lid must be securely locked into place to prevent steam from escaping. When you place the lid on the cooker base:
- Line up on lid with on the cooker base.
- Turn the lid clockwise until on lid lines up with on cooker base
How to release steam
Instant Pot Duo can release steam in 2 different ways. Use the one that best fits the type of food you’re cooking.
Natural steam release
Releases steam gradually over time (up to 40 minutes or more) after cooking stops. Use for: Foods that can simmer, like stews, chili, pasta, oatmeal, beans and grains.
- After cooking, leave the steam release switch in the Sealing position until all pressure is released.
- Float valve drops into lid when all steam is released.
- After steam release, turn lid counterclockwise and remove the lid.
Quick steam release
Quickly releases steam after you press the steam release switch. Use for: Foods that tend to overcook, like vegetables and seafood.
- After cooking, set steam release switch to Venting position and wait for all pressure to release.
- Float valve drops into lid when all steam is released.
- After steam release, turn lid counterclockwise and remove the lid.
Pressure Cooking Caution
This appliance uses pressure to cook. Allow the appliance to release all excess pressure and steam before opening the lid. Opening the lid before pressure is released may result in burns, personal injury and/or property damage. Read more in the Safety, Maintenance and Warranty document.
Pressure Cooking Smart Programs
These Smart Programs are designed to pressure cook specific types of food. You can adjust the settings as your recipe directs.
Soup/Broth
Pressure | Low / High | ||
Setting | Less | Normal | More |
Cooking Time | 20 minutes (00:20) | 35 minutes (00:35) | 4 hours (04:00) |
Best for | Soup without meat | Soup with meat | Bone broth / High fat content |
- Tip
- The soup/broth remains clear due to a lack of boiling motion.Use Natural Release for soups with a higher starch content
Meat/Stew
Pressure | Low / High | ||
Setting | Less | Normal | More |
Cooking Time | 20 minutes (00:20) | 35 minutes (00:35) | 45 minutes (00:45) |
Best for | Softer texture | Very soft texture | Fall-off-the-bone texture |
- Tip
- Allow meat to rest for 5-30 minutes after cooking to retain juices
Beans/Chil
Pressure | Low / High | ||
Setting | Less | Normal | More |
Cooking Time | 25 minutes (00:25) | 30 minutes (00:30) | 40 minutes (00:40) |
Best for | Firmer texture | Soft Texture | Very soft texture |
- Tips
- Choose setting based on desired bean texture or adjust the cook time manually. When cooking beans or legumes, always use Natural Release method. Make sure dry beans are completely submerged in water.
Poultry
Pressure | Low / High | ||
Setting | Less | Normal | More |
Cooking Time | 5 minutes (00:05) | 15 minutes (00:15) | 30 minutes (00:30) |
Best for | Softer texture | Very soft texture | Fall-off-the-bone texture |
- Tip
- Allow meat to rest for 5-30 minutes depending on size. It will retain cooking juices for tender, succulent meat.
Rice
Pressure | Low / High | ||
Setting | Less | Normal | More |
Cooking Time (Auto) | 8 minutes (00:08) | 12 minutes (00:12) | 15 minutes (00:15) |
Best for | Al-dente / White Rice | Normal texture / White Rice | Softer texture / White Rice |
- Tip
- The Instant Pot Duo automatically adjusts cooking time depending on volume of rice; display will show Auto. You can adjust cooking time and setting to achieve desired texture. Use a 10-minute timed steam release for fluffy rice.
Multigrain
Pressure | Low / High | ||
Setting | Less | Normal | More |
Cooking Time | 20 minutes (00:20) | 40 minutes (00:40) | 1 hour +45 minutes soaking (01:45) |
Best for | Al dente / Brown rice | Brown or wild rice | Tough grains or a mixture of grains and beans |
- Tip
- The More setting will add an additional 45 minutes for soaking grains/beans with 60 minutes of pressure cooking.
Porridge
Pressure | Low / High | ||
Setting | Less | Normal | More |
Cooking Time | 5 minutes (00:05) | 20 minutes (00:20) | 30 minutes (00:30) |
Best for | Oatmeal: steel cut or rolled | Pudding, porridge, or congee | Porridge or congee with a mixture of various grains |
- Tips
- Adjust cooking time as recipe directs. Use Natural Steam Release when cooking foods that expand.
Steam
Pressure | Low / High | ||
Setting | Less | Normal | More |
Cooking Time | 3 minutes (00:03) | 10 minutes (00:10) | 15 minutes (00:15) |
Best for | Vegetables | Fish and seafood | Meat |
- Tips
- Use the provided steam rack to elevate food above cooking liquid. Use Quick Steam Release to avoid overcooking food.
SAUTÉ
Use Sauté in place of a frying or saucepan. Sautéing can deepen the flavors of your food, or can simmer, thicken or reduce sauces. Choose from these settings in the Sauté Smart Program
Setting | More 170 F / 77 C | Normal 154 F / 68 C | Less 143 F / 62 C |
Cooking time | 30 minutes (00:30) | 30 minutes (00:30) | 30 minutes (00:30) |
Best for | Simmering, thickening, and reducing liquids | Pan-searing or sautéing | Stir-frying or browning meat |
How to sauté
Prep
Cut, chop, season or marinate your ingredients according to your recipe
Preheat
- Place the inner cooking pot into the cooker base.
- Press Sauté.
- Cycle through temperature presets to select Less, Normal, or More.
- Press – / + to adjust cooking time.
- After 10 seconds, the cooker beeps 3 times and the Display shows ON.
Cook
- When display shows Hot, add ingredients. Only use High Heat oils to Sauté in the pressure cooker.
- When timer ends, the cooker beeps 10 times and the display shows End.
- Press Cancel if you want to finish cooking before timer runs out.
Deglazing
Deglazing is the process of adding a liquid to a hot pan, releasing all of the delicious, caramelized pieces stuck to the bottom
- Remove food from inner cooking pot.
- Add water, broth, or wine.
- Use wooden spoon or silicone spatula to loosen food stuck to bottom of the inner cooking pot.
Sautéing before Pressure or Slow Cooking
Quite often, you’ll want to sauté foods to brown them before further cooking them.
- Sauté ingredients.
- Press Cancel. You can deglaze the inner cooking pot now before switching to Pressure Cook or Slow Cook (see Deglazing Inner Pot)
- Select from the Smart Program.
SLOW COOK
Slow Cook lets you make your favorite simmering and stewing recipes —just like grandma used to make. This program does not use pressure to cook food. Make sure steam release is set to Venting or use a glass lid with a venting hole. Choose from these settings in the Slow Cook Smart Program
Setting | Less | Normal | More |
Best for | ‘Low and Slow’ cooking | Medium setting equivalent on traditional slow cookers | High setting equivalent on traditional slow cookers |
Cooking Time | 8 hours (08:00) | 6 hours (06:00) | 4 hours (04:00) |
How to slow cook
Prep
Cut, chop, season or marinate your ingredients according to your recipe
Cook
- Place the inner cooking pot into the cooker base.
- Add ingredients to the inner cooking pot.
- Place lid on top of the cooker base and lock the lid.
- Press Slow Cook.
- Cycle through temperature presets to select Less, Normal, or More.
- Press – / + to adjust cooking time.
- Keep Warm setting is On by default. Press Keep Warm again to turn it off.
- After 10 seconds, the display shows On and displays timer.
Keep Warm
- When cooking completes, the display shows End if Keep Warm is turned off. If not, the timer begins counting from 00:00 up to 10 hours (10:00)
YOGURT MAKING
- You can use your Instant Pot Duo to easily make delicious, fermented dairy and non-dairy yogurt. Choose from these settings in the Yogurt Smart Program:
Setting Less Normal More Cooking Time 24 hours (24:00)
8 hours* (08:00)
Not adjustable Best for For lower temperature fermentation or Jiu Niang, a sweet, fermented rice dessert
Use for fermenting milk Use for pasteurizing milk - You can adjust time from 30 to 99 minutes.
How to make yogurt
Pasteurizing Milk
- Insert inner pot into the cooker base.
- Add unpasteurized milk to the inner pot.
- Place and close lid.
- Press Yogurt.
- Press Yogurt again to cycle through Less, Normal, More.
- After 10 seconds, display shows boiL.
- When pasteurization finishes, display shows End.
Note: Milk must reach a minimum of 161°F / 72°C for pasteurization to occur.
Adding Culture/Starter
- Allow pasteurized milk to cool to 43°C / 110°F.
- Add a starter culture to the milk according to package instructions. If using plain yogurt as a starter, ensure that it contains an active culture. Mix in 2 tbsp (30 mL) of yogurt per 1 gallon (3.7 L) of milk or follow a trusted recipe.
- Place and close lid.
Ferment
- Press Yogurt.
- Cycle to Normal by pressing Yogurt again; display shows 8 hours (08:00).
- Use – / + buttons to adjust the fermentation time if needed.
- After 10 seconds the cooker begins heating; display shows timer counting up to set time from 00:00
- When fermentation completes, the cooker beeps and display shows End. A longer fermentation period will produce tangier yogurt.
- Allow yogurt to cool 7.
- Place in fridge for 12–24 hours to develop flavors.
How much to make?
Instant Pot Size | Minimum Milk Volume | Maximum Milk Volume |
3 Quarts / 2.8 Liters | 2 Cups (16 oz / 500 mL) | 2 Quarts (64 oz / 1.9 L) |
6 Quarts / 5.7 Liters | 4 Cups (32 oz / 1000 mL) | 4 Quarts (128 oz / 3.8 L) |
8 Quarts / 7.6 Liters | 6 Cups (48 oz / 1500 mL) | 6 Quarts (192 oz / 5.7 L) |
KEEP WARM
The Keep Warm setting turns on automatically after cooking on all Smart Programs except Sauté and Yogurt. You can also use Keep Warm to reheat food.
Keep warm after cooking
- When automatic warming begins, the timer shows the time passed, up to 10 hours.
- To turn automatic warming off (either during cooking or during automatic warming), press Keep Warm and the light above the button turns off.
Reheat and keep warm
- When in Standby mode, press Keep Warm.
- Press again to cycle through Less, Normal and More temperature levels.
- Press the – / + buttons to set a timer for up to 10 hours
CLEANING
- Clean your Instant Pot Duo after each use. Always unplug the unit and let all parts cool to room temperature before cleaning. Before use or storing, make sure all surfaces are dry
Part Cleaning instructions Accessories • Steam Rack
• Condensation Collector
• Wash after each use. • Hand wash with hot water and mild dish soap or wash in dishwasher, top rack.
• Never use harsh chemical detergents, powders or scouring pads on accessories.
• Empty and rinse condensation collector after each use.
Lid and Parts • Anti-Block Shield
• Sealing Ring
• Steam Release Valve
• Float Valve
• Silicone Cap
• Hand wash with hot water and mild dish soap or wash in dishwasher, top rack. • Remove all small parts from lid before washing.
• With steam release valve and anti-block shield removed, clean interior of steam release pipe to prevent clogging.
• To drain water from the lid after dishwashing, grasp the lid handle and hold the lid vertically over a sink, then turn it all the way around.
• After cleaning, store the lid upside down on the cooker base.
• Store sealing rings in a well-ventilated area to disperse odor.
• To eliminate odors from sealing ring, add 1 cup
(8 oz / 250 mL) water and 1 cup (8 oz / 250 mL) white vinegar to inner cooking pot, and run Pressure Cook for 5–10 minutes, then use Quick Steam Release.
Inner Cooking Pot • Wash after each use. • Hand wash with hot water and mild dish soap or wash in dishwasher.
• Hard water stains may need a vinegar-dampened sponge and scrubbing to remove.
• For tough or burned food residue, soak in hot water for a few hours before cleaning.
• Dry all exterior surfaces before placing in cooker base.
Part Cleaning instructions Power cord • Use a barely-damp cloth to wipe any particles off cord. Cooker base • Wipe the inside of the cooker base as well as the condensation rim with a barely-damp cloth, and allow to air dry. • Clean the outside of the cooker base and the control panel with a soft, barely-damp cloth or sponge.
- Some discoloration may occur after machine washing, but this will not affect the cooker’s safety or performance.
TROUBLESHOOTING
Problem | Cause | Solution |
Difficulty closing lid | Sealing ring not properly installed. | Reposition sealing ring, ensure it is snug behind sealing ring rack. |
Contents in cooker are still hot. | Set Steam Release switch to Vent, then lower lid onto cooker base. | |
When opening cooker, the inner pot is stuck to lid | Cooling of inner cooking pot may create suction, causing inner pot to adhere to the lid. | Carefully lower the inner cooking pot back into the cooker base and release the vacuum by setting the Steam Release switch to Vent. |
Steam leaks from side of lid | No sealing ring in lid. | Install sealing ring. |
Sealing ring damaged or not properly installed. | Replace sealing ring. | |
Food debris attached to sealing ring. | Remove sealing ring and clean thoroughly. | |
Lid not closed properly | Open, then close lid. | |
Sealing ring rack is warped or off-center. | Remove sealing ring from lid, check sealing ring rack for bends or warps. Contact Consumer Care. | |
Inner cooking pot rim may be misshapen. | If inner cooking pot is deformed, replace the pot. DO NOT USE. Contact Consumer Care. | |
Minor steam leaking/ hissing from steam release vent during cooking cycle | This is normal; no action required. | |
Steam gushes from steam release vent when Steam Release switch is in Seal position | Pressure sensor control failure. | Contact Consumer Care. |
Internal Steam Release valve not seated properly | Move the Steam Release switch quickly to Vent then back to Seal to ensure the Steam Release valve is seated correctly. | |
Display remains blank after connecting the power cord | Bad power connection or no power. | Inspect power cord for damage. If damage is noticed, contact Consumer Care. |
Check outlet to ensure it is powered. |
Problem | Cause | Solution |
Occasional clicking or light cracking sound | Cooker’s electrical fuse has blown. | Contact Consumer Care. |
Bottom of the cooking pot is wet. | Wipe exterior surfaces of cooking pot. Ensure heating element is dry before inserting cooking pot into multi-cooker base. | |
Error code appears on display and multi-cooker beeps continuously | There is an issue with the multi-cooker. | Read “Error Codes” for instructions. |
ERROR CODES
If the control panel shows an error code from this list, there is an issue with the Instant Pot Duo. Here are the actions you should take to fix the problem.
Problem | Cause | Solution |
C1 C2 C6 | Faulty sensor. | Contact Consumer Care. |
C7 or NoPr | Heat element has failed. | Contact Consumer Care. |
Not enough liquid. | Add thin, water-based liquid to the cooking pot: 1 1/2 cups (12 oz / 375 mL) | |
Lid | Lid is not in the correct position for the selected program. | Open and close the lid. Do not use a lid when using Sauté. |
Food burn | High temperature detected at bottom of cooking pot; multi-cooker automatically reduces temperature to avoid overheating. | Starch deposits at the bottom of the cooking pot may have blocked heat dissipation. Turn the multi-cooker off, release pressure according to the recipe, and inspect the bottom of the cooking pot. |
PrSE | Pressure has accumulated during a non-pressure cooking program. | Set Steam Release switch to Vent. |
REPLACEMENT PARTS
We offer genuine replacement parts for your Instant Pot Duo, if you need them. Visit www.instanthome.com to order
LEARN MORE
There’s a whole world of Instant cooking information and help just waiting for you. Here are some of the most helpful resources
Register your product
Contact Consumer Care
In the Instant Brands Connect App Instanthome.com/customer-care-center support@instanthome.com
Instant Brands Connect™ App with 2000+ recipes
Instanthome.com iOS and Android app stores
Cooking charts and more recipes
How-to videos, tips and more
Replacement parts and accessories
Product specifications
Model | Volume | Wattage | Power | Weight | Dimensions |
Duo Mini v5 | 3 Quart 2.8 Litres | 700 watts | 120V/ 60 Hz | 3.9 kg 8.6 lbs. | in: 11.4 L x 10 W x 11.2 H cm: 29 L x 25.5 W x 28.5 H |
Duo 60 v5 | 6 Quart 5.7 Litres | 1000 watts | 120V/ 60 Hz | 5.35 kg 11.8 lbs. | in: 13.4 L x 12.2 W x 12.5 H cm: 34 L x 31 W x 31.7 H |
Duo 80 v5 | 8 Quart 7.6 Litres | 1200 watts | 120V/ 60 Hz | 7.16 kg 15.79 lbs. | in: 14.8 L x 13.3 W x 14.2 H cm: 37.6 L x 33.8 W x 36.1 H |
WARRANTY
One (1) Year Limited Warranty
This One (1) Year Limited Warranty applies to purchases made from authorized retailers of Instant Brands LLC (“Instant Brands”) by the original appliance owner and is not transferable. Proof of original purchase date and, if requested by Instant Brands, return of your appliance, is required to obtain service under this Limited Warranty. Provided the appliance was used in accordance with the use & care instructions, Instant Brands will, in its sole and exclusive discretion, either:
- (i) Repair defects in materials or workmanship
- (ii) Replace the appliance. In the event that your appliance is replaced, the Limited Warranty on the replacement appliance will expire twelve (12) months from the date of receipt. Failure to register your product will not reduce your warranty rights. The liability of Instant Brands, if any, for any allegedly defective appliance or part will not exceed the purchase price of a comparable replacement appliance.
What is not covered by this warranty?
- Products purchased, used, or operated outside of the United States and Canada.
- Products that have been modified or attempted to be modified.
- Damage resulting from accident, alteration, misuse, abuse, neglect, unreasonable use, use contrary to the operating instructions, normal wear and tear, commercial use, improper assembly, disassembly, failure to provide reasonable and necessary maintenance, fire, flood, acts of God, or repair by anyone unless directed by an Instant Brands representative.
- Use of unauthorized parts and accessories.
- Incidental and consequential damages.
- The cost of repair or replacement under these excluded circumstances.
EXCEPT AS EXPRESSLY PROVIDED HEREIN AND TO THE EXTENT PERMITTED BY APPLICABLE LAW, INSTANT BRANDS MAKES NO WARRANTIES, CONDITIONS OR REPRESENTATIONS, EXPRESS OR IMPLIED, BY STATUTE, USAGE, CUSTOM OF TRADE OR OTHERWISE WITH RESPECT TO THE APPLIANCES OR PARTS COVERED BY THIS WARRANTY, INCLUDING BUT NOT LIMITED TO, WARRANTIES, CONDITIONS, OR REPRESENTATIONS OF WORKMANSHIP, MERCHANTABILITY, MERCHANTABLE QUALITY, FITNESS FOR A PARTICULAR PURPOSE OR DURABILITY.
Some states or provinces do not allow for
- (1) The exclusion of implied warranties of merchantability or fitness
- (2) Limitations on how long an implied warranty lasts; and/or
- (3) The exclusion or limitation of incidental or consequential damages; so these limitations may not apply to you. In these states and provinces, you have only the implied warranties that are expressly required to be provided in accordance with applicable law. The limitations of warranties, liability, and remedies apply to the maximum extent permitted by law. This limited warranty gives you specific legal rights, and you may also have other rights which vary from state to state or province to province.
Product Registration
- Please visit www.instanthome.com/register to register your new Instant Brands appliance. Failure to register your product will not diminish your warranty rights. You will be asked to provide the store name, date of purchase, model number (found on the back of your appliance) and serial number (found on the bottom of your appliance) along with your name and email address. The registration will enable us to keep you up to date with product developments and recipes, and contact you in the unlikely event of a product safety notification. By registering, you acknowledge that you have read and understand the instructions for use, and warnings set forth in the accompanying instructions.
Warranty Service
To obtain warranty service, please contact our Consumer Care Department by email to support@instanthome.com You can also create a support ticket online at
www.instanthome.com If we are unable to resolve the problem, you may be asked to send your appliance to the Service Department for quality inspection. Instant Brands is not responsible for shipping costs related to warranty service. When returning your appliance, please include your name, mailing address, email address, phone number, and proof of the original purchase date as well as a description of the problem you are encountering with the appliance
For more manuals by Instant Pot, visit ManualsLibraryy
Instant Pot Duo 7-in-1 Electric Pressure Cooker-FAQs
What does a 7-in-1 pressure cooker do?
The Instant Pot Duo 7-in-1 pressure cooker serves as a pressure cooker, slow cooker, rice cooker, steamer, sauté pan, yogurt maker, and warmer, offering multiple cooking functions in a single appliance.
What temperature settings does the Instant Pot Duo have?
Normal: 320 to 349°F (for regular sautéing or browning)
More: 347 to 410°F (for stir-frying or intense browning)
Less: 275 to 302°F (ideal for simmering or thickening)
How do I set the Instant Pot Duo for 90 minutes?
Select the Meat/Stew option and choose High Pressure. Adjust the timer to 90 minutes and let it complete its cycle, allowing the pressure to release naturally.
Why does food cook faster in a pressure cooker?
In a pressure cooker, the high pressure raises the boiling point of water, so food cooks more quickly as it reaches higher temperatures
Why don’t professional chefs often use Instant Pots?
Many chefs prefer traditional cooking methods, as pressure cookers offer less control over the final dish. They favor slow cooking techniques to enhance flavors and textures.
How much water should I use in a pressure cooker?
For jiggle-top cookers, use at least 1 cup of water. For valve cookers, use at least half a cup. Always keep the cooker less than two-thirds full to allow steam to build up.
Can I speed up my pressure cooker’s performance?
Pre-boil water before adding it to the cooker to reach pressure more quickly
What are the disadvantages of using a pressure cooker?
Pressure cookers may not suit certain dishes that require precise temperature control or high-temperature cooking methods, such as roasting.
How can I adjust the temperature in the Instant Pot Duo?
Use the Adjust button:
1. More Setting: 347 to 410°F (for browning or stir-frying)
2. Less Setting: 275 to 302°F (for simmering)
Is the Instant Pot Duo stainless steel?
Yes, the cooking pot is made of stainless steel and is dishwasher-safe for easy cleaning.
What is the maximum temperature for the Instant Pot Duo?
In pressure cooking mode, the maximum operating temperature is 240 to 244°F at a pressure range of 10.2 to 11.6 psi
What are the seven functions of the Instant Pot Duo?
It can function as a pressure cooker, sauté pan, steamer, slow cooker, rice cooker, warmer, and yogurt maker
How do I set the Instant Pot Duo to high pressure?
Use the Pressure Level button to switch between low and high-pressure settings on models like the IP-DUO, IP-SMART, or IP-DUO PLUS.
How does the Instant Pot compare to an air fryer?
Instant Pots generally cook food faster than air fryers and are more versatile. Air fryers are easier for beginners, while Instant Pots require a bit of a learning curve.
When should I turn off a pressure cooker?
After cooking, release the pressure by either a natural release (waiting 15-20 minutes for the pressure to decrease) or a quick release method, depending on your recipe’s instructions.
How do I set a 25-minute timer on the Instant Pot?
Step 1: Select a cooking program
Step 2: Adjust cooking time using the “+” and “-” buttons to reach 25 minutes
Step 3: Press ‘Start’ to begin
