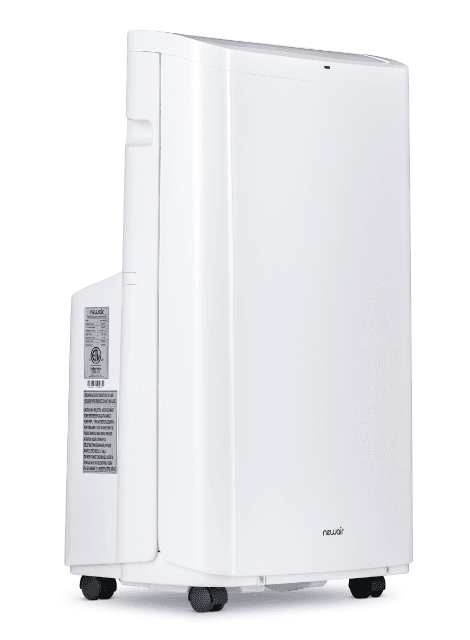

Intertek DELLA Portable Air Conditioner
Safety Instructions
Electrical Specifications
- All wiring must comply with local and national electrical codes and be installed by a qualified electrician. If you have any questions regarding the following instructions, please contact a qualified electrician.
- The unit must be installed in accordance with national wiring regulations. Check the available power supply and resolve any wiring problems before installation and operation of this unit.
- For your safety and protection, this unit will be grounded through the power cord plug when plugged into a matching wall outlet. If you are not sure whether the wall outlets at your home are properly grounded, please consult an electrician. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or a similarly qualified person in order to avoid any hazards.
- This appliance is not intended for people（including children）with reduced physical, sensory, or mental capabilities, or a lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Young children should be supervised to ensure that they do not play with the appliance.
WARNING:
To reduce the risk of fire, electrical shock, or injury when using your air conditioner, follow these basic precautions:
- Indoor use only, it is prohibited to use this unit outdoors or in a humid environment, such as a bathroom, etc.
- Do not remove the ground prong.
- Do not use an adapter.
- Do not use an extension code.
- Never share the power outlet with other appliances.
- Never connect or disconnect the power plug with wet hands to avoid electric shocks.
- Never turn off the unit by unplugging.
- Unplug the air conditioner before servicing.
- Never dismantle, repair, or modify the unit without authorization to avoid bodily injury or property damage. Be sure it is repaired by the manufacturer or professionals.
- Never put any objects into the unit.
- Never cover or obstruct the air inlet or outlet to prevent overheating.
- Never hit or shake the unit to prevent damage.
- Never spray water or place the unit near water to prevent electric shocks.
- Never place the unit near gas appliances, fire, or flammable liquids.
- Move and install the unit with two or more people.
- Keep children away from the unit.
- This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
Cautions:
- Keep the unit at least 1 meter away from TVs or radios to avoid electromagnetic interference.
- Do not expose the unit to direct sunlight to avoid surface color fading.
- Do not tilt the unit for more than 35 degrees or upside-down while transporting.
- Place the unit on a flat surface and upright with less than 5 degrees inclination.
- The unit operates more efficiently in certain room locations (see Installation and Adjustment)
- Keep the drain hose in good condition without flexure, then connect it to the unit.
- Manually adjust the vertical and horizontal louvers slightly to protect the louvers from any damage.
- Empty the condensed drainage pan before putting the unit in storage to prolong the unit’s lifetime end of the season.
- Do not use chemical solvents (e.g., Benzene, alcohol-glazer) to clean the unit surface; do not scratch or damage the unit.
- Make sure to cut off the power before disassembling or installing the filter.
Remark: Do not use this unit in cooling mode if the ambient temperature is higher than 35℃.
Function and Technical Specification
- This new series of portable air conditioners is designed with different cooling capacity levels.
- This unit offers cooling, dry, fan, and sleep modes, ideal for home and office use.
- This unit has two fan-speed levels accessible by panel control and remote control.
- The temperature setting range of this unit is 17-30℃（62-86℉）
- This unit is designed with various protection functions such as a 24-hour programmable timer, auto condensate cycle, super intelligent temperature sensor, and water-full control and warning etc.
Features and Identification of Parts
Features
- New appearance and compact.
- Both horizontal and vertical louvers can be manually adjusted to enhance cooling performance.
- Integrated design of humanized handle and remote control compartment.
- Large LED control panel, more visualized.
- Power cord winding pillar and universal plug fixing holes can well protect the power cord.
- High position of the exhaust air outlet, easy assembly, and quick exhaust venting.
- 24-hour Timer function, unique on/off reminding music.
- 3-minute restart delay protection for the compressor and other multiple protection functions.
- Unique exhaust hose and fasteners, convenient installation.

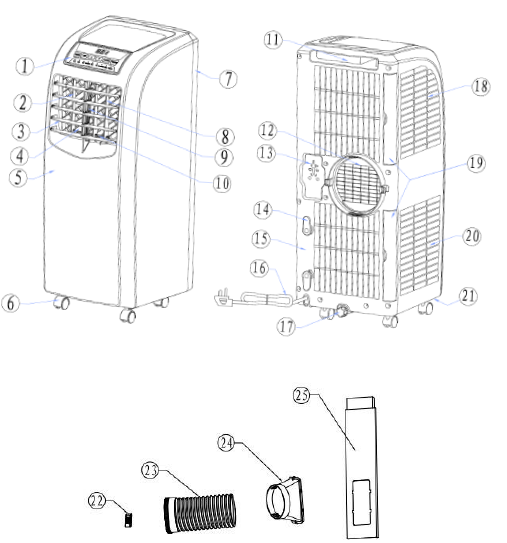

Identification of Parts:
- Control panel
- Vertical louvers
- Horizontal louvers
- Air outlet frame
- Front shell
- Universal wheel
- Back shell
- Main vertical louver
- Horizontal louvers connecting rod
- Vertical louvers connecting rod
- Handle (right side for remote control storage)
- Protective net of the exhaust vent
- Universal plug fixing holes
- Wire winding pillar
- Back shell
- Power cord
- Drain hole and cover
- Filter
- Filters
- Filter
- Chassis
- Remote controller
- Exhaust hose assembly
- Exhaust hose adapter
- Window seal-plate assembly
Operation and Settings

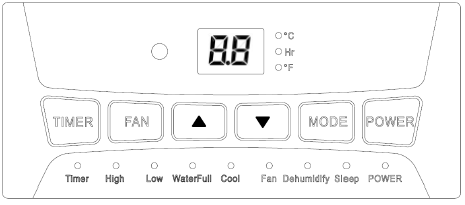

Control Panel
This section explains proper mobile air conditioner operation.

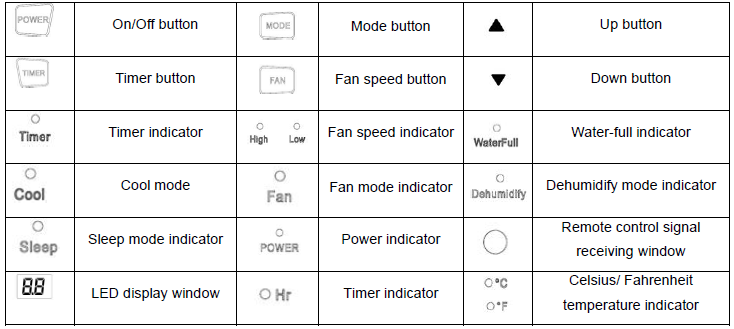

Control Panel Operation
This unit is equipped with a Cool, Dehumidifying Fan and Sleep modes.
- Turn on the unit.
- Plug in and all indicators will light up on the control panel, and the reminder music will be on, the display window will show ambient temperature ranging from 10- 35℃, will be in red color, unit is in standby for operation.
- Press the button, the unit is on with a reminder music sounding, will be in green color, and will operate in Cool Mode automatically, temperature set to 24℃, fan runs at high speed, and in green color.
- Select operating mode
Press the button to select a desired mode, and its corresponding indicator will light up.
Under cooling mode, press the “Timer” + “down” buttons together, the unit auto enters into “Sleep” Mode.
- Adjust temperature
The temperature can be set within a range of 17-30℃ under cooling mode. Press the UP or DOWN buttons to increase or decrease the temperature by 1 ℃ by pressing once.
Press and buttons together to convert Celsius degrees and Fahrenheit degrees, and the corresponding indicator will light up.
- Adjust fan speed
Press the FAN button to select a desired fan speed
- Stand-by
Press the POWER button again, the unit will stop working with a reminder music sounding, POWER will be in red color.
Notice: Working principle for each mode and function.
Cool mode:
- When the room temperature is 1℃ higher than the setting temperature, the compressor and fan will start working.
- When room temperature is 1℃ lower than setting temperature, the compressor will stop working and fan keep working at original speed.
- Room temperature can be set within a range of 17-30℃, and fan speed can be adjusted to high or low levels.
- On/Off time can be set.E1, E2 & E4 protection (see Troubleshooting).
- Water-full warning protection.
Fan mode:
- The fan runs at a set speed, and the compressor will not work.
- Fan speed can be adjusted to a high or low level.
- The room temperature will automatically show on the LED display with a range 10-35℃.
- The room temperature can’t be adjusted.
- On/off time can be set.
Dehumidify mode:
- The fan will run at low speed automatically, and the speed can’t be adjusted.
- Room temperature can’t be adjusted.
- The room temperature will automatically show on the LED display with a range 10-35℃.
- On/off time can be set.
- E1, E2 & E4 protection (see Troubleshooting).
- Water-full warning protection.
Sleep mode:
- Under cooling mode, press the “Timer” + “DOWN” buttons together, the unit auto enter into “Sleep” mode.
- The fan will turn to low speed automatically and can’t be adjusted.
- Set temperature will increase 1℃ when unit running in 2 hours, increase 1℃ again in another 2-hour working, then keep set temperature unchanged further.
- The room temperature will automatically show in the LED display with a range 10-35℃.
- On/off time can be set.
- E1, E2 & E4 protection (see Troubleshooting).
- Water-full warning protection.
Timer Operation:
- Press the “Timer” button to set the automatic OFF time while the unit is running, it will light up.
- The unit will be off automatically when the set time is off, and the TIMER will be off, room temperature is shown on the LED display window.
- Press the “Timer” button to set automatic ON time while the unit is off, it will light up.
- The unit will turn on automatically and working at original mode when the set time is over, TIMER will be off, room temperature is shown on the LED display window.
- Under the “Timer” function, press “Timer” once to check the time remaining; the Timer indicator keeps lit up; press “Timer” twice within 5 seconds to cancel the timer, TIMER will turn off.
- Only the final setting is effective if repeated.
- The time can be adjusted within a range of 1-24 hours. Press the UP or DOWN buttons to increase or decrease t 1 hour by pressing once.
- Unit will not change working mode after the timer setting. The timer will not stop due to other functions.
- The timer will be ineffective if any operation from the control panel or remote control is used to turn on or off the unit.

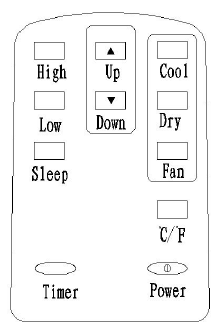

Remote Control Operation
The Remote control transmits the signal to the system.
- POWER Button: Press this button to start the unit when it is energized or stop the unit when it is in operation.
- TIMER Button: Press this button to set the unit’s automatic on and off time.
- HIGH Button: Press this button to select high speed of fan running (except dry and sleep modes)
- LOW Button: Press this button to select the low speed of the fan running.
- UP Button: Press this button to increase the temperature or the timer setting.
- DOWN Button: Press this button to decrease the temperature or timer setting.
- C F Button: Press this button to make Celsius degrees and Fahrenheit degrees interchange.
- COOL Button: Press this button to select “Cool” mode.
- FAN Button: Press this button to select “Fan” mode.
- DRY Button: Press this button to select “Dry” or “dehumidifying” mode.
- SLEEP Button: Press this button to select the “Sleep” function under cooling mode.
Before using your remote, install the AAA batteries into the remote control.
- Press and glide the battery cover on the back of the remote control, and then you can remove the cover.
- Insert two new alkaline AAA batteries into the battery compartment. Be sure to note the proper polarity.
- Reattach the battery cover and make sure the locking tab clicks into place.
Notes:
- Use alkaline batteries only. Do not use rechargeable batteries.
- When replacing batteries, always replace both batteries with new batteries; do not mix old and new batteries.
- If the air conditioner will not be used for an extended period of time, remove the batteries from the remote control.
- Remote Control Storage
Your air conditioner has a special place for remote control storage. Please always put the remote control into the compartment after use.
Note: In order to avoid losing the remote control, please put the remote control in the storage place when you do not use it.
CAUTION
If the liquid from the batteries gets onto your skin or clothes, wash it well with clean water. Do not use the remote control if the batteries have any leakage.
If you eat the liquid from the batteries, brush your teeth, and see the doctor. The chemicals in batteries could cause burns or other health hazards.
Multiple Protection Functions
Anti-freeze protection function
Compressor, water spraying motor will turn off when compressors running over 10 minutes and tube temperature (Tp) is continuously ≦ 2℃ for 20 seconds under cooling mode, E4 will show on LED display window, the unit initiates the anti-frost protection and all buttons on control panel (except for power button) are inactive.
Once the tube temperature ≧ is 8℃, the protection is relieved to recover to its original status, and the compressor applies to 3-minute delay protection.
Water-full safety alarm and shut–off protection function:
Warning sounds when the water volume reaches its alarm level in the water tank, and the unit automatically stops working; both the water-full indicator and “FL” on the LED window are flashing. You need to drain the condensate for the unit to automatically recover operation. (For more information about how to drain, please refer to the “Drainage Instruction” please.)
Delay protection function of the compressor
This unit offers restart protection to compressor. Except that the compressor may start immediately when the unit is energized at first time, there is 3-minute start delay after compressor is shut down.
Handling and Transportation
Handle and move the unit
Hold the top of the air outlet window in the front panel with one hand and the handle at the top of the back panel with another hand, then move the unit in an upright position.
Note:
- Do not hold the horizontal louvers by hand.
- Make the unit in the upright position when handling or moving it.
- Drain the water in the unit completely to prevent water leakage and wet the floor or carpet before handling or moving the unit.
- Take away the remote control before handling or moving the unit.
Drainage Instruction
Manual drain:
When the water volume reaches its alarm level in the water tank, warning sounds are emitted and the unit is automatically stopped working, both the water-full indicator and “FL” are flashing on the LED display window.
- Put the tray below the water outlet at the back of the unit.
- Screw off the drain cover, unplug the water stopper for water flow into the tray.
- Plug in stopper and screw the water cover tightly onto water outlet after drainage.
Notes:
- Protect the drain cover and water stopper properly.
- Move the unit carefully to avoid leakage if it is necessary.
- Tilt the unit slightly backward when draining.
- Block the drain hole as soon as possible before the tray is full if it can’t hold all water in the unit to prevent the water leakage and wet the floor or carpet.
- Water stopper and drain cover must be tightly installed, to avoid new condensate to wet the floor or carpet when the unit re-starts working.
Continuous drain:
- Screw off the drain cover and unplug the water stopper.
- Connect the drain hole with a φ13mm PVC drain hose, as deep as possible to avoid leakage.
- Pull the drain hose from the bathroom or outdoors.
Notes:
- The drain hose must be installed before the unit starts working.
- It is suggested to use manual drainage when the unit is in cooling mode, to ensure enough water to recycled in the unit to cool the condenser and enhance cooling performance.
- Put the drain hose in an inaccessible place, not higher than the drainage hole, and keep the drain hose straight without any flexure.
- Keep the drain cover and its stopper properly installed when continuous drainage is adopted.

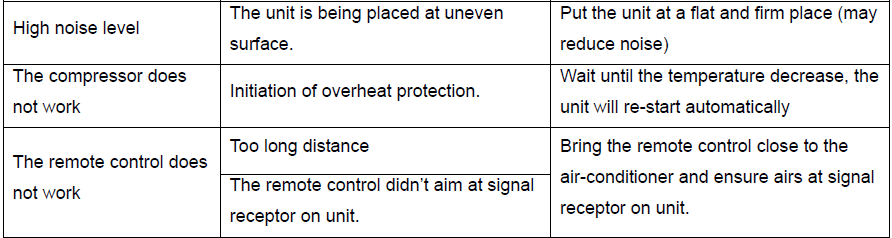

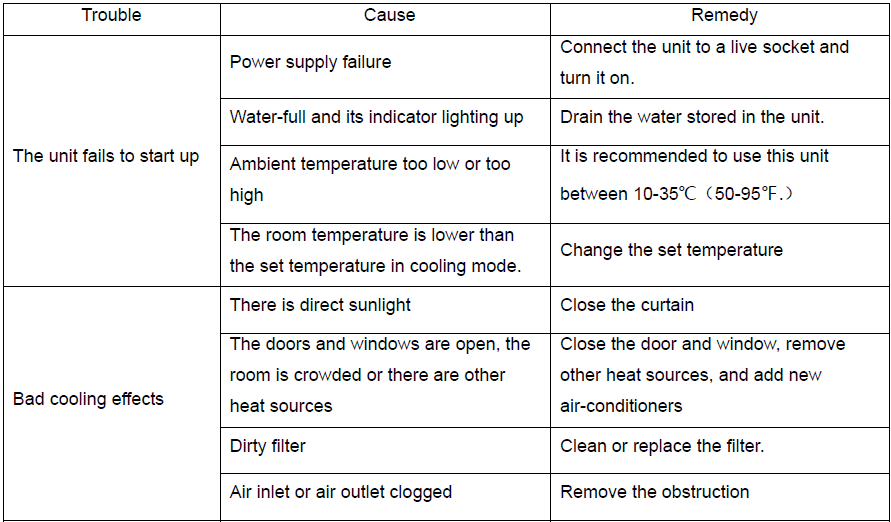

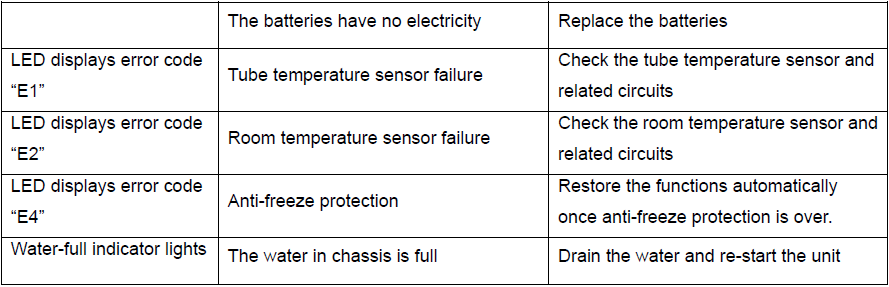

Troubleshooting
Please check the unit and suggestions below before asking for professional service, but never dismantle or repair the unit by yourself; it may cause harm to you and your property.
