Ironton ‎5820665 3-Gallons Oil-Free Pancake Air Compressor User Manual

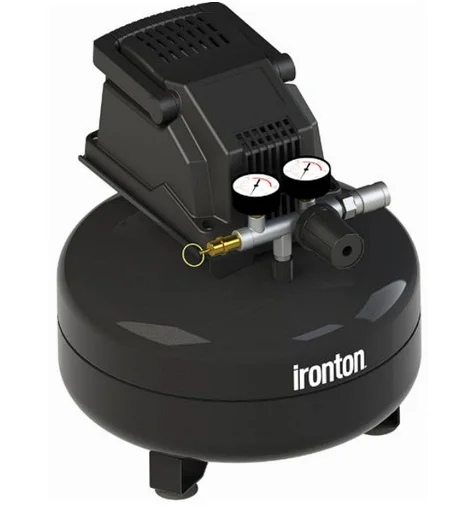

Ironton ‎5820665 3-Gallons Oil-Free Pancake Air Compressor

Intended Use

The 3-Gallon, 1/3 HP, 110-PSI Oil-Free Pancake Air Compressor features a low-profile pancake design for maximum stability. The compact size and light weight make it ideal for jobsite nailing/stapling, inflation, and cleaning.

Packaging Contents

• Air Compressor (1)
• Manual (1)

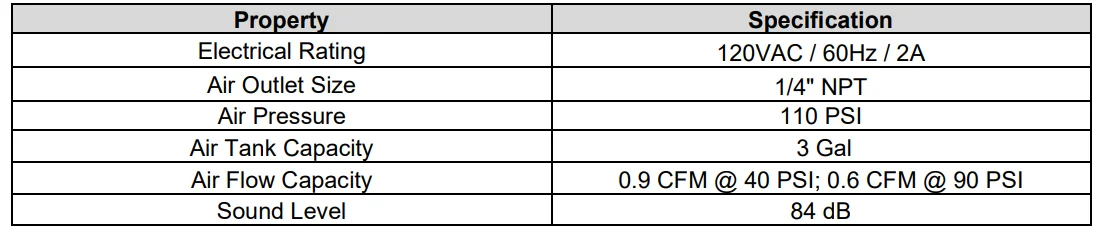

Technical Specifications

Important Safety Information

⚠ WARNING

• Read and understand all instructions. Failure to follow all instructions may result in serious injury or property damage.
• The warnings, cautions, and instructions in this manual cannot cover all possible conditions or situations that could occur. Exercise common sense and caution when using this tool. Always be aware of the environment and ensure that the tool is used in a safe and responsible manner.
• Do not allow persons to operate or assemble the product until they have read this manual and have developed a thorough understanding of how it works.
• Do not modify this product in any way. Unauthorized modification may impair the function and/or safety of the product and could affect the life of the product. There are specific applications for which the product was designed.
• Use the right tool for the job. DO NOT attempt to force small equipment to do the work of larger industrial equipment. There are certain applications for which this equipment was designed. It will be a safer experience and do the job better at the capacity for which it was intended. DO NOT use this equipment for a purpose for which it was not intended.
• Industrial or commercial applications must follow OSHA requirements.

⚠ WARNING

• This product may contain chemicals known to the state of California to cause cancer, birth defects, or other reproductive harm.
• Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the state of California to cause cancer, birth defects, or other reproductive harm. Some examples of these chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks, cement, and other masonry products, and
• Arsenic and chromium from chemically-treated lumber.
• Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well-ventilated area, and work with approved safety equipment, such as dust masks that are specially designed to filter out microscopic particles.
• Handling power cords on corded products may expose you to lead, a chemical known to the state of California to cause cancer and birth defects or other reproductive harm. Wash your hands after handling.

WORK AREA SAFETY

• Inspect the work area before each use. Keep work area clean, dry, free of clutter, and well-lit. Cluttered, wet, or dark work areas can result in injury. Using the product in confined work areas may put you dangerously close to cutting tools and rotating parts.
• Do not use the product where there is a risk of causing a fire or an explosion; e.g., in the presence of flammable liquids, gases, or dust. The product can create sparks, which may ignite the flammable liquids, gases, or dust.
• Do not allow the product to come into contact with an electrical source. The tool is not insulated, and contact will cause electrical shock.
• Keep children and bystanders away from the work area while operating the tool. Do not allow children to handle the product.
• Be aware of all power lines, electrical circuits, water pipes, and other mechanical hazards in your work area. Some of these hazards may be hidden from your view and may cause personal injury and/or property damage if contacted.

PERSONAL SAFETY

• Stay alert, watch what you are doing, and use common sense when operating the tool. Do not use the tool while you are tired or under the influence of drugs, alcohol, or medication. A moment of inattention while operating the tool may result in serious personal injury.
• Dress properly. Do not wear loose clothing, dangling objects, or jewelry. Keep your hair, clothing, and gloves away from moving parts. Loose clothes, jewelry, or long hair can be caught in moving parts. Air vents on the tool often cover moving parts and should be avoided.
• Wear the proper personal protective equipment when necessary. Use ANSI Z87.1 compliant safety goggles (not safety glasses) with side shields, or when needed, a face shield. Use a dust mask in dusty work conditions. Also, use non-skid safety shoes, a hard hat, gloves, dust collection systems, and hearing protection when appropriate. This applies to all persons in the work area.
• Do not overreach. Keep proper footing and balance at all times.

PRODUCT USE AND CARE

• Do not force the product. Products are safer and do a better job when used in the manner for which they are designed. Plan your work, and use the correct product for the job.
• Check for damaged parts before each use. Carefully check that the product will operate properly and perform its intended function. Replace damaged or worn parts immediately. Never operate the product with a damaged part.
• Store the product when it is not in use. Store it in a dry, secure place out of the reach of children. Inspect the tool for good working condition prior to storage and before re-use.
• Use only accessories that are recommended by the manufacturer for use with your product. Accessories that may be suitable for one product may create a risk of injury when used with another tool. Never use an accessory that has a lower operating speed or operating pressure than the tool itself.
• Keep guards in place and in working order. Never operate the product without the guards in place.

Specific Operation Warnings

⚠ WARNING

Work area safety

• Keep work area clean and well-lit. Cluttered or dark areas invite accidents.
• Do not operate the compressor in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. Compressor motors produce sparks, which may ignite the dust or fumes.
• Keep children and bystanders away from an operating compressor.

Electrical safety

• Compressor plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with grounded compressors. Standard plugs and matching outlets will reduce the risk of electric shock.
• Do not expose the compressor to rain or wet conditions. Water entering a compressor will increase the risk of electric shock.
• Do not abuse the cord. Never use the cord for unplugging the compressor. Keep the cord away from heat, oil, sharp edges, or moving parts. Damaged or entangled cords increase the risk of electric shock.

Personal safety

• Stay alert, watch what you are doing, and use common sense when operating this compressor. Do not use this compressor while you are tired or under the influence of drugs, alcohol, or medication. A moment of inattention while operating a compressor may result in serious personal injury.
• Use personal protective equipment. Always wear an ANSI-approved eye protection during setup and use.
• Prevent unintentional starting. Ensure the switch is in the off-position before connecting to a power source or moving the compressor.

Compressor use and care

• Do not use the compressor if the switch does not turn it on and off. Any compressor that cannot be controlled with the switch is dangerous and must be repaired.
• Disconnect the plug from the power source before making any adjustments, changing accessories, or storing the compressor. Such preventive safety measures reduce the risk of starting the compressor accidentally.
• Store an idle compressor out of the reach of children and do not allow persons unfamiliar with the compressor or these instructions to operate it. A compressor is dangerous in the hands of untrained users.
• Maintain the compressor. Keep the compressor clean for better and safer performance. Follow instructions for lubricating and changing accessories.
• Keep dry, clean, and free from oil and grease. Check for misalignment or binding of moving parts, breakage of parts, and any other condition that may affect the compressor’s operation. If damaged, have the compressor repaired before use. Many accidents are caused by a poorly maintained compressor.
• Use the compressor in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the compressor for operations different from those intended could result in a hazardous situation.

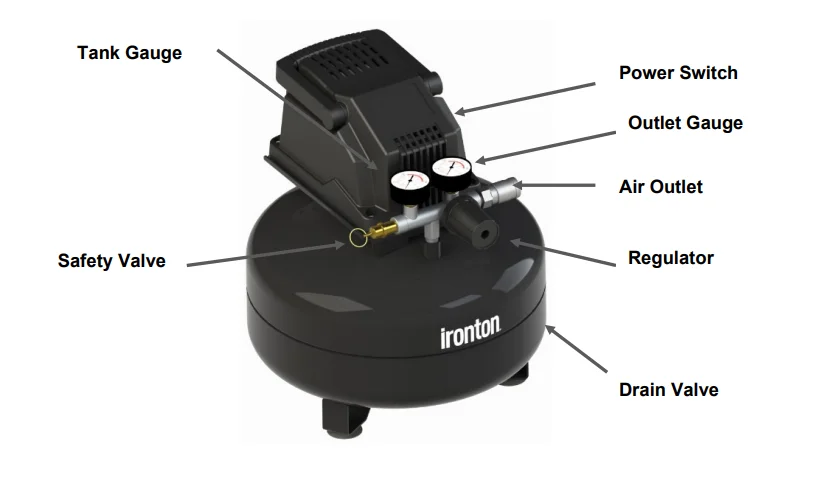

Main Parts of Product

• Subassembly
• Tank Gauge
• Outlet Gauge
• Safety Valve
• Drain Valve
• Air Outlet

Assembly Instructions

⚠ WARNING

Before assembling or making any adjustments to the air compressor:

• Turn the power switch “off.”
• Unplug the air compressor from its electrical outlet

Breaking in the air compressor

1. Turn the Power Switch to OFF and unplug the Power Cord.
2. Turn the Regulator to “+” and fully open it.
3. Fully open Drain Valve.
4. Plug in the Power Cord.
5. Turn the Power Switch to ON.
6. Let the unit run for 15 minutes. Air will expel freely through the Drain Valve.
7. Turn the Power Switch to OFF.
8. Unplug the Power Cord and close the Drain Valve.

Air compressor area set up.

1. Designate a work area that is clean and well-lit. The work area must not allow access by children or pets to prevent injury.
2. Locate the Air Compressor on a flat level surface to prevent damage to the unit. Keep at least 12″ of space around the unit to allow air circulation.
3. Route the power cord from the Air Compressor to the grounded wall outlet, along a safe path without creating a tripping hazard or exposing the power cord to possible damage.

Air connection setup

1. Connect a 1/4″ air hose with an Industrial (T-style) or Automotive (M-Style) plug (both sold separately) to the Air Outlet. The air hose must be long enough to reach the work area with enough extra length to allow free movement while working.
2. Consult the air tool’s manual for needed accessories.

Before Each Use

⚠ WARNING

• To prevent serious injury from accidental operation:
• Turn the power switch “off” and unplug the air compressor from its electrical outlet before performing any inspection, maintenance, or cleaning procedures.

Before each use, inspect the general condition of the Air Compressor. Check for:

1. Loose hardware.
2. Misalignment or binding of moving parts.
3. Cracked or broken parts.
4. Damaged electrical wiring.
5. Any other condition that may affect its safe operation.

Operating Instructions

⚠ WARNING

Read the entire important safety information section at the beginning of this manual, including all text under subheadings therein, before setting up or using this product.

• To prevent serious injury and death from explosion, DO NOT adjust the internal pressure switch.
• Any change to the automatic pressure levels may cause excess pressure to accumulate, causing a hazardous situation.
• Do not use damaged equipment. If abnormal noise or vibration occurs, have the problem corrected before further use.

General operation

1. Close Drain Valve.
2. Close Regulator.

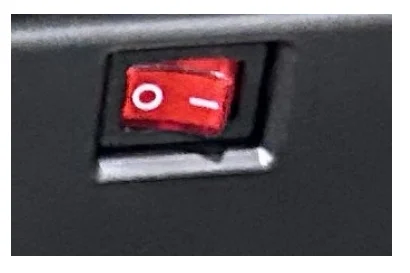

3. Turn the Power Switch to OFF.
4. Plug the power cord into a grounded 120VAC electrical outlet.
5. Turn the Power Switch to ON.
6. Allow the air compressor to build up pressure until it cycles off. Note: As long as the Power Switch is ON, the operation of the Air Compressor is automatic, controlled by an internal pressure switch. The Air Compressor will turn on automatically when the air pressure drops to 85 PSI and will turn off automatically when the air pressure reaches 110 PSI.
7. Make sure the air tool’s throttle or switch is in the OFF position. Connect the air tool to the air hose.

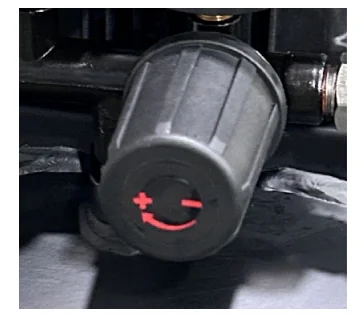

8. Turn the knob clockwise to increase the pressure and counterclockwise to decrease the pressure. Adjust the pressure gradually while checking the Outlet Pressure gauge to set the pressure.
9. Use the air tool as needed.
10. When finished, turn the Power Switch to OFF.
11. Unplug the Air Compressor.
12. Bleed air from the tool, then disconnect the tool.
13. Drain the tank according to Draining Moisture from air tank on page 15.
14. Clean, then store the Air Compressor indoors in an upright position out of children’s reach.

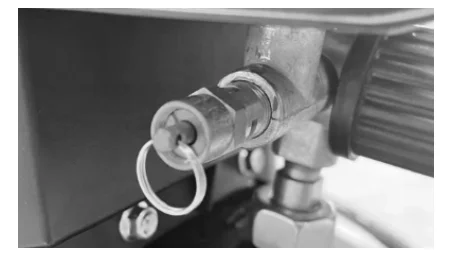

Emergency Depressurization

If it is necessary to quickly depressurize the Air Compressor, turn the Power Switch OFF. Then pull on the ring on the Safety Valve to quickly release stored air pressure.

Automatic Shut Off System

• If the Air Compressor automatically shuts off before reaching its normal cutoff pressure:
• Shut off all tools.
• Turn the Power Switch to OFF.
• Unplug the Air Compressor.
• Wait until the Air Compressor cools down (about 10 minutes).
• Plug the Air Compressor in.
• Turn the Power Switch to ON.
• Resume operation.
• Possible causes of repeated automatic shut-off of the Air Compressor are:
• Using an extension cord that is too long or narrow;
• An air leak or open hose causing the Air Compressor to cycle too often and build up heat;
• Turning the air compressor off and on again too quickly.
• Correct any issues before further use to avoid damage to the Air Compressor.

Maintenance

⚠ WARNING

• Maintain the product by adopting a program of conscientious repair and maintenance in accordance with the following recommended procedures.
• It is recommended that the general condition of any tool be examined before it is used.
• To prevent serious injury from accidental operation: Turn the power switch “off” and unplug the air compressor from its electrical outlet before performing any inspection, maintenance, or cleaning procedures.

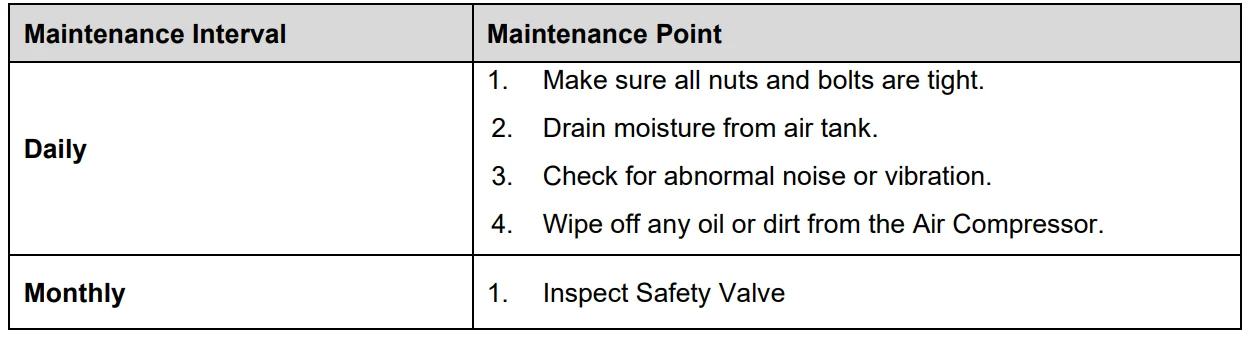

Note: The environment in which the air compressor is used, and the frequency of use, will affect how often you will need to check the air compressor components and perform maintenance procedures.

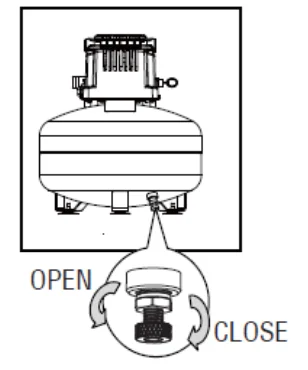

Draining Moisture from the air tank

The moisture drain is located under the tank. It must be used daily to release all trapped air and moisture from the tank. Doing this will eliminate condensation and prevent tank corrosion.

1. Turn the Power Switch OFF.
2. Unplug the Compressor.
3. Tilt Compressor, then turn the Drain Valve to open it.
4. When all pressure and moisture are released, close the Drain Valve.

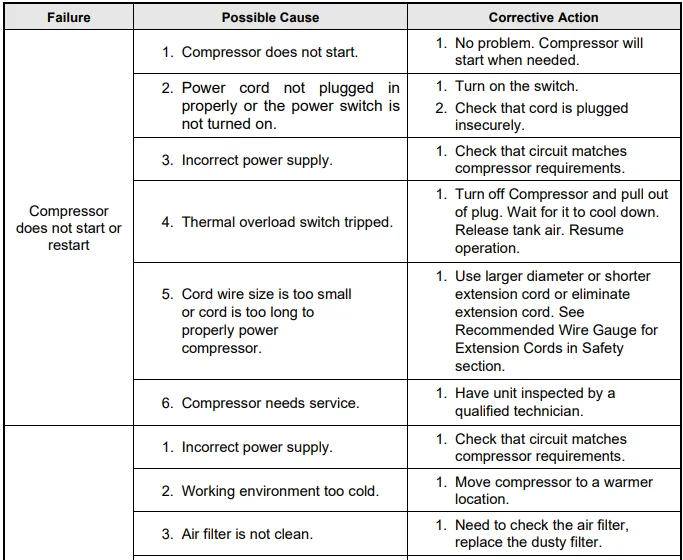

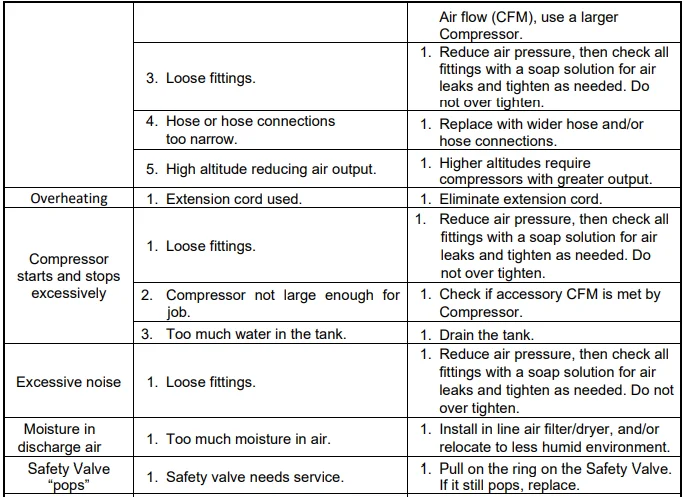

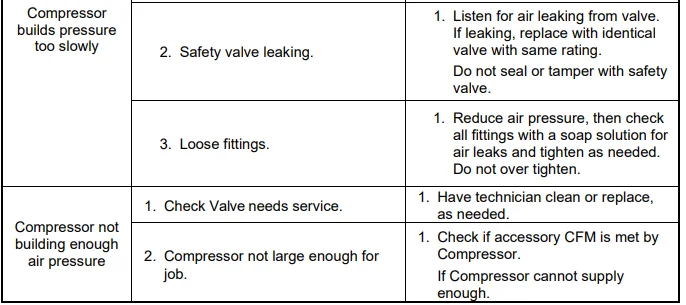

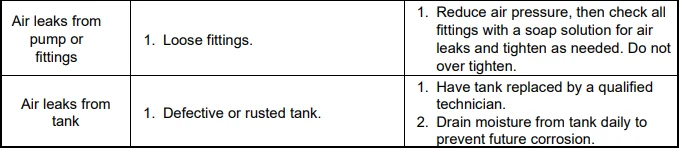

Troubleshooting

⚠ WARNING

• Follow all safety precautions whenever diagnosing or servicing the compressor. Disconnect the power supply before service.

Replacement Parts

• For replacement parts and technical questions, please call Customer Service at 1-800-222-5381.
• Not all product components are available for replacement. The illustrations provided are a convenient reference to the location and position of parts in the assembly sequence.
• When ordering parts, the following information will be required: item description, item model number, item serial number/item lot date code, and the replacement part reference number.
• The distributor reserves the right to make design changes and improvements to product lines and manuals without notice.

Limited Warranty

Northern Tool and Equipment Company, Inc. (“We” or “Us”) warrants to the original purchaser only (“You” or “Your”) that the Ironton product purchased will be free from material defects in both materials and workmanship, normal wear and tear excepted, for a period of one year from the date of purchase. The foregoing warranty is valid only if the installation and use of the product are strictly in accordance with the product instructions.

There are no other warranties, express or implied, including the warranty of merchantability or fitness for a particular purpose. If the product does not comply with this limited warranty, your sole and exclusive remedy is that we will, at our sole option and within a commercially reasonable time, either replace the product or product component without charge to you or refund the purchase price (less shipping). This limited warranty is not transferable.

Limitations on the Warranty

This limited warranty does not cover: (a) normal wear and tear; (b) damage through abuse, neglect, misuse, or as a result of any accident or in any other manner; (c) damage from misapplication, overloading, or improper installation; (d) improper maintenance and repair; and (e) product alteration in any manner by anyone other than Us, with the sole exception of alterations made pursuant to product instructions and in a workmanlike manner.

Obligations of Purchaser

You must retain your product purchase receipt to verify the date of purchase and that You are the original purchaser. To make a warranty claim, contact us at 1-800-222-5381, identify the product by make and model number, and follow the claim instructions that will be provided. The product and the purchase receipt must be provided to us to process your warranty claim. Any returned product that is replaced or refunded by Us becomes our property. You will be responsible for return shipping costs or costs related to your return visit to a retail store.

Remedy Limits

Product replacement or a refund of the purchase price is your sole remedy under this limited warranty or any other warranty related to the product. We shall not be liable for service or labor charges or damage to Your property incurred in removing or replacing the product; any damages, including, without limitation, damages to tangible personal property or personal injury, related to Your improper use, installation, or maintenance of the product or product component; or any indirect, incidental, or consequential damages of any kind for any reason.

Assumption of Risk

You acknowledge and agree that any use of the product for any purpose other than the specified use(s) stated in the product instructions is at your own risk.

Governing Law

This limited warranty gives You specific legal rights, and You also may have other rights which vary from state to state. Some states do not allow limitations or exclusions on implied warranties or incidental or consequential damages, so the above limitations may not apply to you. This limited warranty is governed by the laws of the State of Minnesota, without regard to rules pertaining to conflicts of law. The state courts located in Dakota County, Minnesota, shall have exclusive jurisdiction for any disputes relating to this warranty. Visit www.northerntool.com for more information.
